Swann DVR4-1100 Manuale utente

DVR4-1100™

4CH Digital Video Recorder

SW242-LP4 / SW242-LPN

INDEX

1. DVR Features....................................................................... 1

2. Layout

2.1 Front Panel...............................................................................................1

2.2 Rear Panel................................................................................................2

2.3 Remote Controller...............................................................................2

3. Installation

3.1 Installing Hard Drive..........................................................................3

3.2 Connecting Camera and Monitor.................................................3

3.3 Connecting Power Supply…………………………..…..3

4. System Boot

4.1 Detecting Installed Hard Drive.....................................................4

4.2 Recovering Lost Data........................................................................4

4.3 Restore Recording Feature..............................................................4

4.4 Main Screen............................................................................................5

5. DVR Setup

5.1 Setup Menu.............................................................................................5

5.2 Camera Select........................................................................................6

5.3 Record Select.........................................................................................6

5.4 Resolution................................................................................................7

5.5 Record Frame.........................................................................................7

5.6 Record Quality ......................................................................................8

5.7 Schedule Set............................................................................................8

5.8 Miscellaneous Menu - Auto Record................................ 9

5.9 Miscellaneous Menu - Password Enable......................... 9

5.10 Miscellaneous Menu - Password Change .......................9

5.11 Miscellaneous Menu - Color Set..................................... 9

5.12 Miscellaneous Menu - Time Set.................................... 10

5.13 Hard Disk Set.......................................................................................10

5.14 Motion Set..............................................................................................11

5.15 Video Mode...........................................................................................12

5.16 Factory Reset........................................................................................12

6. Recording

6.1 Start Recording....................................................................................12

6.2 Stop Recording....................................................................................13

6.3 Recording Time on Hard Drive..................................................13

7. Playback.............................................................................. 14

8. USB Programming............................................................. 15

8.1 PC Viewer Program........................................................ 15

8.2 Program Buttons ............................................................ 15

8.3 PC Backup...............................................................................................16

9. Specifications...................................................................... 17

10. Appendix

10.1 System Connection Diagram......................................... 18

10.2 DVR Accessories (included)......................................... 18

- 1 -

User’s Manual

z4 Channel BNC Camera Input

z1 Channel BNC Video Output

zVideo Source Option: NTSC / PAL

zMotion Detection with Sensitivity and Area Settings

zTime Schedule Recording / Motion Triggered Recording

zOne ATA-100 Hard Disk Interface

zUSB 2.0 Back up to computer

zWith Remote Control & Removable Hard Drive Tray

2.1 Front Panel

CH1 Channel #1 Stop Stop recording / playing back

CH2 Channel #2 REC Record

CH3 Channel #3 Menu/Esc Enter / exit setup menu

CH4 Channel #4 SEL/Edit Select / modify item

Quad Quad View Up Move up / left cursor

REW Rewind Down Move down / right cursor

Pause Pause PWR Power indicator

Play Play recorded video HDD Hard disk drive indicator

FWD Forward

Chapter 1: DVR Features

Chapter 2: Layout

Removable HDD Tray HDD Lock

IR Receiver

- 2 -

User’s Manual

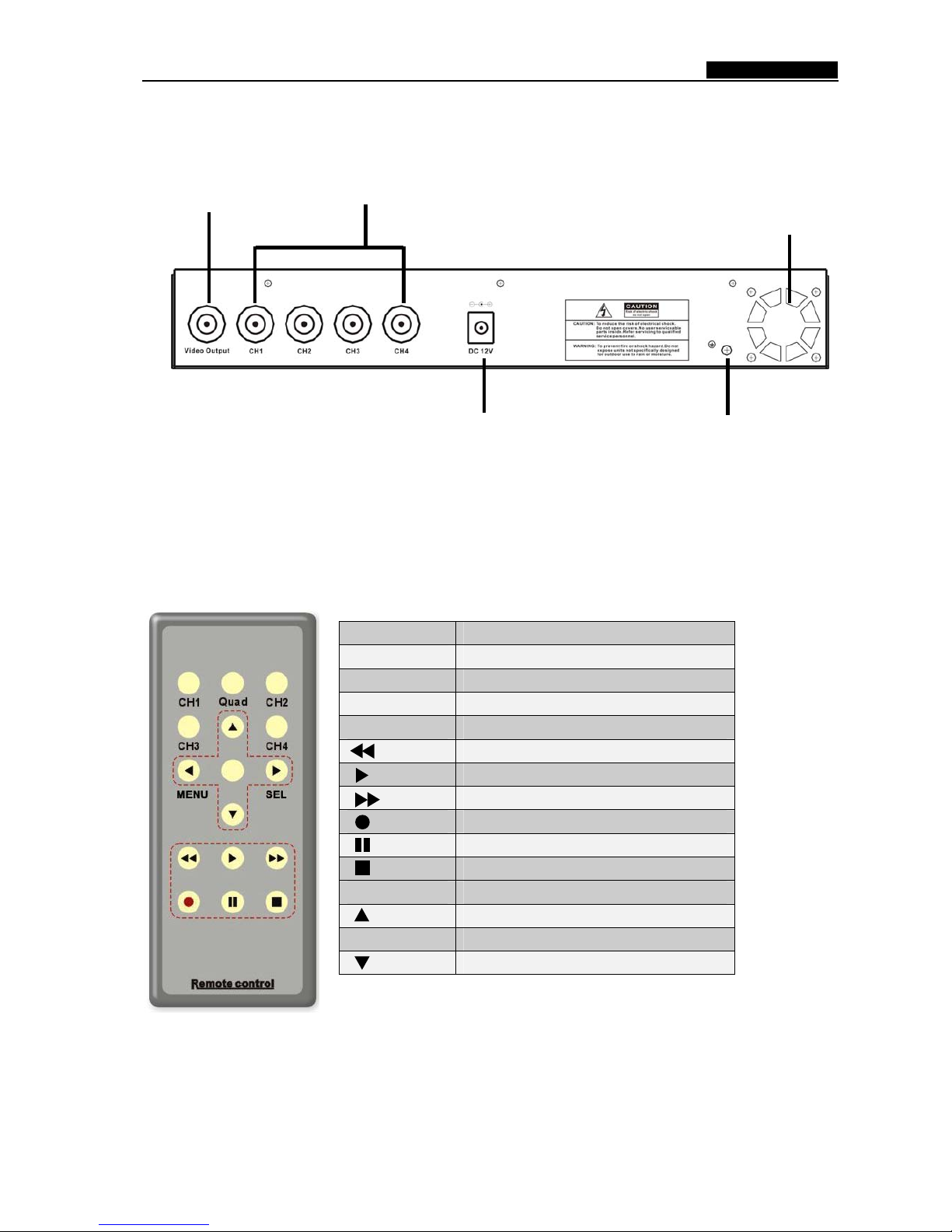

2.2 Rear Panel

USB Port is located on the right side of the case.

2.3 Remote Controller

CH1 Select or enlarge Channel #1

CH2 Select or enlarge Channel #2

CH3 Select or enlarge Channel #3

CH4 Select or enlarge Channel #4

Quad Quad View

Rewind

Play recording list

Forward

Record

Pause

Stop recording / playing back

Menu Enter or exit setup menu

Move up / left cursor

SEL Select / modify item

Move down / right cursor

Power Supply Input Grounding Terminal

4 BNC video inputs

1 BNC video output

Fan

- 3 -

User’s Manual

3.1 Installing Hard Drive

1. Unplug the power supply. Don’t install or uninstall HDD when DVR is on!!

2. Slide the HDD tray out of DVR body carefully.

3. Connect the power cord and data cable to hard disk drive.

Make sure the HDD is set to be MASTER according to the hard drive manual.

The 4 pin connection is the DC power cable for HDD, and the wider cable is the standard

hard drive IDE type connection.

4. Insert the HDD tray into DVR body tightly.

5. Lock the HDD tray.

Lock the caddy by turning the key clockwise.

If you need to unlock the tray, turn the key anti-clockwise.

CAUTION:

1. If you do NOT lock the HDD tray, the DVR system might not function properly.

2. Do not remove the HDD tray while the DVR is on!

3.2 Connecting Camera and Monitor

There are 4 camera inputs and 1 video output with BNC connectors (Refer to

2.2 Rear Panel).

3.3 Connecting Power Supply

Please only use the power adapter supplied with the DVR. The standard power

supplied to the DVR is DC 12 Voltage, 3Amperes.

Cha

ter 3: Installation

- 4 -

User’s Manual

4.1 Detecting Installed Hard Drive

4.2 Recovering Lost Data

4.3 Restore Recording Feature

After connecting the power, the system

will boot-up and detect the installed hard

drive.

On the screen it will show the hard drive

information.

A power error can cause data to be lost,

and the DVR system will automatically

recover lost data after power is reconnected.

If a power error occurs during

recording process, the system will

automatically resume recording after

power is reconnected.

Chapter 4: System Boot

Checking HDD ……

MASTER…

RECOVER HDD?

04811-101735

(SELECT)YES/(MENU)NO

Power Error Detected

Restore Hard Disk (Master) OK

Restore REC Mode…………OK

- 5 -

User’s Manual

4.4 Main Screen

5.1 Setup Menu

Menu Directory

CAMERA SELECT

RECORD SELECT

RESOLUTION

RECORD FRAME

RECORD QUALITY

SCHEDULE SET

MISCELLANEOUS MENU

HARD DISK SET

MOTION SET

VIDEO MODE

FACTORY RESET

Chapter 5: DVR Setup

MAIN

＞

AUTO RECORD

PASSWORD ENABLE

PASSWORD CHANGE

COLOR SET

TIME SET

While the DVR is running, the

monitor will display the view from the

cameras as following:

Upper left: Percentage of used hard drive

space

Middle: Channel name (CH1 through

CH4)

Bottom right: Date and Time

Bottom left: System status. (Refer to 6.1

Start Recording)

10%

1 2

EACH REC

[

]

<T> 2008/08/08

- 6 -

User’s Manual

5.2 Camera Select

If a channel is disabled, the system will display “OFF” on the monitor,

meanwhile, this channel won’t be selected to record. (Refer to 5.3 Record Select)

5.3 Record Select

Configure which channel is allowed to record.

Note: If no channels are selected, an error message will appear briefly on the

screen when record is selected.

The DVR system can display 4

cameras feed in one picture (Quad Mode).

You can configure which camera is

displayed.

Press [ SEL] to modify setting, or

press [CH1], [CH2], [CH3] and [CH4] to

set each channel separately.

[Menu]: enter system menu

[Up] and [ Down]: move the cursor

[SEL]: select/modify settings

[Menu]: press again to exit

MAIN MENU

CAMERASELECT 1234

RECORDSELECT 1234

RESOLUTION EACH

RECORDFRAME 25

RECORDQUALITY HIGH

SCHEDULE SET

MISCELLANEOUS MENU

HARD DISK SET

MOTION SET

VIDEOMODE PAL

FACTORY RESET

PRESS (UP，DOWN), ENTER (SELECT)

PRESS (MENU) TO EXIT

- 7 -

User’s Manual

5.4 Resolution

There are two modes of resolution for video recording:

EACH Mode:

The DVR compresses and records each video channel separately so you can

enlarge a single channel to full screen display and still be recording on all channels.

You can also record on specific channels, for example, you can turn off the record

function of CH1 and CH2 and then the system will only record video on CH3 and

CH4.

Press [CH1], [CH2], [CH3], and [CH4] enlarge relative channel to full screen

display.

In EACH Mode you can use the Auto Switch Function.

Auto Switch Function:

When the system is in live mode or recording mode, press the [QUAD] button

and hold for three (3) seconds to make each video channel enlarge to full screen.

The full screen will be displayed for three (3) seconds, including Quad view.

The switch will lasts until any button is pushed.

For example, [ Stop] will stop the switch and may stop the recording

depending on Record Schedule Settings (5.7 Schedule Set).

QUAD Mode:

The DVR will compress and record all 4 video channels into one file, therefore,

you cannot enlarge a single channel to full screen in play back mode or live

monitoring mode.

Auto Switch Function is not available in QUAD Mode.

5.5 Record Frame

Record frame will affect the movement of objects in recorded video. More

frames per second gives smoother movement and uses more hard disk space.

System default value is 30fps (frames per second) for NTSC (PAL is 25fps),

which means the system will record 30 frames per second shared by all cameras.

You can set frame rate for NTSC to 30,15,10,7,5,4,3,2,1 frames per second (PAL is

25,12,8,6,4,3,2,1)
