8 Channel

Digital Video Recorder

H.264 Compression

DVR8-8600™

The latest H.264 video compression combined with networking, pentaplex

operation and an array of powerful features for monitoring & recording

Advanced H.264 recording

• State-of-the-art H.264 compression records at a lower bit rate for high quality play

back, longer recording with less storage required

• Amazing video images from 120fps recording, 240fps live view

• Ready to record with pre-installed 250GB Seagate HDD

• Easy back-up of incidents via USB port

• Multiple recording modes including motion detection, timer, event recording

(alarm, motion detection), and recording list

Easy to set-up and use

• Pentaplex operation for simultaneous recording, playback, setup, back-up and

network surveillance

• Enhanced simple to use graphic user interface (GUI) with mouse operation

via USB or PS/2

• View live from your mobile cell phone or handheld device*

• View recorded video one channel at a time

Sophisticated networking

• Sophisticated network capabilities including remote live view, remote playback,

PTZ camera control and remote menu setup

• Remote viewing is a snap with IE browser support from downloadable software

www.swannsecurity.com

Please note that the information contained within this document is subject to change without notification.

System Specifications

Digital Video Recorder

Compression Format Standard H.264 Baseline

Video Output Composite 1.0V p-p/75 Ohms,

BNC x 2 S-Video x 1, VGA x 1

Video Input Composite 1.0V p-p/75 Ohms, BNC x 8

Display Resolution 720 x 480 (NTSC)

Record Resolution 352 x 240, 704 x 480 (NTSC)

Display Frame rate 240fps (NTSC)

Global Record Frame rate 120fps, 60fps (NTSC)

Audio Input -8dB~22k, RCA x 4

Audio Output -8dB~92dB, RCA x 1

Record Mode Manual / Sensor / Timer /

Motion detection

Operation Pentaplex

Network Interface RJ45 (LAN, Internet)

PTZ Control Yes

Communication Interface RS485, USB2.0 x 2

(front USB for back-up, back

USB for mouse), PS/2 x 1

Hard Disk Pre-installed Seagate 250GB

Remote Control Yes

Power Supply 12 Volts

All trademarks remain properties of their respective owners.

8 Channel

Digital Video Recorder

H.264 Compression

DVR8-8600™

The latest H.264 video compression combined with networking, pentaplex

operation and an array of powerful features for monitoring & recording

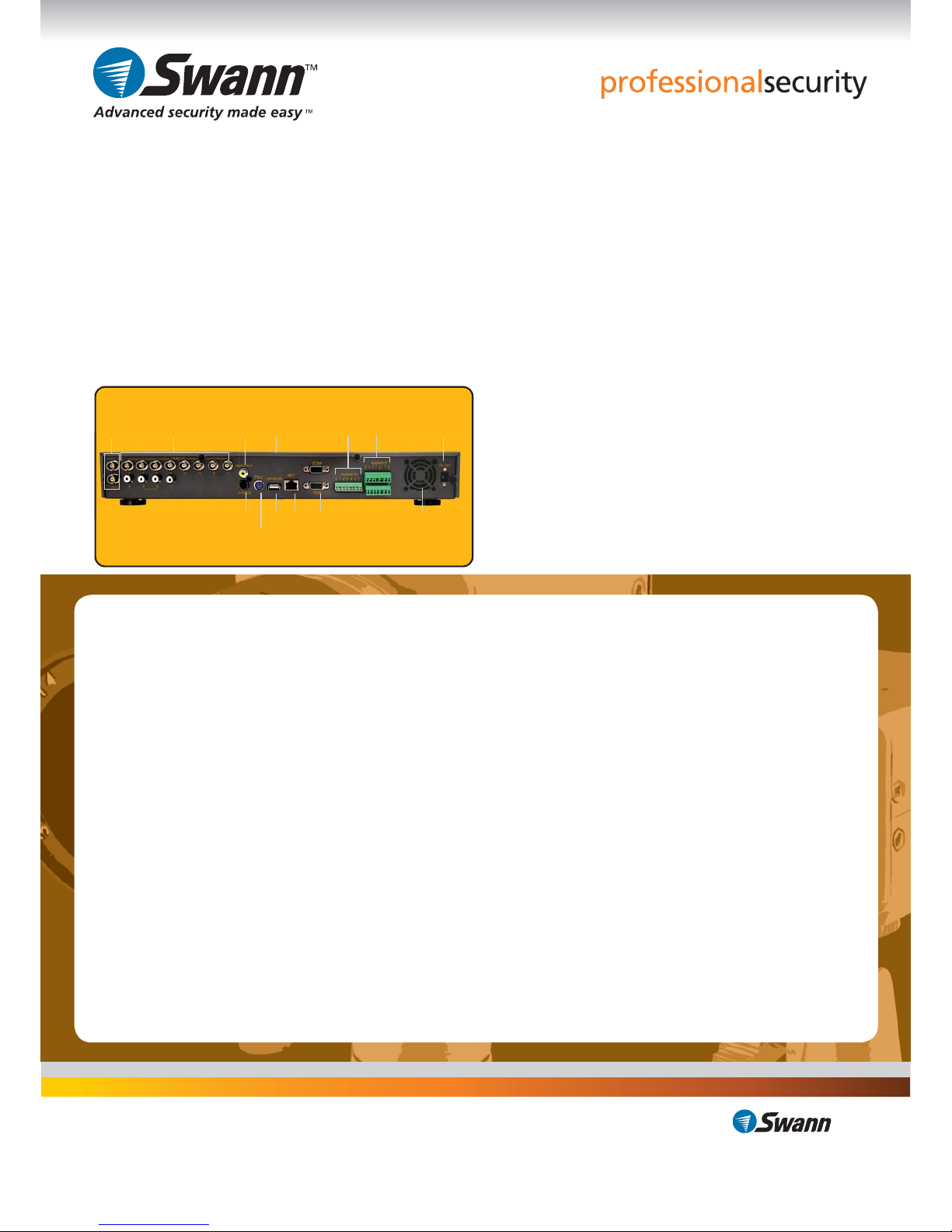

DVR8-8600™

Video

Output

1-8 Channel

Camera / Video Input

Audio

Output

S Video

Audio

Input

Alarm

Input

Alarm

Output

Power Supply

Input

USB

Mouse

Network

Input

VGA

Output Cooling Fan

PS/2

Input

Package Contents

all installation hardware included

• DVR8-8600™ 8 Channel Digital Video Recorder

• 250GB Seagate Hard Drive (5 Year Warranty)

• BNC to RCA Adapters x 9

• BNC to RCA Video Cable 3ft (1m)

• Power Adapter

• Remote Control

• Mouse

• User Manual

*Must use Windows Mobile 5, 6, Symbian OS.

Does not support i-Phone & Blackberry.
