FCC Veriﬁcation:

NOTE: This equipment has been tested and found to comply with the limits for

Class B digital device, pursuant to part 15 of the FCC Rules. These limits are de-

signed to provide reasonable protection against harmful interference in a residen-

tial installation. This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio or television reception, which can be deter-

mined by turning the equipment off and on, the user is encouraged to try to cor-

rect the interference by one or more of the following measures:

· Reorient or relocate the receiving antenna

· Increase the separation between the equipment and the receiver

· Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected

· Consult the dealer or an experienced radio/TV technician for help

IMPORTANT: Prohibition against eavesdropping.

Except for the operations of law enforcement ofﬁcers conducted under lawful

authority, no person shall use, either directly or indirectly, a device operated pursu-

ant to the provisions of this Part for the purpose of overhearing or recording the

private conversations of others unless such use is authorized by all of the parties

engaging in the conversation.

WARNING: Modiﬁcations not approved by the party responsible for compliance

could void user’s authority to operate the equipment.

IMPORTANT SAFETY INSTRUCTIONS:

· Make sure product is ﬁxed correctly and stable if fastened in place

· Do not operate if wires and terminals are exposed

English

Table of Contents

Package Contents

Before You Begin 2

Table of Contents 3

Package Contents 3

Connection Guide 4 - 5

Viewing the Camera on Your TV or VCR 6

Tips & Suggestions 6

Troubleshooting Guide 7

Helpdesk / Technical Support Details Rear Cover

Warranty Information Rear Cover

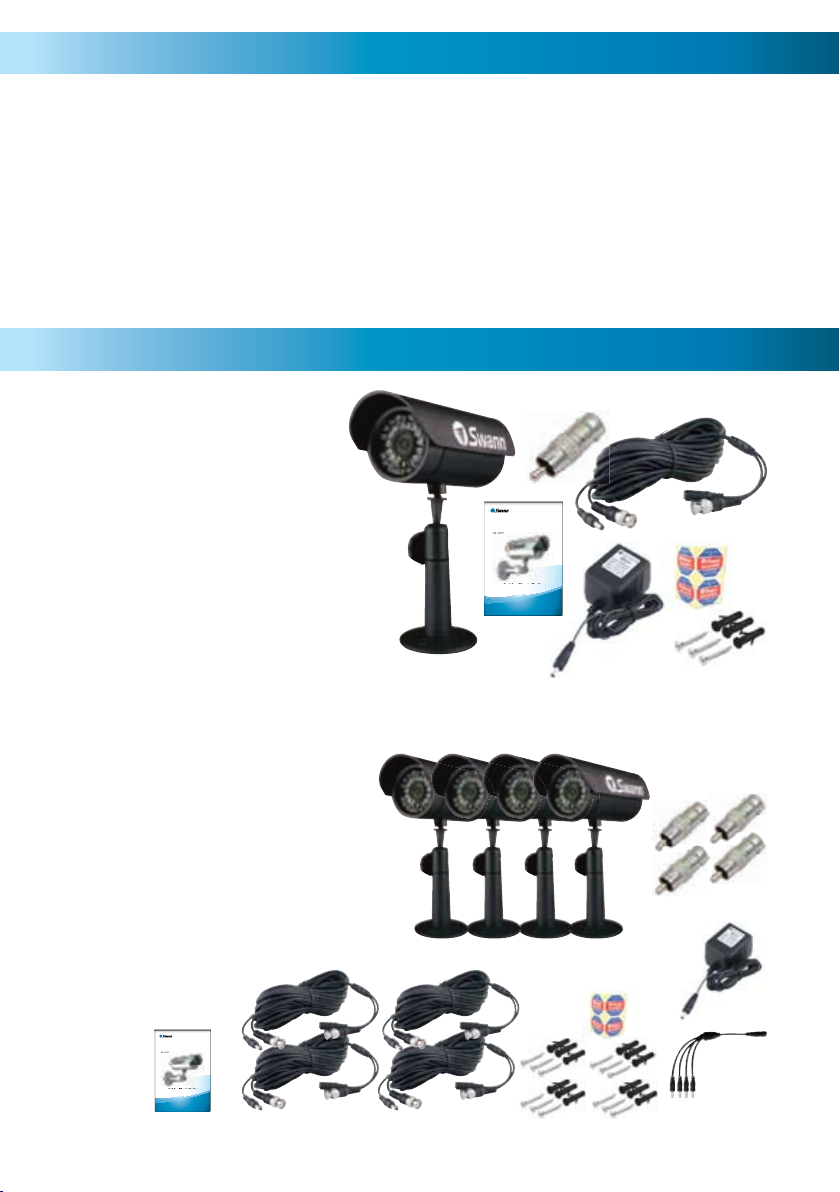

Single Camera Pack

1 x PNP-150 Security Camera•

1 x Camera Stand•

1 x BNC Extension Cable•

1 x BNC to RCA Adapter•

1 x Power Adapter•

1 x Operating Instructions•

4 x Security Stickers•

Mounting Hardware•

Four Camera Pack

4 x PNP-150 Security Camera•

4 x Camera Stand•

4 x BNC Extension Cable•

4 x BNC to RCA Adapter•

1 x Power Adapter•

1 x Power Splitter•

1 x Operating Instructions•

4 x Security Stickers•

Mounting Hardware•

Advancedsecuritymade easy™

SW212-HXB

www.sannsecurity.com

SR212-HXB-F0006

FR200109

Maxi Outdoor

Caméra de sécurité

Guide d’installation

PNP-150™

Guide d’installation

PNP-150™

plug&playsecurity

Advancedsecurity made easy™

SW212-HXB

www.sannsecurity.com

SR212-HXB-F0006

FR200109

Maxi Outdoor

Caméra de sécurité

Guide d’installation

PNP-150™

Guide d’installation

PNP-150™

plug&playsecurity

4444

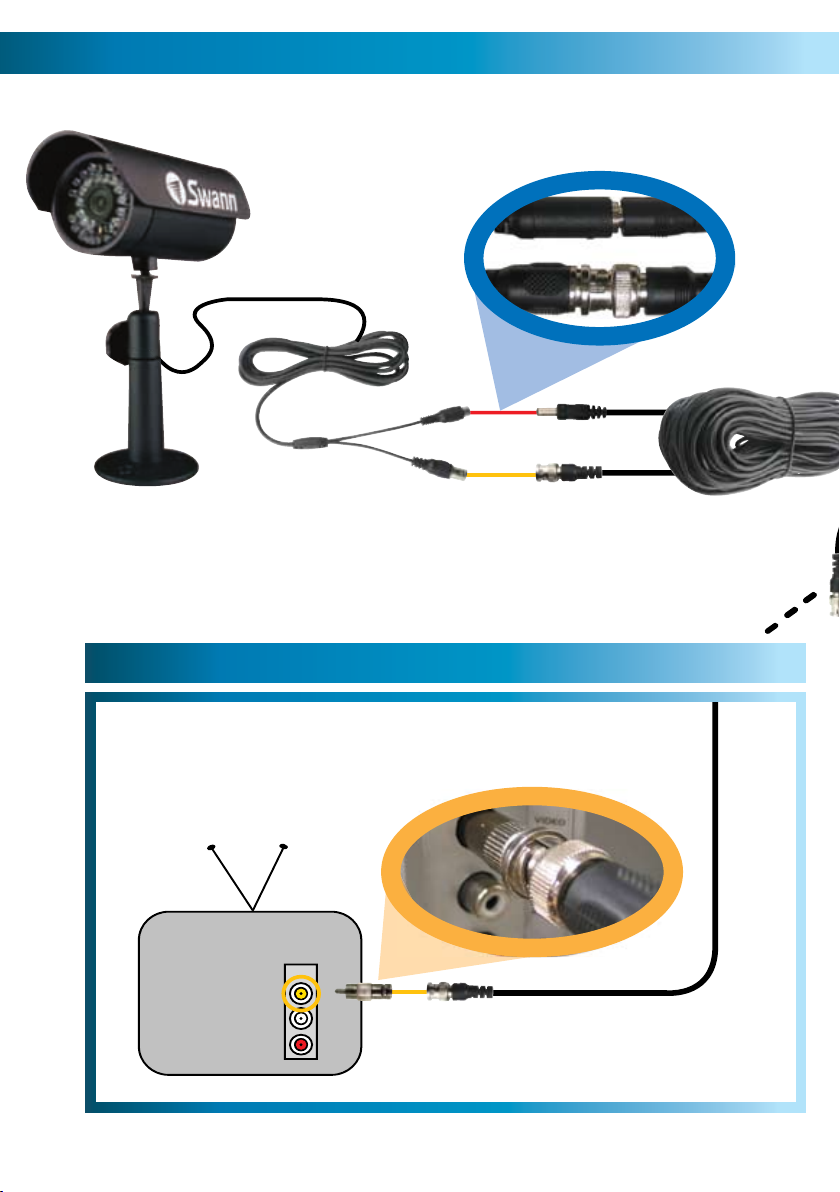

Connection Guide

INPUT

2A. Connecting Directly to TV 2B. Connecting to Your Existing DVR

Connect the BNC to RCA

Adapter and connect to Video

Input on your TV or VCR

2Connect the BNC Extension

Cable to an open channel on

the back of the DVR

Plug in the camera

power adapter into

a wall socket

Connect the camera’s DC

and BNC socket cable to the

extension cable’s DC and BNC plugs

1FOR A SINGLE CAMERA

Connect the extension cables

DC socket to the DC plug on

the power adapter

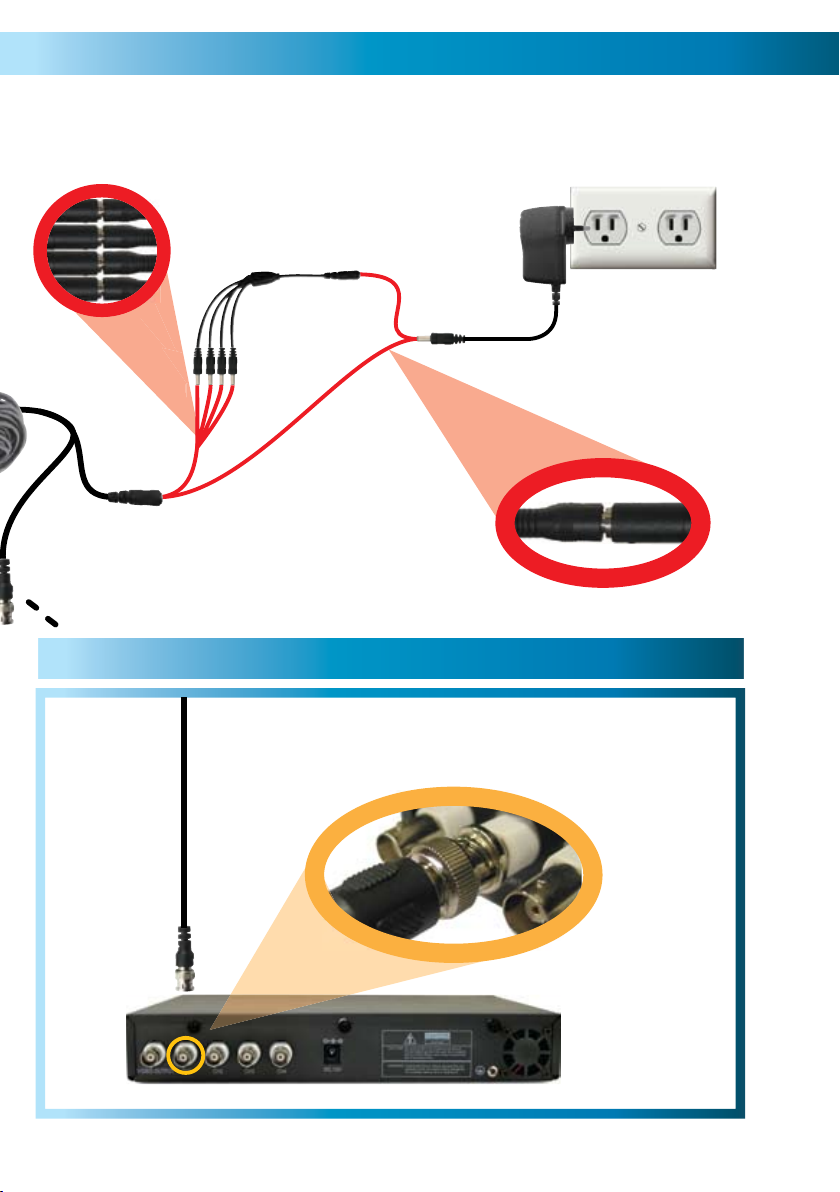

FOR 4 CAMERA PACKS

Connect the extension cables

DC socket to one of the four

sockets on the power splitter.

Then, plug the single end of the

power splitter to the DC plug

on the power adaptor.

INPUT

2A. Connecting Directly to TV 2B. Connecting to Your Existing DVR

Connect the BNC to RCA

Adapter and connect to Video

Input on your TV or VCR

2Connect the BNC Extension

Cable to an open channel on

the back of the DVR

Plug in the camera

power adapter into

a wall socket

Connect the camera’s DC

and BNC socket cable to the

extension cable’s DC and BNC plugs

1FOR A SINGLE CAMERA

Connect the extension cables

DC socket to the DC plug on

the power adapter

FOR 4 CAMERA PACKS

Connect the extension cables

DC socket to one of the four

sockets on the power splitter.

Then, plug the single end of the

power splitter to the DC plug

on the power adaptor.

666

Viewing the Camera on Your TV or VCR

Tips & Suggestions

Viewing the PNP-150 on a TV

After connecting the PNP-150 Camera directly to your TV and powering it on as

described on page 4, tune the TV to the correct input channel.

On your TV’s remote control, the input button is usually labelled as Input, Source,

A/V, Channel 0, AUX etc.*

Viewing and Recording the PNP-150 on a VCR

Connect the PNP-150 into an available input channel on your VCR in the same

manner as the TV connection listed on page 4. Turn on your VCR and TV as if

you were about to play a VCR tape.

On your VCR’s remote control, ﬁnd the input button with is usually labelled as L1,

L2, Input, Source, A/V, Channel, 0, AUX etc.* Insert a tape and push record to

record the camera.

*Consult the TV or VCR instruction manual for details about changing input

channels

Never aim the camera directly at the sun as it may damage the sensor

Test all connections and ensure the camera is working correctly prior to permanent

installation

Install cameras high enough or out of reach to avoid tampering

Place Security Stickers in a visible location to alert potential thieves they are being

monitored

Mix real cameras with dummy cameras to give the impression of increased security

coverage

Purchase a Swann DVR to record multiple cameras simultaneously and easily moni-

tor your property.

Place cameras in high trafﬁc areas such as doorways to maximise security

Use only the included Power Supply and do not modify or cut wires

Troubleshooting Guide

Technical Specifications

Problem: I can’t see the camera on my TV.

Solution: Ensure the camera is plugged in and the TV or VCR is tuned to the

correct input channel.

Problem: When I view my camera at night I only see a bright spot and no image.

Solution: Night Vision will reect when shining through a window. Move the

camera to the other side of the window or another location.

Problem: The BNC Extension Cable will not connect to my TV.

Solution: Connect the BNC to RCA adapter to the end of the Extension Cable

and plug into the TV.

Problem: On my Swann DVR, Video Loss appears where my camera should be.

Solution: Check the Extension cable is securely connected to the camera and

check the connection is secure on the back of the DVR. Also ensure the camera

has power by trying a second power outlet.

Video

Image Sensor 1/3” Color Super CMOS

Video Quality 400 TV Lines

Number of Effective Pixels NTSC: 510 x 492 / PAL: 628 x 582

Minimum Illumination 0 Lux (IR on)

Day/Night Mode Color during day / switches to B&W night

White Balance Automatic

Signal / Noise Ratio > 50dB

Electronic Shutter 1/60 - 1/15,000 NTSC / 1/50 - 1/15,000 PAL

Gain Control Automatic

Backlight Compensation Yes

Lens 6mm

Viewing Angle 53 degrees

Night Vision

Number of Infra-Red LEDs 30

Infra-Red Wavelength 850nm

Night Vision Distance Up to 30ft / 9m

Infra-Red LED Life 10,000 hours

General

Operating Power DC 12V

Operating Temperature -10°C ~ 50°C / 14°F ~ 122°F

Body Construction ABS Plastic

Dimensions - Camera 5.5” x 2.8” x 2.8” / 140mm x 70mm x 70mm

Dimensions – Stand 4.5” x 2.3” x 2.3”/ 120mm x 60mm x 60mm

Weight – Camera & Stand 0.5lbs / 235g

888

Français

Vériﬁcation du FCC :

REMARQUE : Cet équipement a été testé et déterminé comme étant conforme

avec les limites pour les dispositifs numériques de Classe B, en vertu de la partie

15 des Règles du FCC. Ces limites sont conçues pour fournir une protection

raisonnable contre les brouillages nuisibles dans une installation résidentielle. Cet

équipement génère, utilise et peut rayonner de l’énergie de radiofréquence et,

s’il n’est pas installé ou utilisé en conformité avec les directives, peut causer du

brouillage nuisible à la réception radio ou télévision. Cela peut être déterminé en

allumant et éteignant l’équipement; l’utilisateur est encouragé à essayer de cor-

riger le brouillage par une ou plusieurs des mesures suivantes :

- Réorienter ou déplacer l’antenne de réception

- Augmenter la séparation entre l’équipement et le récepteur

- Connecter l’équipement dans une prise de courant sur un circuit différent que

celui sur lequel le récepteur est connecté

- Consulter le détaillant ou un technicien radio/télévision expérimenté pour de

l’assistance

IMPORTANT: Interdiction d’écoute clandestine. Mis à part pour les opérations

des agents de la loi effectuées sous une autorité légitime, aucune personne ne

doit utiliser, directement ou indirectement, un appareil utilisé conformément

aux dispositions de cette Partie dans le but d’écouter de manière indiscrète ou

d’enregistrer des conversations privées à moins qu’une telle utilisation est

autorisée par toutes les parties engagées dans la conversation.

AVERTISSEMENT: Toutes modiﬁcations qui n’ont pas été approuvées pourraient

annuler la permission de l’utilisateur d’utiliser ce produit.

DIRECTIVES DE SÉCURITÉ IMPORTANTE :

· S’assurer que le produit soit ﬁxé correctement et stable s’il est attaché en place

· Ne pas utiliser si des ﬁls et des bornes sont exposés

Table des matières

Contenu de l’emballage

Avant de commencer 8

Table des matières 9

Contenu de l’emballage 9

Guide de connexion 10-11

Visionner la caméra sur votre télévision ou magnétoscope 12

Conseils & Dépannage 13

Spéciﬁcations Techniques 13

Information sur la Garantie 14

Centre d’assistance / Détails sur le Soutien Technique 15

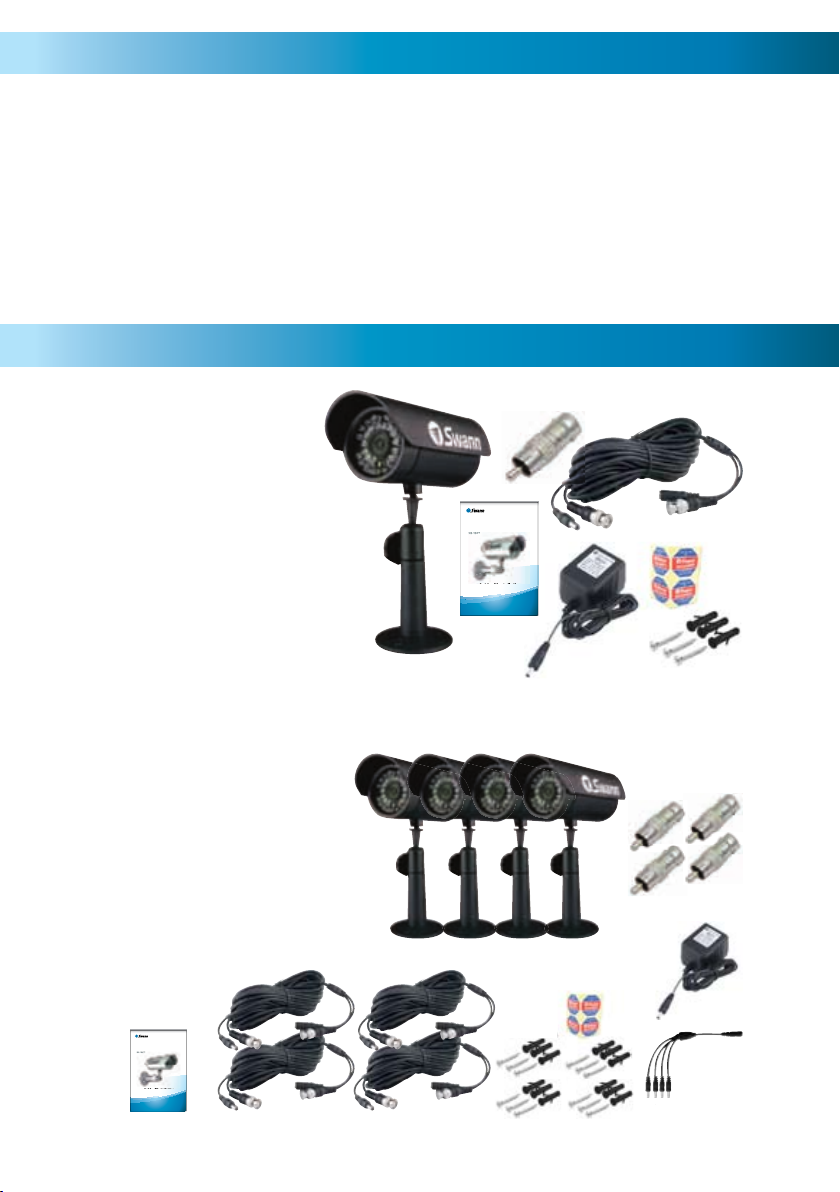

Les paquets avec une seule caméra

1 x Caméra de sécurité PNP-150•

1 x Stand•

1 x Câble d’allongement BNC•

1 x Adaptateur BNC à RCA•

1 x Adaptateur de puissance•

1 x Guide d’installation•

4 x Autocollants de sécurité•

Éléments de montage•

Paquets de quatre caméras

4 x Caméra de sécurité PNP-150•

4 x Stand•

4 x Câble d’allongement BNC•

4 x Adaptateur BNC à RCA•

4 x Adaptateur de puissance•

4 x Guide d’installation•

4 x Autocollants de sécurité•

Éléments de montage•

Advancedsecuritymade easy™

SW212-HXB

www.sannsecurity.com

SR212-HXB-F0006

FR200109

Maxi Outdoor

Caméra de sécurité

Guide d’installation

PNP-150™

Guide d’installation

PNP-150™

plug&playsecurity

Advancedsecurity made easy™

SW212-HXB

www.sannsecurity.com

SR212-HXB-F0006

FR200109

Maxi Outdoor

Caméra de sécurité

Guide d’installation

PNP-150™

Guide d’installation

PNP-150™

plug&playsecurity

101010

INPUT

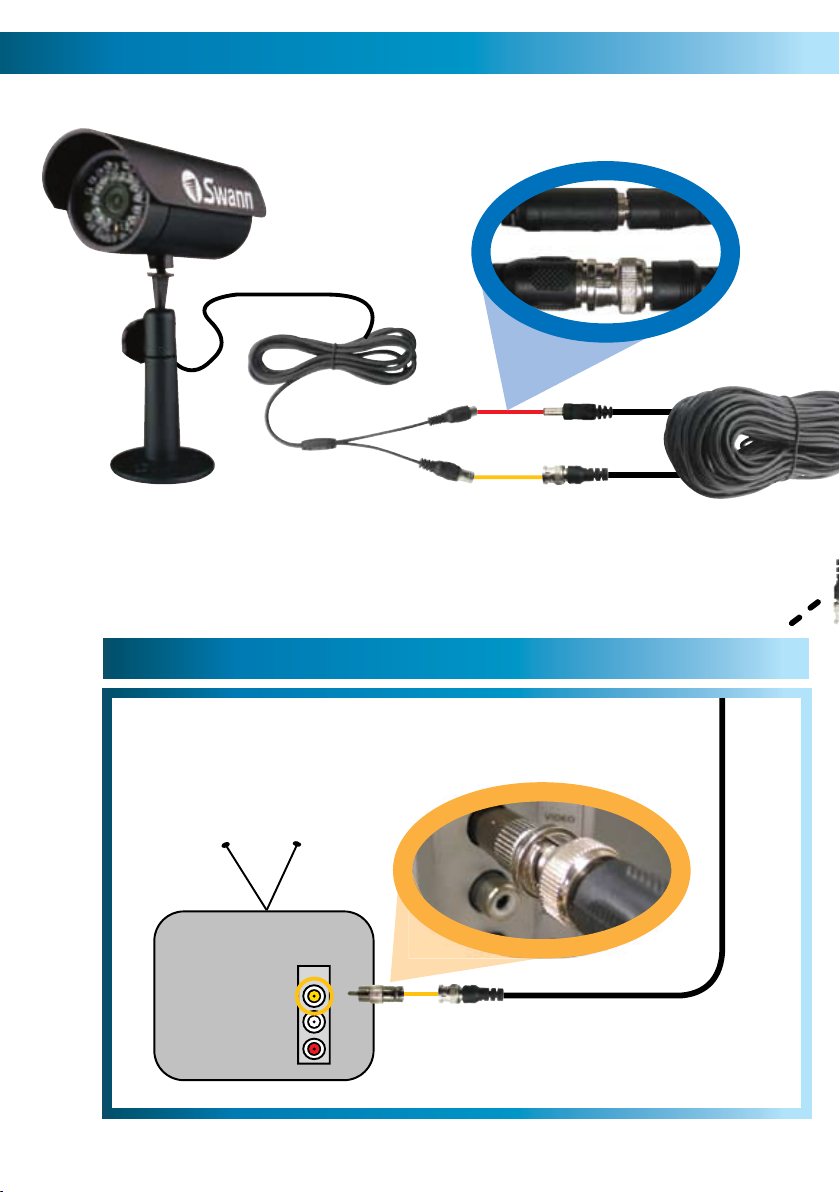

2A. Connecter directement à la télévision2B. Connecter à votre Enregistreur Vidéo

Numérique existant

Connecter le câble de la

caméra au câble

d’allongement

POUR UNE CAMERA UNIQUE

Connecter le câble

d’allongement à l’adaptateur

de puissance

Connecter l’adaptateur BNC à RCA et le connecter

à l’entrée vidéo de la télévision ou du magnétoscope

2Connecter le câble d’allongement BNC

à une chaîne ouverte à l’arrière de

l’Enregistreur Vidéo Numérique

Brancher l’adaptateur

de puissance de

la caméra

13A

PACKS POUR 4 CAMERA

Branchez les câbles d'extension

Prise de DC à l'un des quatre

Prises sur le diviseur de puissance.

Ensuite, branchez l'extrémité unique de la

diviseur de puissance à la prise de DC

sur l'adaptateur secteur.

Guide de connexion

Altri manuali per Maxi-Brite PNP-150

Questo manuale è adatto per i seguenti modelli

Indice

Lingue:

Altri manuali Swann Telecamera di sicurezza

Swann

Swann pro 842 Manuale utente

Swann

Swann SWIFI-4KFLOCAM-US Manuale utente

Swann

Swann Security Cam Color Video Camera Manuale utente

Swann

Swann ADW-300 Manuale utente

Swann

Swann Color dome camera Manuale utente

Swann

Swann SW211-STY Manuale utente

Swann

Swann PNP-155 Manuale utente

Swann

Swann Outdoor Cam SW214-ODC Manuale utente

Swann

Swann SWIFI-ALERTCAM Manuale utente

Swann

Swann Black Knight SW-C-BLACKK Manuale utente

Swann

Swann SWA31-C4 Manuale utente

Swann

Swann SW331-PR6 Manuale utente

Swann

Swann T3 Manuale utente

Swann

Swann ADW-300 Manuale utente

Swann

Swann PRO-550 Manuale utente

Swann

Swann Advanced SWADS-100CAM Manuale utente

Swann

Swann PRO-605 SW224-HDN Manuale utente

Swann

Swann DIY Security Cam SW211-DSC Manuale utente

Swann

Swann SW-P-WOCEX Manuale utente

Swann

Swann SWNVW-500CAM-EU Manuale utente

Swann

Swann Enforcer NHD-900BE Manuale utente

Swann

Swann SWNVW800CAMEU Manuale utente

Swann

Swann MWABCAM150514T Manuale utente

Swann

Swann PRO-781 Manuale utente

Manuali Telecamera di sicurezza popolari di altre marche

Okina USA

Okina USA SIR36-870VF650LP Manuale utente

Divio

Divio NDR155PA Manuale utente

Canon

Canon VB-C500D Manuale utente

Easy Access

Easy Access EasyGuard Manuale utente

Vivotek

Vivotek FD9389-EHV-v2 Manuale utente

TUYA

TUYA COSMO W2 Manuale utente

Eusso

Eusso UNC7500-IR Guida all'installazione

urmet domus

urmet domus 1096/204 Manuale utente

VC VC20 series Manuale utente

Axis

Axis Q1614 Manuale utente

ieGeek

ieGeek DD201 Manuale utente

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuale utente

Vicon

Vicon V662-D-1 Istruzioni operative

Grundig

Grundig GCH-K0274P Manuale utente

Lorex

Lorex VANTAGE LBC7032 Manuale utente

4xem

4xem WPT Manuale utente

Samsung

Samsung SCV-3082 Manuale utente

Vitek

Vitek VTC-C544 Manuale utente
