Swegon CRTc Guida

CRTc

Installation – Commissioning – Maintenance 20130521

Accessories

Actuator:

Sauter ASM115SF901, ASM124SK001, 24 V AC, standard

actuators depending on size.

Other actuators must be ordered, see actuator table page 3.

Wiring diagrams are displayed on page 2.

Knob:

CRTT-1 for manual control.

Quick connection:

FSR. Clamp with quick-acting lock.

Installation

Insert the damper into the connecting duct and ﬁx it in

position with blind rivets or by means of an FSR clamp.

See Figure 1.

Commissioning

The damper has no measurement function of its own.

Turn the damper blade at the desired position and lock it.

Maintenance

Clean the damper whenever needed by means of a vacuum-

cleaner and brush nozzle or by wiping surfaces with a cloth.

Figure 1. Installation. Figure 4. Installation of actuator CRT, size 500 and 630. First,

close the damper entirely, then install the actuator exactly

straight and lock it against the damper shaft. Turn the actuator 5°

past closed setting and lock the position of the actuator.

Figure 3. Installation, actuator size 100-400.

Installation of accessories

Figure 2. Installation, handle CRTT-1

We reserve the right to alter speciﬁcations. 20130521 www.swegon.com

CRT

Wiring diagrams

Sauter:

ASM115SF901 (24 V AC/DC)

ASM124SK001(24 V AC/DC)

ASM115F901 (230 V AC)

Sauter:

ASM115SF901 (24 V AC/DC)

ASM124SK001(24 V AC/DC)

ASM115F901 (230 V AC)

Belimo:

LM/NM/SM24A (24 V AC/DC)

LM/NM/SM230A (230 V AC)

24 V AC/DC

2...10 V DC

0...10 V DC

Belimo:

LM/NM/SM24A-SR

123

Belimo:

LM/NM/SM24A (24 V AC/DC)

LM/NM/SM230A (230 V AC)

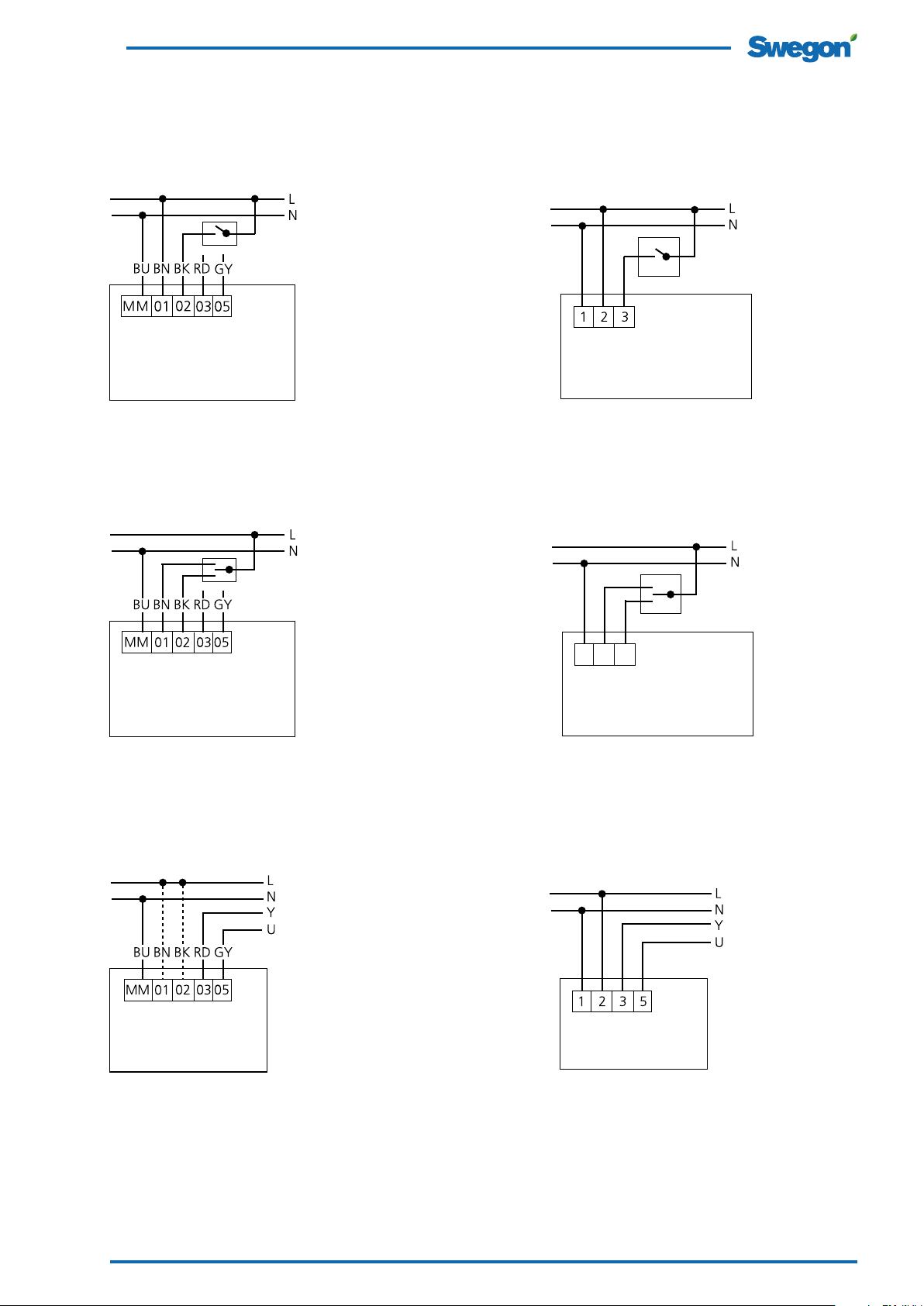

Figure 8. Wiring diagram for Belimo, 2 point regulation.

Figure 9. Wiring diagram for Belimo, 3 point regulation.

Figure 10. Wiring diagram for Belimo, 0-10 V stepless /

modulating regulation.

24 V AC/DC

0...10 V DC

Sauter:

ASM115SF901

ASM124SK001

Figure 5. Wiring diagram for Sauter, 2 point regulation.

Figure 6. Wiring diagram for Sauter, 3 point regulation.

Figure 7. Wiring diagram for Sauter, 0-10 V stepless/modulating

regulation.

BU = blue

BN = brown

BK = black

RD = red

GY = grey

BU = blue

BN = brown

BK = black

RD = red

GY = grey

(01 = clockwise)

(02 = counter-clockwise)

BU = blue

BN = brown

BK = black

RD = red

GY = grey

We reserve the right to alter speciﬁcations. 20130521 www.swegon.com

CRT

Figure 12. Dimensions (mm), CRTT-1 knob.

Figure 11. Dimensions (mm), CRT.

1. CRT-(100-400)-4

2. CRT-(500-630)-4

Dimensions and Weights

Size

ØD (mm)

Dimensions (mm) Weight (Kg) Torque*) (Nm)

A H

100 210 70 0.7 <3

125 210 70 0.8 <3

160 210 75 0.9 <3

200 210 75 1.0 4

250 210 75 1.2 5

315 210 75 1.5 6

400 255 80 2.6 8

500 255 80 4.2 12

630 255 80 6.0 15

*) The torque moment refers to the recommended

force necessary for secure control.

Actuator tables

• Actuators: Sauter 24 V AC, ASM115SF901 and

ASM124SK001 are standard and kept in stock.

• All other actuators are order items.

2 or 3 point regulation – 24 V AC

Size Torque Designation

Sauter Belimo

100-250 5 Nm A S M115 SF 9 01 LM24A

315-400 10 Nm A S M115 SF 9 01 NM24A

500-630 15 Nm ASM124SK001 SM24A

2 or 3 point regulation – 230 V AC

Size Torque Designation

Sauter Belimo

100-250 5 Nm A S M115 F 9 01 LM230A

315-400 10 Nm A S M115F 9 01 NM230A

500-630 15 Nm – SM230A

0-10 V stepless/modulating regulation – 24 V AC

Size Torque Designation

Sauter Belimo

100-250 5 Nm A S M115 SF 9 01 LM24A-SR

315-400 10 Nm A S M115 SF 9 01 NM24A-SR

500-630 15 Nm ASM124SK001 SM24A-SR

Electrical data

Actuators – Supply voltage 24 V AC

Make / Model Ambient temp. Power Consumption

S au te r A S M115S F 901 -20...+55°C 8.7 VA

Sauter ASM124SK001 -20...+55°C 4.4 VA

Belimo LM24A / -SR -30...+55°C 2.0 VA

Belimo NM24A / -SR -30...+55°C 3.5 VA

Belimo SM24A / -SR -30...+55°C 4.0 VA

Actuators – Supply voltage 230 V AC

Make / Model Ambient temp. Power Consumption

Sauter ASM115F901 -20...+55°C 4.0 VA

Belimo LM230A -30...+55°C 4.0 VA

Belimo NM230A -30...+55°C 6.0 VA

Belimo SM230A -30...+55°C 6.5 VA
