Swift Navigation Duro Manuale utente

Duro User Manual

Revision 3

2021-12-14

Duro User Manual

UM-110021-03

________________________________________________________________________________________________________________________________________________________________

Table of Contents

Notice to Users 4

Industry United States Statement 4

FCC Statement 4

Industry Canada Statement 4

Industry Canada Compliance 4

Conformité d’Industrie Canada 4

Industry European Union Statement 4

California Proposition 65 5

Japan 5

Korea 5

Antenna Placement Guidelines 6

Limited Warranty Terms and Conditions 7

Product Introduction 7

Overview 7

Why Duro? 7

Centimeter-Level Accuracy 7

Easy Integration 7

Leverages Piksi Multi 7

Features and Benefits 7

Technical Information 8

Physical and Environmental 8

Enclosure 8

Connectors 10

Power Connector 11

Ethernet Connector 12

Serial Connector 13

AUX Connector 16

GNSS Antenna Connector 19

Standards and Certifications 20

Environmental Testing 21

Shock 21

Vibration 21

Duro User Manual

UM-110021-03

________________________________________________________________________________________________________________________________________________________________

Temperature 21

Ingress and IP67 21

EMI/EMC 21

Mounting Duro Antenna 22

With Top-Mounted GNSS Antenna 22

Grounding Duro 25

Power 26

Interfaces 27

LED Indicators 27

Serial Ports 28

AUX 28

GNSS Tracking 28

Accuracy 29

Connecting to Duro 30

Ethernet Connection 30

Serial Connection 32

Firmware Upgrades 33

Swift Console 33

Swift Navigation Technical Support 35

Support Site 35

Supporting Tools 35

Duro User Manual

UM-110021-03

________________________________________________________________________________________________________________________________________________________________

Notice to Users

Industry United States Statement

FCC Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)

This device may not cause harmful interference and (2) this device must accept any interference received,

including interference that may cause undesired operation.

Maximum antenna gain is limited to 5.29 dBi for the GSM 850 frequency band, 4.02 dBi for the PCS 1900

frequency band and 6.32 dBi for the FDD IV frequency band.

Industry Canada Statement

Industry Canada Compliance

This Class B digital apparatus complies with Canadian ICES-003. Operation is subject to the following two

conditions:

(1) This device may not cause interference.

(2) This device must accept any interference, including interference that may cause undesired operation of

the device.

Conformité d’Industrie Canada

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. L’exploitation est

autorisée aux deux conditions suivantes

(1) l’appareil ne doit pas produire de brouillage

(2) l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en

compromettre le fonctionnement.

User instructions/antenna/etc.—see FCC section above.

Industry European Union Statement

Swift Navigation hereby declares that Duro is in compliance with the essential requirements and other

relevant provisions of the 2014/30/EU Directive and UN/ECE Regulation 10.

Duro is compliant with the European Community Restriction of Hazardous Substances Directive 2002/95/EC,

(RoHS 1) and the Directive 2012/19/EU on waste electrical and electronic equipment (WEEE) and is marked

with the WEEE symbol and RoHS logo.

Duro User Manual

UM-110021-03

________________________________________________________________________________________________________________________________________________________________

The symbol on the product or its packaging indicates that this product must not be disposed of with other

household or office waste. Instead, it is the owner’s responsibility to dispose of Duro waste equipment by

handing it over to a designated collection point for the recycling of waste electrical and electronic equipment.

The separate collection and recycling of waste equipment at the time of disposal will help conserve natural

resources and ensure that it is recycled in a manner that protects human health and the environment. For

more information about locations where Duro waste can be dropped off for recycling, please contact your

local authority.

California Proposition 65

WARNING: This product contains a chemical known to the state of California to cause cancer.

Japan

Korea

Duro User Manual

UM-110021-03

________________________________________________________________________________________________________________________________________________________________

Antenna Placement Guidelines

Position the antenna as indicated by the blue marker, at a spot with a sky view that is unobstructed above 30

degrees up from the horizon in every direction. For the best results, install the antenna on the top of a tripod

(using the included threading adapter) or other stable structure.

Duro’s high-precision, multi-band GNSS antenna is sensitive to its environment. Since Duro needs to track

carrier phase information from GNSS satellites, it is much more sensitive to obstructions than standard

consumer GNSS receivers found in, for example, smartphones. Thus, the Duro antenna must be kept away

from any obstructions to its sky view.

●Do place the antenna on a tripod.

●Do not test inside a building.

●Do not place the antenna near buildings.

●Do not place the antenna near trees and other cover.

●Do not stand near the antenna or put your hand over the antenna during testing.

●Do not place an open laptop near the antenna so that the laptop itself is blocking the sky view.

Duro User Manual

UM-110021-03

________________________________________________________________________________________________________________________________________________________________

Limited Warranty Terms and Conditions

Please, refer to the Swift Navigation website for information about product warranty information.

https://www.swiftnav.com/warranty-information. Warranty is voided if Duro back access panel is opened.

Product Introduction

Overview

Duro® is a ruggedized version of the Piksi® Multi RTK GNSS receiver. Built to be tough, Duro is ideal for mining,

agricultural, robotics, maritime and outdoor industrial applications. Duro is designed for integration into or

mounting on top of existing equipment. With its cast aluminum housing, this easy-to-deploy GNSS sensor is

protected against weather, moisture, vibration, dust, water immersion and the unexpected that can occur in

outdoor long-term deployments.

Why Duro?

Centimeter-Level Accuracy

Autonomous devices require precise navigation—especially those that perform critical functions. Swift

Navigation’s Piksi Multi module within Duro utilizes real-time kinematics (RTK) technology, providing location

solutions that are 100 times more accurate than traditional GPS.

Easy Integration

Duro is easily integrated into your application as its sealed, and industry standard, connectors enable easy

deployment in all conditions. The exposed interfaces support varied use cases without integration challenges.

Leverages Piksi Multi

Multiple signal bands enable fast convergence times and multiple satellite constellations enhance availability.

Piksi Multi currently supports GPS L1/L2, GLONASS G1/G2, Beidou B1/B2 and GALILEO E1/E2. SBAS is also

supported.

Features and Benefits

●Dual-frequency RTK GNSS, providing accurate position and solution fast recovery

●Tough, military-grade hardware

●IP67-rated enclosure with M12 standard-sealed connectors

●Raw IMU data stream output

●Future-proof hardware with in-field software upgrades

Duro User Manual

UM-110021-03

________________________________________________________________________________________________________________________________________________________________

●Protected I/O, including RS232 Serial Ports, 100 Mbit Ethernet, Event Inputs, Pulse Per Second (PPS)

and more

●Durable UV and chemical-resistant powder-coating

●Multiple mounting interfaces

Technical Information

Physical and Environmental

The following outline provides an overview of the physical and environmental aspects of Duro.

Enclosure

The Duro ruggedized enclosure offers a series of mounting options, making it flexible to adapt to your

mounting requirements:

●Pin Holes/Slots

●¼-20 Thread Insert

●Threaded Mounting

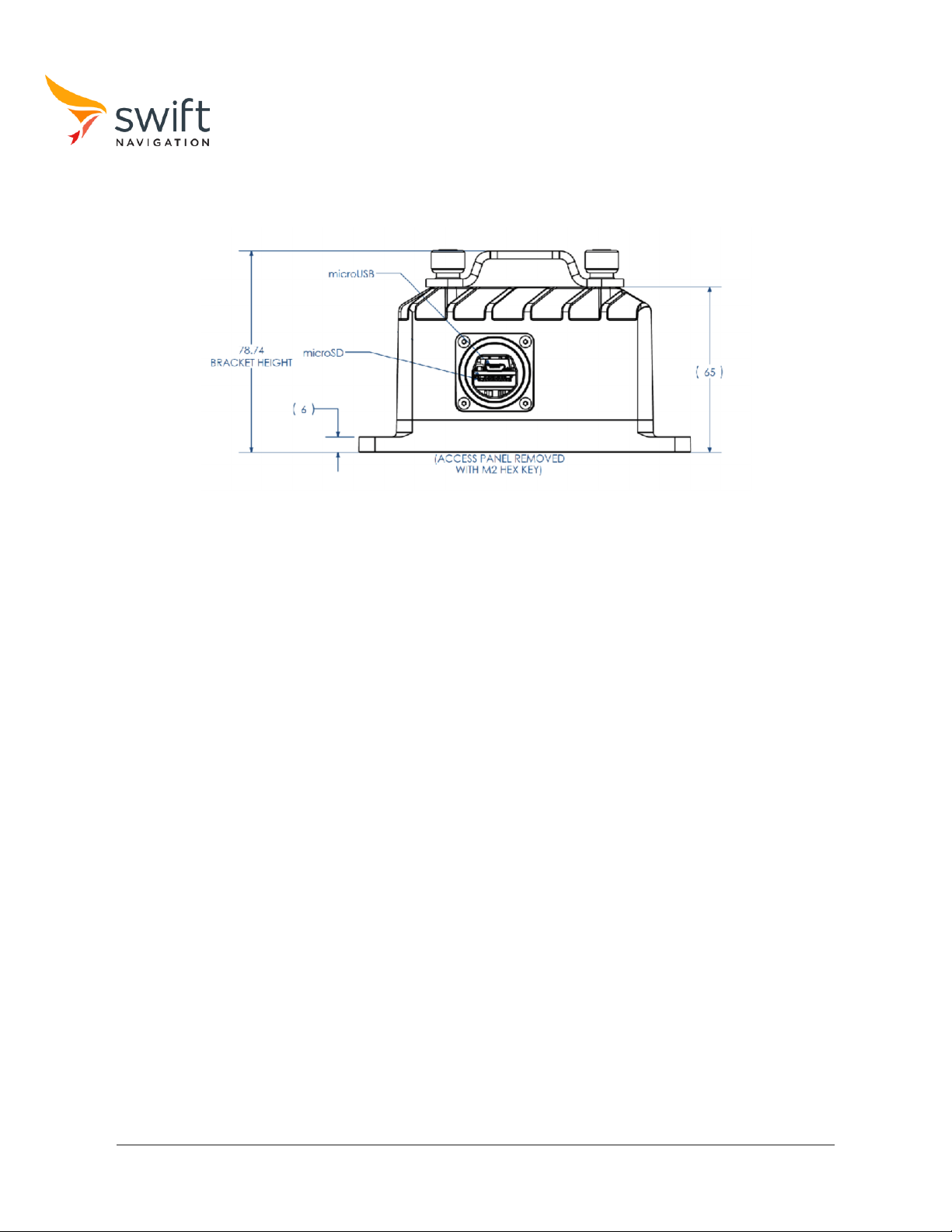

The following section showcases Duro enclosure measurements. All measurements are in millimeters

Duro User Manual

UM-110021-03

________________________________________________________________________________________________________________________________________________________________

Duro User Manual

UM-110021-03

________________________________________________________________________________________________________________________________________________________________

Connectors

Duro’s M12 connectors are sealed and industry standard, which balances ruggedization perfectly with

user-friendliness. No external sealing is required to deploy Duro, in even the harshest conditions. Duro has

the following connectors:

●Power

●Ethernet

●Serial

●AUX

●GNSS Antenna

The sections that follow explain the signal description for each connector and the cables provided with the

Duro Evaluation Kit. Importantly, the connectors or their respective caps need to be mated to provide sealing

functionality to meet IP67 standards.
