Swisher RTB105441 Manuale utente

44” ROUGH CUT

TRAILMOWER

OWNER’S

MANUAL

1602 CORPORATE DRIVE, P.O. BOX 67, WARRENSBURG, MISSOURI 640 3

PHONE (660) 747-8183 FAX (660) 747-8650

MODEL NO.

POLB10544HD

RTB105441

RTB1254412V

Manufacturing quality lawn care equipment since 1 45

Assembly

Operation

Service and Adjustment

Repair Parts

Made In The

USA

Rev. 05-301

ONRT44

swisherinc.com

In the event you have a claim under this warranty, you must return the product to an authorized

service dealer. All transportation charges, damage, or loss incurred during transportation of parts

submitted for replacement or repair under this warranty shall be borne by the purchaser. Should you

have any questions concerning this warranty, please contact us toll-free at 1- 00-222- 1 3. The

model number, serial number, date of purchase, and the name of the authorized Swisher dealer from

whom you purchased the mower will be needed before any warranty claim can be processed.

THIS WARRANTY DOES NOT APPLY TO ANY INCIDENTAL OR CONSEQUENTIAL

DAMAGES AND ANY IMPLIED WARRANTIES ARE LIMITED TO THE SAME TIME

PERIODS STATED HEREIN FOR ALL EXPRESSED WARRANTIES. Some states do not

allow the limitation of consequential damages or limitations on how long an implied warranty may

last, so the above limitations or exclusions may not apply to you. This warranty gives you specific

legal rights and you may have other rights, which vary from state-to-state. This is a limited warranty

as defined by the Magnuson-Moss Act of 1975.

LIMITED WARRANTY

The manufacturer’s warranty to the original consumer purchaser is: This product is free from defects

in materials and workmanship for a period of two (1) year from the date of purchase by the original

consumer purchaser. We will repair or replace, at our discretion, parts found to be defective due to

materials or workmanship. This warranty is subject to the following limitations and exclusions:

TABLE OF CONTENTS

WARRANTY………………....….2

INTRODUCTION………………..3

SAFETY..……………………….3-4

ASSEMBLY………………..…….4

OPERATION……………………5-7

CUTTER MAINTENANCE..…….…..

TROUBLESHOOTING………………9

DECALS…..………….………………10

PARTS BREAKDOWN……………11-15

1) Engine Warranty All engines utilized on our products have a separate warranty extended

to them by the individual engine manufacturer. Any engine service

difficulty is the responsibility of the engine manufacturer and in no

way is Swisher Mower Co., Inc. or its agents responsible for the engine

warranty. The Briggs & Stratton Engine Service Hot-Line is 1- 00-

233-3723. The Tecumseh Engine Service Hot-Line is 1- 00-55 -5402.

The Honda Engine Service Hot-Line is 1- 00-426-7701.

2) Commercial Use This product is not intended for commercial use and carries no

commercial warranty.

3) Limitation This warranty applies only to products which have been properly

assembled, adjusted, and operated in accordance with the instructions

contained within this manual. This warranty does not apply to any

product of Swisher Mower Co., Inc., that has been subject to alteration,

misuse, abuse, improper assembly or installation, shipping damage, or

to normal wear of product.

4) Exclusions Excluded from this warranty are normal wear, normal adjustments, and

normal maintenance.

SAFETY PRECAUTIONS

This Safety Alert Symbol indicates important messages in this

manual. When you see this symbol, carefully read the message that

follows and be alert to the possibility of personal injury.

Read this manual completely. This machine can amputate hands and feet, and

throw objects. Failure to observe the following safety instructions could result in

serious injury or death.

Thank you for choosing Swisher’s RC44 Trail mower. Before operating

your mower, please read, understand and follow all of the safety

precautions and other instructions explained in this manual . As with all

power equipment, lawnmowers can be potentially dangerous if improperly

used.

• Read the manual. Learn to operate this machine safely.

• Always disconnect the spark plug wire and place the wire where it cannot contact the

spark plug, to prevent accidental starting the engine when setting up, transporting,

adjusting or making repairs.

• Keep all shields and guards in place.

• Understand the speed, steering and stability of this machine. Know the positions and

operations of all controls before you operate this machine. Check all of the controls in

a safe area before starting to work with this machine.

• Allow only responsible adults who are familiar with these instructions to operate this

machine. Never allow children to operate this machine.

• Clear the area of objects such as rocks, toys, wire, etc. that can be picked up and

thrown by the blade.

• Be sure the area is clear of other people before mowing. Be aware of the mower

discharge direction and do not point at anyone. Stop the machine if anyone enters the

mowing area. Children are often attracted to the machine and the mowing activity.

Never assume that children will remain where you last saw them. Keep children

under the watchful care of another responsible adult.

•No riders!

• Do not put hands or feet near or under rotating parts.

• Do not mow in reverse. Always look down and behind before and during backing.

• Turn off the blades when not mowing. Before leaving the machine, turn off the blades

and stop the engine.

• Watch for traffic when operating near or crossing roadways.

• Do not operate the mower if it has been dropped or damaged in any manner or if the

mower vibrates excessively. Excessive vibration is an indication of damage.

Repair mower as necessary.

• Dress properly. Do not operate the mower when barefoot or wearing open sandals.

Wear only solid shoes with good traction when mowing.

• Never allow operation by untrained persons.

• Do not operate the machine while under the influence of alcohol or drugs.

• Do not operate on slopes greater than 15 degrees.

• Never tamper with safety devices. Check their proper operation regularly.

• Stop and inspect the equipment if you strike an object. Repair, if necessary, before

restarting. Never make adjustments or repairs with the engine running.

• Mower blades are sharp and can cut. Wrap the blades or wear gloves, and use extra

caution when servicing them. Do not operate at too fast a rate.

• Return lever to its vertical position to disengage blades.

• The braking system is applied when the blades become disengaged. It is designed to

bring the blades to a quick stop (approximately 7 seconds). Each Trail Mower brake

system has been tested and calibrated. For safety, the consumer should not alter the

braking system.

• Disengage spark plug wire and place where it cannot make a connection.

• (Refer to Owner’s Manual p.11) Attach receiver hitch parts to P/N 4 66TC.

• Check engine oil. All engines are filled with oil at the factory. Verify oil level and

add if necessary before starting engine. (See Engine Owner’s Manual)

• Verify fuel level and add if necessary before starting engine.

• Check the battery (if so equipped). If battery is put into service after the “month & year” of the

date on the battery, then it may need to be charged with a 12 volt battery charger for a minimum

of 1 hour, but no more than 2 hours at a rate of 6 to 10 amps.

• Attach battery cable(s) to battery. Red wire to positive (FIRST) and black wire to negative

(SECOND).

• Reconnect spark plug wire.

• (Refer to Owner’s Manual p. 5) For proper operating procedures.

ASSEMBLY

OPERATING YOUR TRAILMOWER

The operation of any mower can produce foreign objects to be thrown into the

eyes, resulting in severe eye damage. Always wear certified safety glasses or

wide-vision safety goggles over spectacles before staring any cutting machine and

while operating such a machine.

The operation of any cutter produces sound waves that are damaging to the

human ear. Ear protection is recommended.

CAUTION!

Tragic accidents can occur if the operator is not alert to the presence of

children. Children are often attracted to the machine and the mowing

activity. Never assume that children will remain where you last saw them.

INTENDED USE

The 44” Rugged Cut Trail Mower is designed to clear dense areas of grass and cut

saplings up to 1 inch thick on golf courses and small estates. It is not intended to create a

finish cut on lawns.Your Trail Mower should be towed behind an ATV, golf cart, lawn

tractor, or other approved vehicle. It is not recommended for speeds exceeding 5 MPH.

ATTACHING TRAILMOWER TO TOW VEHICLE

• Back vehicle up to desired towing position.

• Offset the Trail Mower to the side opposite the tow vehicle discharge (if any).

This prevents the tow vehicle from throwing grass into Trail Mower engine.

• Bolt swivel hitch (H10) to vehicle tow receiver. If tow vehicle has a ball

hitch, the ball must be removed before swivel hitch can be fastened.

• Attach tow hitch and the “L” hitch (4 66 & H1) to the swivel hitch. The hitch

pin (H11) should go completely through both the swivel and “L” hitches and

clipped to prevent accidental separation. Check that all hardware is secure at

both the tow vehicle and the Trail Mower.

TRANSPORTING MOWER

• Stop Trail Mower.

• Place Trail Mower deck in its highest position.

• When transporting unattached from tow vehicle, remove spark plug wire and

place it where it cannot contact the spark plug.

ENGAGING BLADES

Note: Do not start the mower with the T-handle console is in the “ENGAGED” position.

• Engage blades by pulling T-handle lever into its horizontal position.

• Return lever to its vertical position to disengage blades.

• The braking system is applied when the blades become disengaged. It is designed

to bring the blades to quick stop (approximately 7 seconds). Each Trail Mower

brake system has been tested. For safety, the consumer should not alter the braking

system.

STOPPING THE ENGINE

• Make sure the tow vehicle parking brake is set.

• Disengage mower blades.

• Reduce engine idle speed, and allow engine to run momentarily for cooling.

• Turn key to the “OFF” position.

STARTING THE ENGINE

See engine manufacturer’s recommendations for the type and amount of oil and fuel used.

• Make sure the tow vehicle parking brake is set, mower is level, and blades are

disengaged. Engine must be level to accurately check and fill oil. Do not overfill.

• Check spark plug wire, oil, and fuel.

• Check all electrical connections for build-up of debris.

• Set engine idle to “CHOKE” position.

• Turn key to the “RUN” position.

• Pull rope with a single fluid motion.

• (12V models only) Turn key to the “RUN” position, then to the “START” position.

• Set engine idle at maximum RPM for best performance.

• Allow engine to run a few moments before engaging blades.

BREAKING IN YOUR MOWER

• Set the vehicle parking brake and chock the wheels to prevent accidental rolling.

• While the engine is running, slowly, engage blade control.

• In a safe environment, i.e. no children or pets, allow blades to rotate and engine to

idle for 5 minutes, breaking-in the belt for a longer life.

• Stop mower.

FRONT TO BACK ADJUSTMENT

For best cutting results, the mowing deck should be parallel to the ground. To check parallel

adjustment, measure the distance from the bottom edge of the deck in both the front and rear of

the deck. This adjustment is best done while the tow vehicle and Trail Mower are connected.

• Remove bolts and nuts from the “L” hitch (H1).

• Raise or lower hitch section to obtain proper front to back adjustment.

• Connect bolts and nuts in “L” hitch securely.

CAUTION: SHUT OFF THE MOWER ENGINE AND REMOVE SPARK

PLUG WIRE FROM SPARK PLUG BEFORE MAKING ANY

ADJUSTMENTS TO THE MOWER.

MOWER HEIGHT ADJUSTMENT

• There is approximately 3 inches of height adjustment.

• Rotate height adjust crank handle in a clockwise direction to lift the mower deck. A

counter-clockwise direction is used to lower the mower deck.

• Dense areas of grass should be cut twice.

• Push handle down to lock height position.

TOW HITCH OFFSET

• When offsetting the mower do so to the side opposite the discharge of the tow

vehicle.

• Swisher recommends if the tow vehicle is equipped with a mid-mount mower to

overlap the cut approximately 6”. This may vary depending on mowing terrain,

obstacles, and/or tow vehicle. Always keep safety the first priority.

• Always keep the tow vehicle cutter raised higher than the Trail Mower.

STARTING TO MOW

• Adjust the cutting height.

• Double check vehicle to mower attachment.

• Start mower engine and set throttle to “FAST” for best cutting performance.

• Slowly engage T-handle lever.

• Carefully mount vehicle and start mowing at a slow travel speed.

STOPPING THE MOWING SESSION

• Bring tow vehicle to a complete stop, set the parking brake and disengage blades.

• Turn key switch to the “OFF” position.

• Always remember to remove keys to avoid irresponsible usage.

SUGGESTED MOWING PRACTICES

• Operate mower engine at full throttle to assure the best cutting performance and

maximum material discharge.

• Allow wet grass to dry. Wet grass will clump and collect under the mowing deck.

• Mowing should be started with tow vehicle in low gear and increased only as safe

mowing conditions permit. Mowing speed should not exceed 5 MPH.

• Mowing conditions and the types of grass will vary from place to place. You may

find when mowing dense areas that the pressure of the wheel tracks may cause the

grass to be pushed down and not effectively mowed. If this happens you may want

to mow the area twice. Once with the mower raised and the second mowing at the

desired height. The second mowing should be at a right angle from the previous for

best results.

• Reducing the travel speed will help mow dense growth. This allows the blades the

time necessary to make its initial cut, and regain momentum to continue cutting and

discharging debris properly. The engine may stall if you are mowing too fast!

• Do not attempt to mow areas that the tow vehicle cannot maneuver through and/or

slopes that you do not feel comfortable riding.

CUTTER MAINTENANCE

GENERAL RECOMMENDATIONS

The warranty on this cutter does not cover items that have been subjected to operator

abuse or negligence. To receive full value from the warranty, operator must maintain

unit as instructed in this manual.

Some adjustments will need to be made periodically to maintain your unit properly.

All adjustments in the service and adjustments section of this manual should be checked

at least once each season.

BEFORE EACH SEASON

A new spark plug and clean air filter assure proper air-fuel mixture and help your engine

run better and last longer.

• Replace the spark plug.

• Clean or replace the air filter.

• Check blades and belts for wear.

BEFORE EACH USE

• Check engine oil level. (Do this twice to ensure an accurate reading.)

• Check condition of air filter and clean or replace if necessary.

• Check blade operation.

• Check for loose fasteners.

DAILY MAINTENANCE

Make sure all nuts and bolts are tight and cotter pins and retainer springs are secure.

Keep blades sharp. Observe all safety precautions.

BLADE CARE AND SERVICE

For best results cutter blades must be kept sharp. The blades can be sharpened with a

few strokes of a file or grinding wheel. Do Not attempt to sharpen while on the cutter.

Important: Replace blades that have been damaged or deeply nicked.

Important: Check blade and spindle hardware on a regular basis to make sure nuts

are tight.

CAUTION: DO NOT HANDLE MOWER BLADES WITH BARE HANDS.

CARELESS OR IMPROPER HANDLING MAY RESULT IN SERIOUS

INJURY.

GENERAL TROUBLESHOOTING

The mower is not cutting level.

• Level deck. Check air pressure of all tires; make sure they are equal. See

tires for maximum inflation.

• Make certain blades are installed identical, without the engine running.

The engine will not start.

• Disengage blades, turn key switch to the “OFF” position, check battery and

all other electrical connections, and inspect spark plug and wire.

• Contact engine manufacturer or qualified mechanic.

Engine runs poorly.

• See engine manual.

• Check the throttle adjuster.

• Replace fuel, clean fuel filter and fuel line.

• Check spark plug and gap.

Mower bounces excessively while towing.

• Lower tire pressure.

• Tow at a lower speed.

IF PROBLEMS PERSIST HAVE A QUALIFIED MECHANIC SERVICE

THE MOWER. NEVER ATTEMPT TO MAKE AN ADJUSTMENT THAT

YOU ARE NOT SURE IS CORRECT. DOING SO CAN CAUSE OTHER

PROBLEMS.

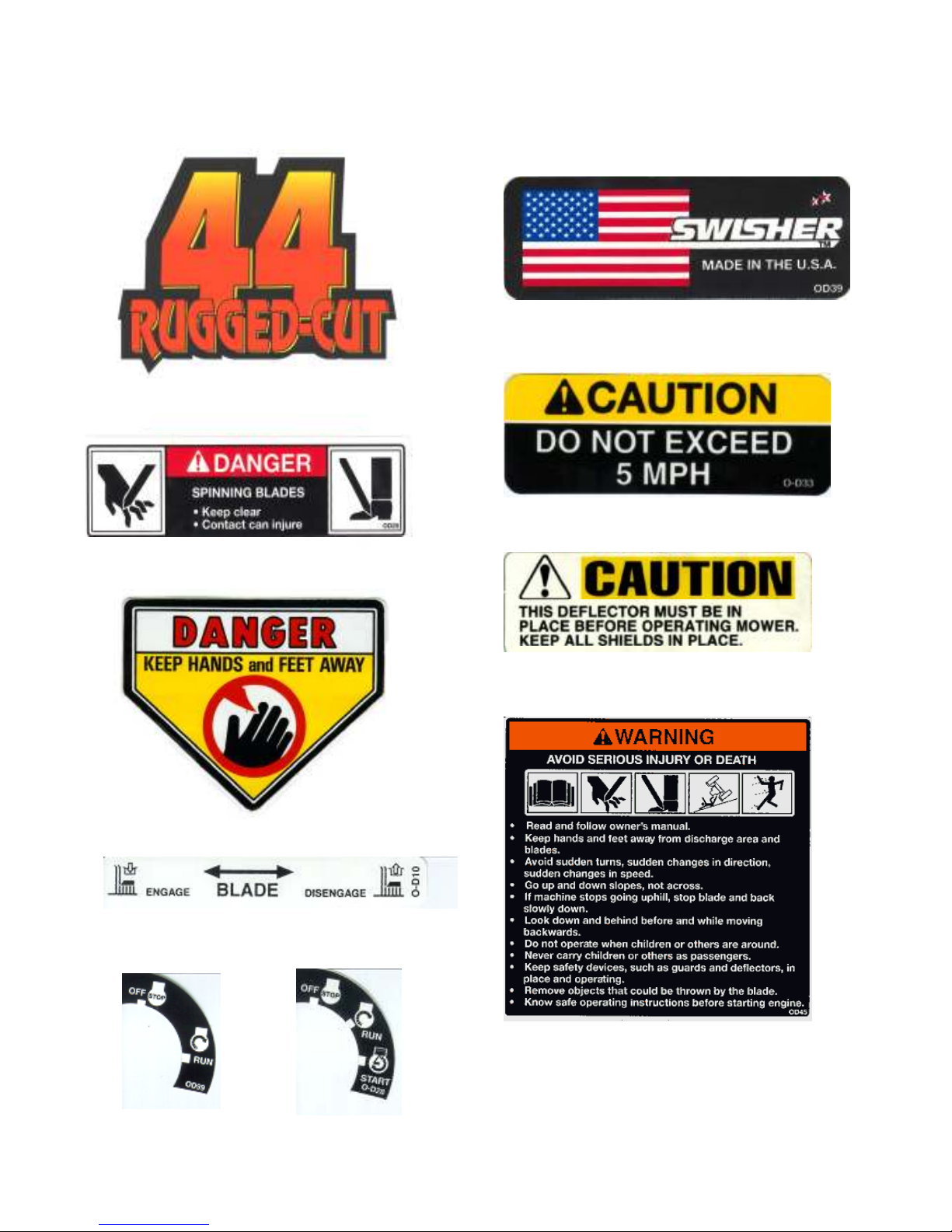

SAFETY AND OPERATIONAL DECALS

Replace decal immediately if damaged. Order by part number from

Swisher Mower and Machine Co. Inc.

OD 2-44 RUGGED CUT DECAL

OD29-DANGER DECAL

OD39-SWISHER FLAG DECAL

OD33-5MPH DECAL

OD36-Deflector Decal

OD55-DANGER DECAL

OD45-WARNING DECAL

OD10-ENGAGE DECAL

OD99-OFF/RUN DECAL OD2 -OFF/RUN/START DECAL

Indice

Altri manuali Swisher Taglia erba

Swisher

Swisher ST67522BS Manuale utente

Swisher

Swisher T11044, T11544, T10544BSPB, T1 Manuale utente

Swisher

Swisher WB80042F Manuale utente

Swisher

Swisher ZT2452A Istruzioni operative

Swisher

Swisher Predator Talon WBERC11524C Manuale utente

Swisher

Swisher T6012V Manuale utente

Swisher

Swisher POL10544HD Manuale utente

Swisher

Swisher RESPONSE ZTR2354KA Manuale utente

Swisher

Swisher FC11544BS Manuale utente

Swisher

Swisher QUADBOSS QBFC14560-CA Manuale utente

Swisher

Swisher T-40 Manuale operativo e di manutenzione

Swisher

Swisher COMMERCIAL PRO PREDATOR TALON Manuale utente

Swisher

Swisher QuadBoss COMMERCIAL PRO QBFC14560CP Manuale utente

Swisher

Swisher QUADBOSS COMMERCIAL PRO QBFC14566CP Manuale per l'uso e la cura

Swisher

Swisher ZTR2760BS Manuale utente

Swisher

Swisher T1260, T1360, T1460 Manuale utente

Swisher

Swisher ST50022STDQ Manuale utente

Swisher

Swisher L117-235001 Manuale utente

Swisher

Swisher FC1966BS Manuale utente

Swisher

Swisher FC18560BS Manuale utente

Swisher

Swisher T11544 Manuale utente

Swisher

Swisher T2066 Manuale per l'uso e la cura

Swisher

Swisher PST67522A Manuale utente

Swisher

Swisher ZT2766KZ Manuale utente

Manuali Taglia erba popolari di altre marche

RHINO

RHINO 1958 Manuale utente

Wolf Garten

Wolf Garten Compact plus 40 B Manuale utente

Cub Cadet

Cub Cadet LTX 1045 Manuale utente

Craftsman

Craftsman 917.378461 Manuale utente

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuale utente

Challenge

Challenge CH18V2 Istruzioni operative

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuale utente

DEWEZE

DEWEZE ATM-725 Manuale operativo

Weed Eater

Weed Eater 180083 Manuale utente

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuale utente

Better Outdoor Products

Better Outdoor Products Quick Series Manuale utente

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuale operativo

MTD

MTD 795, 792, 791, 790 Manuale utente

Toro

Toro Groundsmaster 3505-D Manuale utente

Dennis

Dennis FT 610 Manuale utente

AIRFORCE

AIRFORCE F-15 Gen 3 Manuale utente

MTD

MTD 126-220-000 Manuale utente

Toro

Toro 74806 Manuale utente
