Swisher ST67522CC Manuale utente

OWNER’S

MANUAL

MANUAL DEL

PROPIETARIO

MANUEL DU

PROPRIÉTAIRE

SWISHER

1602 CORPORATE DRIVE, WARRENSBURG MISSOURI 64093

PHONE 660-747-8183 FAX 660-747-8650

TELÉFONO 660-747-8183 FAX 660-747-8650

TÉLÉPHONE 660-747-8183 TÉLÉCOPIEUR 660-747-8650

Model Number

Número del modelo

Numéro de modèle

Assembly

Operation

Service and Adjustment

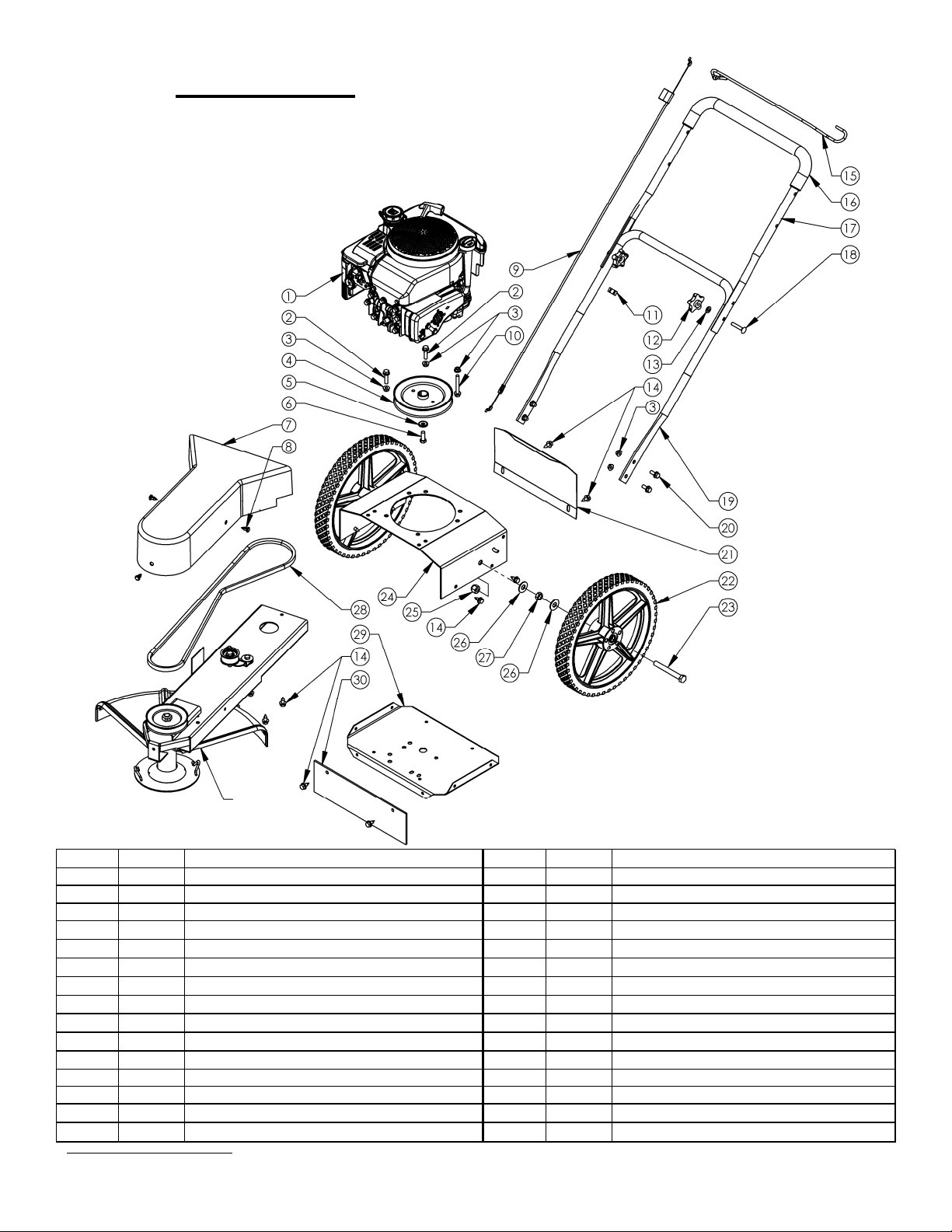

Repair Parts

Ensamblaje

Funcionamiento

Servicio y ajuste

Piezas para reparación

Assemblage

Utilisation

Réglage et entretien

Pièces de rechange

10698 REV 14-335

Trim-N-Mow

Visit us at www.swisherinc.com - Visítenos en www.swisherinc.com - Rendez-nous visite à : www.swisherinc.com

ST67522BS

ST67522CC

ST67522BS-TSC

Starting Serial Number

Del número de serie

A partir du no de série

L214-335001

Read and follow all Safety

Precautions and Instructions before

operating this equipment.

IMPORTANT

IMPORTANTE

IMPORTANT

Lea y siga todas las advertencias e

instrucciones sobre seguridad antes de

poner en funcionamiento este equipo.

Avant de mettre en marche cet

équipement, lire le présent manuel et

suivre toutes les directives de sécurité

indiquées.

Fabriqué aux

ÉTATS-UNIS

Made In The

USA

Hecho en

EE.UU.

1) Engine Warranty All engines utilized on our products have a separate warranty extended

to them by the individual engine manufacturer. Any engine service

difficulty is the responsibility of the engine manufacturer and in no way

is Swisher or its agents responsible for the engine warranty. The Briggs

& Stratton Engine Service Hot Line is 1-800-233-3723.

2) Commercial Use This product is not intended for commercial use and carries no

commercial warranty.

3) Limitation This warranty applies only to products which have been properly

assembled, adjusted, and operated in accordance with the instructions

contained within this manual. This warranty does not apply to any

product of Swisher that has been subject to alteration, misuse, abuse,

improper assembly or installation, shipping damage, or to normal wear

of the product.

4) Exclusions Excluded from this warranty are normal wear, normal adjustments, and

normal maintenance.

In the event you have a claim under this warranty, you must return the product to an authorized service

dealer. All transportation charges, damage, or loss incurred during transportation of parts submitted for

replacement or repair under this warranty shall be borne by the purchaser. Should you have any questions

concerning this warranty, please contact us toll-free at 1-800-222-8183. The model number, serial number,

date of purchase, and the name of the authorized Swisher dealer from whom you purchased the mower will

be needed before any warranty claim can be processed.

THIS WARRANTY DOES NOT APPLY TO ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES

AND ANY IMPLIED WARRANTIES ARE LIMITED TO THE SAME TIME PERIODS STATED

HEREIN FOR ALL EXPRESSED WARRANTIES. Some states do not allow the limitation of

consequential damages or limitations on how long an implied warranty may last, so the above limitations or

exclusions may not apply to you. This warranty gives you specific legal rights and you may have other

rights, which vary from state-to-state. This is a limited warranty as defined by the Magnuson-Moss Act of

1975.

LIMITED WARRANTY

The manufacturer’s warranty to the original consumer purchaser is: This product is free from defects in

materials and workmanship for a period of two (2) years from the date of purchase by the original consumer

purchaser. We will repair or replace, at our discretion, parts found to be defective due to materials or

workmanship. This warranty is subject to the following limitations and exclusions:

•

Read, understand and follow all instructions in the manual and on the trimmer

before starting.

•Read this manual carefully. Become familiar with the controls and how to

operate the unit properly.

•Only allow responsible adults, who are familiar with the instructions, to

operate the unit.

•Clear the area of objects such as rocks, toys, etc. that could be thrown by the

unit.

•Be sure the area is clear of other people before trimming. Stop the unit if

anyone enters the area.

•Be aware of the direction of the trimmer discharge and do not direct it at

anyone. Do not direct trimmer discharge at breakable objects, such as

windows, etc.

•Do not operate trimmer without all guards and shields in place.

•Never leave the machine running unattended.

•Trim only in daylight or good artificial light.

•Do not operate the trimmer while under the influence of alcohol or drugs.

•Watch for traffic when operating near roadways.

•Use the trimmer as the manufacturer intended and as described in the

manual.

•Do not operate trimmer if it has been dropped or damaged in any manner.

Always have the damage repaired before operating.

•Always wear safety glasses or eye shields when using the trimmer.

•Dress properly. Do not operate the trimmer when barefoot or wearing open

sandals. Wear only solid shoes for good traction when trimming. Wear long

sleeved shirts or jackets, also long pants. Do not trim in shorts.

•Keep your eyes and mind on your trimmer and the area being trimmed.

•Do not let other interests distract you.

•Do not put hands and feet near or under rotating parts.

•Before cleaning, inspecting or repairing your trimmer, stop the engine and

disconnect the spark plug wire and keep it away from the spark plug to

prevent accidental starting.

•Do not operate the trimmer if it vibrates abnormally. Excessive vibration is a

sign of damage. Stop the engine and safely check for damage and repair as

required.

•Do not operate the trimmer in wet grass, where good footing may not be

possible. Walk, never run.

•Stop the trimmer when crossing gravel drives, etc.

Safety Instructions

This Safety Alert Symbol indicates important messages in this

manual. When you see this symbol, carefully read the message that

follows and be alert to the possibility of personal injury.

Slopesareamajor factor relatedtolossof control and slipaccidents,

whichcanresult insevereinjury. All slopesrequireextracaution. If you

feel uneasyonit donot trimit.

Slope Operation

•

DO: Trim across the face of a slope and not up and down.

•DO: Remove objects such as rocks, tree limbs, etc.

•DO: Watch for holes, ruts or bumps. Tall grass can hide obstacles.

•DO NOT: Mow near drop-offs, ditches or embankments. The operator could

lose footing or balance.

•DO NOT: Trim excessively steep slopes.

•DO NOT: Trim on wet grass. Reduced footing could cause slipping.

Children

•

Keep children out of the area and under the watchful care of another

responsible adult.

• Be alert and turn the machine off if children enter the area.

• Before and when backing, look behind and down for small children.

• Never allow children to operate this machine.

•

Use extra care when approaching blind corners, shrubs, trees or other objects

that may obstruct vision.

•Use extra care handling gasoline and other fuels. They are flammable and

vapors are explosive.

•Use only an approved container.

•Never remove gas cap or add fuel with the engine running.

•Allow engine to cool before refueling. Do not smoke while refueling.

•Never refuel the machine indoors.

•Never store the machine or fuel container where there is an open flame, such

as a water heater.

•Never run a machine inside a closed area.

•Keep nuts and bolts tight and equipment in good condition.

•Never tamper with safety devices.

•Keep machine free of grass, leaves or other debris build up. Clean oil or fuel

spillage. Allow machine to cool before storing.

•Stop and inspect the equipment if you strike an object. Repair if necessary

before restarting.

•Never make repairs or adjustments with the engine running.

Service

The operation of any mower can encounter foreign objects to be thrown into the eyes, resulting in

severe eye damage. Always wear certified safety glasses or wide-vision safety goggles over

spectacles before starting any cutting machine and while operating such a machine.

The operation of any mower produces sound waves that are damaging to the human ear. Ear

protection is recommended.

CAUTION!

Tragic accidents can occur if the operator is not alert to the presence of children. Children

are often attracted to the machine and the mowing activity. Never assume that children

will remain where you last saw them.

Do not operate the trimmer if it vibrates abnormally. Excessive vibration is a sign of damage.

Stop the engine and safely check for damage and repair as required.

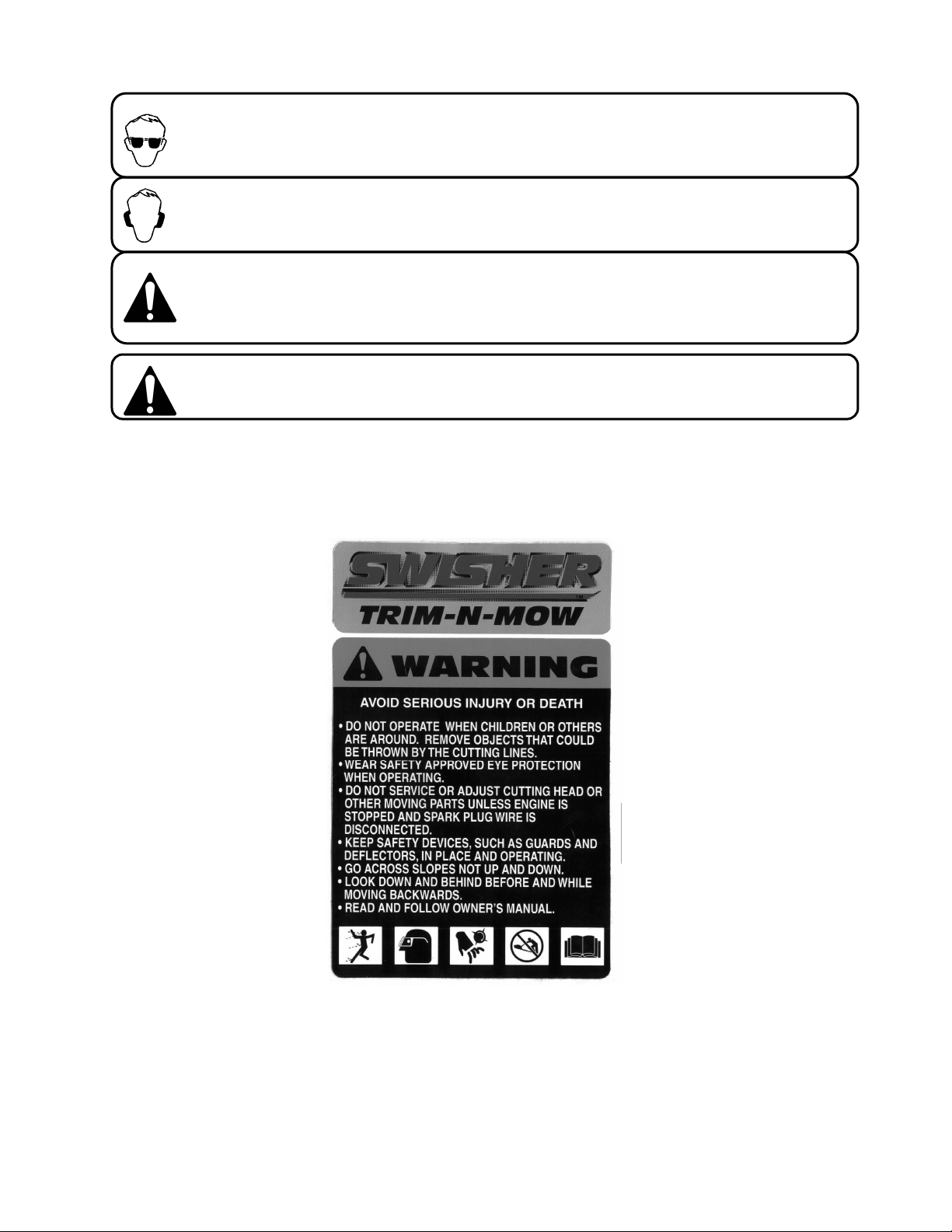

Trim-N-Mow Decal

OD65

Contents of Box:

• Trimmer

Parts bag containing:

• Manual

• Engine manual

• Safety goggles

• Bottle of engine oil

• Trimmer Line

• Cable Clip

Tools Required:

• ½” wrench

Installation of handles:

• Remove loose fasteners from lower handles.

• Pivot handles up and align lower hole in handles with hole on trimmer frame. Install

hardware removed in previous step. Snug, but do not tighten bolts.

• Pivot upper handles to fit the lower handles. Tighten knobs.

• Adjust handles for comfortable operation.

• Tighten all bolts.

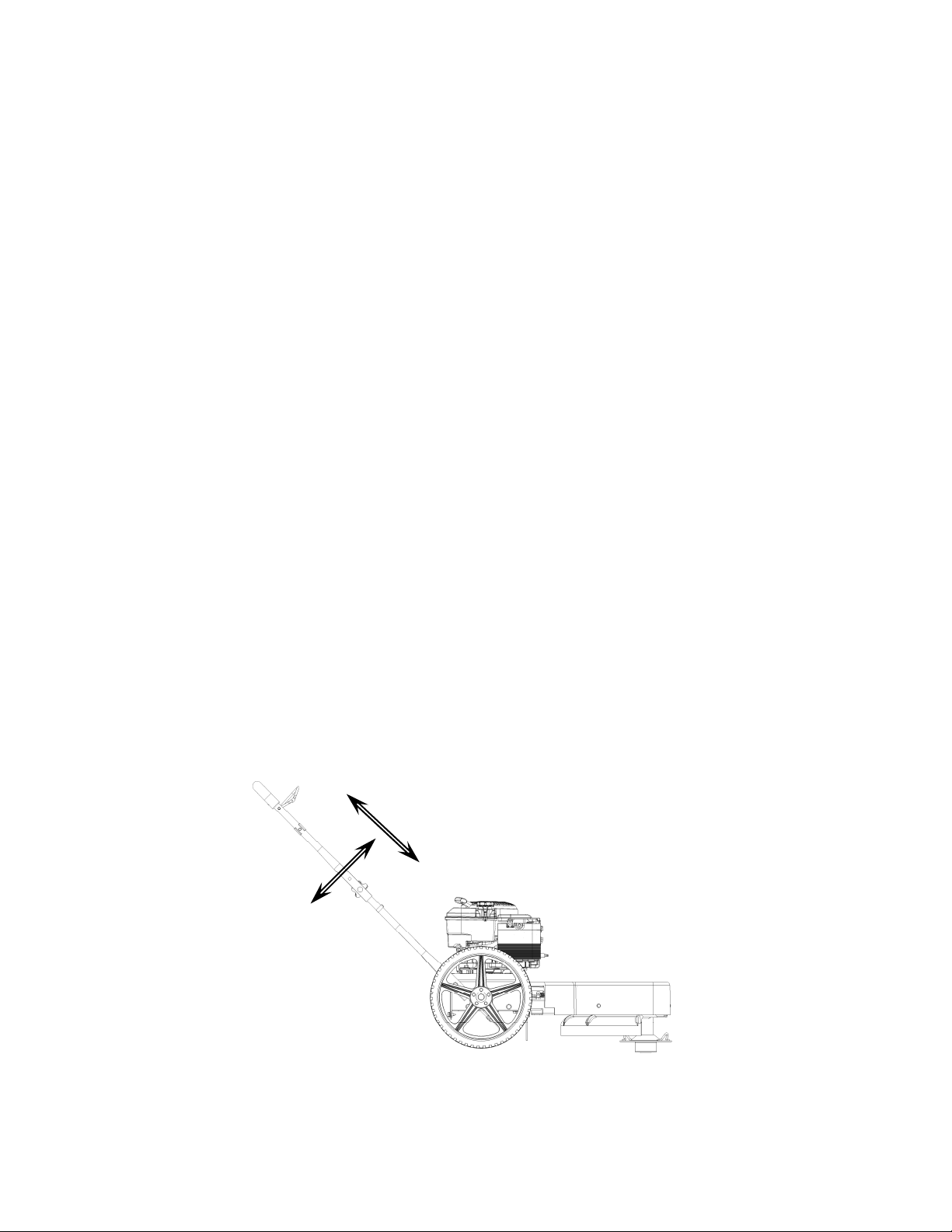

Handles may be adjusted up and down and in and out for comfortable operation.

Handle Adjustment

Assembly

To stop the trimmer:

• Release the control bail. Engine will stop immediately.

To start the trimmer:

• Remove any built up debris from engine.

• Pull control bail against the handle and hold.

• Push primer button on engine as directed.

• Pull back sharply on recoil starter handle.

• Begin trimming.

Important! For safest operation, make sure debris is directed away from you and others.

Preparing Unit For First Use

Operation

Trimming Tips

Important! To ensure proper operation, clean the engine and trimmer

regularly. Remove any build up of chaff from the top of the engine.

• Do not lift the trimmer head when trimming. Let the head rest lightly touching the ground.

• Keep an eye on the length of the trimmer line. As the line gets shorter they become less

effective at cutting and will take longer to trim properly. Replace the line as necessary (see

Installing Trimmer Line).

• Do not trim wet grass.

• Use caution when trimming slopes.

• Use the proper length of line. Using a line too long for the unit will cause stalling and

unacceptable operation.

Troubleshooting

•If engine will not start, remove and check air filter to make sure filter and

carburetor are clean.

• Fill engine crankcase with oil. A 20oz. bottle has been provided with this unit. A new unit

requires 18-20oz. DO NOT OVERFILL.

• Fill the engine fuel tank with gasoline. GASOLINE SHOULD BE ADDED OUTSIDE IN A

WELL-VENTILATED AREA.

• Check to ensure string has been installed properly. A diagram is provided just above the

trimmer head for proper installation.

• Refer to engine manufacture’s manual for oil and fuel specifications.

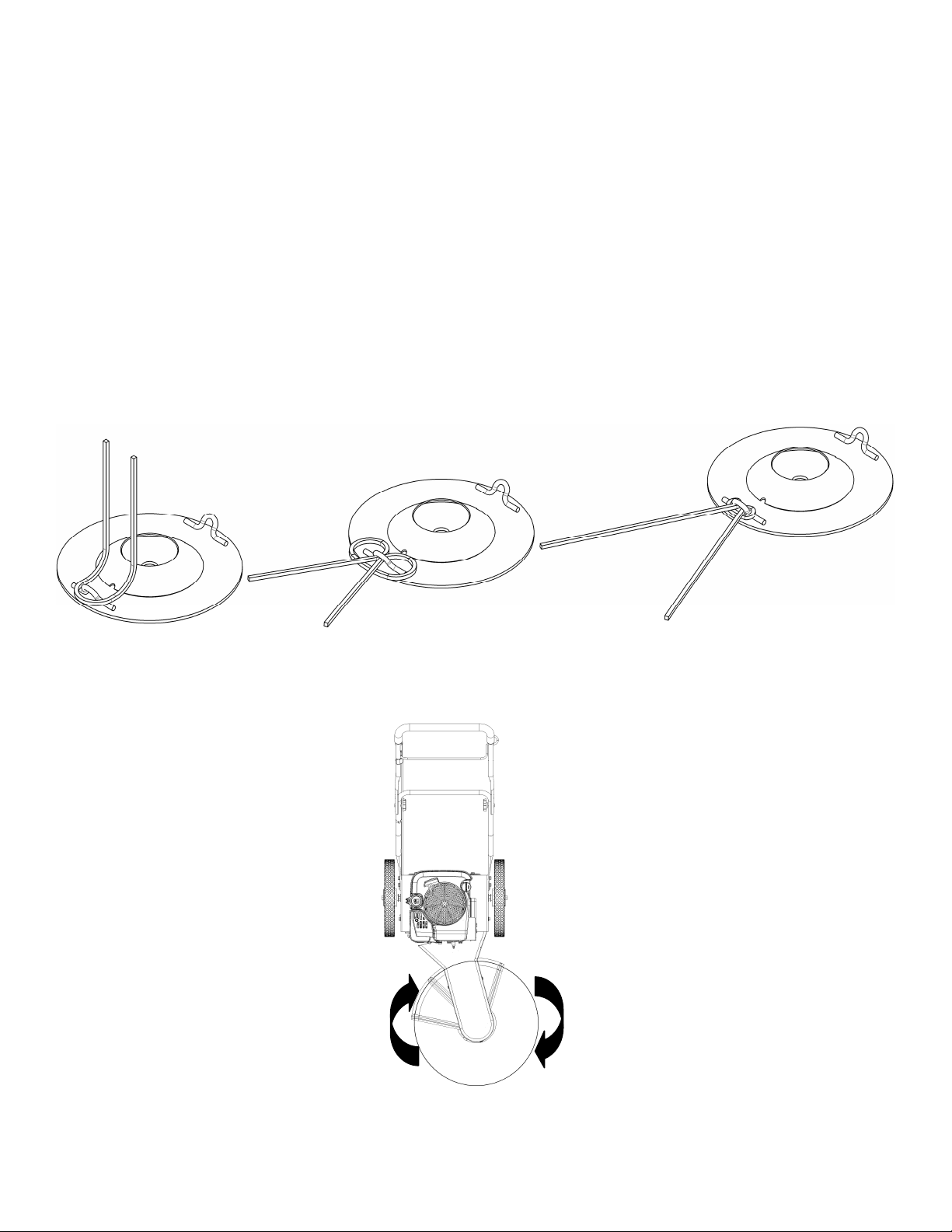

Installing Trimmer Line

Direction of Debris

Step 1 Step 2 Step 3

Important! Use the proper length of line. Using a line too long for the unit will cause

stalling and unacceptable operation.

Use 18” Trimmer Line Part Number P3618

•Loosely fold trimmer line in half.

•(1) Place loop of line against outside of loop on the trimmer head.

•(2) Bring ends around and through the loop and over the trimmer line loop.

•(3) Pull ends to tighten loop.

Engine

•Refer to the engine service manual provided with this unit.

Belt

•Occasionally check the belt for wear. A worn belt should be replaced.

Belt Replacement

•Remove belt cover.

•Disengage belt from idler pulley.

•Remove old belt.

•Install new belt by first routing belt around the front pulley.

•Install belt around engine pulley.

•Ensure that belt is correctly installed in the groove of the engine and front pulleys.

•Engage the idler pulley.

•Reinstall belt cover.

Make sure your trimmer is in safe working condition by keeping the following guidelines in mind every

time you use your trimmer.

•Keep trimmer in good operating condition and keep all guards and shields in place. DO NOT operate

this trimmer if any of the shields and guards are missing.

•Check all fasteners for secure fit to keep equipment in safe working order. Make adjustments as

necessary.

•To reduce fire hazards, keep engine free of grass, leaves or excessive grease.

•DO NOT operate trimmer with a damaged or missing muffler. DO NOT tamper with exhaust system;

this may cause a fire hazard.

•DO NOT operate engine if air cleaner or the cover over the carburetor air intake is missing. Removal

of these parts could create a fire hazard.

•Before cleaning, making adjustments or repairing the trimmer, STOP engine, disconnect spark plug

wire and allow engine to cool.

•Handle gasoline with care. DO NOT smoke or use open flame near gasoline. Use only approved

gasoline containers. Never fuel or run trimmer in poorly ventilated areas, such as a garage or utility

building.

•Always replace fuel tank cap. Be sure to clean up any spilled gasoline.

•Do not change the engine governor settings or over-speed the engine; severe injury or damage may

result.

•Never store mower with gasoline in the tank

inside a building where fumes may reach an open flame or

spark. Always allow engine to cool before storing.

Trimmer Maintenance

WARNING – ALWAYS STOP ENGINE AND DISCONNECT SPARK PLUG

WIRE BEFORE PERFORMING ANY ADJUSTMENTS OR SERVICE.

NEVER ADD GASOLINE TO A HOT ENGINE – ALLOW ENGINE TO

COOL BEFORE ADDING GASOLINE.

Trim-N-Mow

When ordering replacement parts

* USE PAINT CODE: TK=BLACK

See Page 11

Item #

Part #

Description

N/A

Engine - Briggs & Stratton

NB253

Bolt - Serr Flange, 5/16-18 X1 1/4ZY Gr5

NB170

Nut - Serr Flange 5/16-18 ZY Case Hrd

4 2063 Pulley - Engine; Trimmer

5 NB607 Washer - SP Bellvl. PLN .413 X.945 X.118

6 NB238N Bolt - HHC 3/8-24 X1 GR 5 Nyloc

7 2019 Guard - Belt

8 19135 Clip - Panel

9 2034B Cable - Operator Presence; Briggs

10 NB622 Bolt - Serr Flange, 5/16-18X2 1/4 GR5 ZY

11 2051 Clip - Conduit 7/8

2030

Knob - Black Plastic

NB275

Washer - SAE Flat 5/16 ZY

14 26X249 Screw - .312-18 X .75

15 10397 Handle - Bail

Item #

Part #

Description

19561

Grip - Handle

10578*

Handle - String Trimmer, Upper

NB587

Bolt - Carriage, 5/16-18 X1 3/4 ZY Gr 2

19 10399* Handle - String Trimmer, Lower

20 NB596 Bolt - Serr Flange, 5/16-18 X3/4 Gr 5

21 2026* Cover - Rear

22 2002K Wheel - 13.75", Blk

23 NB132 Bolt -1/2-13 X 4 HCC GR5 ZY

24 2005* Base - Upper Motor ST

25 NB281 Nut - Nyloc 1/2-13 ZY Standard Pattern

26 NB555 Washer - USS Flat, 1/2 ZY

NB118

Nut - Jam, 1/2-13 ZY Gr 2

19113

Belt - 59", Trimmer

29 2006* Base - Lower Motor

30 2027 Shield - Rubber Standard

Questo manuale è adatto per i seguenti modelli

Indice

Lingue:

Altri manuali Swisher Taglia erba

Swisher

Swisher Predator WB80024 Manuale utente

Swisher

Swisher WB80042F Manuale utente

Swisher

Swisher ST50022STDQ Manuale per l'uso e la cura

Swisher

Swisher FC11544CL Manuale utente

Swisher

Swisher POL 10550 Manuale utente

Swisher

Swisher POSTMASTER PST67522 Manuale utente

Swisher

Swisher Predator WB80024 Manuale utente

Swisher

Swisher WB11524BS Manuale utente

Swisher

Swisher FT1150 Manuale utente

Swisher

Swisher Commercial Pro Response Z21554CPHO Manuale utente

Swisher

Swisher Z-MAX ZT2560 Manuale utente

Swisher

Swisher WBRC11524XP Manuale utente

Swisher

Swisher ZT13536, ZT17542B, ZT20050 Manuale utente

Swisher

Swisher T2066 Manuale per l'uso e la cura

Swisher

Swisher ZTR2460BS-CA Manuale utente

Swisher

Swisher QUADBOSS QBFC14560 Manuale utente

Swisher

Swisher ZTR2454BS Manuale utente

Swisher

Swisher ZT2452A Istruzioni operative

Swisher

Swisher T14560A Manuale utente

Swisher

Swisher QUADBOSS QBFC1966 Manuale utente

Swisher

Swisher ZT2760B Manuale utente

Swisher

Swisher ZTR2866BS Manuale utente

Swisher

Swisher SCOLA Manuale utente

Swisher

Swisher ST50022STDQ Manuale utente

Manuali Taglia erba popolari di altre marche

RHINO

RHINO 1958 Manuale utente

Wolf Garten

Wolf Garten Compact plus 40 B Manuale utente

Cub Cadet

Cub Cadet LTX 1045 Manuale utente

Craftsman

Craftsman 917.378461 Manuale utente

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manuale utente

Challenge

Challenge CH18V2 Istruzioni operative

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manuale utente

DEWEZE

DEWEZE ATM-725 Manuale operativo

Weed Eater

Weed Eater 180083 Manuale utente

Husqvarna

Husqvarna Poulan Pro PP185A42 Manuale utente

Better Outdoor Products

Better Outdoor Products Quick Series Manuale utente

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manuale operativo

MTD

MTD 795, 792, 791, 790 Manuale utente

Toro

Toro Groundsmaster 3505-D Manuale utente

Dennis

Dennis FT 610 Manuale utente

AIRFORCE

AIRFORCE F-15 Gen 3 Manuale utente

MTD

MTD 126-220-000 Manuale utente

Toro

Toro 74806 Manuale utente
