Swisher LS10534D Manuale utente
LOG
SPLITTER
OWNER’S
MANUAL
1602 CORPORATE DRIVE, WARRENSBURG, MISSOURI 64093 PHONE 660-747-8183
FAX 660-747-8650
MODEL NO.
LS622
LS826
LS934
LS10534D
Manufacturing quality lawn care equipment since 1945
Safety
Assembly
Operation
Service and Adjustment
Repair Parts
Made In The
USA
Rev.07.04.2001
Read and follow all Safety
Precautions and Instructions
before operating this
equipment.
IMPORTANT
swisherinc.com
OD12 – HYDRAULIC FILL PLUG
DECAL
OD09 – DANGER/POSITION LOCK
DECAL
OD08 – OPERATOR INSTRUCTION
DECAL
OD16 – FUEL SHUT OFF DECAL OD07 – COLD WEATHER DECAL
SAFETY DECALS
Replace decals immediately if damaged.
OD22 – POSITION LOCK DECAL
OD23 – TOW POSITION DECAL
ASSEMBLY DETAIL
LS622, LS826, LS934 MODELS
SEE DETAIL
1
2
3B
4
5
6
7
8
9
10
A
A
11
16
15
14
13
12
18
17
8
20
25
21 23
24
2627
22
22
22
28
29
6
25
39
31
33 3432
35
35 36
30
42
41
40
38
37
43
44
45
46
47
48
49
50
42
16
51 55
18
52
54
53
52
58
57
56
49
6
5
SEE DETAIL
NOT ALL PARTS ARE ON ALL MODELS
57
B
FENDERS ONLY ON
LS934 MODEL
19
SERVICE PARTS
Please have Model and Serial Numbers ready when ordering parts.
Color cannot be guaranteed upon service parts.
ITEM NUMBER DESCRIPTION PART NUMBER
1RETURN HOSE 54" 7290
2PRESSURE HOSE 48" 7289
3#12 HOSE CLAMP LS5001
4HYDRAULIC RESERVOIR 7319
51/2-13 X 3 1/2 GR5 BOLT NB577
61/2-13 NYLOCK NUT NB281
7RESERVOIR VENT PLUG 7379
83/8-16 X 1 GR5 BOLT NB604
91/2 X 3 1/2 HITCH PIN W/ HAIR PIN NB648
10 SUCTION HOSE 18" 7346
11 #16 HOSE CLAMP LS4999
12 RETURN LINE FITTING 7329
13 FILTER HEAD LS1112
14 FILTER ELEMENT LS1113
15 1/2-13 X 1 1/4 GR5 BOLT NB647
16 3/8-16 2-WAY LOCK NUT NB280
17 TANK BRACE 7352
18 3/8-16 NYLOCK NUT NB182
19 TRAILER JACK/ SNAP RING 7367/7367SR
20 HYDRAULIC PUMP - LS622 MODEL LS2001H
HYDRAULIC PUMP - LS826 & LS934 MODELS LS2002B
21 1/8 X 1/2 #3 WOODRUFF KEY 7440
22 5/16-18 2-WAY LOCK NUT NB558
23 PUMP PULLEY 7306
24 SET SCREW W/ NYLOCK NB312
25 5/16-18 X 3/4 GR2 BOLT NB143
26 FENDER BRACKET - RIGHT SIDE - LS934 ONLY 7417
FENDER BRACKET - LEFT SIDE - LS934 ONLY 7418
27 FENDER - LS934 ONLY 7401
28 KICKSTAND 7398
SERVICE PARTS
Pleas have Model and Serial Numbers ready when ordering parts.
ITEM NUMBER DESCRIPTION PART NUMBER
29 MOTOR BASE / AXLE 7297
30 TIRE / WHEEL 7296
31 COTTER PIN NB633
32 WHEEL DUST COVER 2203DC
33 CASTLE NUT 2203CN
34 WASHER 2203W
35 TAPERED BEARING 2203B
36 BEARING SEAL 2203S
37 BELT 644
38 IDLER ARM 6681TK
39 CLUTCH LEVER 7358
40 SPRING 682S
41 3/8-16 JAM NUT NB174
42 HARDENED WASHER NB196
43 3/8-16 X 2 1/2 GR5 BOLT NB221
44 5/16-18 FLANGE NUT NB170
45 IDLER SPRING MOUNT 2046
46 WIRE LINK FOR IDLER SPRING BRS6H
47 SHOULDER BOLT NB220
48 IDLER PULLEY B527
49 WASHER NB272
50 BELT COVER 7321
51 #14 x 3/4 SELF-TAPPING SCREW NB161
52 SAFETY CLIP PIN H11
53 TOWING TONUGE 7343
TOWING TONGUE - LS934 & LS10534D 7405
54 TRAVEL LOCK 7441
55 SAFETY CHAIN W/ HOOK 7366
56 2" BALL COUPLER 7365
57 3/8-16 X 3 GR5 BOLT NB164
58 3/8-16 X 3 1/2 GR5 BOLT NB649
Color cannot be guaranteed upon service parts.
127
127
113
126
112
111
129
107
124
108
127
111
114
110
107
126
124
109
122
124
128 110
134
130
146
128 128
131
112
117
125
131
128
145
131
149
116
128
147
124
148
115
129
118
118
129
123
119 133 132
129
121
120 123
135
136
137
138
140 139
142
151
150
144
143
141
See Detail
152 153
154
155
156
157 156 158
159
160
161
166
164
162
165
163
167
168
169
170
169
See Detail
ASSEMBLY DETAIL
MODEL LS10534D
171
NOT ALL PARTS ARE ON ALL MODELS
173
172
ITEM NUMBER DESCRIPTION PART NUMBER
107 3/8-16 X 3 1/2 GR5 BOLT NB649
108 3/8-16 X 3 GR5 BOLT NB164
109 1/2-13 X 3 1/2 GR5 BOLT NB577
110 1/2-13 X 1 1/4 GR5 BOLT NB647
111 1/2-13 X 1 1/4 GR5 BOLT NB646
112 3/8-16 X 1 GR5 BOLT NB604
113 5/16-18 X 1 GR5 BOLT NB501
114 5/16-18 X 3/4 FLANGE BOLT NB596
115 #14X 3/4 SELF TAPPING SCREW NB161
116 SHOULDER BOLT NB220
117 3/8-16 X 2 1/2 GR5 BOLT NB221
118 5/16-18 X 3/4 GR2 BOLT NB143
119 3/4-10 X 7 1/2 GR5 BOLT NB655
120 1/4-20 X 1 GR5 BOLT NB102
121 5/16-18 X 4 GR5 BOLT NB513
122 SAFETY CLIP PIN H11
123 1/2 X 2 1/2 BALL LOCK PIN NB651
124 WASHER NB272
125 HARDENED WASHER NB196
126 3/8-16 NYLOC NUT NB182
127 1/2-13 NYLOC NUT NB281
128 3/8-16 2 WAY LOCK NUT NB280
129 5/16-18 2 WAY LOCK NUT NB558
130 5/16-18 NYLOC NUT NB181
131 3/8-16 JAM NUT NB174
132 1/4-20 NYLOC NUT NB180
133 3/4-10 NYLOC NUT NB609
134 SET SCREW W/ NYLOC NB312
135 SAFETY CHAIN W/ HOOK 7366
136 2" BALL COUPLER 7365
137 TONGUE 7405
138 TUBE RECIEVER 7362
139 KICKSTAND 7386
140 KICKSTAND BRACKET 7385
141 HYDRAULIC PUMP LS2001H
SERVICE PARTS
Please have Model and Serial Numbers ready when ordering parts.
Color cannot be guaranteed upon service parts.
ITEM NUMBER DESCRIPTION PART NUMBER
142 HYDRAULIC ELBOW 7291
143 PUMP PULLEY 7306
144 MOTOR BASE 7399
145 BELT 32.5 7345
146 IDLER ARM 6681
147 IDLER PULLEY B527
148 CLUTCH LEVER 7358
149 SPRING 682S
150 BOTTOM COVER 7336
151 MOTOR BASE SUPPORT ARM 7375
152 DUST COVER 2203DC
153 COTTER PIN 2203CP
154 CASTLE NUT 2203CN
155 WASHER 2203W
156 TAPERED BEARING 2203B
157 TIRE & WHEEL 7296
158 BEARING SEAL 2203S
159 FENDER 7428
160 DELUXE TANK WELDMENT 7400
161 RESERVOIR VENT PLUG 7379
162 14" SUCTION HOSE 7419
163 #16 HOSE CLAMP LS4999
164 FILTER ELEMENT LS1113
165 FILTER HEAD LS1112
166 FITTING RETURN LINE 7329
167 82" RETURN HOSE 7326
168 90" PRESSURE HOSE 7325
169 #12 HOSE CLAMP LS5001
170 PIVOT 7402
171 TRAILER JACK/ SNAP RING 7367/7367SR
172 ROPE GUIDE 2046
173 5/16-18 FLANGE NUT NB170
NOT SHOWN BEAM LOCK 7439
NOT SHOWN COMPRESSION SPRING 7429
NOT SHOWN 1/8X 3/4 COTTER PIN NB125
SERVICE PARTS
Please have Model and Serial Numbers ready when ordering parts.
Color cannot be guaranteed upon service parts.
ITEM NUMBER DESCRIPTION PART NUMBER
59 CLIP PIN NB642
60 STEEL PIN 7293
61 HYDRAULIC FITTING 7291
62 STATIONARY LINE ASSEMBLY 7288
63 RAM CYLINDER - LS622 MODEL 7284
RAM CYLINDER - LS826 MODEL 7354
RAM CYLINDER - LS934 & LS10534 MODELS 7355
64 1/2-13 X 3 GR5 BOLT NB131
65 SPLITTING WEDGE 7233
66 1/2-13 X 2 1/2 GR5 CARRIAGE BOLT NB643
67 RETURN LINE FITTING 7329
68 1/2-13 JAM 2-WAY LOCK NUT NB121
69 2-WAY PIPE NIPPLE 7292
70 MASTER CHAIN LINK 7424
71 COTTER PIN NB597
72 VALVE INLET FITTING 7387
73 VALVE CONTROL W/ LEVER 7287
74 BEAM WELDMENT 7282
BEAM WELDMENT - DELUXE MODELS 7384
75 1/4 X 1 CLEVIS PIN NB522
76 1/2-13 NUT NB213Z
77 VALVE LEVER & GRIP 7423/7425
78 THIN GIB PLATE 7388
79 THICK GIB PLATE 7237
80 BOTTOM GIB PLATE 7333
81 LOCK WASHER NB508
81A FLAT WASHER NB555
62
61
64
68
60
70
69
67
66
65
61
74
72
71
73
75
77
79
80
81
78
76
BEAM DETAIL
ALL MODELS
NOT ALL PARTS ARE ON ALL MODELS
59
63
81A

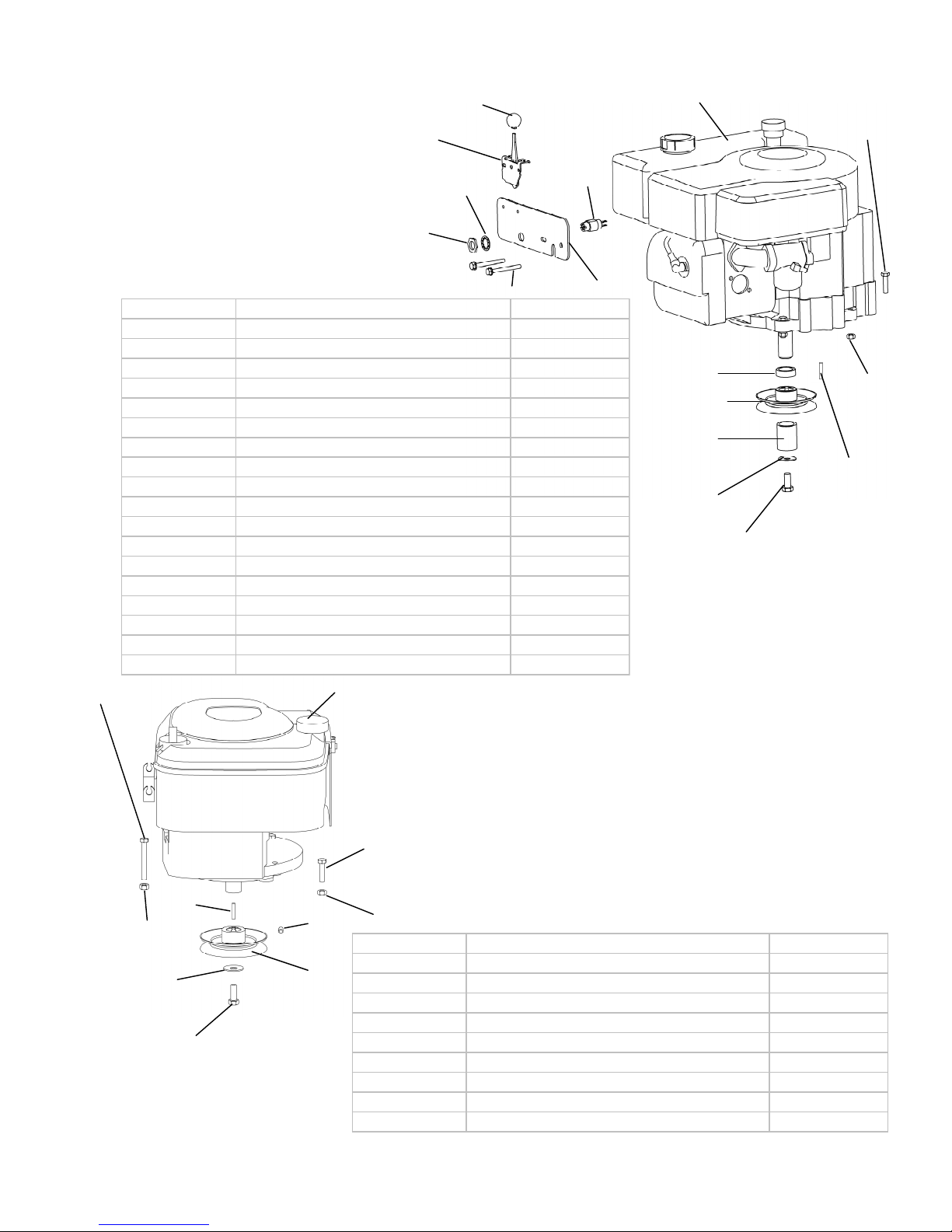

ENGINE DETAIL
LS826, LS934, LS10534D MODELS
ENGINE DETAIL
LS622 MODEL
ITEM # DESCRIPTION PART #
82 BLACK PLASTIC KNOB 686K
83 THROTTLE & CABLE(NOT SHOWN) 686N
84 ON - OFF KEY SWITCH KSM
85 GOLDEN LOCK WASHER 9088
86 GOLDEN KEY SWITCH NUT 9087
87 EXISTING ENGINE HARDWARE N/A
88 KEY SWITCH PLATE 7415
89 ENGINE N/A
90 5/16-18 X 1 1/4 GR5 BOLT NB504
91 5/16-18 2-WAY LOCK NUT NB558
92 UPPER SPACER BB105SL
93 ENGINE PULLEY BB105
94 LOWER SPACER BB105S
95 BELLEVILLE WASHER 699
96 7/16-20 X 1 GR5 BOLT W/ NYLOCK NB452N
106 KEYSTOCK 9031
NOTSHOWN WIRING HARNESS 9416
NOTSHOWN THROTTLE PLATE/ SCREWS 686P/NB137
ITEM # DESCRIPTION PART #
97 ENGINE N/A
98 5/16-18 X 2 1/2 GR5 BOLT NB138
99 5/16-18 2-WAY LOCK NUT NB558
100 5/16-18 X 1 1/4 GR5 BOLT NB504
101 KEYSTOCK 9030
102 SET SCREW W/ NYLOCK NB312
103 ENGINE PULLEY - LS622 7323
104 BELLEVILLE WASHER 699
105 3/8-24 X 1 BOLT W/ NYLOCK NB238N
89
88
83
82
90
86
85
87
84
91
94
93
92
95
96
100
98 97
99
99
101
105
102
104 103
106
