Read and follow all Safety

Precautions and Instructions

before operating this

equipment.

LOG

SPLITTER

OWNER’S

MANUAL

1602 CORPORATE DRIVE, WARRENSBURG, MISSOURI 64093 PHONE 660-747-8183

FAX 660-747-8650

MODEL NO.

LS412

STARTING SERIAL #:

L205-332001

Manufacturing quality lawn care equipment since 1945

Safety

Assembly

Operation

Service and Adjustment

Repair Parts

Made In The

USA

IMPORTANT

swisherinc.com

11924

Rev.

In the event you have a claim under this warranty, you must return the product to an authorized service dealer.

All transportation charges, damage, or loss incurred during transportation of parts submitted for replacement or

repair under this warranty shall be borne by the purchaser. Should you have any questions concerning this

warranty, please contact us toll-free at 1-800-222-8183. The model number, serial number, date of purchase,

and the name of the authorized Swisher dealer from whom you purchased the splitter will be needed before any

warranty claim can be processed.

THIS WARRANTY DOES NOT APPLY TO ANY INCIDENTAL OR CONSEQUENTIAL

DAMAGES AND ANY IMPLIED WARRANTIES ARE LIMITED TO THE SAME TIME PERIODS

STATED HEREIN FOR ALL EXPRESSED WARRANTIES. Some states do not allow the limitation of

consequential damages or limitations on how long an implied warranty may last, so the above limitations or

exclusions may not apply to you. This warranty gives you specific legal rights and you may have other rights,

which vary from state-to-state. This is a limited warranty as defined by the Magnuson-Moss Act of 1975.

LIMITED WARRANTY

The manufacturer’s warranty to the original consumer purchaser is: This product is free from defects in

materials and workmanship for a period of ONE (1) year from the date of purchase by the original consumer

purchaser. We will repair or replace, at our discretion, parts found to be defective due to materials or

workmanship. This warranty is subject to the following limitations and exclusions:

TABLE OF CONTENTS

WARRANTY………………....….2

SAFETY PRECAUTIONS………3-4

ASSEMBLY……………………...5

OPERATION…………………….5-7

MAINTENANCE.…………………….6-7

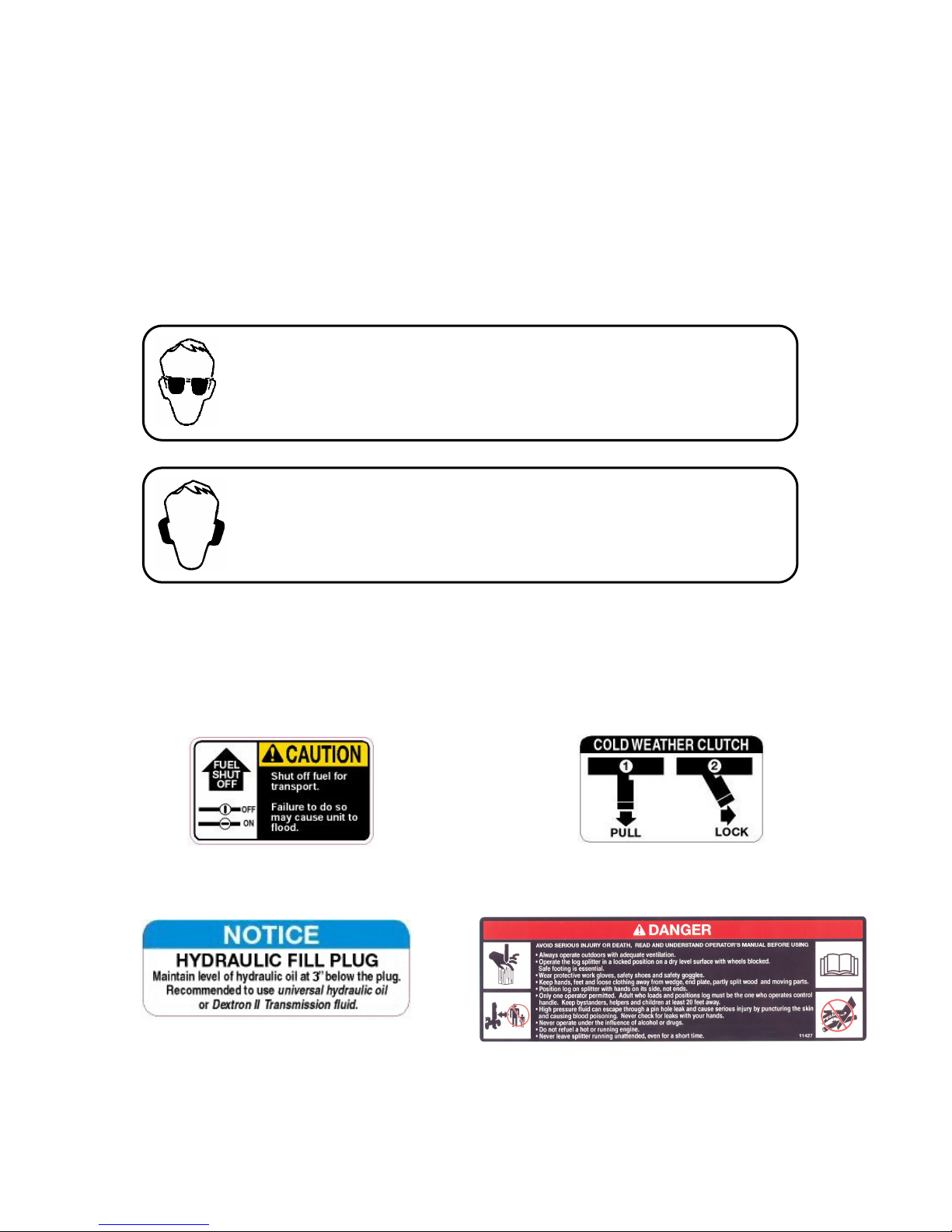

DECALS…..………….……………….7

PARTS BREAKDOWN………………8-9

SPECIFICATIONS..…………………..11

1) Engine Warranty All engines utilized on our products have a separate warranty extended

to them by the individual engine manufacturer. Any engine service

difficulty is the responsibility of the engine manufacturer and in no

way is Swisher Mower Co., Inc. or its agents responsible for the engine

warranty. The Briggs & Stratton Engine Service Hot-Line is 1-800-

233-3723.

2) Commercial Use The warranty period for any product used for commercial or rental is

limited to ninety (90) days from the date of original purchase.

3) Limitation This warranty applies only to products which have been properly

assembled, adjusted, and operated in accordance with the instructions

contained within this manual. This warranty does not apply to any

product of Swisher Mower Co., Inc., that has been subject to alteration,

misuse, abuse, improper assembly or installation, shipping damage, or

to normal wear of product.

4) Exclusions Excluded from this warranty are normal wear, normal adjustments, and

normal maintenance. The pump, valve, and cylinder each carry separate

manufacture’s warranties. The valve and cylinder both carry a one (1) year

limited warranty. The pump carries a two (2) year limited warranty.

SAFETY PRECAUTIONS

WARNING:

The engine exhaust from this product contains chemicals known to the state of California

to cause cancer, birth defects or other reproductive harm.

DANGER:

Your log splitter was built to be operated according to the rules for safe operation in this

manual. As with any type of power equipment, carelessness or error on the part of the operator can result

in serious injury. If you violate any of these rules, you may cause serious injury to yourself or others.

• Read and understand the manual. Learn to operate this equipment in a safe manner. Familiarize

yourself with all of the controls in a safe environment before starting to work with this machine.

• DO NOT under any circumstances alter this log splitter. This equipment was designed and

engineered in accordance with operating instructions. Altering this equipment, or using this

equipment in such a way as to circumvent its design capabilities and capacities, could result in

serious injury or fatality and WILL VOID THE WARRANTY.

• Allow ONLY responsible adults who have read this manual to operate this machine. NEVER

allow children to operate this machine.

• NEVER operate or allow someone to operate this equipment while under the influence of

alcohol, drugs or medication. Being coherent is essential for safety.

• ALWAYS use outdoors with adequate ventilation. DON’T run the engine in an enclosed area.

Exhaust gases contain carbon monoxide. This odorless gas can be deadly when inhaled.

• NEVER use splitter for any other purpose than splitting wood. Any other use can result in

injury. Your splitter is a precision piece of power equipment, not a toy. Therefore, exercise

extreme caution at all times.

• ONLY a single operator is to load and operate the log splitter. KEEP all others, including pets

and children, a minimum of 20 feet away from your work area. More accidents occur when

more than one person operates the log splitter than any other time.

• ALWAYS wear protective gear such as safety goggles, protective hearing device, steel-toed

shoes, and tight-fitting gloves without drawstrings or loose cuffs.

• NEVER wear loose clothing or jewelry that can be caught by moving parts of the splitter and

pull you into it. Keep hair away from moving parts.

• NEVER operate your splitter on wet, muddy, or icy surfaces. KEEP work area clean of split

wood. Safe footing is essential in preventing accidents.

•

ONLY operate splitter on level ground with wheels blocked, not on the side of a hill. It could

tip, or rolling logs, poor footing, etc. could cause an accident.

This Safety Alert Symbol indicates important messages in this manual.

When you see this symbol, carefully read the message that follows and be

alert to the possibility of personal injury.

Read this manual completely. This machine can amputate hands, feet, and throw objects.

Failure to observe the following safety instructions could result in serious injury or death.

•

NEVER operate your splitter near a flame or spark. Hydraulic oil and gasoline are flammable and can explode.

• NEVER fill gas tank while the engine is hot or running. Allow the engine to cool before refueling.

• This unit is equipped with an internal combustion engine and should not be used on or near any unimproved

forest-covered, brush-covered or grass-covered land unless the engine’s exhaust system is equipped with a spark

arrester meeting applicable local or state laws (if any). If a spark arrester is used it should be maintained in

effective working order by the operator.

-NOTE-

In the state of California, the above is required by law (Section 442 of the California Public Resources Code). Other

states may have similar laws. Federal laws apply on federal lands. A spark arrester muffler (optional by

manufacturer) is available at your nearest engine dealer. Check legal requirements in your area.

• ONLY use your hands to operate the control lever. NEVER use foot, knee, rope or any extension device.

• Split ONLY one log at a time. NEVER attempt to split two logs on top of each other.

• NEVER place hands or feet between log and splitting wedge or between log and ram during forward or reverse

stroke. ALWAYS keep fingers clear of splits that open in log during splitting operation.

• DO NOT straddle or reach across the splitting area while operating the splitter.

• DO NOT step over splitter when the engine is running. You may trip or accidentally activate the splitting

wedge. Walk around to get to the other side.

• NEVER attempt to load splitter while splitting wedge is in motion. When loading log splitter, place hands on the

sides of the log, not the ends.

• NEVER attempt to split woods across the grain. Wood may burst or fly out of your splitter and result in serious

injury.

• NEVER leave your splitter unattended with the engine running. Shut off the engine if you are leaving your

splitter, even for a short period of time. Someone could accidentally activate the ram and be injured.

• Both ends of the log should b

e cut as squarely as possible to prevent the log from sliding out of the splitter during

operation. Log length should be kept to 19” or less.

• NEVER allow persons to ride on splitter. DO NOT carry any cargo or wood on your splitter. It may fall off and

cause an accident.

• DO NOT loosen or remove any hydraulic fitting, line or reservoir cap while your splitter or engine is running.

• Fluid escaping from a very small hole can almost be invisible. DO NOT check for leaks with your hand. See

maintenance section for instructions. IF injured by escaping fluid, see a doctor at once. Serious infection or

reaction can develop if proper medical treatment is not administered immediately.

• DO NOT operate your splitter in poor mechanical condition or when it is need of repair.

• ALWAYS disconnect the spark plug wire and place the wire where it cannot contact the spark plug, to prevent

accidental starting the engine when setting up, transporting, adjusting or repairing.

ASSEMBLY

This log splitter has been partially assembled at the factory. Refer to the drawings and part lists should it become

necessary to disassemble the unit for repair or replacement of parts.

Inspect all components for damage. If you believe you have a damaged part please contact customer service

immediately at 1-800-222-8183.

WARNING:

Exercise extreme caution, as parts are very heavy. Sufficient persons or mechanical handling

equipment should be used.

Refer to uncrating and assembly instructions for assembly procedures.

OPERATION

INTENDED USE:

This log splitter is intended and designed to only split wood. NEVER use for any other

purposes. Doing so can cause injury or VOID THE WARRANTY.

IMPORTANT:

This unit is shipped with oil but without gasoline in the engine. After assembly, see separate

Engine Manual for proper fuel and oil recommendations.

WARNING: DO NOT START OR RUN THE LOG SPLITTER WITHOUT OIL IN THE ENGINE

AND HYDRAULIC RESERVOIR.

FILLING THE HYDRAULIC RESERVOIR

Fill the hydraulic reservoir with approximately 6 Quarts of general-purpose automatic transmission fluid or

general-purpose hydraulic fluid. After the hydraulic reservoir and the engine crankcase are filled correctly with

their respective oils, start the engine. Remember to set the throttle and turn on the fuel shut-off valve. The

hydraulic pump should prime itself. With the engine running, move the hydraulic valve lever toward the wedge.

This will cause the cylinder to extend and expel air. When the cylinder is fully extended, retract it. Repeat this

procedure several times. (An erratic movement of the cylinder indicates that there is air in the system). Once the

cylinder has a smooth and constant speed indicating that all air has been expelled, add another 2 quarts of oil.

Fluid level should be maintained approximately 3” below the fill hole and above the flat on the dipstick. This

model requires approx. 9-10 Quarts of hydraulic fluid.

NOTE:

If the tank is overfilled, it will tend to expel oil from the breather cap when the cylinder is retracted.

START UP

WARNING:

DO NOT START OR RUN THE LOG SPLITTER WITHOUT OIL IN THE ENGINE

AND HYDRAULIC RESERVOIR.

See separate Engine Manual for fuel and oil recommendations. If applicable your log splitter has come equipped

with a fuel shut-off valve for towing purposes.

Before starting engine make sure crankcase is filled correctly with oil and the proper fuel has been used. The

engine will only start when the throttle lever and fuel shut-off valve if applicable are turned to their ON positions.

STARTING INSTRUCTIONS

Briggs & Stratton 4HP Engine

1. Move throttle control to “FAST.”

2. Push primer bulb three (3) times. NOTE: Do not use primer to restart a warm engine after a short

shutdown.

3. Grasp rope handle and pull out slowly until resistance it felt. Then pull rapidly with a full arm stroke.

NOTE: If engine fails to start after three (3) pulls, repeat steps 1 and 2.

4. When Engine starts, leave throttle control at “FAST.” The throttle must be set in the fast position for

maximum performance.

5. To stop engine, move throttle lever to “SLOW” for a few seconds then to “STOP.”

SPLITTER OPERATION

1. Set up the log splitter in a clear, level area and block the wheels. The suction port on the tank should

always be on the lower side of the log splitter.

2. Place a log on the beam, against the foot plate. Make sure the log is securely on the foot plate and up

against the beam.

3. Depress the valve lever so that the cylinder will drive the push block into the log. Extend the cylinder until

the log splits or to the end of its stroke. If the log has not completely split after the cylinder has reached

the end of its extension, retract the cylinder. NOTE: Leaving the valve in the “actuate” position at the end

of the stroke may damage the pump. Always use extra care when splitting logs with ends that are not

square.

NOTE:

To extend the life of the hydraulic cylinder, avoid “BOTTOMING OUT” the cylinder.

HYDRAULIC SAFETY

The hydraulic system on your splitter requires careful inspection along with the mechanical parts. Be sure to replace

any frayed, kinked, cracked or otherwise damaged hydraulic components. Just because it isn’t leaking today doesn’t

mean that it will not fail tomorrow.

Fluid escaping from a very small hole can almost be invisible. Do not check for leaks with your hand. Escaping

fluid under pressure can have sufficient force to penetrate skin causing serious personal injury or even death. Leaks

can be detected by passing a piece of cardboard or wood over the suspected leak and looking for discoloration. IF

injured by escaping fluid, see a doctor at once. Serious infection or reaction can develop if proper medical

treatment is not administered immediately.

Should it become necessary to loosen or remove any hydraulic fittings, lines or reservoir cap, be sure to relieve all

pressure by shutting of the engine and moving the control handle back and forth several times.

NEVER remove the ca

p from the hydraulic tank or reservoir while the unit is running. Hot oil under pressure could

result in serious injury. See also

SAFETY PRECAUTIONS.

The pressure relief valve on your splitter is preset at the factory. DO NOT adjust the valve. Only a qualified

technician should perform this adjustment.

MAINTENANCE AND STORAGE

WARNING:

DISCONNECT THE SPARK PLUG BEFORE PERFORMING ANY MAINTENANCE.

Consult the operating and maintenance instructions of the engine manufacturer for engine care.

Always check the oil level of the hydraulic reservoir before operation. Operating without an adequate oil supply will

cause severe damage to the pump. Fluid level should be maintained approximately 3” below the fill hole and above

the flat on the dipstick.

Periodically check that all nuts, bolts, screws, clamps and fittings are tight and secure.

To keep your splitter in top working condition perform all recommended maintenance procedures before you use

your splitter.

If the wedge becomes dull or nicked a grinder or sharpening tool can be used to sharpen it.

Completely drain the fuel tank prior to storage. Always store gasoline in an approved, tightly sealed container. Store

container in a dry, cool place with adequate ventilation. Keep fuel away from areas where fumes could contact open

flame, pilot light or sparks.

Be aware of the environment when disposing of used petroleum products. Please dispose of used hydraulic

fluid, engine oil and any by products from the maintenance of your splitter at approved recycling centers.

Should it become necessary to disassemble the unit for repair or replacement of parts, refer to the drawings and parts

list on the following pages. Exercise extreme caution, as some parts are very heavy and will require sufficient

persons or mechanical handling equipment.

Your Swisher Log Splitter has been produced with components designed specifically to this machine. Although

standard springs, hardware and ect may look similar to parts used on other machinery, they may in some cases

be made of a different construction and/or materials. All replacement parts must meet manufacturer’s

specifications.

The operation of any splitter can produce foreign objects to be thrown into the

eyes, resulting in severe eye damage. Always wear certified safety glasses or

wide-vision safety goggles over spectacles before starting any splitting machine

and while operating such a machine.

The operation of any splitter produces sound waves that are damaging to the

human ear. Ear protection is recommended.

OD12 – HYDRAULIC FILL PLUG

DECAL

OD16 – FUEL SHUT OFF DECAL

(NOT ALL MODELS)

OD07 – COLD WEATHER DECAL

SAFETY DECALS

Replace decals immediately if damaged.

11427 – LS DANGER DECAL

LS412 ASSEMBLY DETAIL

IDLER DETAIL

VALVE DETAIL

ENGINE DETAIL

SERVICE PARTS

Please have Model and Serial Numbers ready when ordering parts.

Color cannot be guaranteed upon service parts.

ITEM NUMBER DESCRIPTION PART NUMBER

1 Motor Base Weldment Txt Blk 11551TK

2 Axle 11552

3 Beam W eldment Txt Blk 11533TK

4 Tire/Wheel - 5/8 Bearing 13x5x6 NHS F4157W

5 Handle Weldment Txt Blk 11535TK

6 4" Spacer Txt Blk 11553TK

7 Hydraulic Pump 11 gpm LS2001H

8 4HP B&S Engine 11400

8A 3" Engine Pulley 11398

8B 3/16 X 1 Key Stock 9030

8C 5/16-18 X 1/2 Set Screw W ith Loctite NB312

8D 7/16 X 1 1/4 Belleville W asher 699

8E 3/8-24 X 1 Engine Bolt Locktite NB238N

9 3/4" Spacer Txt Blk 11554TK

10 Valve Control Splitter Painted 7287TK

10A Valve Handle 7423

10B Valve Handle Grip 7425

10C 1/4 X 1 Clevis Pin NB522

10D 3/32 X 3/4 Cotter Pin NB597

10E Master Link 7424

11 Fitting Return Line 7329

12 90 Degree Male Pipe Swivel Elbow 11557

13 5/16-18 X 3/4 Serrated Flng Bolt NB596

14 5/16-18 Serrated Flng Nut NB170

15 5/16-18 X 1 1/4 Serrated Flng Bolt NB253

16 3/8-16 X 2 1/2 HCC GR5 ZP NB221

17 3/8-16 Nylok Nut Jam NB207

18 3/8 SAE Washer NB272

19 3/8-16 X 5 HCC GR5 ZP NB199

20 3/8-16 Nyloc Nut NB182

21 3/8-16 X 1 1/2 HCC GR5 ZP NB107

22 Hex Reducer Bushing 11558

23 Handle Grip 7826

24 15" Suction Hose 11560

25 9" Return Hose 11561

26 Hose Clamp No. 16 LS4999

27 Hose Clamp No. 12 LS5001

28 3/4" NPT Filler Cap 11562

29 24" Pressure Hose 11559

30 Idler Assembly 11564

30A 3/8-16 X 2 1/2 HTC GR5 ZP NB619

30B Idler Plate Txt Blk 11563

30C Idler Pulley: OD - 3.25", ID - 3/8" B527

30D 3/8 SAE Was her NB272

30E 3/8-16 2-W ay Lock Nut NB280

31 3/4ID X 1 1/4OD 10 GA. W asher NB184

32 3/8 X 1 1/2 Fender Washer 10177

33 Idler Bushing 6037

34 1/8 X 1 Cotter Pin NB126

35 Dip Stick 11565

36 1/4 Pal Nut NB304

37 Handle Grip, Pivot 2077

38 6" Pump Pulley 11550

39 3" Cylinder Txt Blk 11180TK

40 W edge Weldment Txt Blk 11534TK

41 33" Belt For Engine 690

42 90 Degree Pipe Beaded Insert 11792

43 Clutch Lever Txt Black 11226TK

44 W ire Link For Idler Arm BRS6H

45 Clutch Rod Spring 682S

46 Key W oodruff 024002

47 5/16-18 X 1/2 SSC W ith Loctite NB312

48 1/2" NPTF Male to Female Pipe Adaptor 12128

NOTES

______________________________________________________________________

Indice

Altri manuali Swisher Spaccalegna

Swisher

Swisher Logger LS67526S Manuale utente

Swisher

Swisher LSRB675221350 Manuale utente

Swisher

Swisher LSRB115281350 Manuale utente

Swisher

Swisher LS10528H Manuale utente

Swisher

Swisher LSEK14534 Manuale utente

Swisher

Swisher L112-016001 Manuale utente

Swisher

Swisher LS11534 Manuale utente

Swisher

Swisher LSEB125341350 Manuale utente

Swisher

Swisher L113-305001 Manuale utente

Swisher

Swisher LS722X Manuale utente

Swisher

Swisher LS87522BP Manuale utente

Swisher

Swisher L112-182001 Manuale utente

Swisher

Swisher LS12534H12V Manuale utente

Swisher

Swisher LSEK14534F Manuale utente

Swisher

Swisher LSRB67522 Manuale utente

Swisher

Swisher LS722B Manuale utente

Swisher

Swisher LS722A Manuale utente

Swisher

Swisher LS10528C Manuale utente

Swisher

Swisher LS622 Manuale utente

Swisher

Swisher L122-265001 Manuale utente

Swisher

Swisher LS3P Manuale utente

Swisher

Swisher L112-195001 Manuale utente

Swisher

Swisher LS67522HP Manuale utente

Swisher

Swisher LSED14534 Manuale utente

Manuali Spaccalegna popolari di altre marche

Bell

Bell Pickpine VS S9 Manuale di istruzioni

ATIKA

ATIKA ASP 5 N-UG Istruzioni operative

Posch

Posch Schälprofi 500 Manuale utente

Champion

Champion 91520 Manuale

Fieldmann

Fieldmann FZLS 1008V-E Manuale utente

Craftsman

Craftsman 247.28775 Manuale utente

Scheppach

Scheppach OX 3-1000 Istruzioni per il montaggio

Elem Garden Technic

Elem Garden Technic FBHT65-22TCH Manuale utente

Champion Power Equipment

Champion Power Equipment 90720 Manuale

Boss Industrial

Boss Industrial ES5T20 Manuale utente

Villager

Villager LSP 12 T Manuale utente

MTD

MTD 242-642A Manuale utente

Rok

Rok 150-51-50255 Manuale utente

Hakki Pilke

Hakki Pilke Raven Manuale utente

Hyundai

Hyundai HYLS7TE Manuale utente

Scheppach

Scheppach HL1500M Guida utente

Craftsman

Craftsman 247.794510 Manuale utente

Zipper Mowers

Zipper Mowers ZI-HS5TN Manuale utente
