Symantec NetBackup 5200 Series Manuale utente

Environment Check Before Installation

NetBackup 5200 Release 1.1

Quick Installation Guide

Revision: 01

Date: 2010-08-30

You can install the NetBackup 5200 appliance in a standard 19-inch cabinet (with an AC distribution box) or any

other AC cabinet with a minimum depth of 1,000 mm. Before you install the appliance into the cabinet, do the

following:

•Reserve a space of at least 100 cm between the cabinet and the wall and the space of at least 120 cm between

cabinets for the convenience of maintenance, ventilation, and heat dissipation.

•Ensure ventilation is adequate in the cabinet and the machine room. It is recommended to reserve the space of

1U (1U = 44.45 mm = 11.4 in) above and below any device.

•Make sure that the cabinet is already installed and grounded.

Before installation, check whether the external environmental conditions, such as the power supply and heat

dissipation, satisfy the following operating requirements of the device:

•AC voltage range: 100 V to 127 V or 200 V to 240 V

•Maximum AC power of the NetBackup 5200: 700 W

•Operating temperature: 5 °C to 35 °C (altitude: - 60 m to +1,800 m)

The ambient temperature falls by 0.6 °C for every 100 m increase of the height (altitude: 1,800 m to 3,000 m)

•Operating altitude: ≤3,000 m

•Relative humidity: 10% RH to 85% RH

Installation Flow

Before You Start

Start

Material lists

Take antistatic measures

Install the NetBackup 5200 in

the cabinet

Connect cables

Power on the NetBackup 5200

End

Page 2

Page 3

Page 4-6

Page 7

Page 8-9

Installing

Antistatic wrist strap with a plug-

type grounding connector

Antistatic wrist strap with a clip-type

grounding connector

Phillips screwdriver Mounting bar

Antistatic gloves

Cable tie

PS/2 to USB converter KVM cable 100 M/1000 M network cable

LC multimode fiber Grounding cable

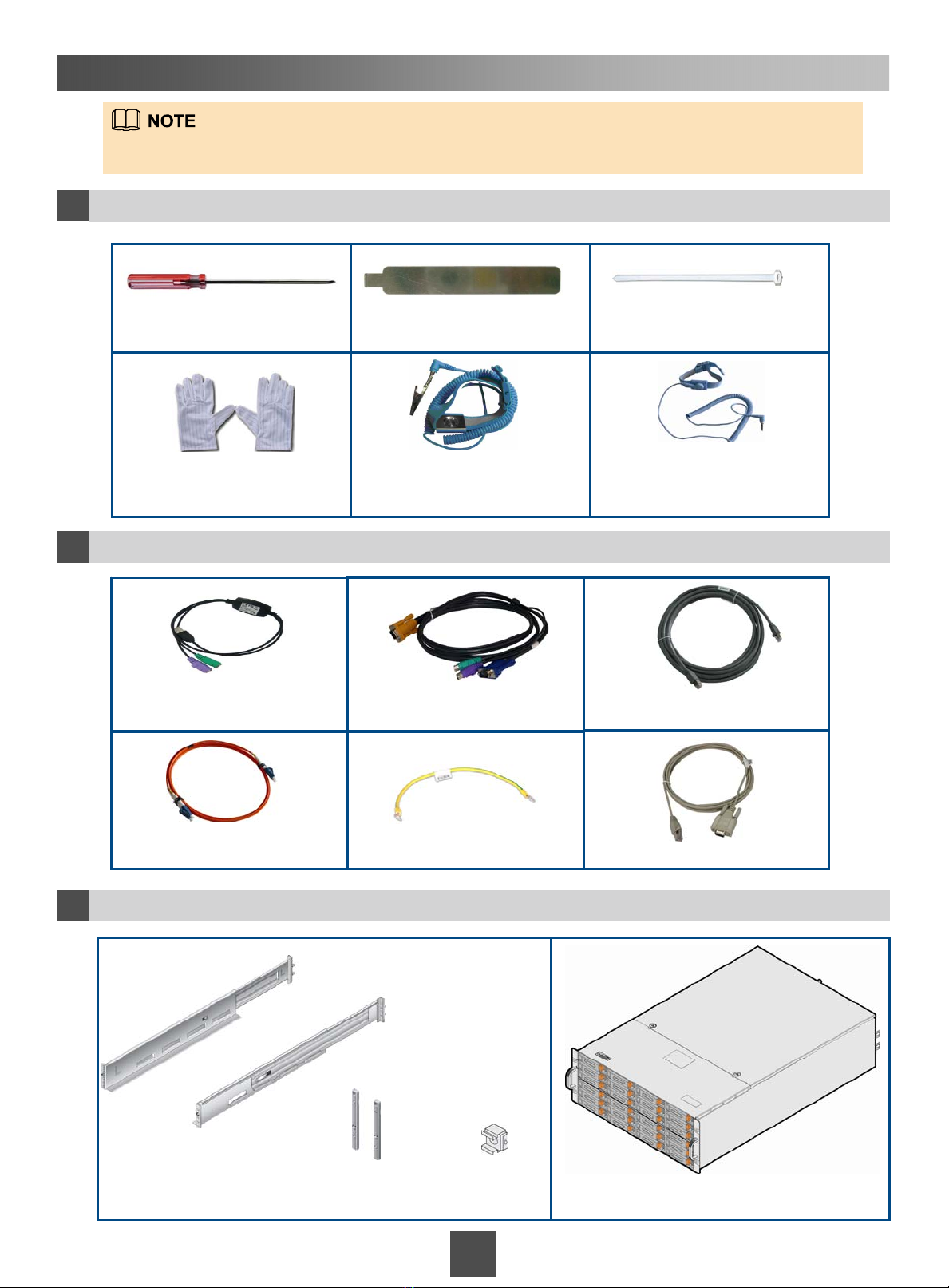

Material Lists

Installing tools

Cables

The Guide Rails and the NetBackup 5200 Appliance

The left and right guide rails 4U washer plates Captive nut

Power cables are subject to different regions and included in the cable list.

The NetBackup 5200 appliance

Serial cable

Taking Antistatic Measures

1 Wear an Antistatic Wrist Strap

For an antistatic wrist strap with a plug-type grounding connector. Place the wrist strap over your wrist

and insert the grounding connector into the ESD socket on the cabinet. For an antistatic wrist strap with a

clip-type grounding connector, clip it directly onto the cabinet.

Scenario 1: Wearing an antistatic wrist strap (with a

plug) Scenario 2: Wearing an antistatic wrist strap (with a

metallic clip)

2 Wear Antistatic Gloves

Installing the NetBackup 5200 in the Cabinet

1 Position the NetBackup 5200 in the Cabinet

Position the NetBackup 5200

•You may refer to this diagram for device

positions in the cabinet.

•Install the NetBackup 5200 and the other

devices based on the actual installation

environment.

•Position the NetBackup 5200 properly before

installing it. Make sure that its weight is evenly

distributed in the cabinet to keep its balance. It is

recommended to install the NetBackup 5200 in

the lower part of the cabinet to lower the center

of the gravity.

2 Specify the Position of and Install Captive Nuts

2 3

1Insert the lower end of a

captive nut into a square

hole.

Place the captive nut

mounting bar on the top of

the captive nut and pull it into

the hole until it snaps in to

place.

Completed installation view.

Specify the Positions of Captive Nuts

Install Captive Nuts

3 Install Guide Rails

Align the guide pin of the component and insert it into

the square holes on the mounting rail of the cabinet.

Fasten a screw to fix the front end of the guide rail to

the mounting rail.

Fasten two screws to fix the other end of the guide rail

to the mounting rail.

Install a 4U washer plate to the front-end guide pin and

fasten a screw to fix the guide rail.

Repeat Steps 1-2 to install the other guide rail.

4 Install the NetBackup 5200 into the Cabinet

Slide the unit into the cabinet along the guide rails.

Secure the unit to the cabinet with screws.

Connecting Cables

1 Cable Connection of the NetBackup 5200

Connect a maintenance terminal

•One end of the Cat 5 (or above) network cable connects to the management network port (IPMI or NIC 1) of the

NetBackup 5200 and the other end to the maintenance terminal or management network.

•A KVM cable is used to connect KVM switch.

•A serial cable is used to connect the serial port of the NetBackup 5200 to this of the maintenance terminal.

Enable data transfer connectivity

•One end of the Cat 5 (or above) network cable connects to the network port ( NIC 2) of the NetBackup 5200 and

the other end to the service switch (recommended) or application server (AS).

•One end of the multimode fiber cable connects to the 10GE network port of the NetBackup 5200 Slot 2 and the

other end to 10GE switch.

•One end of the multimode fiber connects to the FC port of the NetBackup 5200 Slot 3 and the other end to the FC

switch or tape library.

Power and ground the NetBackup 5200

•A grounding cable is used to ground the NetBackup 5200.

•The NetBackup 5200 is configured with two power modules. Connect power cables to both power modules.

Powering on the NetBackup 5200

1 Press the Power Switch on the rear panel of the NetBakcup 5200

Power on sequence: cabinet →NetBackup 5200.

There is one power switch on the NetBackup 5200. Press it.

2Check the Indicators Status of the NetBackup 5200

The following figures show the indicators in the normal state after power-on. For details about the

indicator status, refer to the NetBackup 5200 Product Description.

Indicators Status of the NetBackup 5200 (Front View)

System power indicator On, green

System alarm/location indicator Off

The device is operating normally.

Disk online status indicator On, green

Power running/alarm indicator On, green

Link indicator of the service network port •On, green. Data is being transferred at a rate of 1000Mbit/s.

•On, orange. Data is being transferred at a rate of 100 Mbit/s.

•Off. Data is being transferred at a rate of 10 Mbit/s or no link.

2/green 1/amble

Off Off

Off On/Blinking Off Data is being transferred at a rate of 2 Gbit/s.

Off

Data is being transferred at a rate of 1Gbit/s

On/Blinking

Off

On or blinking

Link indicator of the management network port On, green

ACT/LNK •On, green. The link is normal.

•Blinking, green. The link is normal and data is being

transferred.

GRN=10GE •On, yellow. Data is being transferred at a rate of 10 Gbit/s.

•On, orange. Data is being transferred at a rate of 1 Gbit/s.

4/yellow

On/Blinking Data is being transferred at a rate of 4 Gbit/s.

Indicators

of the

10GE

network

port

Indicators

of the

Tape out

card

•Blinking, Power on (before firmware initialization)

•On, Power on (after firmware initialization)

Indicators Status of the NetBackup 5200 (Rear View)

Symantec Corporation

Asia-Pacific and Japan: customercare_apa[email protected]

Europe, Middle-East, and Africa: semea@symantec.com

North America and Latin America: supportsolutions@symantec.com

www.symantec.com

Configure the NBU system

After you have successfully cabled your appliance, you are now ready to configure it to an existing NetBackup

environment. For detailed instructions on how to configure your appliance, refer to either of the following two

documents:

• The Symantec NetBackup 5200 Installation and Configuration poster included with your appliance.

You can also use the following URL to download a copy of this poster from the Symantec Support Web site.

http://entsupport.symantec.com/docs/358343

• The Symantec NetBackup 5200 Administrator’s Guide installed on your appliance.

You can also use the following URL to download the document from the Symantec Support Web site.

http://entsupport.symantec.com/docs/358345
