Symbol LS4000P Series Manuale utente

LS 4000P Series

Scanners

LS 4000P Series

Scanners

Symbol reserves the right to make changes to any product to improve reliability,

function, or design.

Symbol does not assume any product liability arising out of, or in connection with, the

application or use of any product, circuit, or application described herein.

No license is granted, either expressly or by implication, estoppel, or otherwise under

any patent right or patent, covering or relating to any combination, system, apparatus,

machine, material, method, or process in which Symbol products might be used. An

implied license only exists for equipment, circuits, and subsystems contained in Symbol

products.

Symbol is a registered trademark of Symbol Technologies, Inc. Other product names

mentioned in this manual may be trademarks or registered trademarks of their

respective companies and are hereby acknowledged.

Symbol Technologies, Inc.

One Symbol Plaza

Holtsville, N.Y. 11742-1300

http://www.symbol.com

Patents

This product is covered by one or more of the following U.S. and foreign Patents:

U.S. Patent No.4,360,798; 4,369,361; 4,387,297; 4,460,120; 4,496,831; 4,593,186;

4,603,262; 4,607,156; 4,652,750; 4,673,805; 4,736,095; 4,758,717; 4,816,660;

4,845,350; 4,896,026; 4,897,532; 4,923,281; 4,933,538; 4,992,717; 5,015,833;

5,017,765; 5,021,641; 5,029,183; 5,047,617; 5,103,461; 5,113,445; 5,130,520;

5,140,144; 5,142,550; 5,149,950; 5,157,687; 5,168,148; 5,168,149; 5,180,904;

5,229,591; 5,230,088; 5,235,167; 5,243,655; 5,247,162; 5,250,791; 5,250,792;

5,262,627; 5,262,628; 5,266,787; 5,278,398; 5,280,162; 5,280,163; 5,280,164;

5,280,498; 5,304,786; 5,304,788; 5,306,900; 5,321,246; 5,324,924; 5,337,361;

5,367,151; 5,373,148; 5,378,882; 5,396,053; 5,396,055; 5,399,846; 5,408,081;

5,410,139; 5,410,140; 5,412,198; 5,418,812; 5,420,411; 5,436,440; 5,444,231;

5,449,891; 5,449,893; 5,468,949; 5,471,042; 5,478,998; 5,479,000; 5,479,002;

5,479,441; 5,504,322; 5,519,577; 5,528,621; 5,532,469; 5,543,610; 5,545,889;

5,552,592; 5,578,810; 5,581,070; 5,589,679; 5,589,680; 5,608,202; 5,612,531;

5,619,028; 5,664,229; 5,668,803; 5,675,139; 5,693,929; 5,698,835; 5,705,800;

5,714,746; 5,723,851; 5,734,152; 5,734,153; 5,745,794; 5,754,587; 5,762,516;

5,763,863; 5,767,500; 5,789,728; 5,808,287; 5,811,785; 5,811,787; 5,815,811;

5,821,519; 5,821,520; 5,823,812; 5,828,050; 5,850,078; 5,861,615; 5,874,720;

5,875,415; 5,900,617; 5,902,989; 5,907,146; 5,912,450; 5,914,478; 5,917,173;

5,920,059; 5,923,025;D305,885; D341,584; D344,501; D359,483; D362,453;

D363,700; D363,918; D370,478; D383,124; D391,250; D405,077; D406,581.

Invention No. 55,358; 62,539; 69,060; 69,187 (Taiwan); No. 1,601,796; 1,907,875;

1,955,269 (Japan).

European Patent 367,299; 414,281; 367,300; 367,298; UK 2,072,832; France 81/

03938; Italy 1,138,713.

rev. 7/99

Quick Reference

Introduction

The LS 4000P Series hand-held laser scanner offers the best

performance for low volume, price sensitive PDF417 scanning in

retail, office and light industrial applications. It uses a 650nm laser

diode for improved scan-line visibility, and has a scan rate of

approximately 200 scans/second. These factors make the LS 4000P

Series scanner appropriate for PDF scanning while retaining all

capabilities for 1-D scanning.

This Quick Reference Guide provides basic instruction on the

following topics:

•Setting Up the Scanner on page 2

•Scanning on page 4

•What Does The Beep Mean? on page 7

•What If... on page 8

LS 4000P Series

Scanners

Setting Up the Scanner

Installing the Cable

1. Switch off all devices connected to the LS 4000P.

2. Pull the boot up over the cable until just the connector is pro-

truding.

3. Plug the modular connector on the cable into the receptacle in

the bottom of the LS 4000P handle. Listen for a click.

4. Gently tug the cable to ensure the connector is properly se-

cured.

Quick Reference

5. Slide the boot up while observing its orientation until it is se-

curely in place.

6. Make certain the semi-circular key on the boot slides inside

the handle assembly, and that the boot snaps into place.

7. Gently pull the boot to be sure it is properly seated.

Switching Cables

Different cables are required for different hosts. To change the

scanner cable:

1. Slide the boot down over the cable.

2. Unplug the modular connector by depressing the connector

clip (through the access hole), and remove the existing cable.

3. Follow the steps for Installing the Cable on page 2.

LS 4000P Series

Scanners

Scanning

Scanning 1-D Bar Codes

To scan a 1-D bar code:

1. Make sure all connections are secure, and the symbol you

want to scan is within the scanning range.

2. Aim the scanner at the symbol and press the trigger. The scan-

ning beam remains on for approximately 3.0 seconds (default)

or until a successful decode.

The scanner has read the symbol when:

• You hear a short, high tone beep (if the beeper is enabled).

• The yellow LED on the rear of the scanner turns green.

The green LED stays lit for two seconds or until the next trigger

pull.

Scanning PDF417 (2-D) Bar Codes

The PDF417 bar code type is enabled by default; to disable it, scan

this bar code:

DISABLE PDF417

To enable PDF scanning, scan the bar code below. (These bar codes

can also be found in the LS 4000P Product Reference Guide, p/n

70-37631-xx.

ENABLE PDF417

Quick Reference

To scan a PDF417 bar code:

1. Aim the scanner at the PDF bar code and press the trigger.

2. Hold the trigger down and keep the scan line parallel to the

rows of the symbol.

3. Manually raster the scan line by slowly moving the scanner up

and down so it scans the entire bar code at a rate of one inch

per second.

When PDF Decode Feedback is enabled, a clicking noise lets you

know the bar code is being decoded. If this parameter is enabled but

there’s no clicking noise when you’re scanning the bar code, it’s not

being scanned properly.

To improve PDF decoding:

• Check that PDF417 scanning is enabled.

• Make sure the scan line extends at least 1/2” past the left and

right edges of the bar code.

• Hold the scanner closer for denser symbols, farther away for

larger symbols.

• Make sure you scan the top and bottom rows of the symbol.

• Be patient - it may take a few swipes to decode the symbol.

The bar code has been completely decoded when you hear a tone,

followed by a short, high tone beep. The yellow LED on the rear of

the scanner turns green. The green LED stays lit for two seconds or

until the next trigger pull.

1/2” 1/2”

LS 4000P Series

Scanners

Aiming

Scan the Entire Symbol

• Cross every bar and space of the symbol with the scan beam.

• Hold the scanner further away for larger bar codes.

• Hold the scanner closer for symbols with bars that are close

together.

Right Wrong

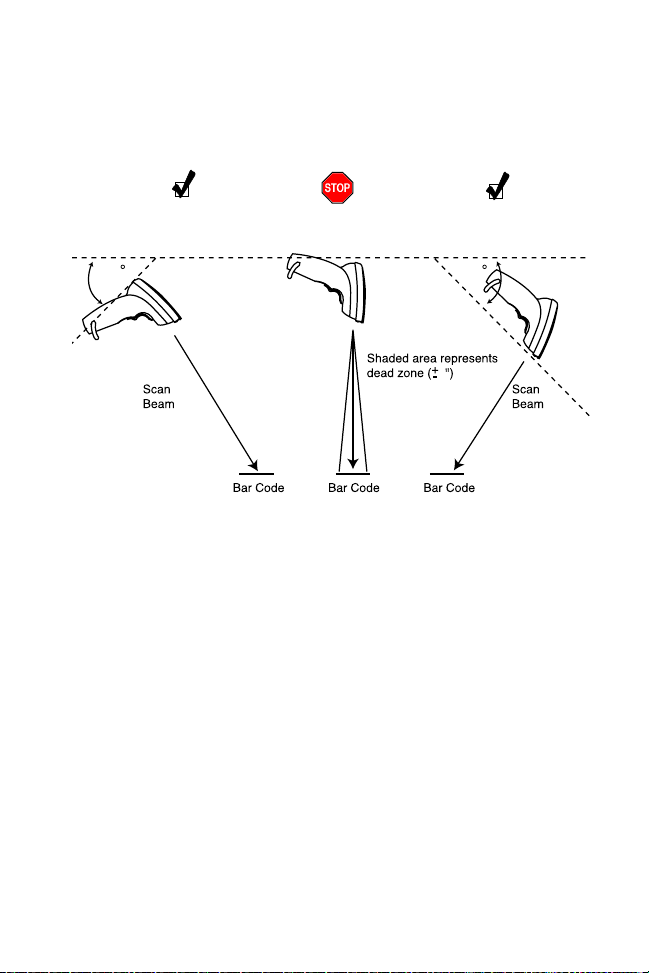

Hold at an Angle

Do not hold the scanner directly over the bar code. Laser light

reflecting directly back into the scanner from the bar code is known

as specular reflection. This strong light can “blind” the scanner and

make decoding difficult. The area where specular reflection occurs

is known as a “dead zone.”

Quick Reference

You can tilt the scanner up to 65° forward or back and still achieve

a successful decode. Simple practice quickly shows what tolerances

to work within

What Does The Beep Mean?

When you hear a short, high tone beep, it means data has been

decoded successfully. If any other beeps are heard, contact the

technical person in charge of scanning.

Successful

Scanning

Possible Specular

Reflection

Successful

Scanning

LS 4000P Series

Scanners

What If...

Nothing happens when you follow the operating

instructions?

You Should

• Check the system power. Is there a battery in the battery box?

• Be sure the scanner is programmed for the terminal in use.

• Make sure the scanner is programmed to read the type of bar

code you are scanning.

• Check for loose cable connections.

• Check the symbol to make sure it is not defaced.

• Try scanning test symbols of the same code type.
