Symbol LS 1000 Manuale utente

LS 1000

Product Reference Guide

70-17529-01

Revision A

March, 1996

Table of Contents

Chapter 1

Chapter 2

Chapter 3

Chapter 4

Chapter 5

Chapter 6

Appendix A

Click on red text at any location in the manual to jump to the

speciﬁed chapter, topic, or reference.

coverBook Page i Monday, December 1, 1997 2:19 PM



No part of this publication may be reproduced or used in any form, or by any electrical or

mechanical means, without permission in writing from Symbol. This includes electronic or

mechanical means, such as photocopying, recording, or information storage and retrieval

systems. The material in this manual is subject to change without notice.

Symbol reserves the right to make changes to any product to improve reliability, function,

or design.

Symbol does not assume any product liability arising out of, or in connection with, the

application or use of any product, circuit, or application described herein.

No license is granted, either expressly or by implication, estoppel, or otherwise under any

patent right or patent, covering or relating to any combination, system, apparatus,

machine, material, method, or process in which Symbol products might be used. An

implied license only exists for equipment, circuits, and subsystems contained in Symbol

products.

Symbol Technologies, Inc.

One Symbol Plaza

Holtsville, N.Y. 11742-1300

http://www.symbol.com

FCC and Industry Canada Information

This device complies with Part 15 of the FCC rules.. Operation is subject to the following

two conditions: (1) this device may not cause harmful interference, and (2) this device must

accept any interference received, including interference that may cause undesired

operation. This Class A digital apparatus meets all requirements of the Canadian

Interference-Causing Equipment Regulations. Cet appareil numérique de la classe A

respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada.

coverBook Page iii Monday, December 1, 1997 2:19 PM

Factory Service

If you have a problem, contact the Symbol Support Center at the telephone

number on the next page.

Before calling, have the model number and several of your bar code symbols

at hand.

Call the Support Center from a phone near the scanning equipment so that the

service person can try to talk you through your problem. If the equipment is

found to be working properly and the problem is symbol readability, Samples

of your bar codes will be requested for analysis at our facility.

If your problem cannot be solved over the phone, you may need to return your

equipment for servicing. If that is necessary, you will be given speciﬁc

directions.

Note:

Symbol Technologies is not responsible for any

damages incurred during shipment if the approved

shipping container is not used. Shipping the units

improperly can possibly void the warranty. If the

original shipping container was not kept, contact

Symbol to have another sent to you.

coverBook Page iv Monday, December 1, 1997 2:19 PM

Symbol Support Center

In the U.S.A., for service information, warranty information or technical

assistance call:

SYMBOL SUPPORT CENTER

1-800-653-5350

If you purchased your Symbol product from a Symbol Business Partner,

contact that Business Partner for service.

Canada

Mississauga, Ontario

Canadian Headquarters

(905) 629-7226

Europe

Wokingham, England

European Headquarters

01734-771-222 (Inside UK)

+44-1734-771-222 (Outside UK)

Asia

Singapore

Symbol Technologies Asia, Inc.

337-6588 (Inside Singapore)

+65-337-6588 (Outside Singapore)

coverBook Page v Monday, December 1, 1997 2:19 PM

vii

Contents

Factory Service

Symbol Support Center

Chapter 1. Introduction and Set-up

Introduction

Audience

Set-Up3

Unpacking

Installing the Cable

Switching Cables

Connecting to a Host

Chapter 2. Scanning

Introduction

Ready, Test, Scan

Aiming

Chapter 3. Maintenance & Specifications

Introduction

Maintaining the LS 1000 Scanner

Accessories

LS 100x Technical Specifications

LS 100x Decode Zone

Chapter 4. Programming The LS 1004

Introduction

Scanning Sequence

Scanning Sequence Example

Errors While Scanning

Parameter Descriptions

Set Parameter Defaults

Host Interface Select

Power On Beep Enable/Disable

Beeper after Decode

Beeper Tone

Beeper Volume

coverBook Page vii Monday, December 1, 1997 2:19 PM

viii

PPT 4600 Product Reference Guide: Contents

Decode Attempt Time

Operating Mode

Aggressive Scan Mode

Transmit “No Decode” Message

Decode Redundancy

Code Types

UPC/EAN

Code 128

Code 39

Code 93

Interleaved 2 of 5

Discrete 2 of 5

Codabar

Data Options

RS-232C

Chapter 5. Glossary

Chapter 6. ASCII Character Set

ASCII Character Set

Appendix A. Errata

coverBook Page viii Monday, December 1, 1997 2:19 PM

1-1

Chapter 1 Introduction and Set-up

Introduction

SymbolTechnologies Inc., the world leader inhand-heldlaserscanning now offers21st

century technology, while maintaining compatibility with today’s existing systems.

The LS 1000 Series of hand-held laser scanners offers the best performance in retail and

light industrial applications.Advanced ergonomic design ensures comfortable use for

extended periods of time.

The LS 1000 series hand-held scanner is based on the Visible Laser Diode (VLD). This

state of the art technology gives the scanner a wider decode zone, greater depth of

ﬁeld, and a visible scan beam. This model reads color bar codes and symbols printed

on all substrates. See LS 100x Decode Zone .

Here’s what each member of the LS 1000 family offers you:

• LS 1000 - The aggressiveness of this discrete scanner is typical of the

LS 1000 family’s performance. It connects easily to, and is programmed by, the

complete line of Symbol Technologies portable terminals and the full range of

SYMBOLLINK

and OmniLink

interface controllers.

• LS 1004 - With a simple cable change, this scanner is compatible with:

- RS 232C asynchronous terminals

- Synapse

“Smart Cables”, which allow you to connect to

IBM 4683/4, 4693/4 series of terminals

All leading OCIA terminals, including NCR, Nixdorf, and ICL terminals,

using an XT, AT, or PS/2 -style keyboard (when using as a keyboard wedge,

all scanned data is entered into your terminal in the form of keystrokes - no

changes to your host system are necessary)

- Popular OCR terminals, such as Fujitsu and ICL.

All of the LS 1000 series scan automatically at the rate of 36 scans per second. For

decode capability, see LS 100x Technical Speciﬁcations .

coverBook Page 1 Monday, December 1, 1997 2:19 PM

1-2

LS 1000 Product Reference Guide: Chapter 1, Introduction and Setup

Audience

The intended audience for this manual is personnel performing installation/setup and

programming of LS 100x scanners.

coverBook Page 2 Monday, December 1, 1997 2:19 PM

1-3

LS 1000 Product Reference Guide: Chapter 1, Introduction and Setup

Set-Up

Unpacking

Remove the scanner from its packing and inspect it for damage. If the scanner was

damaged in transit, call the

Symbol Support Center

at one of the telephone numbers

listed in the front of this manual. KEEP THE PACKING. It is the approved shipping

container and should be used if you ever need to return your equipment for servicing.

Installing the Cable

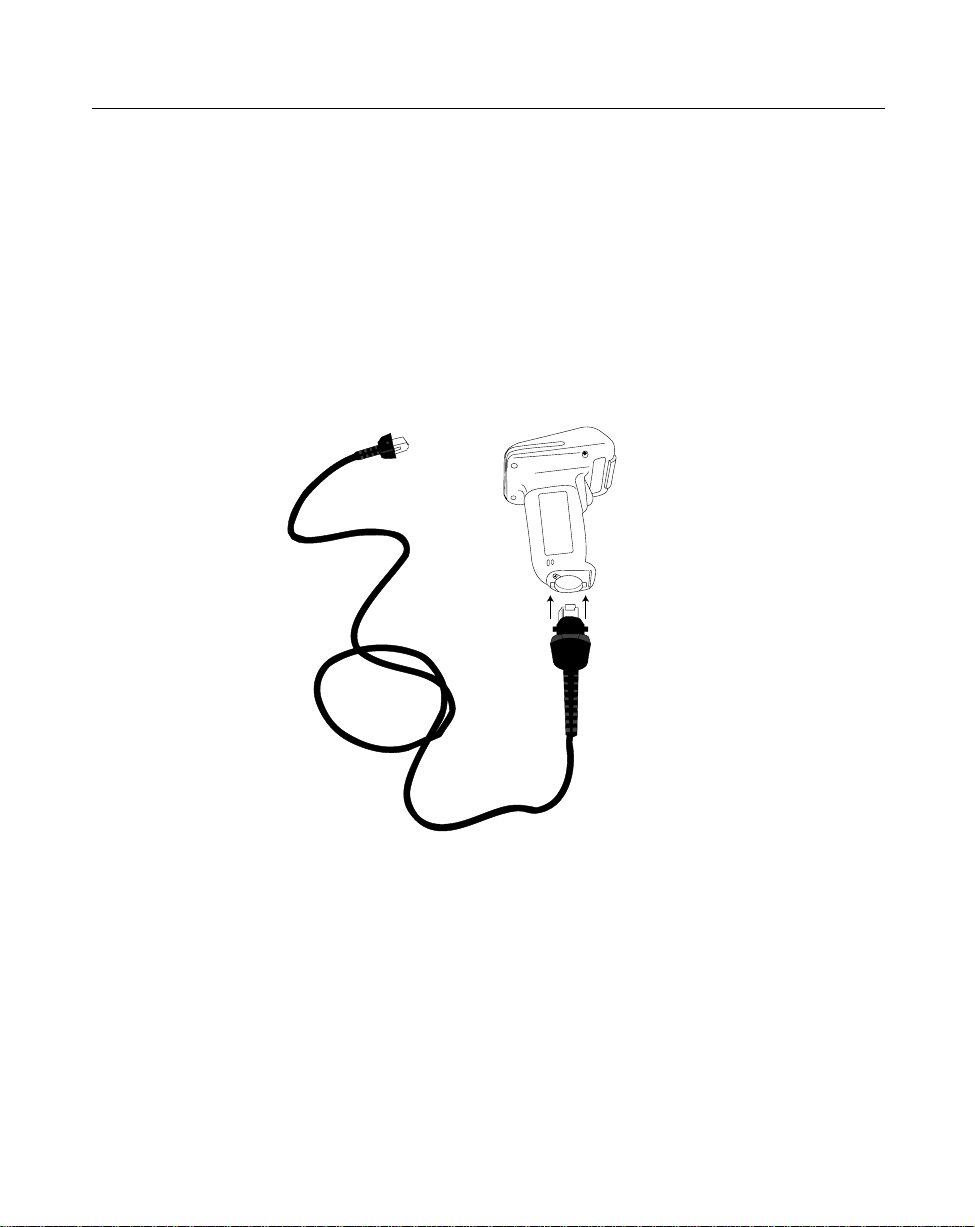

1. Insert the cable into the receptable on the bottom of the scanner, as shown below:

coverBook Page 3 Monday, December 1, 1997 2:19 PM

1-4

LS 1000 Product Reference Guide: Chapter 1, Introduction and Setup

2. Twist the cable to the left to lock in place, as shown below:

Switching Cables

Different cables are required for different hosts. To change the scanner cable:

1. “Unlock” the cable by twisting to the right.

2. Pull the cable out of the receptacle on the bottom of the scanner.

3. Insert a new cable in the receptacle.

4. Twist to the left to lock the new cable in place.

coverBook Page 4 Monday, December 1, 1997 2:19 PM
