Thank you for purchasing this Synology product! Before setting up your new DiskStation, please check the
package contents to verify that you have received the items below. Also, make sure to read the safety instructions
carefully to avoid harming yourself or damaging your DiskStation.
Package Contents
Main unit x 1 AC power cord x 1
AC power adapter x 1
Screws for 3.5” drives x 18 Screws for 2.5” drives x 18 Screws for securing
drive trays x 8 RJ-45 LAN cable x 1
Before You Start 1
3
Chapter
4Chapter 1: Before You Start
Synology DiskStation at a Glance
No. Article Name Location Description
1 Status Indicator
Front Panel
Displays the status of the system. For more information, see "Appendix B: LED
Indicator Table".
2 LAN Indicator Displays the status of the network connection. For more information, see
"Appendix B: LED Indicator Table".
3 Power Button
1. Press to power on the DiskStation.
2. To power off the DiskStation, press and hold until you hear a beep sound and
the Power LED starts blinking.
4 Disk Indicator Displays the status of the installed drives. For more information, see "Appendix B:
LED Indicator Table".
5 Fan
Back Panel
Disposes of excess heat and cools the system. If the fan malfunctions, the
DiskStation will emit a beeping sound.
6 Power Port Connect the AC adapter here.
7 LAN Port Connect a network cable here.
8 USB 3.0 Port Connect external drives, USB printers, or other USB devices to the DiskStation
here.
9 RESET Button
1. Press and hold until you hear a beep sound to restore the default IP address,
DNS server, and passwords for the admin account.
2. Press and hold until you hear a beep sound, then press and hold again until
you hear three beep sounds to return the DiskStation to “Not Installed” status
so that DiskStation Manager (DSM) can be reinstalled.
10 Kensington
Security Slot Attach a Kensington security lock here.
5Chapter 1: Before You Start
Safety Instructions
Keep away from direct sunlight and away from chemicals. Make sure the environment does not
experience abrupt changes in temperature or humidity.
Place the product right side up at all times.
Do not place near any liquids.
Before cleaning, unplug the power cord. Wipe with damp paper towels. Do not use chemical or
aerosol cleaners.
To prevent the unit from falling over, do not place on carts or any unstable surfaces.
The power cord must plug in to the correct supply voltage. Make sure that the supplied AC voltage is
correct and stable.
To remove all electrical current from the device, ensure that all power cords are disconnected from
the power source.
Risk of explosion if battery is replaced with an incorrect type. Dispose of used batteries appropriately.
Tools and Parts for Drive Installation
• A screwdriver
• At least one 3.5” or 2.5” SATA drive (please visit www.synology.com for compatible drive models)
Warning: If you install a drive that contains data, the system will format the drive and erase all existing data. Please
back up any important data before installation.
Install Drives
1 Remove the 4 screws that secure the back cover, and then put the back cover down carefully.
2 Lift the upper case and then place it aside.
Hardware Setup 2
Chapter
6
7Chapter 2: Hardware Setup

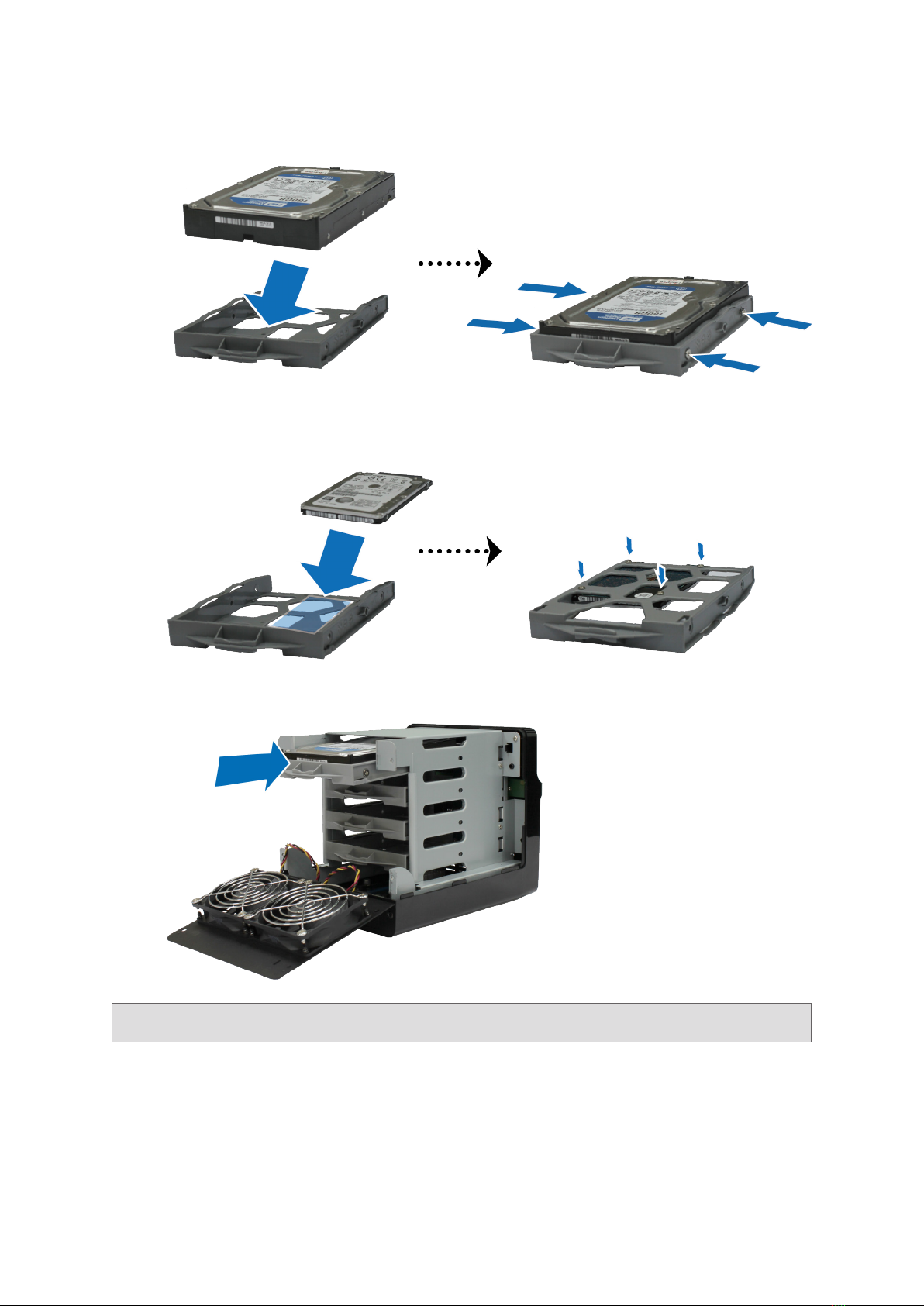

3 Load drives in the drive trays.
• For 3.5” drives: Place the drive in the drive tray. Then tighten the screws to secure the drive in place.
• For 2.5” drives: Place the drive in the blue area (shown below) of the drive tray. Turn the tray upside down
and tighten the screws to secure the drive in place.
4 Insert the loaded drive tray into the empty drive bay.
Note: Make sure the drive tray is completely inserted. Otherwise, the drive might not be able to function properly.
5 Repeat the steps above to install all prepared drives.
8Chapter 2: Hardware Setup
6 Drives are numbered as shown below.
• For 3.5” drives only: It is recommended that you secure the drive trays with the screws (for securing drive
trays) provided. For drives without the central mounting holes, you can skip this step.
7 Place the upper case back to its position.
9Chapter 2: Hardware Setup
8 Close the back cover. Replace and tighten the 4 screws you removed in step 1.
Note: If you want to create a RAID volume, we recommend that all installed drives are of the same size to make the
best use of drive capacity.
Start Up Your DiskStation
1 Connect the AC adapter to the power port of the DiskStation. Connect one end of the AC power cord to the AC
power adapter, and the other to the power outlet.
2 Use the LAN cable to connect the DiskStation to your switch, router, or hub.
3 Press your power button to turn on your DiskStation.
Your DiskStation is now online and detectable from a network computer.
After hardware setup is nished, please install DiskStation Manager (DSM) – Synology’s browser-based
operating system – on your DiskStation.
Install DSM with Web Assistant
Your DiskStation comes with a built-in tool called Web Assistant that helps you download the latest version of
DSM from the Internet and install it on your DiskStation. To use Web Assistant, please follow the steps below.
1 Power on the DiskStation.
2 Open a web browser on a computer connected to the same network as the DiskStation.
3 Enter either of the following into the address bar of your browser:
a nd.synology.com
b diskstation:5000
4 Web Assistant will be launched in your web browser. It will search for and nd the DiskStation within the local
network. The status of the DiskStation should be Not installed.
5 Click Connect to start the setup process and follow the onscreen instructions.
6 If you accidentally leave the installation process before it is nished, log in to DSM as admin (default
administrative account name) with the password left blank.
Note:
1. The DiskStation must be connected to the Internet to install DSM with Web Assistant.
2. Suggested browsers: Chrome, Firefox.
3. Both the DiskStation and the computer must be in the same local network.
Learn More
Congratulations! Your DiskStation is now ready for action. For more information or online resources about your
DiskStation, please visit www.synology.com.
Install DSM on DiskStation 3
Chapter
10
