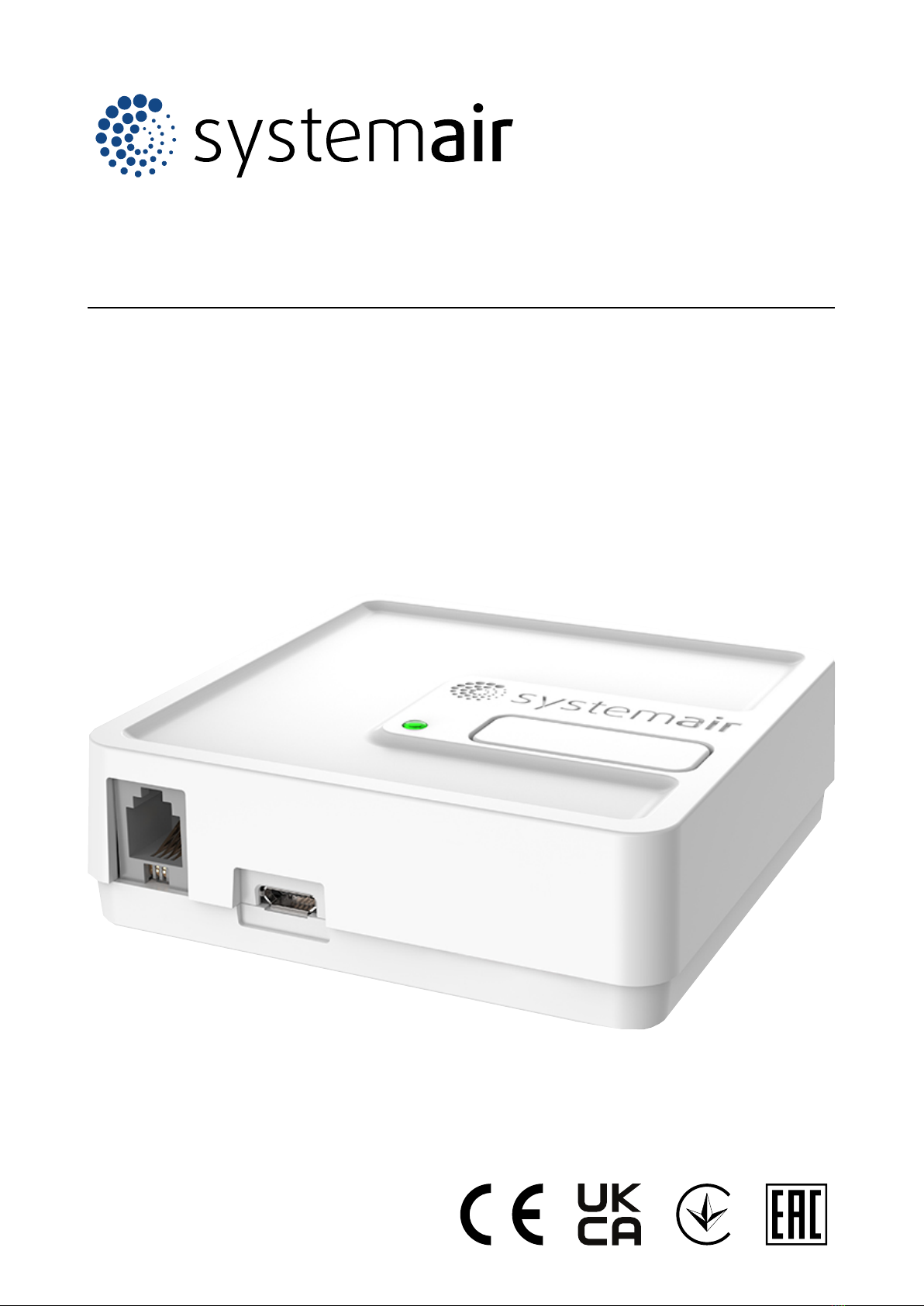

System air SAVE CONNECT 2.0 Manuale del proprietario

Installation and Operation instruction EN

SAVE CONNECT 2.0

Table of content

1 Introduction..................................................... 1

1.1 Product description............................ 1

1.2 Overview of supplied parts ................ 1

1.3 LED indicator codes .......................... 1

2 To do offline commissioning ........................... 2

3 To make online connection............................. 9

4 To use the WPS feature (optional) ............... 13

5 To make connection with the SAVE

TOUCH panel (optional) ............................. 14

6 To download the app .................................... 16

7 Troubleshooting............................................ 16

7.1 To reset to default settings............... 16

8 EU Declaration of conformity ....................... 17

9 UK Declaration of conformity ....................... 18

10 User agreement ......................................... 19

1 Introduction

1.1 Product description

This product allows to control SAVE ventilation

unit with a mobile application or any internet

browser, both locally (WLAN) and remotely via

internet.

Note:

SAVE CONNECT only supports 2.4 GHz wire-

less frequency.

The SAVE CONNECT module also provides addi-

tional features:

• software updates

• remote technical service

• configuration file import and export function

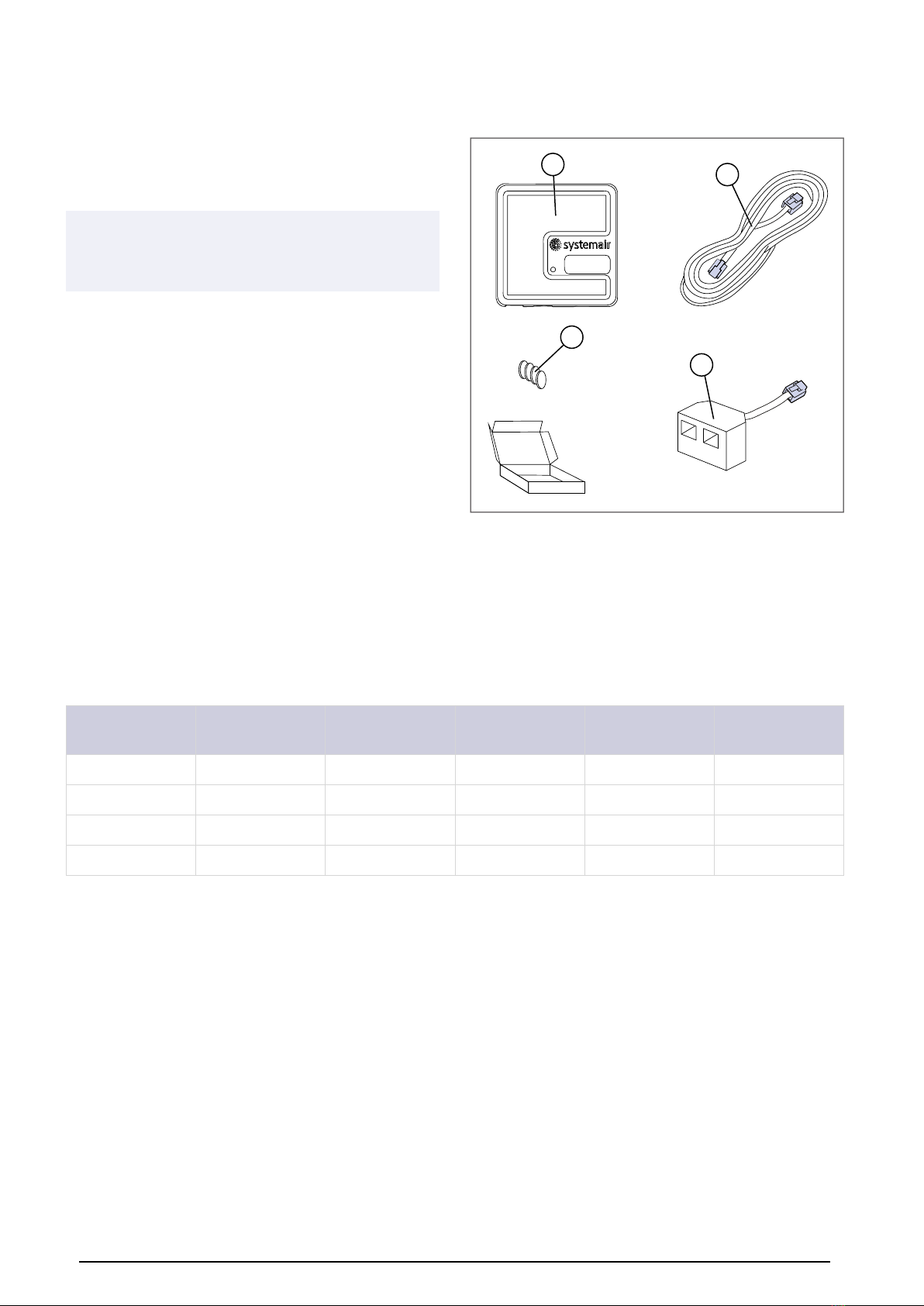

1.2 Overview of supplied parts

B

A

C

D

A. SAVE CONNECT module

B. Cable with plugs

C. Diverting plug

D. Magnets with stickers

1.3 LED indicator codes

Access point

mode WLAN Cloud Red LED Green LED Orange LED

-✔ ✖ Fast - -

-✖✖Slow - -

-✔✔- Slow -

✔- - - - Fast

Fast flash — every 500 milliseconds. Slow flash — every 2 seconds.

1

2 To do offline commissioning

Note:

Skip this chapter if SAVE unit is already configured.

1

Power off the SAVE unit.

3

Connect the cable (B) to the connection box.

2

Connect the cable (B) to the SAVE

CONNECT module.

4

Power up the SAVE unit.

2

x 3

5

Press the button on the SAVE CONNECT

module 3 times very quickly. The LED will

start to flash orange.

Password

1234abcd

SaveConnect

7

Scan for Wi-Fi networks on your mobile

phone. Connect to the SaveConnect Wi-Fi.

Use the password 1234abcd.

6

Turn off mobile data on your phone.

8

Scan the code or go to the website

http://192.168.4.1.

3

9

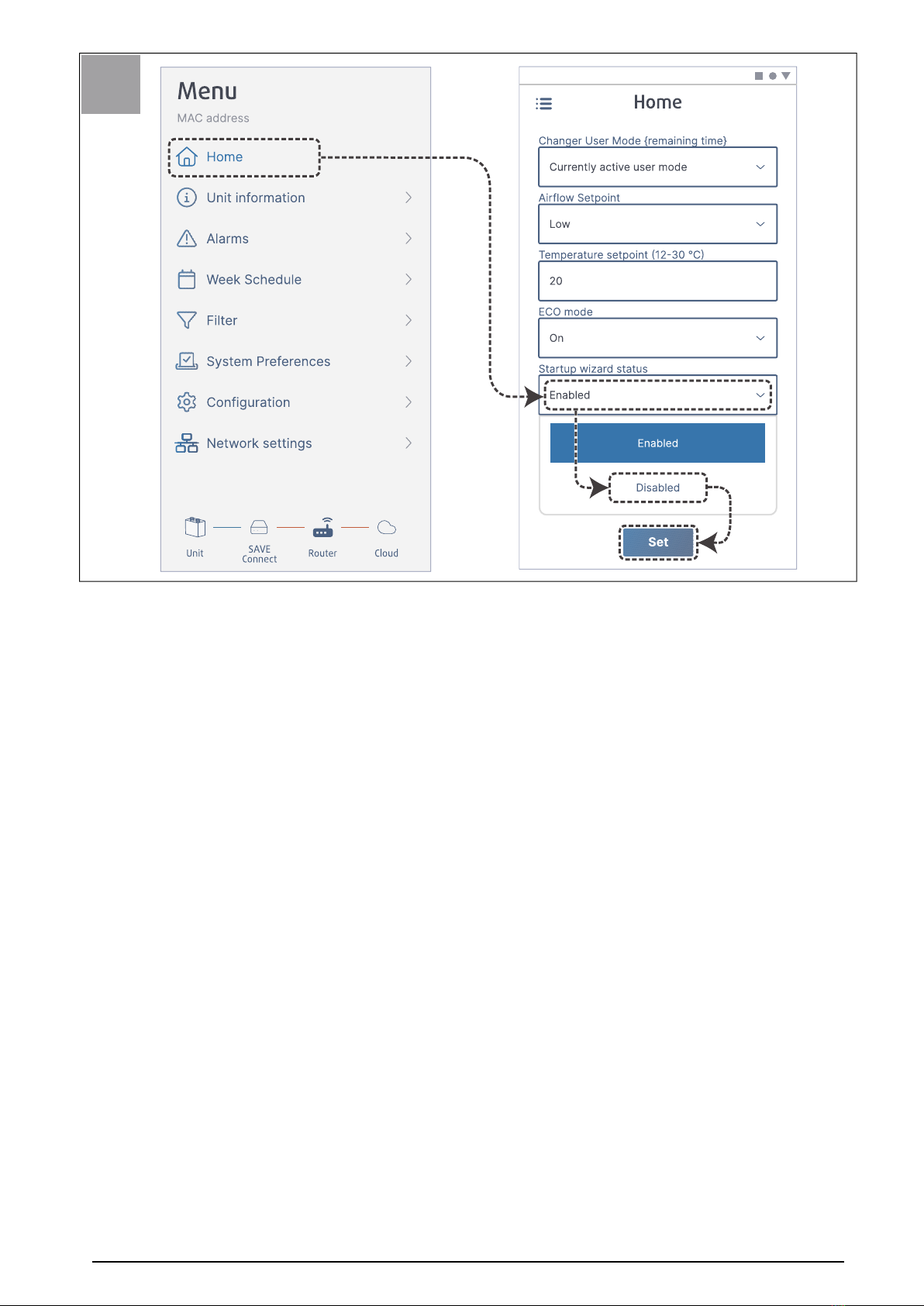

Disable the Startup wizard to make sure it is not shown for the user.

4

10

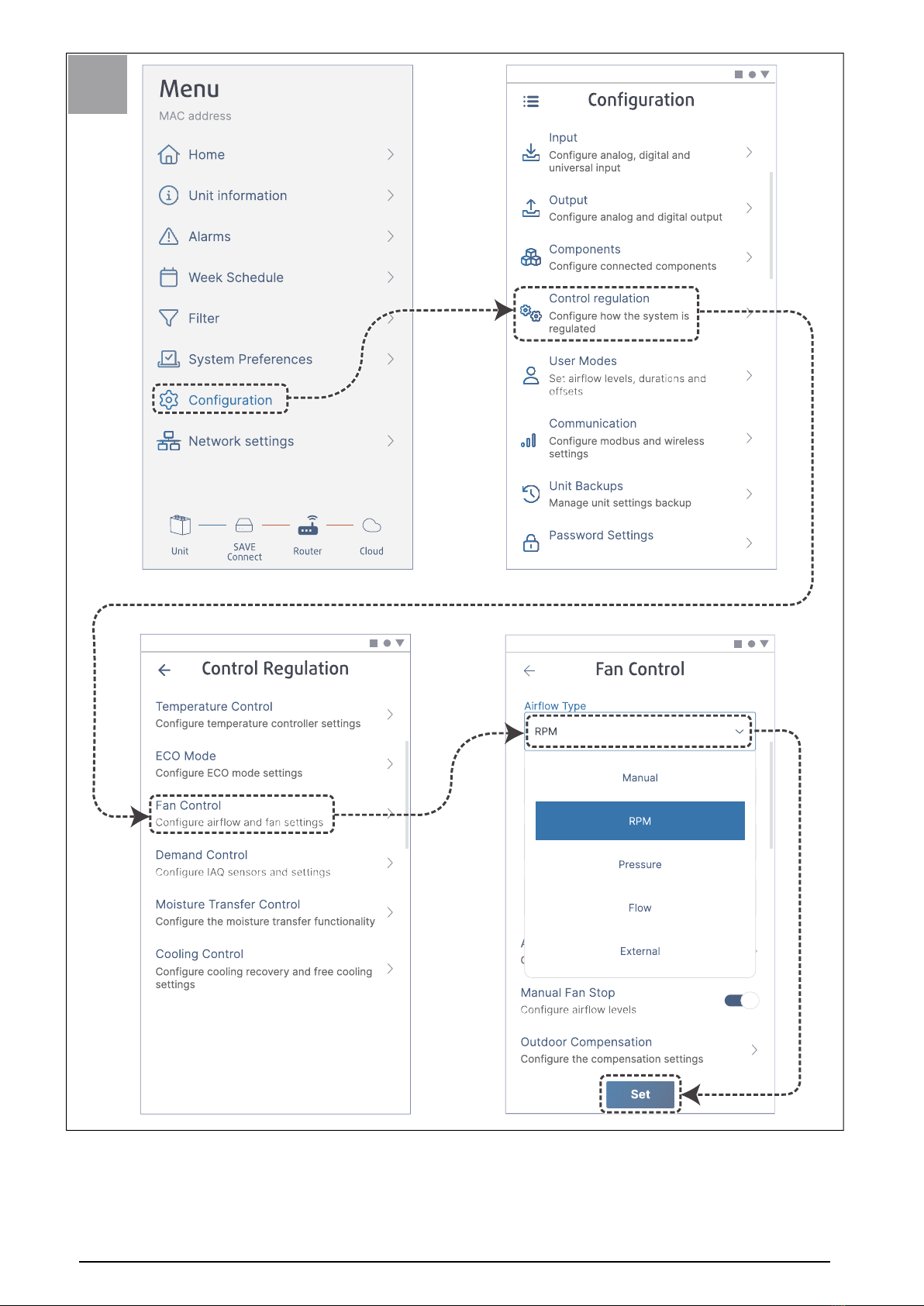

If necessary, change the type of fan control. Press the button Set to save changes.

5

11

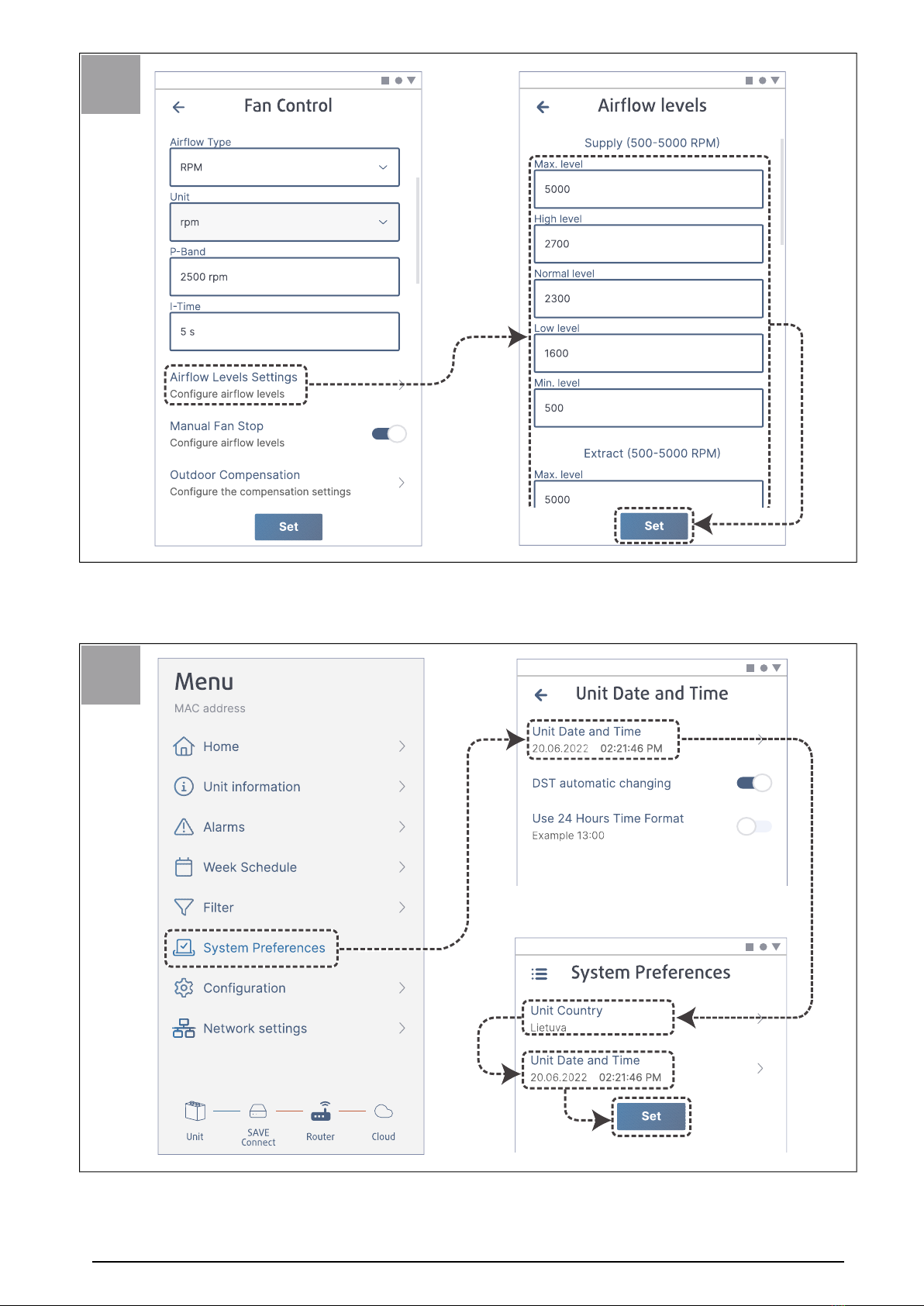

Configure supply and extract fan speed for each airflow level. Press the button Set to save

changes.

12

Select your country and configure date and time. Press the button Set to save changes.

6

13

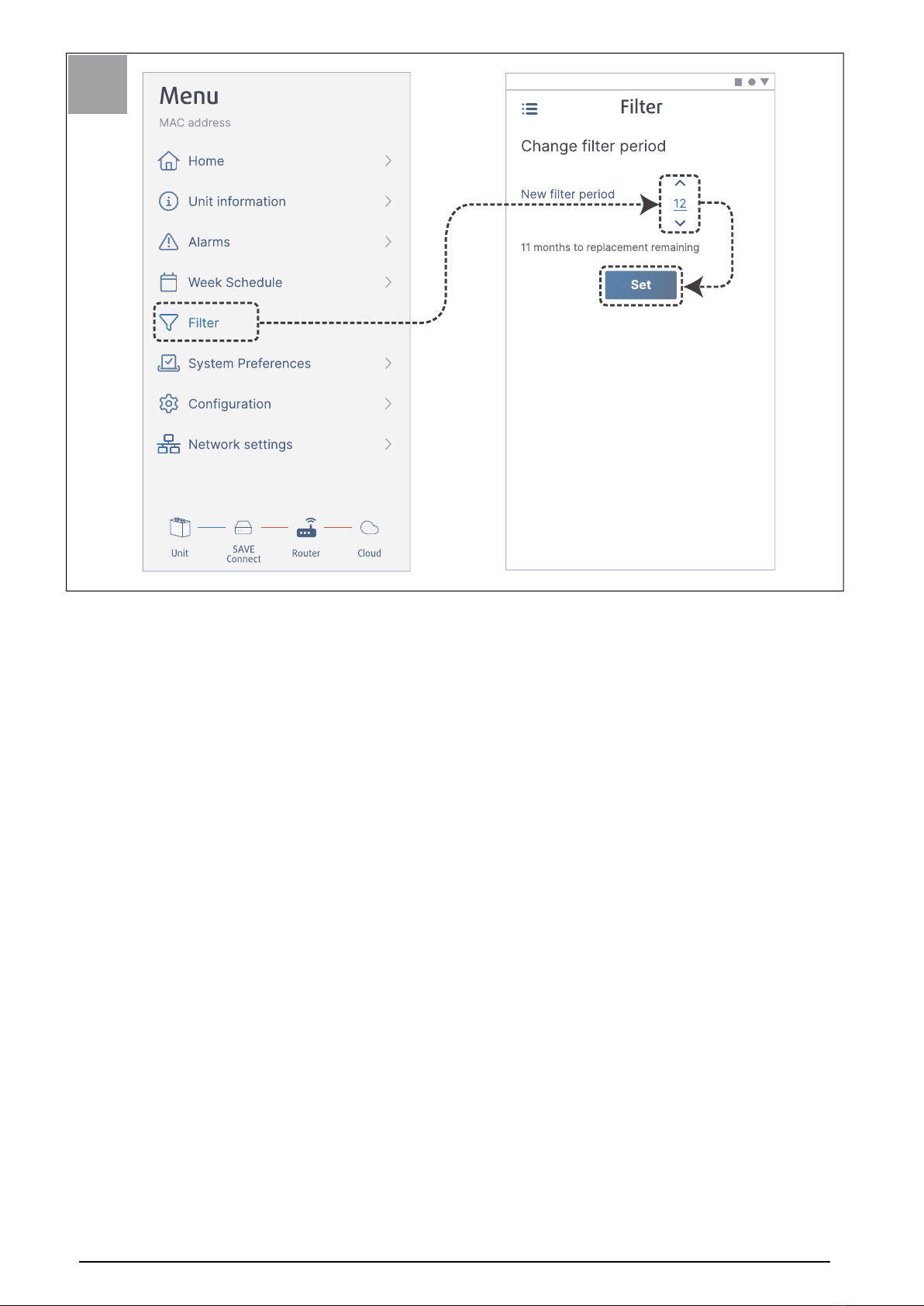

Reset filter change timer and set new filter period. Press the button Set to save changes.

7

14

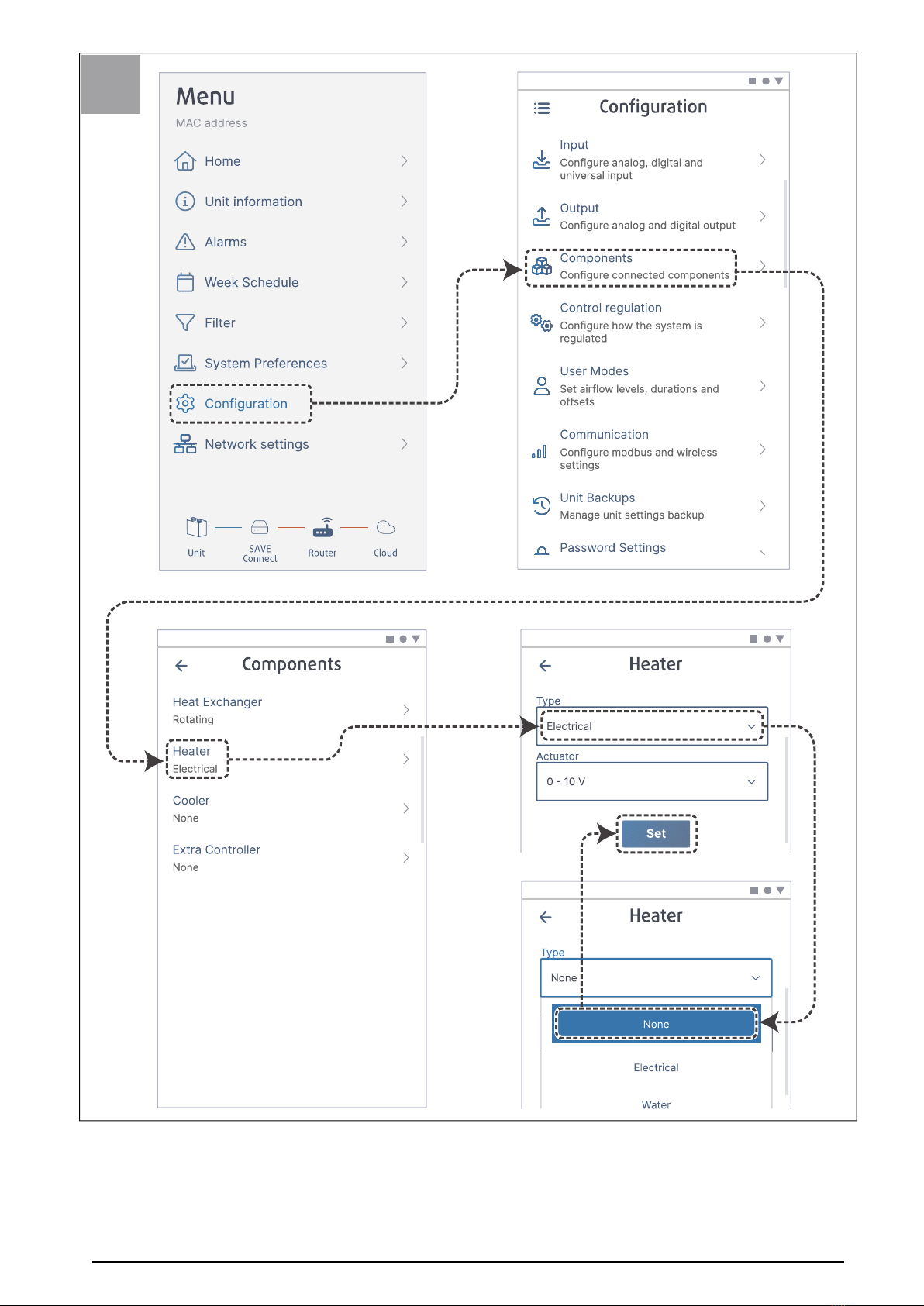

If necessary, disable the heater. Press the button Set to save changes.

8
