Tally Dascom 7106 Manuale utente

– 1 –

Installation Guide 7106 7206

User Guide Peeler Unit

– 2 –

August 2010 DASCOM Europe GmbH

– 3 –

Installation Guide

0 The following installation shows a 7106 printer. The peeler installation for 7206

printers follows the same steps.

1 Before installing the Peeler Unit

1-1 Remove the plastic front cover on the front side of the printer upward as shown

below.

Be careful that you do not touch other parts when removing the front cover.

1-2 Remove the screw (M3 X 6) of the motor cover and take the motor cover out

as shown below.

Remove the

screw and the

motor cover

– 4 –

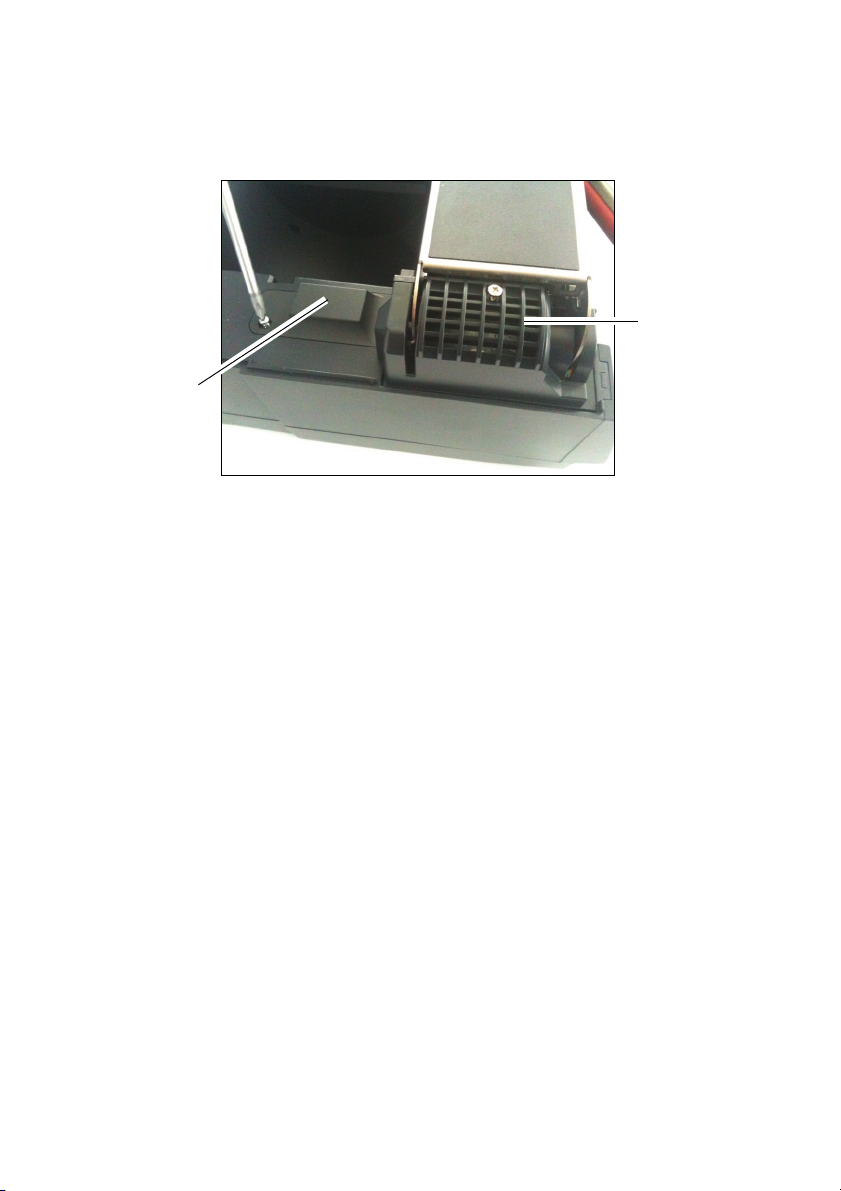

1-3 Remove the screw (M3 X8, for plastic) and take the connector cover out as

shown below.

2 Installing the peeler

2-1 While inserting the peeler cable in the space (A) between the paper feed motor

and the printer housing, match the protruded pins of the peeler unit to the ho-

les of the front of the mechanism unit.

Set the peeler unit to the printer using the accessory screws (3 pcs M3 X 6)

enclosed.

Remove the

screw and the

connector cover

Set 3 pcs screws

(M3X6)

– 5 –

2-2 Connecting the peeler unit cable

Connect the peeler unit cable connector to the receptacle of the printer after

setting the peeler cable in the printer housing.

Note: Set the peeler cable (A) not to touch the print head-up spring (B) of the me-

chanism unit.

It is allowed to set the peeler cable under the paper feed motor instead of

the side of the paper feed motor.

– 6 –

3 Reinstalling the covers

Reinstall the connector cover (M3 X 8, for Plastic) and the motor cover

(M3 X 6).

Note: Keep the front cover for future use which you remove the peeler unit.

Note: Use specified screw for the covers.

Do not use wrong type screw, otherwise the screw hole of the printer hou-

sing will be damaged.

Motor cover

Connector cover

– 7 –

User Guide

Contents

Caution ･････････････････････････････････････････････････････ 8

1 Outline ･･････････････････････････････････････････････････ 9

2 Exterior view and part names･･･････････････････････････････ 9

3 How to operate ･･･････････････････････････････････････････ 10

3-1 Operation

････････････････････････････････････････････ 10

3-1-1 Peeler door opening/closing ･････････････････････ 10

3-1-2 Media loading･･････････････････････････････････ 10

3-1-3 Peeler setting ･･････････････････････････････････ 10

3-1-4 Initial value of peeling position ･･･････････････････ 11

3-1-5 Peeler commands ･･････････････････････････････ 12

4 Peeler specifications ･･････････････････････････････････････ 13

– 8 –

Caution

Company names and product names in this manual are trademarks or

registered trademarks of relevant companies.

CAUTION

Always use the peeler with the door closed except when the media

is loaded into the peeler.

Do not push down the door roughly when it is opened, which may

cause damage to the hinge of the door.

Use the media that meets standard requirements. If not, the liner

and label may be jammed in the peeler.

Wipe off dirt or glue stuck to the peeler with a soft cloth soaked in

a neutral detergent.

Do not use volatile liquids such as benzine and thinner, which may

cause the roller rubber and plastic parts to deteriorate.

– 9 –

1 Outline/2 Exterior view and part names

1 Outline

This peeler unit is designed to automatically remove the label from the liner.

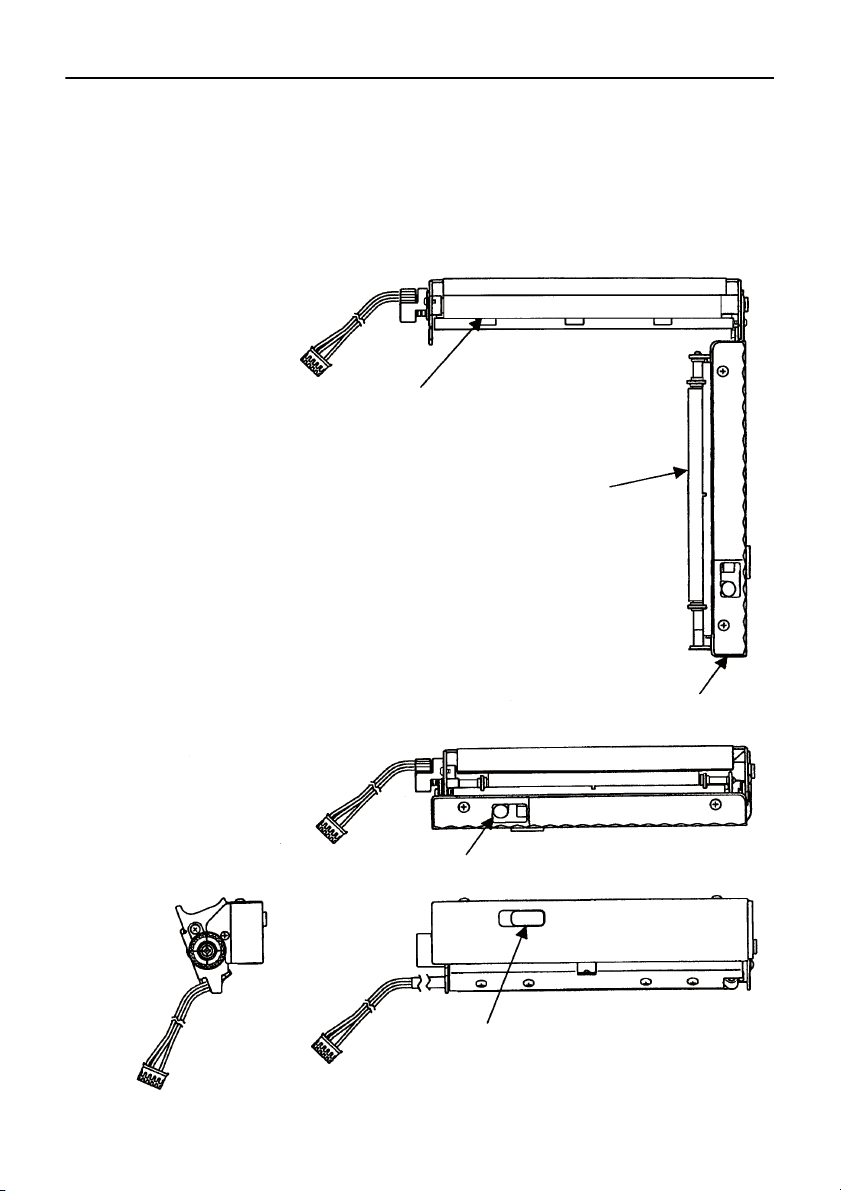

2 Exterior view and part names

Peeling Roller

Idle Roller (upper)

Friction Roller (lower)

Doo

Peeling Senso

Release Knob

Front view

Top view

Top view of door opened

Side view

– 10 –

3 How to operate

3-1 Operation

3 How to operate

3-1 Operation

3-1-1 Peeler door opening/closing

(1) Opening

Shift the release knob of the peeler to the left with the finger, and the peeler door

will open.

(2) Closing

Push down the left end of the peeler door until it clicks closed.

3-1-2 Media loading

(1) First peel off the labels with a length of 12cm (5 inch) or more on the top of the

loading media, then load the media into the peeler where the first label comes to

the peeling sensor. Close the print head of the printer.

(2) Open the peeler door and pass the liner between the peeling roller and the peeler

door and close the door.

3-1-3 Peeler setting

To use this peeler, set the peeler function ON that is one of the various setting items in

a nonvolatile memory in the printer.

To change the setting of the peeler function, execute it in the printer configurations

setting mode from the control panel or use the command STX KD.

The printers have the menu “AutoConfigure“ set to ON when shipping from the

factory. In this ON condition, if the peeler is installed on the printer, the menu “Function

Select” will be automatically changed to “Peel On.” But if the Off condition occurs, select

the “Peel On” in the following manner. (For details of menu setting, refer to the operation

manual of each printer.)
