Model Number:
TBC-355B

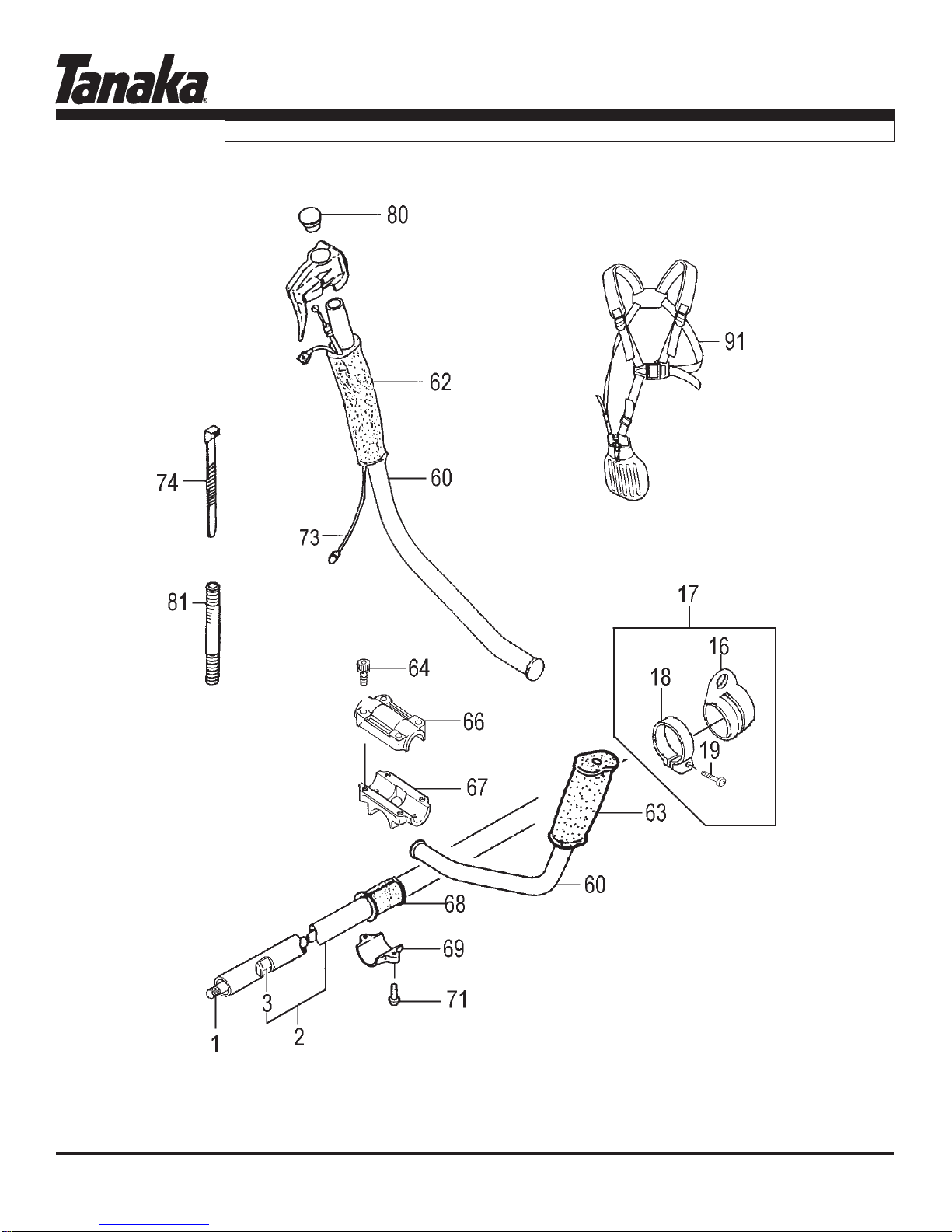

BRUSHCUTTER, 34cc
P/N 39885
Rev 000
Date 5-17-05
Supplier To The Outdoor Power Equipment Industry
ISM, Inc. • 1028 4th Street SW • Auburn, WA 98001 • Phone: (253) 333-1200 • Fax: (253) 333-1212
[email protected]www.tanaka-usa.com
www.tanaka-usa.com
PARTSINFORMATION
Page 1
TBC-355B

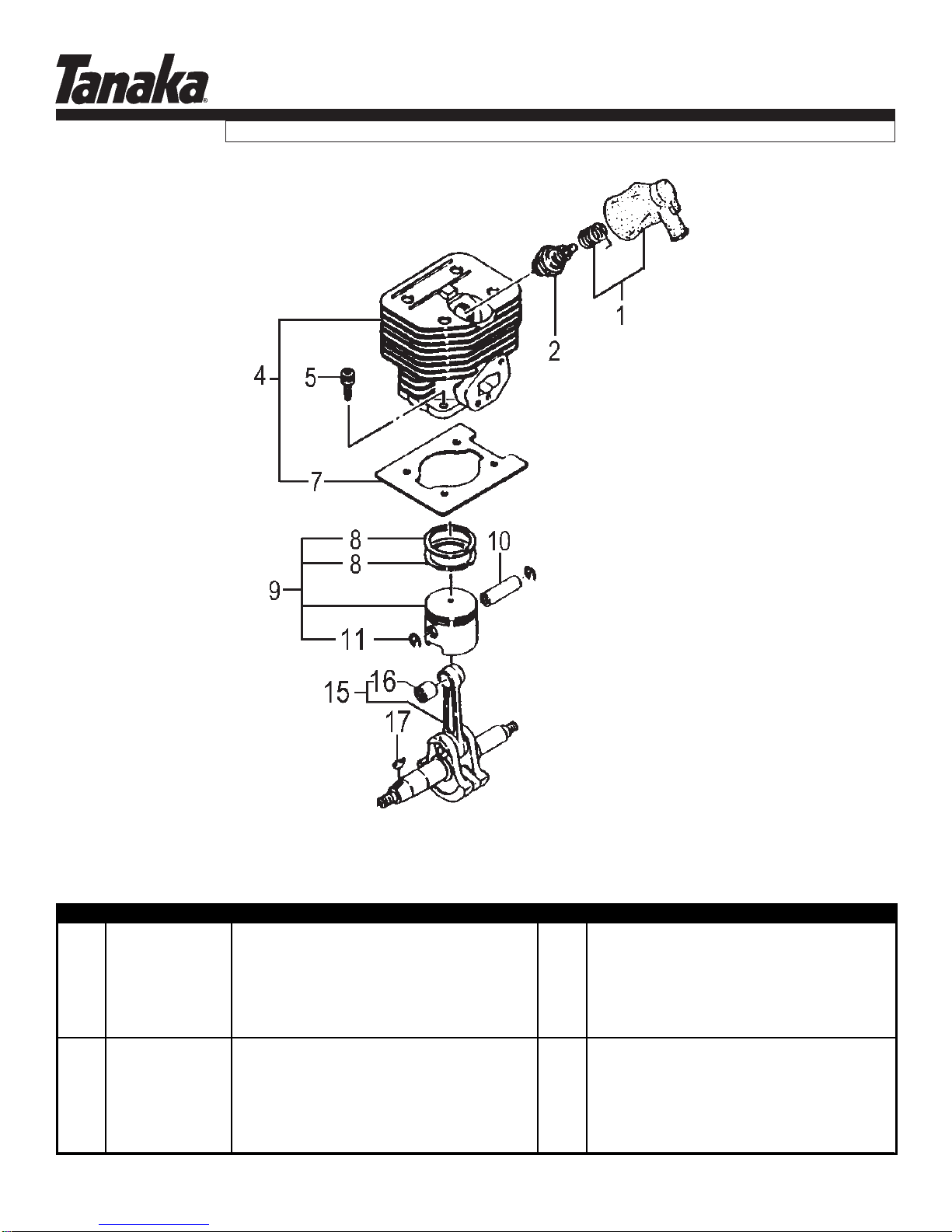

CYLINDER, PISTON & CRANKSHAFT • FIGURE 1
ITEM PART NUMBER DESCRIPTION QTY COMMENTS
1-1 1570097A900 CAP,SPARK PLUG,ASS'Y 1
1-2 01802233200 SPARK PLUG 1
1-4 0010143C90 CYLINDER SET 1 Includes gasket
1-5 99461050184 BOLT,HEX,5X18,S 4
1-7 01701380200 GASKET,CYLINDER 1
1-8 04104000200 RING,PISTON 2
1-9 0300143C90 PISTON SET 1 Includes piston rings and circlips
1-10 03701400200 PIN,PISTON 1
1-11 03900000201 CIRCLIP,PISTON PIN 2
1-15 0460135082 CRANKSHAFT 1
1-16 99962091325 BEARING,NEEDLE,F-910 1
1-17 06810100200 KEY,WOODRUFF,3X13X4.5 1
www.tanaka-usa.com
PARTSINFORMATION
Page 2
TBC-355B

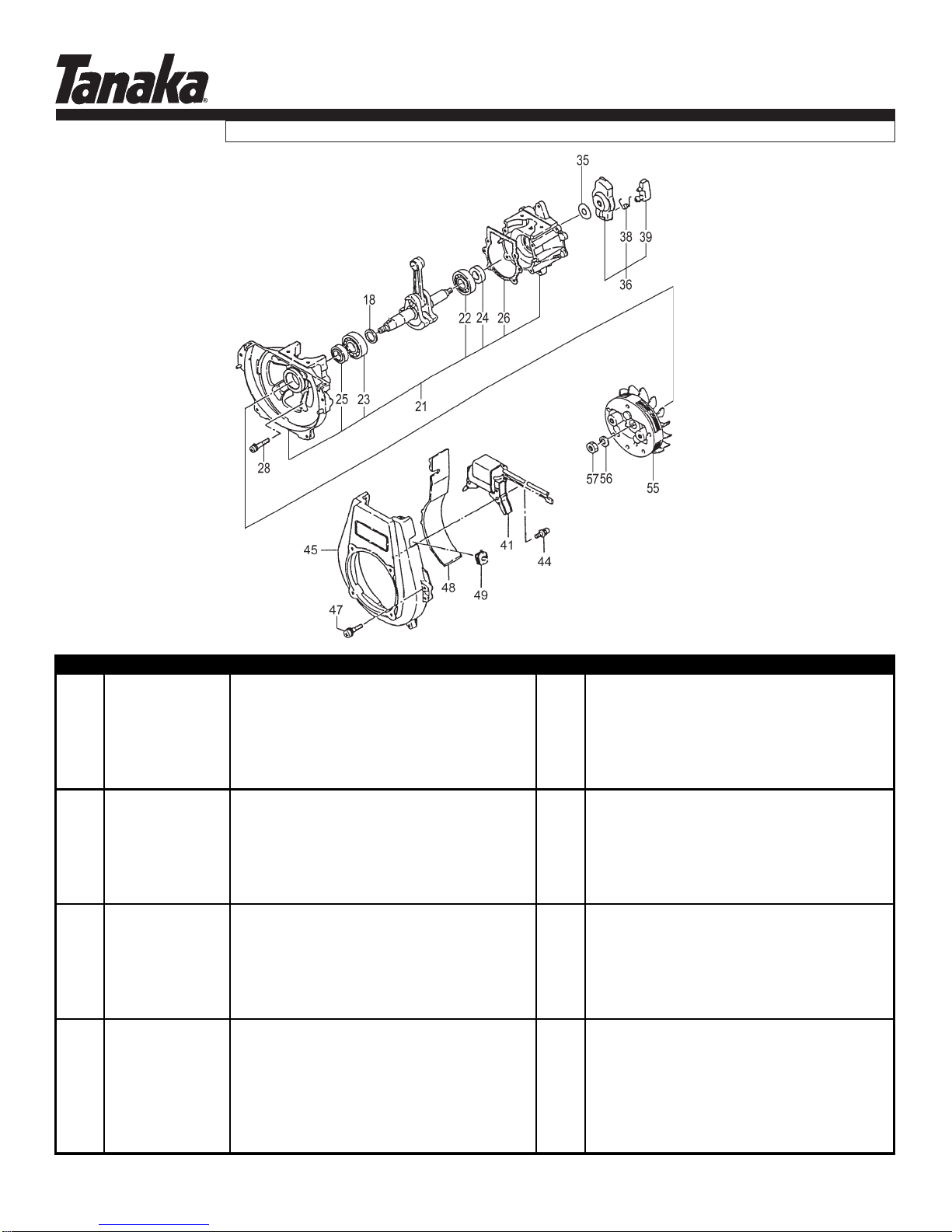

CRANKCASE & FLYWHEEL • FIGURE 2
ITEM PART NUMBER DESCRIPTION QTY COMMENTS
2-18 07102007200 SHIM,15.2X20X.05 1
2-18 07102007210 SHIM,15.2X20X.10 1
2-18 07102007220 SHIM,15.2X20X.15 1
2-18 07111600230 SHIM,0.20 1
2-18 07111600240 SHIM,0.30 1
2-21 0720130A91 CRANKCASE ASSY 1 Includes gasket, seals and bearings
2-22 99961600200 BEARING,BALL,#6002 1
2-23 99961620200 BEARING,BALL,#6202 1
2-24 99966122240 SEAL,OIL 1
2-25 99966152564 SEAL,OIL,UD15257 1
2-26 09001380200 GASKET,CRANKCASE 1
2-28 99461050254 BOLT,HEX HOLE,5X25S 4
2-35 35910112203 WASHER,CLUTCH B 1
2-36 7980166R90 PULLEY,STARTER,ASS'Y 1
2-38 7900162V200 SPRING,PAWL,STARTER 1
2-39 7880138A20 PAWL,STARTER 1
2-41 1672196080 COIL,IGNITION 1
2-44 99416040226 SCREW,WS,4X22 2
2-45 1120144221 CASE,FAN,TBC-355B 1
2-47 99414050181 SCREW,S,5X18 4
2-48 13201300200 PAN,FLASH 1
2-49 2030604A202 GROMMET 1
2-55 1552173380 ROTOR,MAGNETO 1
2-56 99201080011 WASHER,8 1
2-57 99101080011 NUT,8 1
www.tanaka-usa.com
PARTSINFORMATION
Page 3
TBC-355B
FUEL SYSTEM • FIGURE 3
ITEM PART NUMBER DESCRIPTION QTY COMMENTS
3-21 4030143C21 GASKET,INLET MANIFOLD 1
3-22 4040143C90 INSULATOR,SET 1 Includes gasket
3-25 99416050221 SCREW,5X22/WS 2
3-26 4020602K21 GASKET,CARBURETOR 1
3-27 65900801200 COLLAR 3
3-28 4550143C90 CARBURETOR SET 1 Includes gasket
3-34 99415050185 SCREW,5X18 3
3-40 5910130A20 TANK,WHITE,TC-355 1
3-41 67501630900 FILTER,FUEL 1
3-42 68000731201 CLIP 6.3 1
3-43 2230622U900 PIPE,FUEL,ASS'Y 1
3-44 5950144D90 CAP,TANK,BLACK 1
3-76 62632810200 CHAIN,TANK CAP 1
www.tanaka-usa.com
PARTSINFORMATION
Page 4
TBC-355B

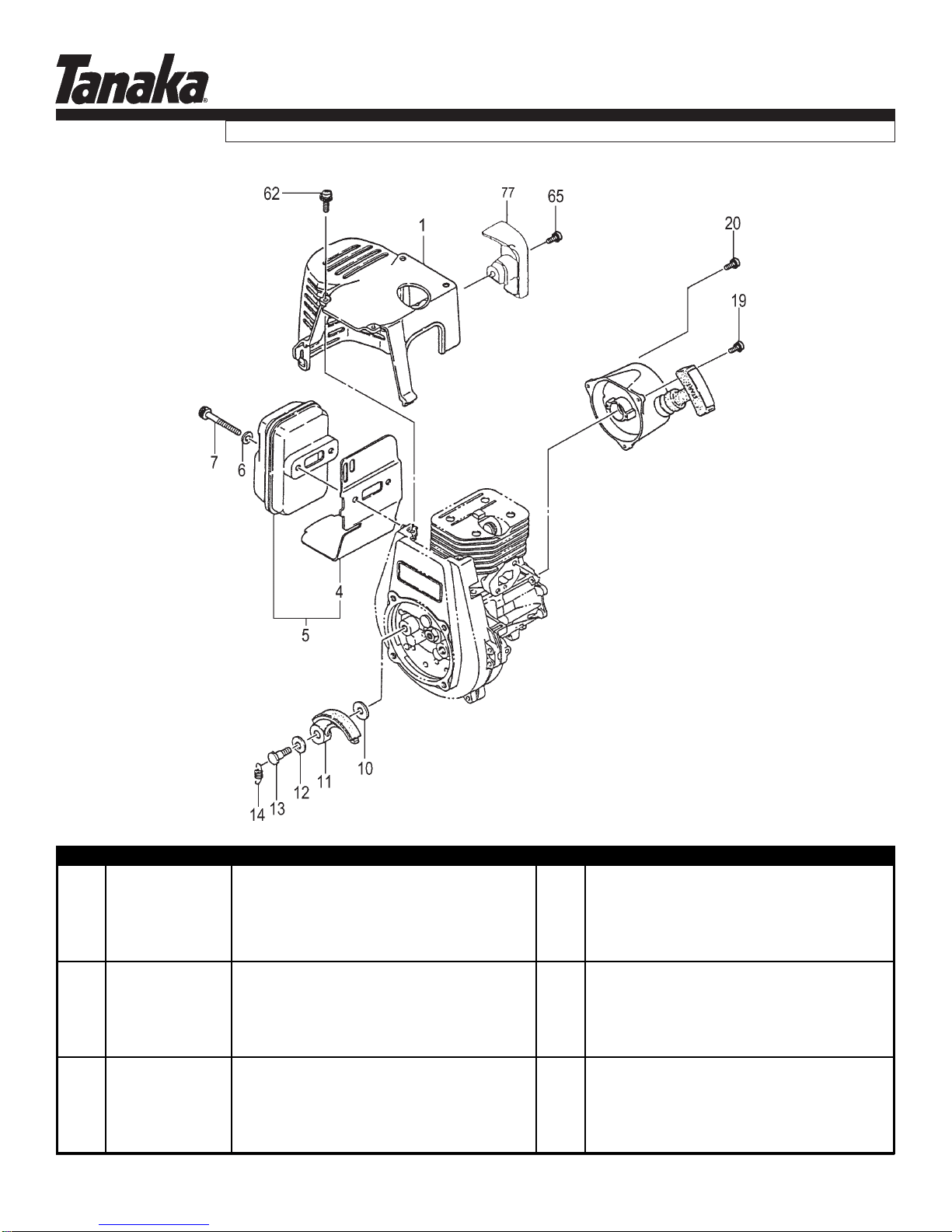

MUFFLER, CLUTCH & COVER • FIGURE 4
ITEM PART NUMBER DESCRIPTION QTY COMMENTS
4-1 7380138021 PROTECTOR,MUFFLER 1
4-4 1330138021 SHIELD,HEAT 1
4-5 7040143C90 MUFFLER SET 1 Includes gasket
4-6 99201060011 WASHER,6 2
4-7 99053060603 BOLT,HEX,6X60 2
4-10 35910112203 WASHER,CLUTCH B 2
4-11 2900138A80 SHOE,CLUTCH 2
4-12 35810112201 WASHER,CLUTCH 2
4-13 3570136U200 BOLT,STEP,CLUTCH 2
4-14 3420138A20 SPRING,CLUTCH 1
4-19 99416040161 SCREW,4x16,WS 2
4-20 99416040251 SCREW,4X25/WS 1
4-62 99415040121 SCREW,PS,4X12 2
4-65 99415050251 SCREW,5X25PS 1
4-77 1320130A20 DEFLECTOR,AIR 1
www.tanaka-usa.com
PARTSINFORMATION
Page 5
TBC-355B

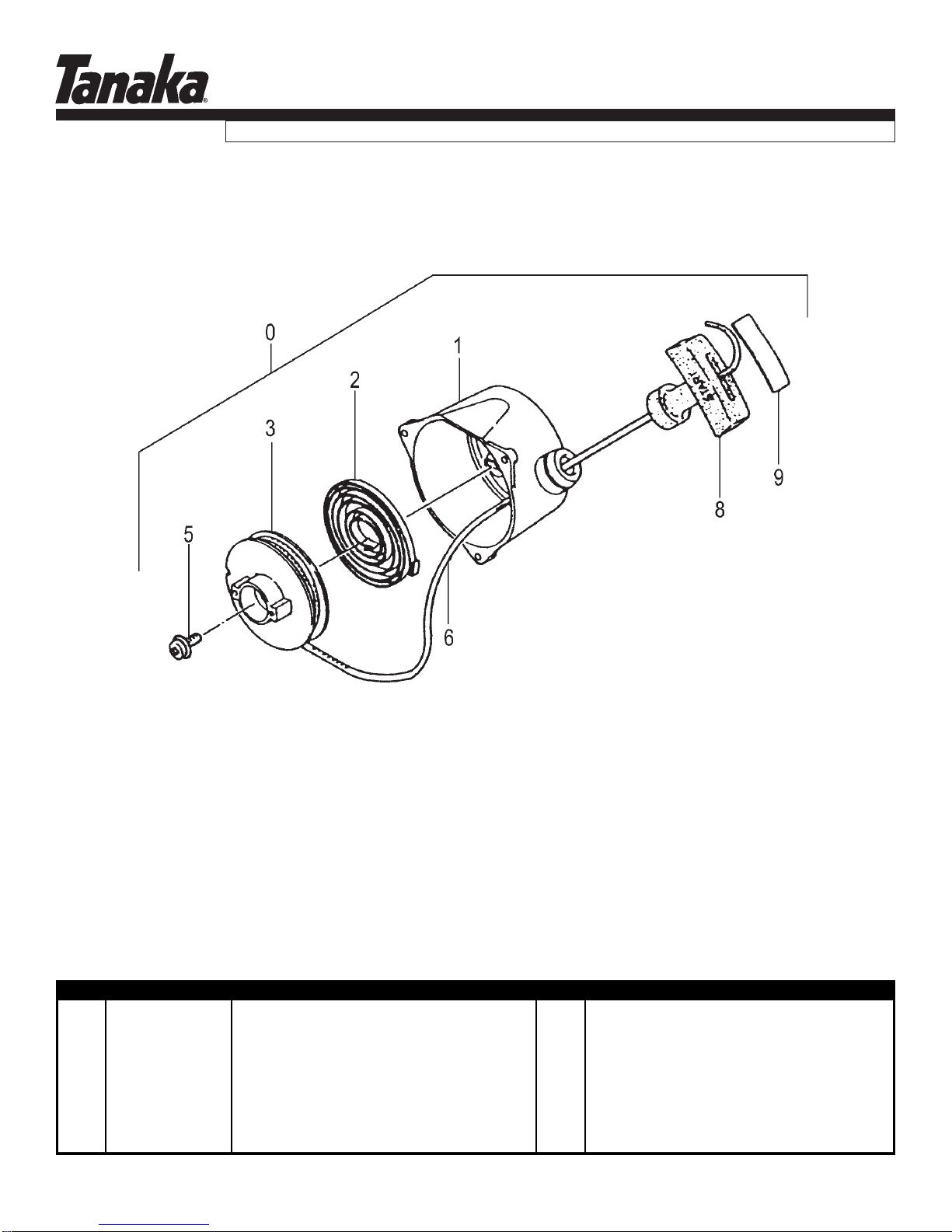

STARTER • FIGURE 5
ITEM PART NUMBER DESCRIPTION QTY COMMENTS
5-0 7620136U901 STARTER,RECOIL ASS'Y 1
5-1 7720136U80 BODY,STARTER 1
5-2 7790136U200 SPRING,RECOIL 1
5-3 7740162V200 REEL,STARTER ROPE 1
5-5 8390201020 SCREW,SET 1
5-6 7830136U200 ROPE,STARTER 1
5-8 78501620200 HANDLE,STARTER 1
5-9 79501620200 SEAL,HANDLE KNOB 1
www.tanaka-usa.com
PARTSINFORMATION
Page 6
TBC-355B

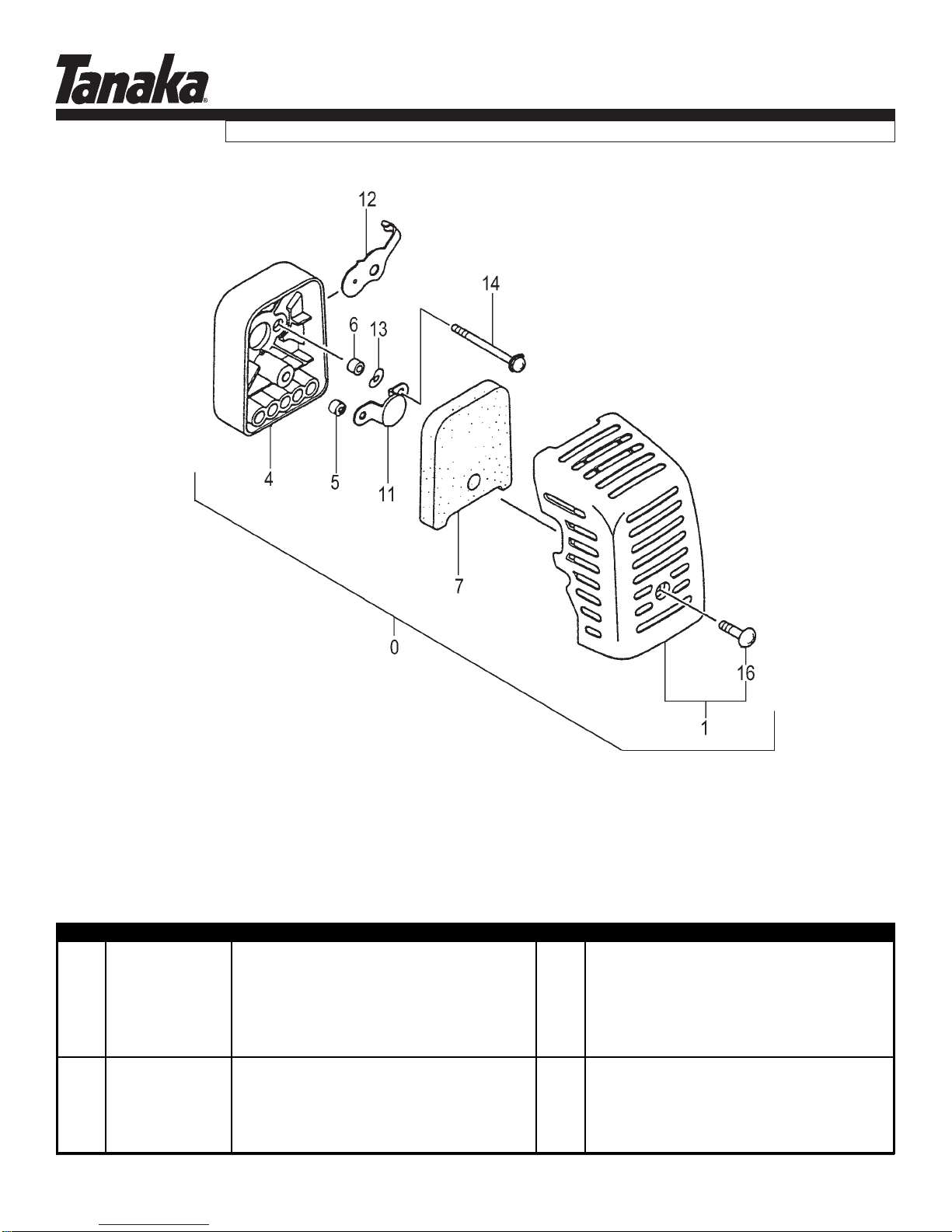

AIR FILTER • FIGURE 6
ITEM PART NUMBER DESCRIPTION QTY COMMENTS
6-0 4100138A93 CLEANER ASSY 1
6-1 4520138091 COVER,CLEANER,ASSY 1
6-4 4230138082 BODY,CLEANER 1
6-5 4530637C200 COLLAR 1
6-6 4700138020 COLLAR 1
6-7 4460138021 FILTER,AIR 2
6-11 47601700200 BOARD,BLOW OVER CHECK 1
6-12 5280138021 VALVE,CHOKE 1
6-13 99204080030 WASHER,8 1
6-14 99414050571 SCREW,5X57,S 2
6-16 3800637C200 BOLT,CLEANER COVER 1
www.tanaka-usa.com
PARTSINFORMATION
Page 7
TBC-355B
CARBURETOR • FIGURE 7
ITEM PART NUMBER DESCRIPTION QTY COMMENTS
7-0 4550143C90 CARBURETOR SET 1 Includes gasket
7-2 5752515280 BODY,PUMP 1
7-3 48925100200 RING,STOP 1
7-4 55025100200 O-RING 1
7-5 4310634C200 GASKET,CLEANER 1
7-6 47625004200 COVER,DIAPHRAGM 1
7-7 48825120900 VALVE,THROTTLE 1
7-8 53925120200 SWIVEL 1
7-10 ~ ~ ~ GASKET,DIAPHRAGM 1 ~ Contained in Carb Repair Kit
7-11 ~ ~ ~ GASKET,PUMP 1 P/N 650-25140-900
7-12 ~ ~ ~ DIAPHRAGM,PUMP 1 (not available individually)
7-13 ~ ~ ~ DIAPHRAGM,METERING 1
7-14 51425100200 SCREW,THROTTLE SET 2
7-15 54825101200 SCREW,SET 4
7-16 61425137200 ADJUSTER,CABLE 1
7-17 5992000W430 JET,MAIN,#43 1
7-18 99101060013 NUT,6 1
7-19 54425120200 STAY,ADJUST,CABLE 1
7-201 57825007200 SCREEN,INLET 1
0
www.tanaka-usa.com
PARTSINFORMATION
Page 8
TBC-355B

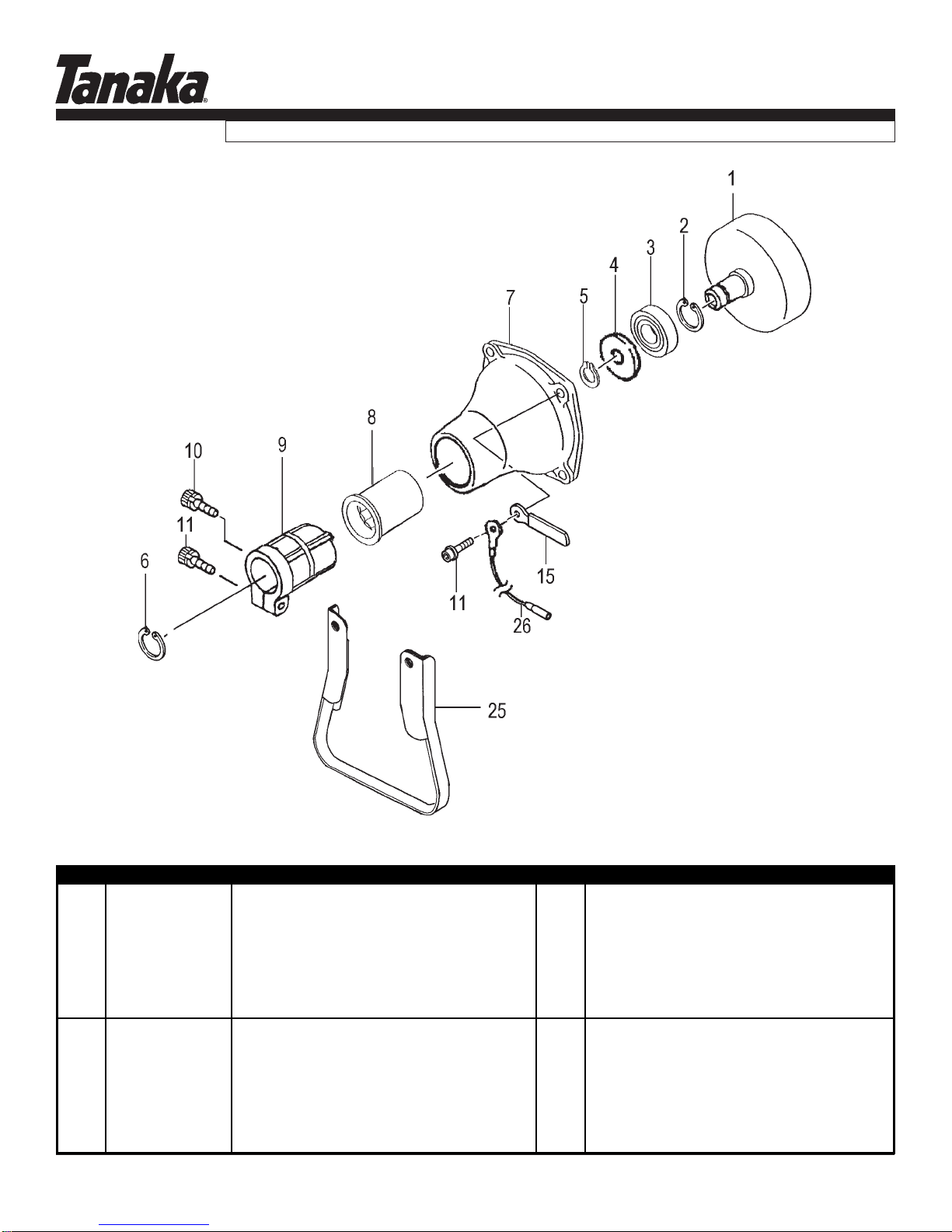

CLUTCH CASE • FIGURE 8
ITEM PART NUMBER DESCRIPTION QTY COMMENTS
8-1 2893749180 SHAFT,CLUTCH 1
8-2 99351032002 RING,STOP,C-32 IN 1
8-3 99961600201 BEARING,BALL,#6002ZZ 1
8-4 3303749120 WASHER 1
8-5 99350015002 RING,STOP,C-15 EX 1
8-6 99353045002 RING,STOP,C-15,OUTER 1
8-7 3313749120 CASE,CLUTCH 1
8-8 5993749120 CUSHION 1
8-9 3603749120 HOLDER,PIPE 1
8-10 99436050101 SCREW,5X10WS 1
8-11 99461060304 BOLT,HEX,6x30/S 5
8-15 19805015800 CLAMP,CORD 1
8-25 7393749120 STAND 1
8-26 2743749180 CORD 1
