Tanaka TBC-225CS Guida all'installazione
IllustrIllustr
IllustrIllustr
Illustraa
aa
ated Pted P
ted Pted P
ted Parar
arar
arts Mants Man
ts Mants Man
ts Manualual
ualual
ual
Model Number:
TBC-225CS
GRASS TRIMMER
P/N 10862
Rev 000
Date 11-06-08
Nikko Tanaka Engineering U.S.A.,Ltd.• 1028 4th Street SW, Bldg B • Auburn, WA 98001 • Phone: (253) 333-1200 • Fax: (253) 333-1212
www.tanakapowerequipment.com [email protected]
www.tanakapowerequipment.com
PARTS INFORMATION
Page 1
TBC-225CS
CYLINDER, PISTON, CRANKSHAFT, IGNITION •FIGURE 1
ITEM PART NUMBER DESCRIPTION QTY COMMENTS
1-1 1570157090 CAP,SPARK PLUG,ASSEMBLY 1
1-2 0181166021 PLUG,SPARK 1
1-6 0010713091 CYLINDER SET 1 Includes gasket
1-7 99461050184 BOLT,HEX,5X18,S 2
1-9 01700980200 GASKET,CYLINDER 1
1-11 04100601210 RING,PISTON 1
1-12 0300007090 PISTON SET 1 Includes piston rings and circlips
1-13 03901620200 CIRCLIP,PISTON PIN 1
1-14 03706500200 PIN,PISTON 1
1-16 0460713081CRANKSHAFT 1 ~B001000
1-16 0460713580CRANKSHAFT 1 B001001~
1-17 99962081277 BEARING,NEEDLE,HK0810B 1
1-18 06810100200 KEY,WOODRUFF,3X13X4.5 1 ~B001000
1-40 1782054620 CORD B 1
1-46 99463040154 BOLT,HEX,4X15,PS 2
1-50 1672054691 COIL,IGNITION 1
1-56 56020517200 CAP,RUBBER 1
1-58 1780136M800 CORD,STOP 2
www.tanakapowerequipment.com
PARTS INFORMATION
Page 2
TBC-225CS

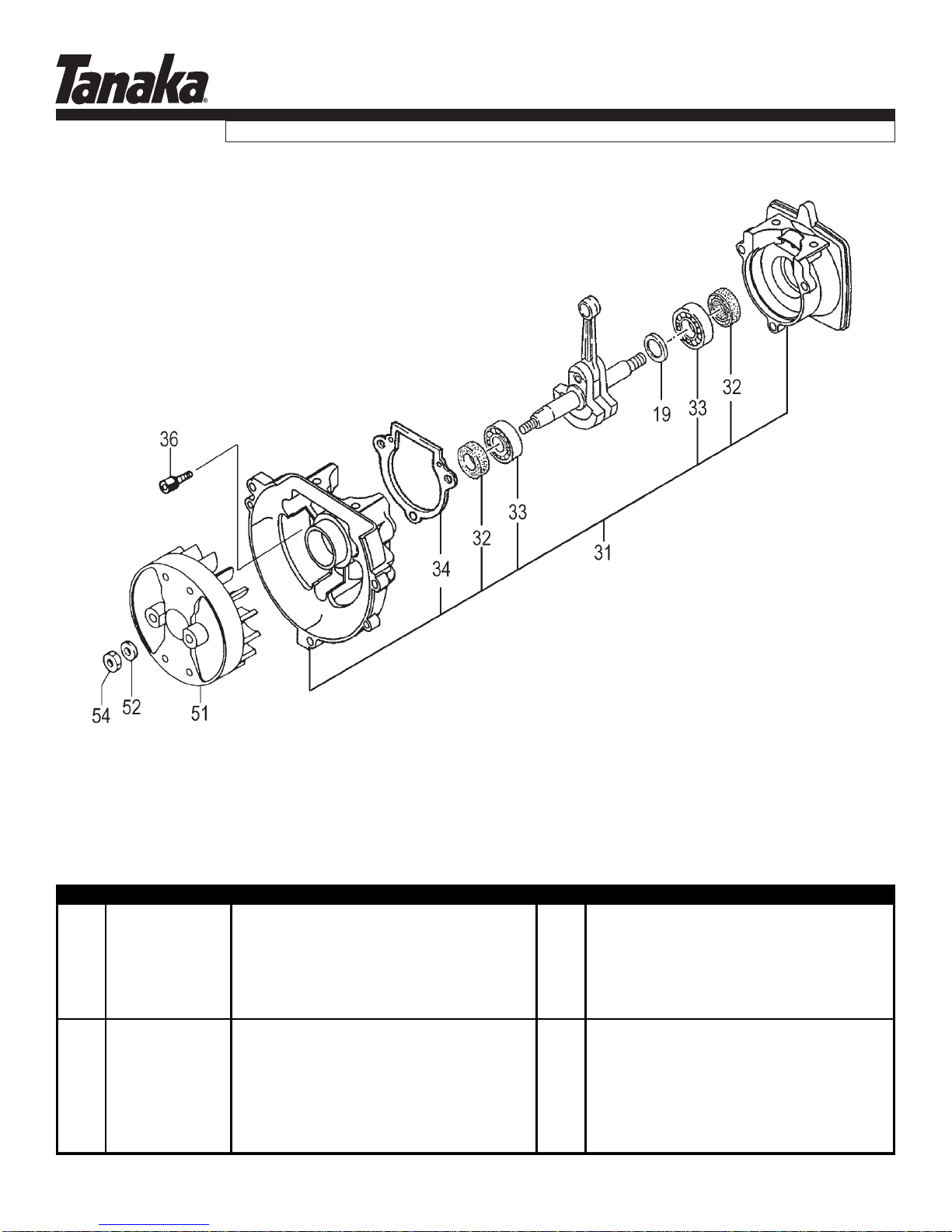

CRANKCASE & FLYWHEEL • FIGURE 2
ITEM PART NUMBER DESCRIPTION QTY COMMENTS
2-19 33000200210 SHIM,12.2X19X.10 1
2-19 33000200220 SHIM,12.2X19X.15 1
2-19 33000200230 SHIM,12.2X19X.20 1
2-19 33000200240 SHIM,12.2X19X.30 1
2-31 0720712092 CRANKCASE ASSY 1 Includes bearings, seals and gasket
2-32 99966122206 SEAL,OIL,#TC12227 2
2-33 99961600115 BEARING,BALL,6001 C3 2
2-34 0900641020 GASKET,CRANKCASE 1
2-36 99461050184 BOLT,HEX,5X18,S 3
2-51 1552055080 ROTOR,MAGNETO 1 ~B001000
2-51 1552055081 ROTOR,MAGNETO 1 B001001~
2-52 99201080011 WASHER,8 1
2-54 99101080011 NUT,8 1
www.tanakapowerequipment.com
PARTSINFORMATION
Page 3
TBC-225CS
FUEL SYSTEM •FIGURE 3
ITEM PART NUMBER DESCRIPTION QTY COMMENTS
3-40 4030631A20 GASKET,INLET MANIFOLD 1
3-41 4040099F90 SET,CARB INSULATOR 1 Includes gasket
3-42 4020602K21 GASKET,CARBURETOR 1
3-47 99464050224 BOLT,HEX,5X22,WS 2
3-49 99967015000 O-RING,P15 1
3-55 99416050601 SCREW,5x60WS 2
3-58 5600712020 SWIVEL CAP 1
3-59 2230700090 FUEL PIPE ASSY 1
3-60 68000731201 CLIP 6.3 1
3-61 6750404280 FILTER,FUEL 1
3-62 5910712021 TANK,FUEL 1 ~D067000
3-62 5910717F20 TANK,FUEL,EVAPO 1 D067001~
3-63 5950300290 CAP,TANK (BLACK/RED) 1
3-64 65900801200 COLLAR 3
3-65 4550713990 CARBURETOR SET 1 Includes gasket
3-67 99463050164 BOLT,HEX,5X16,PS 2
3-68 99463050205 BOLT,HEX,5X20PS 1
3-78 7000300508 PIPE,FUEL,3X5X85 1
3-79 53432710200 GROMMET,FUEL PIPE 1
www.tanakapowerequipment.com
PARTS INFORMATION
Page 4
TBC-225CS
MUFFLER, CLUTCH & COVER • FIGURE 4
www.tanakapowerequipment.com
PARTS INFORMATION
Page 5
TBC-225CS
MUFFLER, CLUTCH & COVER • FIGURE 4
ITEM PART NUMBER DESCRIPTION QTY COMMENTS
4-1 7380716220 COVER,MUFFLER 1
4-2 99415040151 SCREW,4X15PS 1
4-4 99073045124 SCREW,TAPPING,4.5X12 1
4-5 99051050503 BOLT,HEX,5X50 2
4-6 99201050061 WASHER,5 2
4-7 7040713990 MUFFLER SET 1 Includes gasket
4-16 7370700020 GASKET,MUFFLER 1
4-17 1330654020 SHIELD,HEAT 1
4-31 35902103200 WASHER,CLUTCH,B 1
4-32 2900641080 SHOE,CLUTCH 1
4-33 3420641020 SPRING,CLUTCH 1
4-34 3480654020 PLATE,CLUTCH 1
4-35 35700601200 BOLT,STEP,CLUTCH 1
4-36 99464050184 BOLT,HEX,5X18,WS 1
4-38 99205080030 WASHER,8 2
4-45 99464050304 BOLT,HEX,5X30,WS 1
4-63 19805015800 CLAMP,CORD 1
4-77 75104200201 GASKET,MUFFLER 2
4-78 7340099K90 PIPE,EXHAUST 1
4-79 99434040081 SCREW,4X8/S 2
4-80 7320099F90 SET,SPARK ARRESTER 1
www.tanakapowerequipment.com
PARTS INFORMATION
Page 6
TBC-225CS
STARTER • FIGURE 5
ITEM PART NUMBER DESCRIPTION QTY COMMENTS
5-0 7620735090 STARTER ASSY 1
5-1 7720735080 BODY,STARTER 1
5-2 7830720F20 ROPE,STARTER 1
5-3 78006097200 SPRING,RECOIL 1
5-4 7740720F20 REEL,ROPE 1
5-5 7580651H20 SPRING 1
5-6 7590651H20 PLATE,CAM 1
5-7 8390304520 SCREW,SET 1
5-8 7850304520 HANDLE,STARTER 1
5-9 3153334020 NUT,SPECIAL 5MM 1
5-22 7980651H90 PULLEY ASSY,STARTER 1
5-24 99464040185 BOLT,HEX,4x18WS 4
5-25 99355050000 RING,STOP,5 2
5-26 79006097200 SPRING,STARTER PAWL 2
5-27 7880651H20 SPRING,STARTER 2
www.tanakapowerequipment.com
PARTS INFORMATION
Page 7
TBC-225CS
AIR CLEANER • FIGURE 6
ITEM PART NUMBER DESCRIPTION QTY COMMENTS
6-0 41000025900 CLEANER,AIR ASS'Y 1
6-1 42400025200 CAP,AIR CLEANER 1
6-2 44600025200 ELEMENT,CLEANER 1
6-3 47000025200 COLLAR 2
6-4 42300025800 BODY,CLEANER,AIR 1
www.tanakapowerequipment.com
PARTSINFORMATION
Page 8
TBC-225CS
CARBURETOR •FIGURE 7
0
ITEM PART NUMBER DESCRIPTION QTY COMMENTS
7-0 4550713990 CARBURETOR SET1 Includes gasket
7-2 5752515380 BODY,PUMP 1
7-3 4422515180 PUMP,PRIMING 1
7-4 4762515120 COVER,DIAPHRAGM 1
7-5 44725108200 BULB,PRIMING 1
7-6 ~ ~ ~ METERING DIAPHRAGM 1 ~ Contained in Carb Repair Kit
7-7 ~ ~ ~ GASKET,DIAPHRAGM 1 P/N 650-25140-900
7-8 ~ ~ ~ DIAPHRAGM,PUMP 1 (not available individually)
7-9 ~ ~ ~ GASKET,PUMP 1
7-10 5992000W38 JET,MAIN #381
7-11 55025100200 O-RING 1
7-12 48925100200 RING,STOP 1
7-13 53925120200 SWIVEL 1
7-15 54825140200 SCREW,THROTTLE SET 2
7-20 5482515120 SCREW,SET 4
7-20157825007200 SCREEN,INLET 1
14
1
7-14 48825145800 VALVE, THROTTLE
www.tanakapowerequipment.com
PARTS INFORMATION
Page 9
TBC-225CS
FAN CASE & CLUTCH DRUM • FIGURE 8
ITEM PART NUMBER DESCRIPTION QTY COMMENTS
8-1 2890716280 DRUM,CLUTCH 1
8-6 99074045164 SCREW,TAPPING 4.5x16 1
8-8 99464050304 BOLT,HEX,5X30,WS 2
8-11 1120716480 FAN CASE 1 Includes bearing
8-15 99191050001 NUT,5 2
8-31 2490712K20 SPACER 1
This item is no longer sold as
assembly. Order individual p arts.
