Model Number:
TBC-245PF
GRASS TRIMMER
P/N 39762
Rev 000
Date 8-31-06
Supplier To The Outdoor Power Equipment Industry
Tanaka America • 1028 4th Street SW • Auburn, WA 98001 • Phone: (253) 333-1200 • Fax: (253) 333-1212
custsvc@tanaka-usa.comwww.tanaka-usa.com
www.tanaka-usa.com
PARTSINFORMATION
Page 1
TBC-245PF
CYLINDER, PISTON, CRANKSHAFT, IGNITION • FIGURE 1
ITEM PART NUMBER DESCRIPTION QTY COMMENTS
1-1 1570168090 CAP,SPARK PLUG ASS'Y 1
1-2 0181161021 PLUG,SPARK 1
1-6 0010304590 CYLINDER,SET 1 Includes gasket
1-7 99461050184 BOLT,HEX,5X18,S 4
1-9 0170300221 GASKET,CYLINDER 1
1-11 04101601200 RING,PISTON 2
1-12 0300704590 PISTON SET 1 Includes rings and circlips
1-13 03901620200 CIRCLIP,PISTON PIN 2
1-14 0370704520 PIN,PISTON 1
1-16 0460307080 CRANKSHAFT 1
1-17 99962081225 BEARING,NEEDLE,F-810 1
1-18 06810100200 KEY,WOODRUFF,3X13X4.5 1
1-40 1780168080 CORD,STOP 1
1-41 2740168080 CORD,EARTH 1
1-46 99464040184 BOLT,HEXT 4X18WS 2
1-47 1820186A201 WASHER,SPECIAL 2
1-50 1672101290 COIL,INGITION 1
www.tanaka-usa.com
PARTSINFORMATION
Page 2
TBC-245PF
CRANKCASE & FLYWHEEL • FIGURE 2
ITEM PART NUMBER DESCRIPTION QTY COMMENTS
2-19 33000200210 SHIM,12.2X19X.10 1
2-19 33000200220 SHIM,12.2X19X.15 1
2-19 33000200230 SHIM,12.2X19X.20 1
2-19 33000200240 SHIM,12.2X19X.30 1
2-22 7980304520 PULLEY,STARTER 1
2-31 0720304590 CRANKCASE ASS'Y 1 Includes gasket, seals and bearings
2-32 99966122240 SEAL,OIL,#12227 2
2-33 99961600115 BEARING,BALL,6001 C3 2
2-34 0900304520 GASKET,CRANKCASE 1
2-36 99461050164 BOLT,HEX,5X16,S 3
2-51 1552101280 FLYWHEEL 1
2-52 99201070011 WASHER,7 1
2-54 06600000200 NUT,FLYWHEEL 1
www.tanaka-usa.com
PARTSINFORMATION
Page 4
TBC-245PF
FUEL SYSTEM • FIGURE 3
ITEM PART NUMBER DESCRIPTION QTY COMMENTS
3-80 4030702021 GASKET,INLET MANIFOLD 1
3-81 4040702091 INSULATOR SET 1 Includes gasket
3-82 99416050241 SCREW 5x24WS 2
3-83 5600712020 SWIVEL CAP 1
3-85 4020656A200 GASKET 1
3-86 8780662020 PLATE,THROTTLE WIRE 1
3-88 61425137200 ADJUSTER,CABLE 1
3-89 99101060013 NUT,6 1
3-90 4020602K21 GASKET,CARBURETOR 1
3-91 99967015000 O-RING,P15 1
3-94 99011050602 SCREW,5X60 2
3-95 99210050012 WASHER,S,5 2
3-96 99201050011 WASHER,5 2
3-98 4550307090 CARBURETOR SET 1 Includes gasket
3-100 5910304520 TANK,FUEL 1
3-109 65900801200 COLLAR 3
3-110 53432710200 GROMMET,FUEL PIPE 1
3-111 70003005065 PIPE,FUEL,3X5X65 1
3-112 6750404280 FILTER,FUEL 1
3-113 68000731201 CLIP 6.3 1
3-114 2230162V900 PIPE,FUEL,ASS'Y 1
3-115 99463050205 BOLT,HEX,5X20PS 1
3-116 99463050204 BOLT, HEX 5X20 2
3-117 5950300290 CAP,TANK (BLACK/RED) 1
www.tanaka-usa.com
PARTSINFORMATION
Page 5
TBC-245PF
MUFFLER, CLUTCH & COVER • FIGURE 4
www.tanaka-usa.com
PARTSINFORMATION
Page 6
TBC-245PF
MUFFLER, CLUTCH & COVER • FIGURE 4
ITEM PART NUMBER DESCRIPTION QTY COMMENTS
4-1 7380304620 PROTECTOR,MUFFLER 1
4-4 99415040182 SCREW,PS,4X18 2
4-5 99053060553 SCREW,HEX.HOLE 2
4-6 99201060011 WASHER,6 2
4-7 7040304590 MUFFLER SET 1
4-10 7210440020 PIPE,TAIL 1
4-11 99436040081 SCREW,4X18WS 1
4-13 7320440020 ARRESTER,SPARK 1
4-15 7360304580 COVER,MUFFLER B 1
4-16 7370168020 GASKET,MUFFLER 1
4-17 7350304580 SHIELD,HEAT 1
4-20 99415050101 SCREW,5X10/PS 2
4-24 99415040182 SCREW,PS,4X18 2
4-30 2570304520 PROTECTOR,SPARK PLUG 1
4-31 35902103200 WASHER,CLUTCH,B 2
4-32 29001620800 SHOE,CLUTCH 2
4-33 3420630B200 SPRING,CLUTCH 1
4-34 3480602R200 WASHER,CLUTCH A 2
4-35 3570075T200 BOLT,STEP 2
4-36 99415050202 SCREW,5X20/PS 3
4-37 19805015800 CLAMP,CORD 1
4-38 99205080030 WASHER,8 2
4-39 99072045164 SCREW,TAPPING,4.5X16 1
www.tanaka-usa.com
PARTSINFORMATION
Page 7
TBC-245PF
STARTER • FIGURE 5
ITEM PART NUMBER DESCRIPTION QTY COMMENTS
5-0 7620304590 STARTER ASS'Y 1
5-1 7720304580 BODY,STARTER 1
5-2 7740304520 PULLEY,STARTER 1
5-3 7790304520 SPRING,RECOIL 1
5-4 7770304520 ARM,SWING 1
5-5 8390304520 SCREW,SET 1
5-6 7710304520 STAY,PULLEY 1
5-7 7830304520 ROPE,STARTER 1
5-8 7850304520 HANDLE,STARTER 1
www.tanaka-usa.com
PARTSINFORMATION
Page 8
TBC-245PF

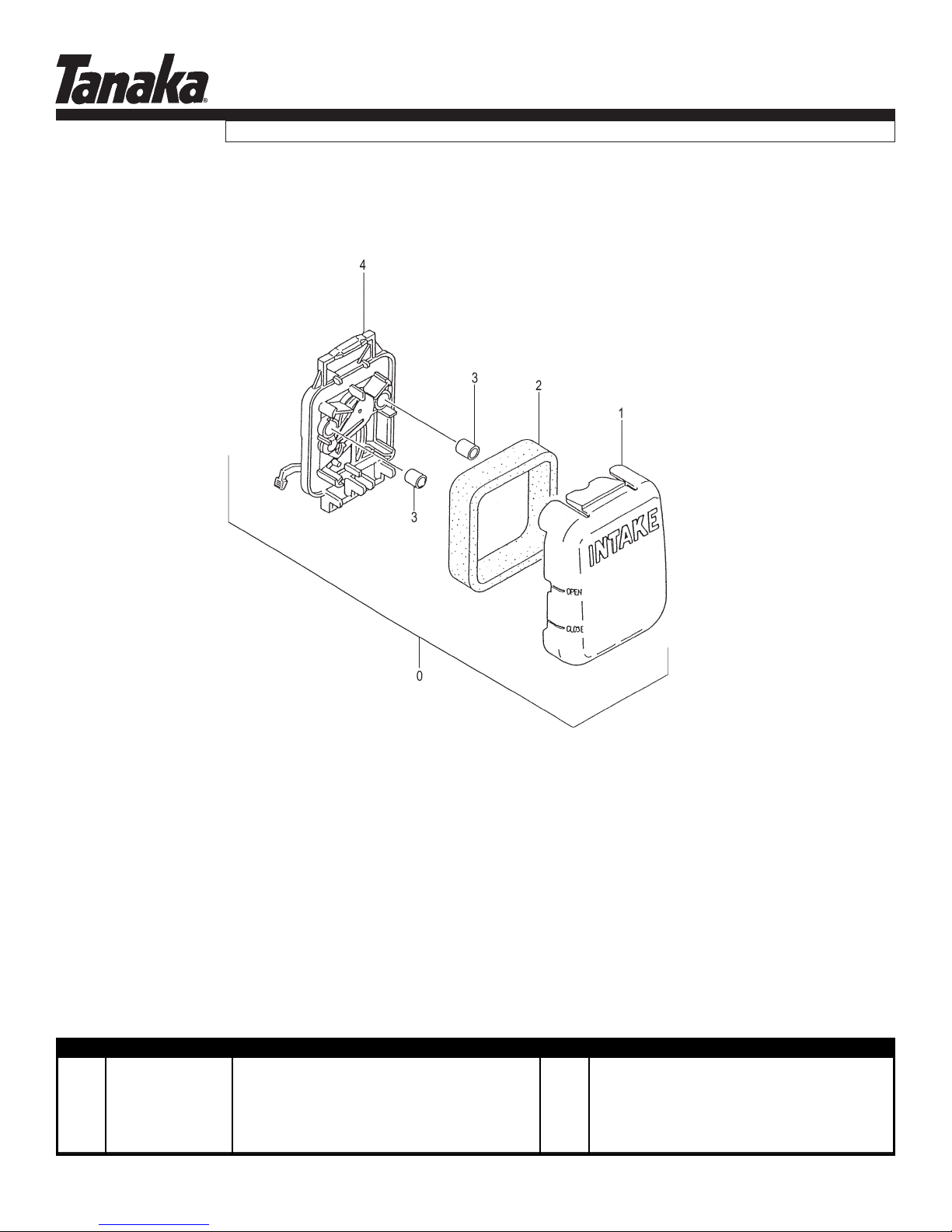

AIR CLEANER • FIGURE 5
ITEM PART NUMBER DESCRIPTION QTY COMMENTS
6-0 41000025900 CLEANER,AIR ASS'Y 1
6-1 42400025200 CAP,AIR CLEANER 1
6-2 44600025200 ELEMENT,CLEANER 1
6-3 47000025200 COLLAR 2
6-4 42300025800 BODY,CLEANER,AIR 1
www.tanaka-usa.com
PARTSINFORMATION
Page 9
TBC-245PF
CARBURETOR • FIGURE 7
0
ITEM PART NUMBER DESCRIPTION QTY COMMENTS
7-0 4550307090 CARBURETOR SET 1 Includes gasket
7-2 5752515380 BODY,PUMP 1
7-3 4422515180 PUMP,PRIMING 1
7-4 4762515120 COVER,DIAPHRAGM 1
7-5 44725108200 BULB,PRIMING 1
7-6 ~ ~ ~ METERING DIAPHRAGM 1 ~ Contained in Carb Repair Kit
7-7 ~ ~ ~ GASKET,DIAPHRAGM 1 P/N 650-25140-900
7-8 ~ ~ ~ DIAPHRAGM,PUMP 1 (not available individually)
7-9 ~ ~ ~ GASKET,PUMP 1
7-10 599200BW33 MAIN JET,#33.5 1
7-11 55025100200 O-RING 1
7-12 48925100200 RING,STOP 1
7-13 53925120200 SWIVEL 1
7-15 54825140200 SCREW,THROTTLE SET 2
7-20 5482515120 SCREW,SET 4
7-201 57825007200 SCREEN,INLET 1
