Targus ThumbPad Palm m125 Manuale utente

BRUSSELS HANNOVER BARCELONA TOKYO MILANO AMSTERDAM SINGAPORE LONDON PARIS NEW YORK LOS ANGELES TORONTO HONG KONG SYDNEY

Targus ThumbPad

™

Portable Keyboard for Palm

™

m125

USER’S GUIDE

Making Your Mobile Life Easier.

Visit our Web site at: www.targus.com

400-0060-001B

ThumbPad Portable

Keyboard

Congratulations on your purchase of the Targus

ThumbPad™Portable Keyboard. The ThumbPad

is a convenient and ultra-portable keyboard for

your mobile computer.

With the ThumbPad keyboard you can:

•Enter text directly into your mobile computer.

•Use the function (Fn) keys to quickly execute

commands and options.

•Use the cursor and space keys to play games

on your mobile computer.

•Take a keyboard with you whenever you travel

with your mobile computer.

In addition to this user’s guide, this package

contains the Targus ThumbPad Portable

Keyboard and the keyboard driver software CD.

ThumbPad Portable Keyboard 3

Installing the Keyboard

Driver

Before installing the driver software for the

ThumbPad keyboard, make sure that:

•You synchronize your mobile computer to back

up your files.

•You disable any previously installed keyboard

software.

•Your mobile computer has at least 24K bytes of

free memory.

Windows®Operating Systems

To install the driver for the ThumbPad keyboard

on a computer with the Windows®95/98/Me/

2000 or Windows NT®4.0 operating system, do

the following:

1Insert the keyboard driver software CD into

your computer’s CD-ROM drive.

2Click Start, Run, then enter D:\ThumbPad.prc

(where D: is the path of your CD-ROM drive)

and then click OK.

ThumbPad Portable Keyboard 4

The Install Tool program then installs the driver

software. When installation is complete, the

Install Tool window appears.

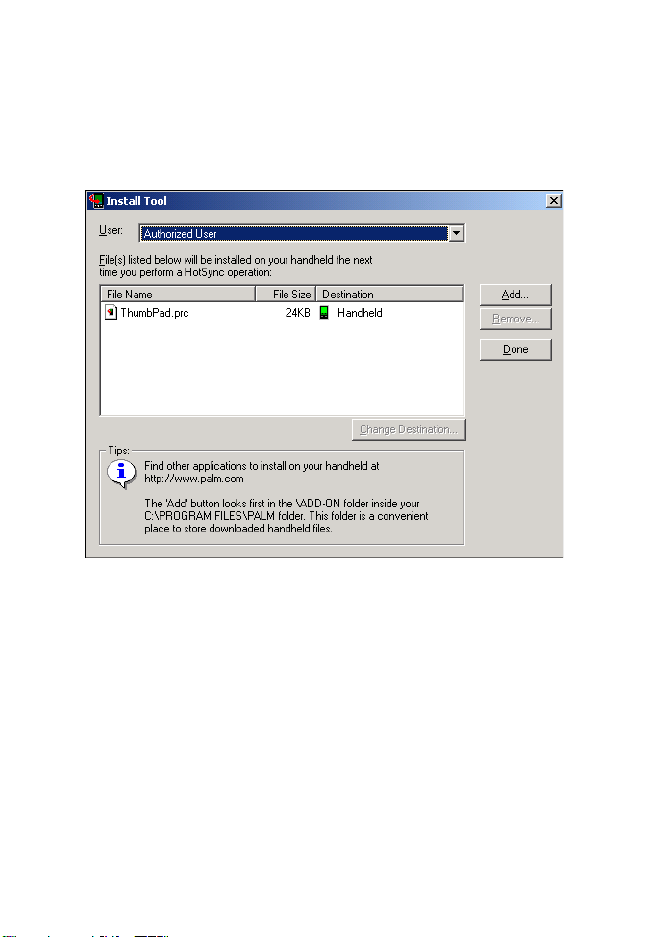

Sample Install Tool window

3Click Done.

4To exit the Install Tool program, click OK.

5Connect your mobile computer to your

desktop or notebook computer and

synchronize to copy the keyboard driver to

your mobile computer.

ThumbPad Portable Keyboard 5

After synchronization, the ThumbPad keyboard

icon appears in the Applications screen on your

mobile computer.

To complete installation, reset your mobile

computer.

Macintosh®Operating System

To install the driver software for the ThumbPad

keyboard on a computer with the Macintosh

8.5.1 or greater operating system, do the

following:

1Exit all active programs, including those in

the Startup folder, and disable any virus-

scanning software.

2Insert the keyboard driver software CD into

your computer’s CD-ROM drive.

The ThumbPad keyboard application folder is

added to your desktop.

NOTE: You may find it more convenient to drag the

ThumbPad.prc file into the folder where you store your

mobile computer applications, such as the Add-on folder.

3Double-click the ThumbPad.prc file to launch

the Install Tool program.

Installation automatically begins. When it is

complete, you regain control of the Install Tool

window.

ThumbPad Portable Keyboard 6

4Click Done.

5To exit the Install Tool program, click OK.

6Connect your mobile computer to your

desktop or notebook computer and

synchronize to copy the keyboard driver to

your mobile computer.

After synchronization, the ThumbPad keyboard

icon appears in the Applications screen on your

mobile computer.

To complete installation, reset your mobile

computer.

Connecting the Keyboard to

Your Mobile Computer

After installing the keyboard driver, you can

connect the ThumbPad keyboard to your mobile

computer. To do this:

1Turn off your mobile computer (if it’s turned

on).

2Hold your mobile computer in one hand and

the ThumbPad keyboard in your other hand.

ThumbPad Portable Keyboard 7

Holding your mobile computer and the ThumbPad keyboard

3Align your mobile computer with the

keyboard connector, located at the top of the

ThumbPad keyboard.

Aligning your mobile computer with the keyboard connector

Keyboard

connector

ThumbPad Portable Keyboard 8

4Gently slide your mobile computer into the

keyboard connector until you hear a “click.”

When you connect the ThumbPad keyboard to

your mobile computer, your computer

automatically turns on and you can begin typing.

CAUTION: Always use the keyboard connector as a guide

when connecting and disconnecting your mobile computer

to avoid possible damage to your device or the ThumbPad

keyboard.

Disconnecting the ThumbPad Keyboard

To disconnect the keyboard from your mobile

computer:

1Turn off your mobile computer (if it’s turned

on).

2Gently pull your mobile computer away from

the ThumbPad keyboard and slide it out of

the keyboard connector.

CAUTION: Avoid pressing any keys on the ThumbPad

keyboard when disconnecting it from your mobile

computer, as doing so may cause the key to stop working.

ThumbPad Portable Keyboard 9

Using the ThumbPad

Keyboard

Typing Keyboard Shortcuts

The following table details the key sequences

you can use to access options and additional

characters, and to issue commands to your

mobile computer from the ThumbPad keyboard.

To use these key sequences, hold down either

the Ctrl, Fn, or Shift key (as indicated) and then

tap the second key listed in the table for the

desired result.

US/UK Version Keyboard Combinations

Key Sequence Result

1 Shift + any key Enters uppercase character

2 Caps Toggles between all upper or

lowercase characters

3 Fn + any key Activates blue symbol on a

key

4 Fn + Caps Constant use of all blue

symbols

5 Shift +  Highlights line of text above

cursor

6 Shift + ¯ Highlights line of text below

cursor

7 Shift + ® Highlights character right of

cursor

8 Shift + ¬ Highlights character left of

cursor

ThumbPad Portable Keyboard 10

9 Fn + BackSpace Del

10 Fn + Tab

11 Ctrl + X Cuts selected text

12 Ctrl + C Copies selected text

13 Ctrl + S Selects all text

14 Ctrl + D Deletes selected text

15 Ctrl + P Pastes cut or copied text

16 Ctrl + U Undoes last command

17 Shift + SPACE Activates the Hot Key menu

18 Fn + Shift + key

(at the same time)

Emulates the command

function

19 Shift + Enter Moves cursor to next column

in Address book

20 Ctrl + Enter Moves cursor to previous

column in Address book

21 Ctrl + Q, then release and

type A, E, I, O, U, or Y

Acute accent:

Á, É, Í, Ó, Ú, Ý

22 Ctrl + W, then release and

type A, E, I, O, or U

Grave accent:

À, È, Ì, Ò, Ù

23 Ctrl + E, then release and

type A, E, I, O, or U

Circumflex:

Â, Ê, Î, Ô, Û

24 Ctrl + R, then release and

type A, N, or O

Tilde:

Ã, Ñ, Õ

25 Ctrl + T, then release and

type A, E, I, O, U, or Y

Diaeresis (Umlaut):

Ä, Ë, Ï, Ö, Ü, Ÿ

26 Ctrl + Y, then release and

type A

Nordic A-ring:

Key Sequence Result

6=>
