Targus Ultra-Mini Wireless

Optical Mouse Presenter

USER’S GUIDE

Making Your Mobile Life Easier.®

Visit our Web site at: www.targus.com

Features and specifications are subject to change without notice.

400-0140-001A

TARGUS ULTRA-MINI

WIRELESS OPTICAL

MOUSE PRESENTER

Introduction

Congratulations on your purchase of a Targus Ultra-Mini

Wirelss Optical Mouse Presenter. This 2.4GHz Mouse

Presenter is an ideal solution when giving a presentation

or when travelling. It provides multi-functions as wireless

optical mouse, presenter and laser pointer up to 50 feet

(15 m).

This user’s guide describes how to:

› connect the charger base/receiver to your computer

› install default software drivers

› set up the wireless link and use the mouse presenter

In addition to this user’s guide this package contains:

› Wireless Optical Mouse Presenter

› USB charger base/receiver

› 2 AAA rechargeable batteries

› Carrying pouch

Targus Ultra-Mini Wireless Optical Mouse Presenter

System Requirements

To use the Mouse Presenter, your computer must meet the

following hardware requirements and run one of the

operating systems listed below.

Hardware

›PCwithaPentium

®processor or equivalent

› USB v1.1 or higher interface

Operating System

›Windows

®98/Me/2000/XP

NOTE: The third button and the scrolling wheel only

work with the operating systems listed above. If you

use the Mouse Presenter with a different operating

system, it will lose its enhanced features and will

function as a standard, two-button mouse.

Targus Ultra-Mini Wireless Optical Mouse Presenter

Connecting the Charger Base/

Receiver and Installing the

Default Driver

To connect the charger base/receiver:

1 Turn off your computer.

2 Plug the USB connector into an available USB port on

your computer.

3 Turn on your computer.

Your computer’s operating system identifies the receiver

and begins installing the default driver. Follow any on-

screen procedures to complete the default driver

installation.

4 NOTE: If you are running Windows®98/Me operating

system, you may be prompted to insert the installation

CD-ROM that came with your computer.

You must now install batteries and synchronize the mouse

presenter with the charger base/receiver. See

“Synchronizing” on page 7

Targus Ultra-Mini Wireless Optical Mouse Presenter

Installing the Batteries

1 Remove the battery cover from the top of the mouse

presenter by pressing the battery cover hinge located on

the bottom of the mouse presenter and sliding it off.

2 Insert the supplied batteries, making sure that the

positive (+) and negative (-) ends of each battery match

the polarity indicators inside the battery housing.

WARNINGS: When replacing the batteries, you must

use rechargeable batteries only.

Avoid mixing new and used batteries in a device.

3 Slide the battery cover back into position until it “clicks”

firmly into place.

4 For best results, you should charge the mouse presenter

on the charger base/receiver at least 12 hours before

using it.

NOTE: To continuously charge the mouse presenter

your computer must be on and awake. For best

results, turn off your computer's power management

feature while charging the mouse.

Targus Ultra-Mini Wireless Optical Mouse Presenter

Synchronizing

After your computer detects the USB charger base/receiver

and the driver software is installed, you must synchronize

the mouse presenter with the charger base/receiver

BEFORE you can use the mouse presenter. To do this:

1 Press and release the connect button on the bottom of

the mouse presenter.

2 Press and release the connect button on the bottom of

the charger base/receiver.

This link must be established within a few seconds or

the steps will need to be repeated.

You are now ready to use the Mouse Presenter.

CAUTION: Removing the batteries will require you to

synchronize the mouse presenter with the receiver again.

Targus Ultra-Mini Wireless Optical Mouse Presenter

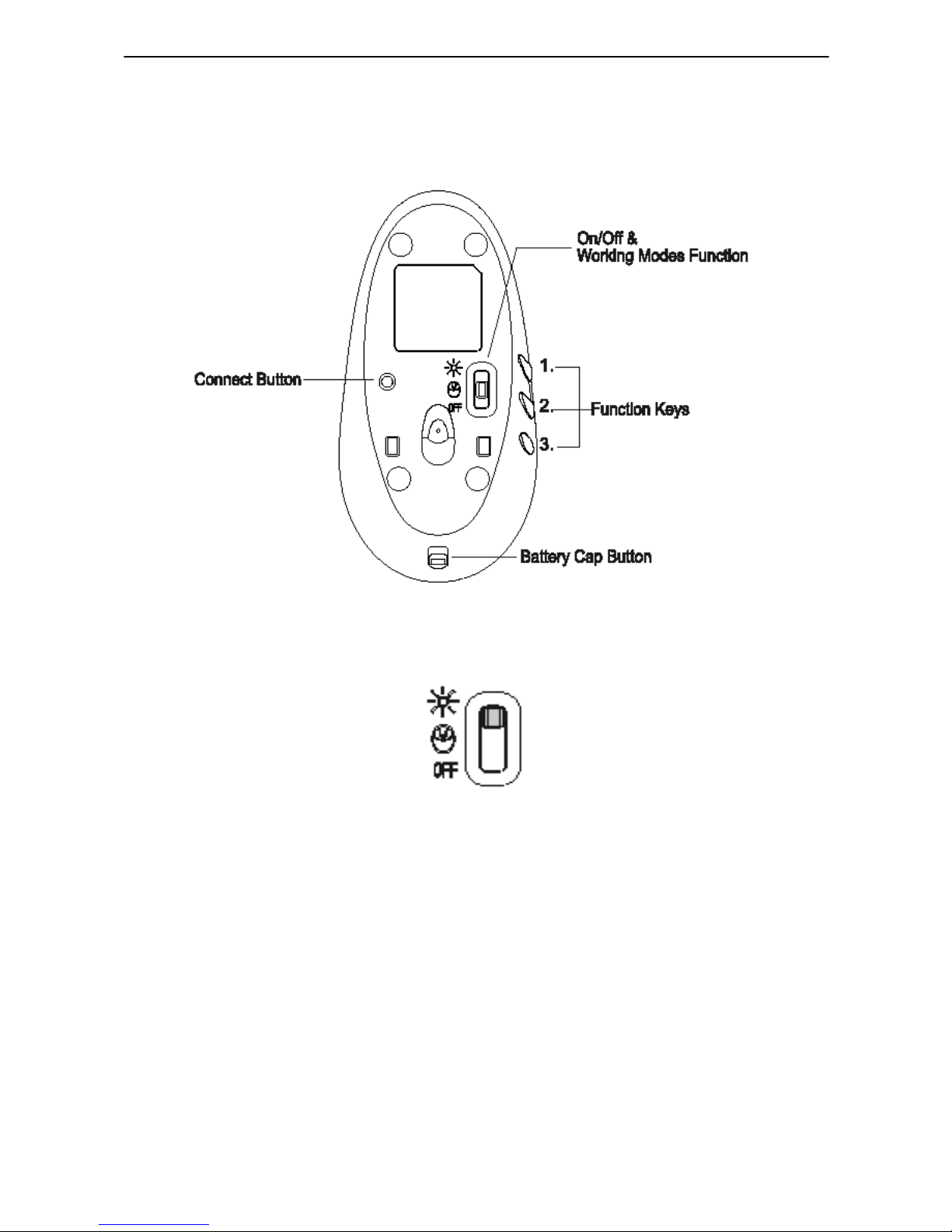

Using the Mouse Presenter

Functionality

The Mouse Presenter provides 3 working modes:

•PresenterMode

In Presenter Mode the device will work as a Wireless

Presenter and provide the functionalities as follows:

Left button: Page up

Right button: Page down

Middle button/Scrolling wheel: Laser Pointer

Function key 1: Escape

Function key 2: Internet

Function key 3: Alt+Tab

Targus Ultra-Mini Wireless Optical Mouse Presenter

•MouseMode

In Mouse Mode the device will work as a Wireless Optical

Mouse and provide functionalities as follows:

• Power-Off Mode

note: the internet function key does not work under

the Windows 98 operating system.

Left button: Mouse left button

Right button: Mouse right button

Middle button/Scrolling wheel: Scrolling

Function key 1: Escape

Function key 2: Internet

Function key 3: Alt+Tab

Targus Ultra-Mini Wireless Optical Mouse Presenter

Power Management

To power the mouse presenter on and off, slide the on/off

switch at the bottom of the mouse presenter to the desired

position.

To save battery power, turn off the mouse presenter while

traveling or when you’re not using it.

CAUTION: Removing the batteries will require you to

synchronize it with the receiver again the next time you

turn it back on. See “Synchronizing” on page 7

Operating Hints

For optimal performance and RF reception:

› Avoid using the Mouse Presenter on a metal surface.

Metals, such as iron, aluminum or copper, shield the

radio frequency transmission and may slow down the

mouse presenter’s response time or cause the mouse

presenter to fail temporarily.

› The Mouse Presenter will enter a suspend mode at the

same time your computer does. Click a button on the

mouse presenter to activate it.

› If your computer has a metal case that contains alumi-

num or magnesium, use the Mouse Presenter to the

side. The display panel may interfere with the radio fre-

quency signal if you use the mouse presenter directly in

front of the computer.

› Never use the Mouse Presenter on a glass or mirrored

surface as these surfaces will cause the mouse pre-

senter to fail temporarily.

› To maximize battery life, use the Mouse Presenter on a

white, or light colored surface. Dark surfaces cause the
