Taylor WeatherGuide System Manuale utente

,,TAYLOR"

WeatherGuide'" System

I ndoor/0utdoor Thermometer

lnstruction Manual

Welcome to theTayloPWeatherGuide System. Simple, reliable,

accurate...it allows you to monitor indoor conditions and read out-

door temperatures from indoors, creating an all-in-one weather display.

Plan your work day, play day, every day. Now that's smart!

Tabte of Contents

Powering the WeatherGuiderM ..........................

Low Battery

Precautions ,......

YourWeatherGuiderM is powered by 2AA4 batteries (not included).

Remove the battery compartment cover located on the back of the

unit. lnstall 2AAA batteries. Replace the battery compartment cover.

How tg Dlsplayloqr Weatlercuidery

Place the unit indoors in a well-ventilated location away from direct

sunlight.

Table top - use the Table Stand on the back of the unit.

Wall - use the keyhole on the back of the unit, located on the battery

comPartment cover.

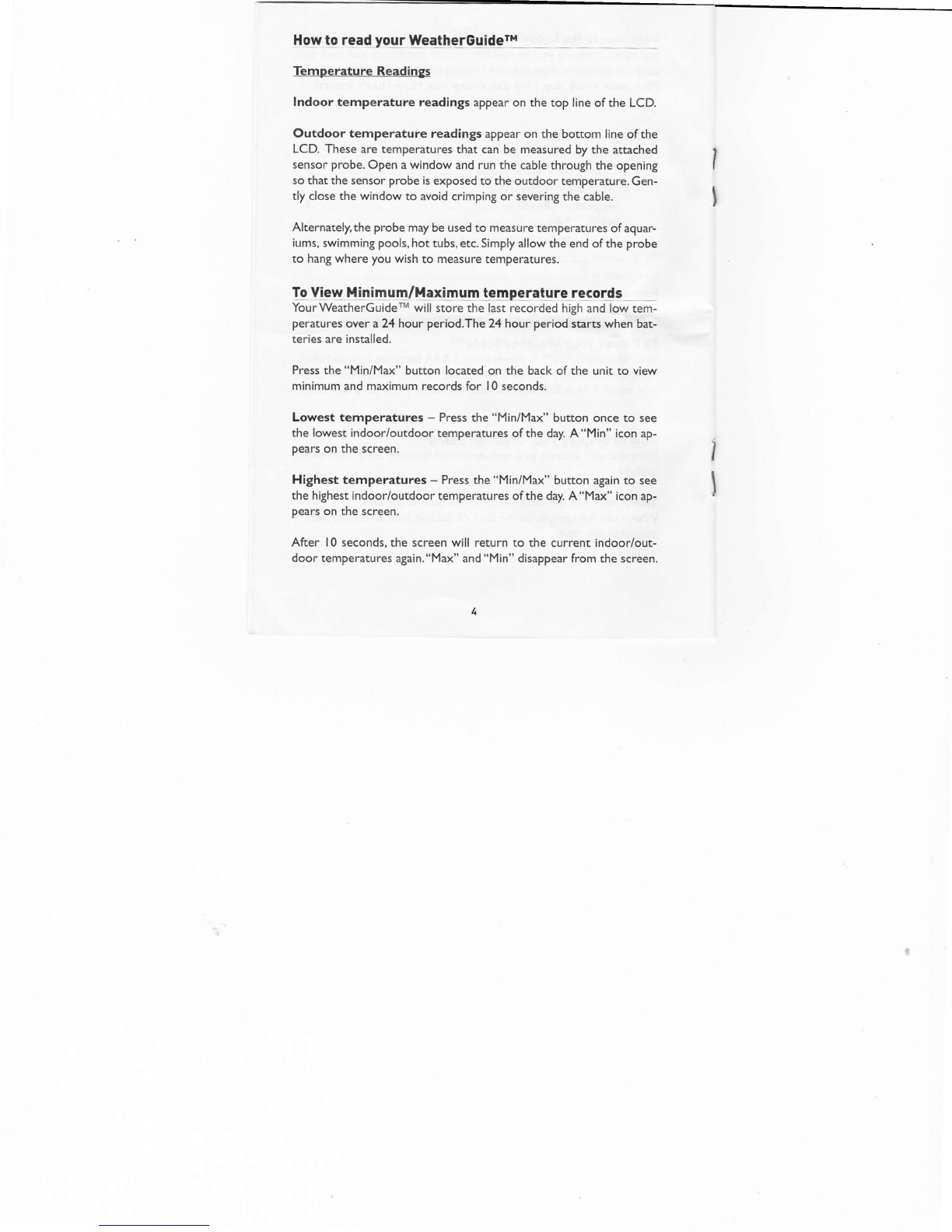

Hgw to read yoqr WeathqrGqiderM

lndoor temperature readings appear on the top line of the LCD.

Outdoor temperature readings appear on the bottom line of the

LCD. These are temperatures that can be measured by the attached

sensor probe. Open a window and run the cable through the opening

so that the sensor probe is exposed to the outdoor temperature. Gen-

tly close the window to avoid crimping or severing the cable.

Alternately,the probe may be used to measure temperatures ofaquar-

iums, swimming pools, hot tubs, etc. Simply allow the end of the probe

to hang where you wish to measure temperatures.

Tp V[eq Mq qr i ]n u D/M lxI nn u m tetrpef alu re rqco rds

YourWeatherGuiderM will store the last recorded high and lowiem-

peratures over a 24 hour period.The 24 hour period starts when bat-

teries are installed.

Press the "Min/Max" button located on the back of the unit to view

minimum and maximum records for I0 seconds.

Lowest temperatures - Press the "Min/Max" button once to see

the lowest indoor/outdoor temperatures of the day. A "Min" icon ap-

pears on the screen.

Highest temperatures - Press the "Min/Max" button again to see

the highest indoor/outdoortemperatures ofthe day. A"Max" icon ap-

pears on the screen.

After I 0 seconds, the screen will return to the current indoor/out-

door temperatures again."Max" and "Min" disappear from the screen.

)

16.

records

Remove the batteries from the unit for at least I minute. Reinstall the

batteries.The minimum and maximum temperature records will reset

to the current temperatures.

To Switch Between oF and oC

Press the "C/F" button located on the back of the unit to switch be-

tween Fahrenheit and Celsius temperature displays.

Low Battery

lf the readings on the LCD screen become dim or irregular, replace

the batteries.

Precautions

l. The receiver is intended for indoor use only. lt is not sealed

against moisture and could be damaged if used outdoors.

2. Do not immerse the unit in water. lf you spill liquid on it, dry im-

mediately with a soft, lint-free cloth.

3. Do not clean the unit with abrasive or corrosive materials.This

mayscratch plastic parts and corrode electronic circuits.

4. Do not subject unit to excessive force, shock, dust, temperature

or humidity.This may result in malfunction, shorter electronic life

span, damaged battery or distorted parts.

Do not tamper with the unit's internal components. Doing so will

invalidate the warranty on this product and may cause damage.

The unit contains no user-serviceable parts.

Do not mix old and new batteries. Do not mix Alkaline, carbon-

zinc (standard) or Nickel-Cadmium (rechargeable) batteries. Do

not dispose of batteries in fire. Batteries may explode or leak. Re-

move the batteries if the units will not be used for a long period

of time.

Always read the instruction manual before operating this product.

Due to continuous product improvements, rhe displays shown in

this manual may differ from the actual display.

Specifications

Range of temperature measurement:

Home unit (indoor only): 32'F to 122"F (0'C to 50"C)

Sensor probe: -40'F to I 58'F (-40"C to 70"C)

Resolution: 0. I degree for temperature

Minimum/Maximum daily temperature records

Power: 2 AAA alkaline batteries (not included)

0ne Year Warranty

This product is warranted against defects in materials or workmanship

for one ( I ) year from date of original purchase. lt does not cover

damages or wear resulting from accident, misuse, abuse, commercial

use, or unauthorized adjustment and/or repair.

Should this product require service (or replacement at our option)

while under warranty, do not return to retailer. Please pack the item

carefully and return it prepaid, along with store receipt showing date

of purchase and a note explaining reason for return to:

Taylor Precision Products

2270 Entrada Del So!, Suite A

Las Cruces, New Mexico 88001

www.taylorusa.com

There are no express warranties except as listed above.This warranty

gives you specific legal rights,and you may have other righa which

vary from state to state.

For additional product information, or warranty information in Canada

or elsewhere outside the USA, please contact us through

www.taylorusa.com.

Made to our exact specifications in China.

@ 2008Taylor Precision Products and its affiliated companies,all rights

reserved.Taylor@ and Leading the Way in Accuracy@ are registered

trademarks of Taylor Precision Products and its affiliated companies.

WeatherGuiderM is a trademark ofTaylor Precision Products and its af-
