TC Electronic FLASHBACK X4 Manuale utente

FLASHBACK X4

DELAY & LOOPER

User Manual

Dynamic 8

2290 8

2290 w/mod 8

Slap 8

Lofi 8

Ping Pong 8

1 – Audio inputs and outputs 9

Audio inputs 9

Audio outputs 9

2 – Expression pedal input 10

Choosing an expression pedal 10

Assigning delay parameters and parameter ranges to an expres-

sion pedal 10

Resetting parameters and parameter ranges 11

3 – Power input 12

4 – USB jack 12

5 – MIDI IN / MIDI THRU jacks 12

MIDI IN jack 12

MIDI THRU jack 12

6 – Delay type selector 13

Table of contents

Introduction 1

Important safety instructions 2

Warning 2

Service 2

EMC / EMI 3

For customers in Canada 3

Unpacking and setting up 4

Ready… 4

Set… 4

Play! 4

Setup example: regular mono signal path 5

Setup example: amplifier effect loop 6

Delay types 7

Tape 7

Tube 7

Space 7

Analog 7

Analog w/mod 7

Reverse 7

14 – TAP footswitch 23

Using the Looper module 24

Using the delay in Looper mode 24

Recording a loop 25

Playing a loop continuously 25

Stopping loop playback immediately 25

Playing a loop once 25

Stopping loop playback at the end of the loop 25

Undoing a loop recording 26

Deleting a loop completely 26

Loops cannot be stored 26

Bypass modes 27

True Bypass mode 27

Buffered Bypass mode 27

Kill-Dry feature 28

The TonePrint concept 14

Transferring TonePrints to the pedal 15

Transferring TonePrints to the pedal via USB 15

Transferring TonePrints to the pedal by beaming 15

7 – DELAY TIME knob 16

8 – Subdivision selector switch 16

9 – FEEDBACK knob 17

10 – DELAY LEVEL knob 17

11 – LOOPER/DELAY switch 18

12 – LOOPER LEVEL knob 19

13 – Preset footswitches (A / B / C) 20

Recalling a preset 20

Factory presets 20

Preset off / Bypass mode 20

Storing presets 21

Delay spill-over 21

TonePrints and presets 22

Introduction

About this manual

This manual will provide you with a quick overview of how to get

rocking fast as well as an in-depth look at the pedal’s more ad-

vanced features. Happy reading!

Please note: TC Electronic reserves the rights to change the con-

tents of this manual at any time.

The latest revision of this manual can be downloaded from

http://www.tcelectronic.com/manuals.asp

This is version 1.0 of the Flashback X4 Delay & Looper manual.

If you still have questions after reading this manual, please use

TCElectronic Support:

http://support.tcelectronic.com/

Introduction

Congratulations on the purchase of your new Flashback

X4 Delay & Looper.

Flashback X4 Delay & Looper builds on the success of TC’s

popular Flashback pedal. It provides 12 delay types in pristine TC

Electronic quality, tap tempo and three preset slots for an instant

classic.

Flashback X4 Delay & Looper is TonePrint-enabled, allowing you

to load up to four signature Flashback delay settings as created and

used by the biggest names in rock – from Steve Morse and Doug

Aldrich to Joe Perry, Steve Stevens and many, many more.

We believe that Flashback X4 Delay & Looper offers the best

sounding delay as well as enormous flexibility within a compact

delay pedal – and we are certain that you will feel the same.

Important safety instructions

– Read these instructions.

– Keep these instructions.

– Heed all warnings.

– Follow all instructions.

– Do not use this apparatus near water.

– Clean only with dry cloth.

– Do not block any ventilation openings. Install in accordance

with the manufacturer’s instructions.

– Do not install near heat sources such as radiators, heat reg-

isters, stoves, or other apparatus (including amplifiers) that

produce heat.

– Only use attachments/accessories specified by the manufac-

turer.

– Refer all servicing to qualified service personnel. Servicing is

required when the apparatus has been damaged in any way,

such as power supply cord or plug is damaged, liquid has been

spilled or objects have fallen into the apparatus, the apparatus

has been exposed to rain or moisture, does not operate nor-

mally, or has been dropped.

Warning

To reduce the risk of fire or electrical shock, do not expose this

equipment to dripping or splashing and ensure that no objects

filled with liquids, such as vases, are placed on or near the equip-

ment.

Do not install this product in a confined space.

Service

All service must be performed by qualified personnel.

Caution

You are cautioned that any change or modifications not expressly

approved in this manual could void your authority to operate this

equipment.

When replacing the battery follow the instructions on battery

handling in this manual carefully.

EMC / EMI

This equipment has been tested and found to comply with the

limits for a Class B Digital device, pursuant to part 15 of the FCC

rules.

These limits are designed to provide reasonable protection against

harmful interference in residential installations. This equipment

generates, uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is

no guarantee that interference will not occur in a particular instal-

lation. If this equipment does cause harmful interference to radio

or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

– Reorient or relocate the receiving antenna.

– Increase the separation between the equipment and receiver.

– Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

– Consultthedealeroranexperiencedradio/TVtechnicianforhelp.

For customers in Canada

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme

NMB-003 du Canada.

Unpacking and setting up

Set…

– Attach the plug applicable to your region to the power supply.

Connect the power supply to the 9V jack on the back of the

Flashback X4 Delay & Looper and plug the power supply into

a power outlet.

– Make sure the LOOPER/DELAY switch is set to “Delay”.

– Connect your instrument to the INPUT MONO jack on the back

of the pedal (see page 5).

– Connect the OUTPUT MONO jack on the back of the pedal to

your amplifier.

Play!

Unpacking and setting up

Ready…

The Flashback X4 Delay & Looper box should contain the follow-

ing items:

– 1 Flashback X4 Delay & Looper pedal

– 1 TC 9V DC power supply with interchangeable plugs

– 2 rubber feet for “non-velcro” pedal board mounting

– 1 USB cable for transferring TonePrints from the computer to

the pedal and updating the pedal firmware

– 1 TC Electronic sticker

– 1 leaflet about TC’s guitar FX product range.

Inspect all items for signs of transit damage. In the un-

likely event of transit damage, inform the carrier and

supplier.

If damage has occurred, keep all packaging as it can be used as

evidence of excessive handling force.

Setup examples

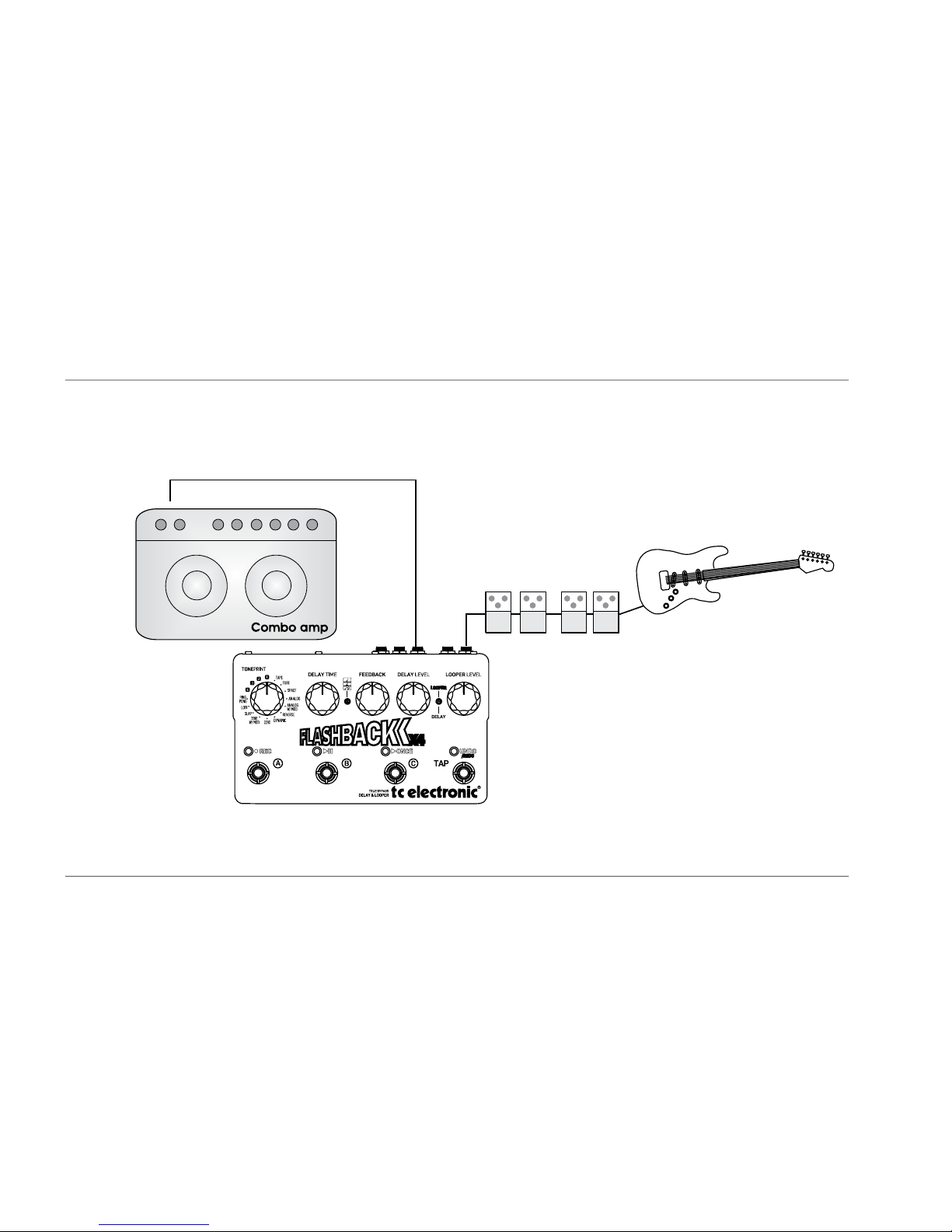

Setup example: regular mono signal path

Modulation

Pedals

Drive

Pedals

Input

FX Loop Return

FX Loop Send

Modulation

Pedals

Drive

Pedals

Input

Setup examples continued

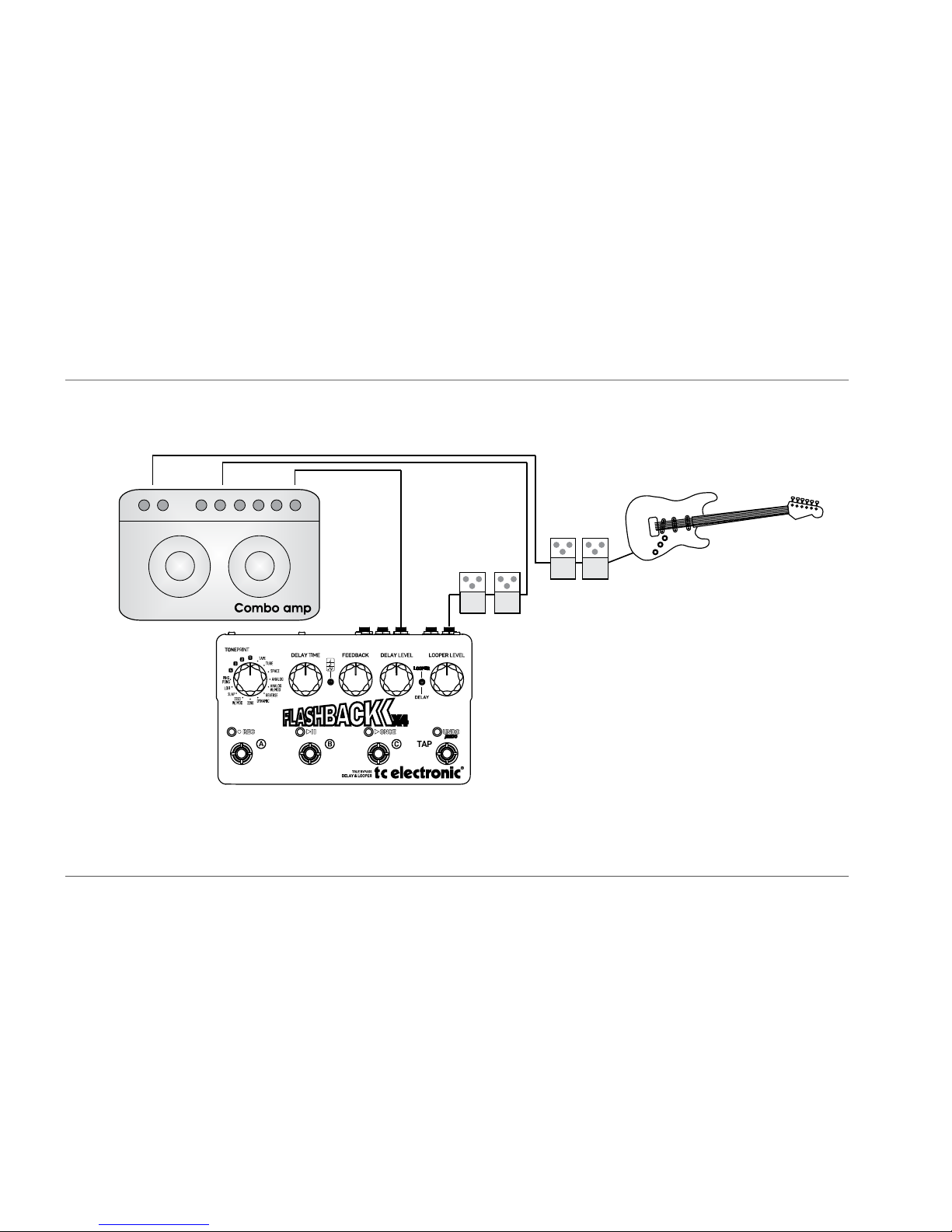

Setup example: amplifier effect loop

Modulation

Pedals

Drive

Pedals

Input

FX Loop Return

FX Loop Send

Modulation

Pedals

Drive

Pedals

Input

Delay types

“OK… So what does this thing do?”

“Glad you asked. First and foremost, the Flashback X4 Delay &

Looper is a top-notch delay unit – so let’s talk delays!”

TAPE

Who doesn’t love the smooth sound of an old tape echo machine?

The “Tape” setting makes for an overall great starting point with

its mellow and “warbling” sound.

TUBE

This delay type has been tweaked to sound like an old tube tape

echo – much like the “Tape” setting, but with a bit more warmth.

Use this setting if you want your fans to check the stage for hidden

vintage gear…

SPACE

It’s hard not to like the luscious tape sound of the original Roland®

Space Echo*. The “Space” setting instantly gives you rich echo

sounds with a bit of Space Echo*mojo.

ANALOG

This is as close as you can get to the charming nature of an old

analog transistor bucket-brigade delay without buying the real

thing! With every repeat you get more of that old-school “fade to

grey” vibe.

ANALOG W/MOD

Take a trip down Memory Lane with this rich and larger-than-life

sounding delay. “Analog w/mod” will definitely spice up your sound.

REVERSE

If you’ve been around for some time, you know the drill: Record a

guitar part on tape. Flip the tape over. Play it back. This is a classic

effect made famous by guitar legends such as Jimi Hendrix – and

although it’s kind of “old school”, the reverse effect still seems to

inspire people to try out new things.

Try this:

Turn the FEEDBACK knob all the way down to hear only the re-

versed signal.
