TC Electronic FLASHBACK Manuale utente
DELAY AND LOOPER
USER’S MANUAL
2
Important Safety Instructions
1 Read these instructions.
2 Keep these instructions.
3 Heed all warnings.
4 Follow all instructions.
5 Do not use this apparatus near water.
6 Clean only with dry cloth.
7 Do not block any ventilation openings. Install in accor-
dance with the manufacturer’s instructions.
8 Do not install near heat sources such as radiators, heat
registers, stoves, or other apparatus (including ampli-
fiers) that produce heat.
9 Only use attachments/accessories specified by the
manufacturer.
10 Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally,
or has been dropped.
Warning!
• Toreducetheriskoffireorelectricalshock,donot
expose this equipment to dripping or splashing and
ensure that no objects filled with liquids, such as vases,
are placed on the equipment.
• Donotinstallinaconfinedspace.
Service
• Allservicemustbeperformedbyqualifiedpersonnel.
Caution:
You are cautioned that any change or modifications
not expressly approved in this manual could void your
authority to operate this equipment.
When replacing the battery follow the instructions on
battery handling in this manual carefully.
EMC/EMI
Thisequipmenthasbeentestedandfoundtocomplywith
the limits for a Class B Digital device, pursuant to part 15
of the FCC rules.
3
Theselimitsaredesignedtoprovidereasonableprotection
against harmful interference in residential installations.
Thisequipmentgenerates,usesandcanradiateradio
frequency energy and – if not installed and used in
accordance with the instructions – may cause harmful
interference to radio communications. However, there is
no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception – which can
be determined by turning the equipment off and on –, the
user is encouraged to try correcting the interference by
one or more of the following measures:
• Reorientorrelocatethereceivingantenna.
• Increasetheseparationbetweentheequipmentand
the receiver.
• Connecttheequipmenttoanoutletonacircuit
different from the one to which the receiver is
connected.
• Consultthedealeroranexperiencedradio/TV
technician for help.
For the customers in Canada:
ThisClassBdigitalapparatuscomplieswithCanadian
ICES-003. Cet appareil numérique de la classe B est
conforme à la norme NMB-003 du Canada.
4

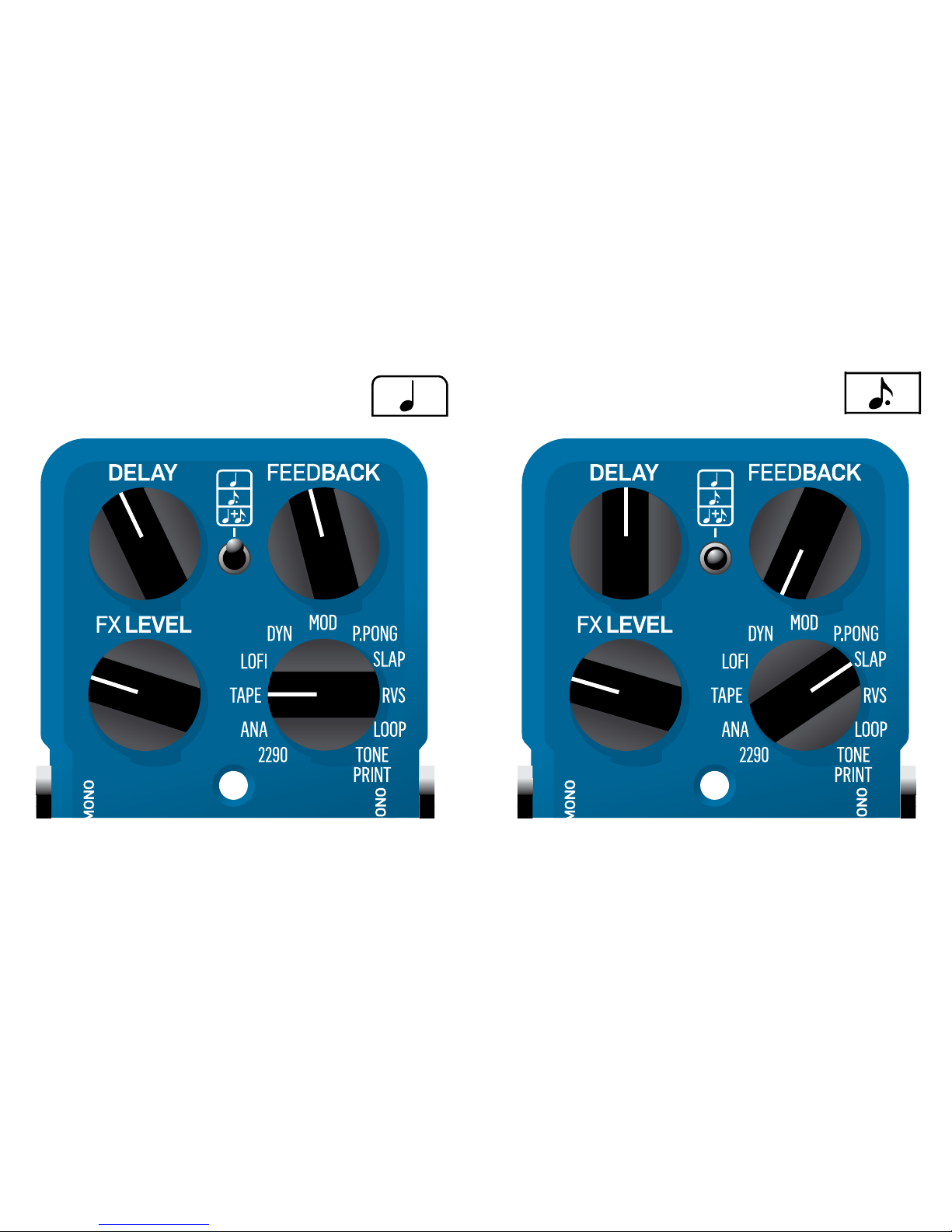

AUSTIN ECHOES AMBIENT SLAP
5

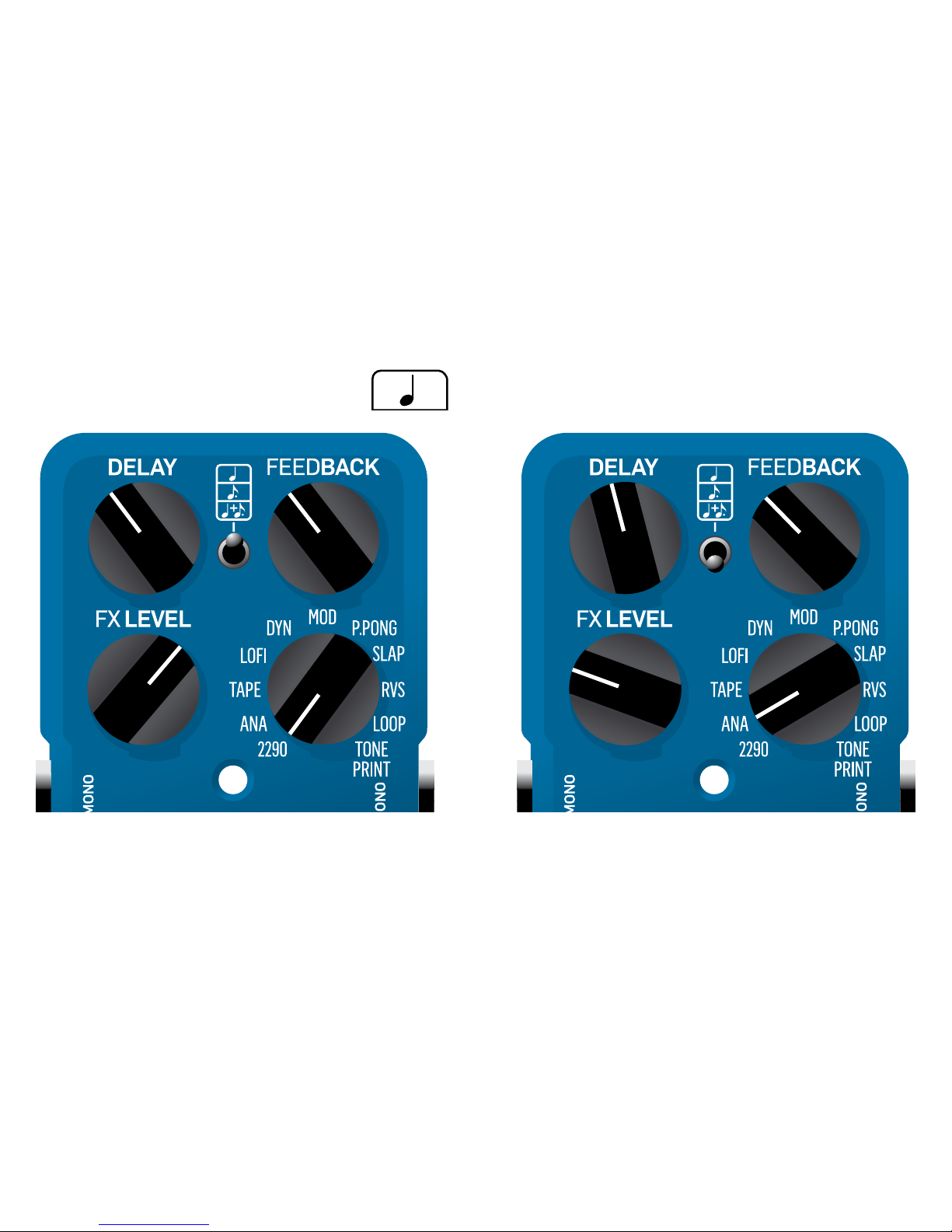

EDGY ECHO DUAL DELAY
6
www.tcelectronic.com - www.youtube.com/tcelectronic
(EN) Introduction
Congratulations! You have just bought a delay pedal that is a stepping stone to a world of
inspiration, innovation, and tone.
WeareproudtopresentFlashbackDelay,providingTCElectronic’slegendarydelaysounds,intuitive
controls and instant satisfaction. Our delays are widely heralded as the best for a reason, but that’s not
all. We love tone as much as any guitarist out there, so we are very excited to present a brand new,
groundbreakingconcept:TonePrint!
TonePrintgivesinstantaccesstocustom-tweakedsounds.Wehavegatheredanimpressivelist
of guitar heroes and had them tailor their signature sounds – the tones that made them famous.
TonePrintswillnotjustbringyouclosetothesoundsofyouridols,theygiveyoutheiractualsounds!
UsingTonePrintsisbotheasyandfun.JustdownloadtheTonePrintyouwantfromwww.tcelectronic.
comand,voila,yourfavoriteartisthasjustputaTonePrintinyourpedal.Forgetemulation–let’stalk
collaboration!
7

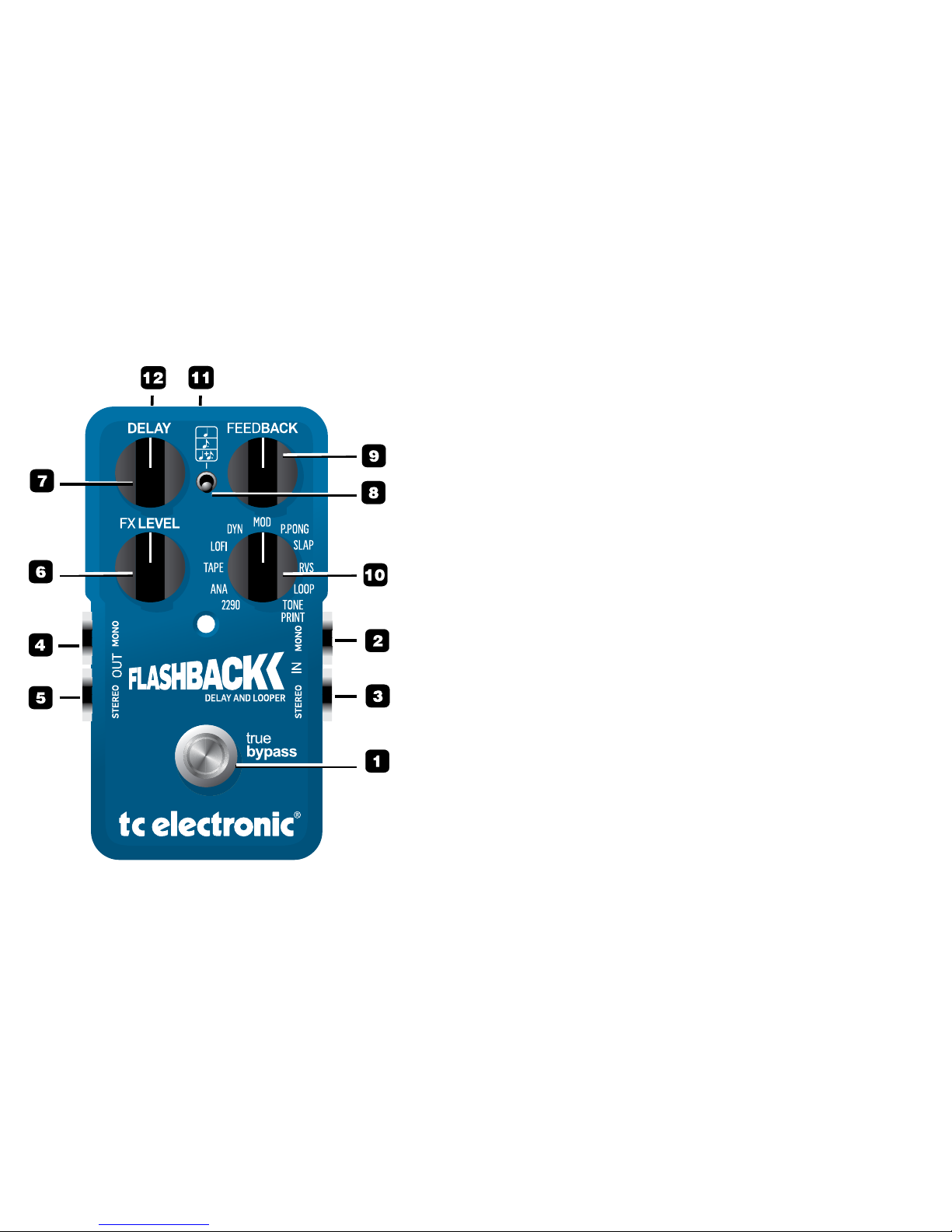

1 - Effect on/off (true bypass)
2 - 1/4 inch mono jack input
3 - 1/4 inch mono jack input (for stereo in)
4 - 1/4 inch mono jack output
5 - 1/4 inch mono jack output (for stereo out)
6 - FX level control
7 - Delay time control
8 - Subdivision selector
9 - Feedback control
10 - Delay type selector
11 - Power in (9VDC)
12 - USB connection for uploading TonePrint
settings and software updates.
8

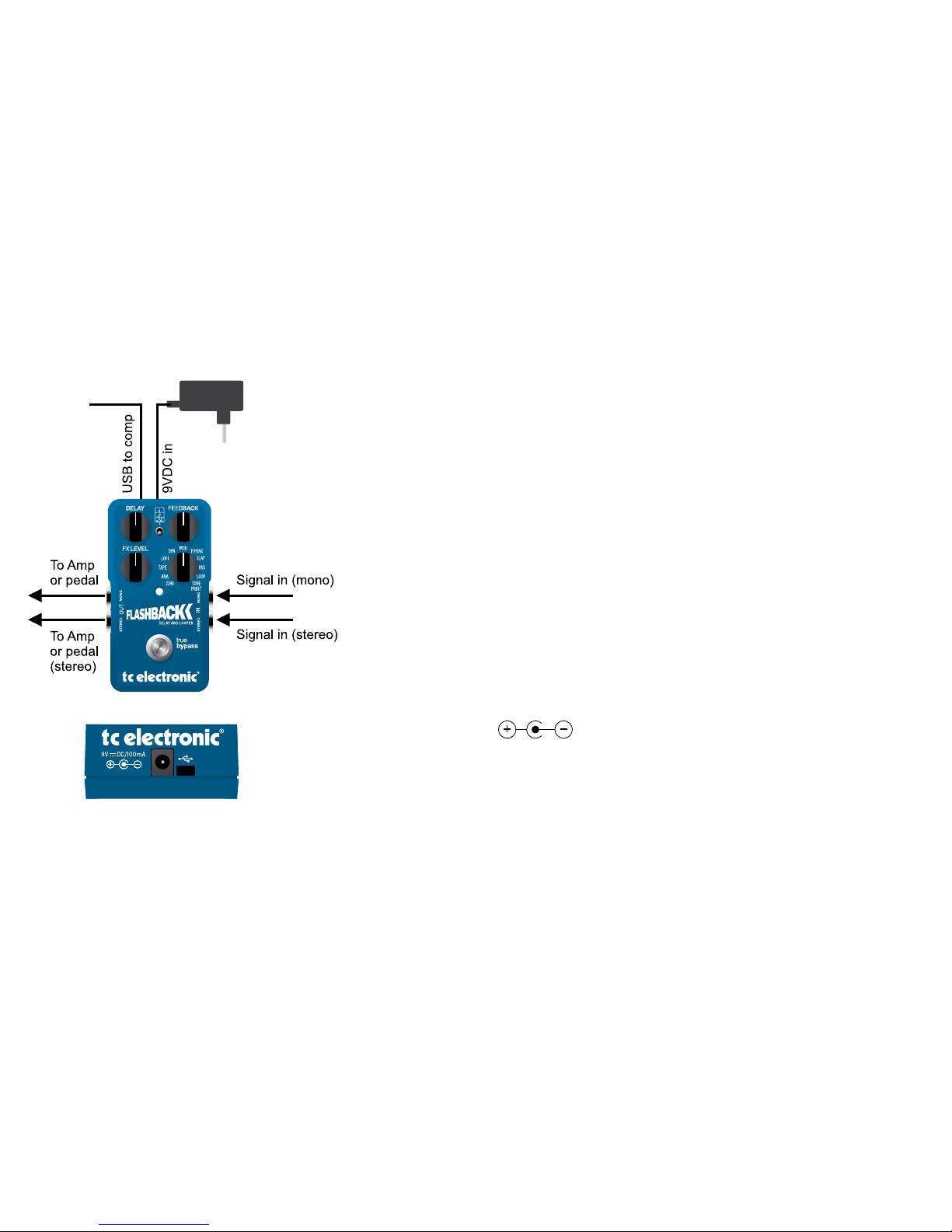

Connecting
Input jacks - Use MONO for mono input and both MONO
andSTEREOinputsifconnectingastereosource.
If the pedal runs on battery, we recommend removing the
mono input jack to preserve battery power when you don’t
play.
Output jacks - Connect to another pedal or directly into
an amp or mixer. Use MONO for mono setups and both
MONOandSTEREOforstereosetups.
Note that it is possible to select between true bypass and
buffered bypass mode via a dip switch located under the
battery cover.
Power in-Usea9VDCpowersupplywiththefollowing
symbol:
USB
Connect to a computer using the supplied USB cable for
upload of TonePrint settings.
Theconnector-typeisMini-B.
9
The controls
FX LEVEL
Controls the level of the delay repeats. Notice that the direct signal is always passed at the original
level (unity gain). Only the level of delay repeats are changed when turning the FX level knob.
DELAY
Thedelayknobcontrolsthedelaytime.Apartfrom“Slapback”,alldelaytypeshaveadelayrangeof20
ms to 7000 ms (that’s 7 seconds). Slapback has a range from 20 ms to 300 ms.
FEEDBACK
Feedback determines how many repetitions you will hear by controlling the amount of the delay that is
fed back to the input.
Delay Type selector
TheDelayTypeselectorallowsyoutoselectbetween9delaytypes,looper,andTonePrint.
Delay Audio Tap function & Subdivision
ThedelaytimecanofcoursebesetusingtheDELAYknobasdescribedabove.However,fortiming
the delay repeats to the tempo of the song you are playing, you can also tap in a the tempo via audio.
Once you have tapped the songs tempo, the subdivision selector switch allows you to chose between
letting Flashback play 1/4, 1/8. or 1/4+1/8., according to the tapped tempo.
10
Tosetthetempo:
• HolddowntheON/OFFswitch.Withtheswitchhelddown,playsteadyshort1/4notesonyour
instrument.
PleasenotethefollowingregardingAudioTap:
–Theoutputisalwaysmutedwhileyoustrumforaudio-tap
– In Buffered Bypass mode, your delay repeats ring out when the pedal is bypassed (spill-over)
• Playsteadyshort1/4notesonyourinstrument.
• Releasetheswitchagain.
That’sit-youhavenowenteredtheglobaltempo,andthedelayrepeatswillplayaccordingtothe
selectedsubdivision.Theoptionsare:1/4,1/8.and1/4+1/8.
2290 - Digital Delay
Inputequalsoutput.SuperbdigitaldelaybasedonthelegendaryTC2290.Noprocessingofthedelay
repeats.Pureandclearunaltereddigitaldelay.
ANA - Analog
TheAnalogDelaydelicatelyrollsofhigh-endfrequencies,givingyoudelayrepeatswithlessedgethat
blend in perfectly with the music, even when long relatively loud repeats are used.
