TPS4000 SERIES

POWER SUPPLY

OPERATION MANUAL

14 October 2019

GENERAL SAFETY INSTRUCTIONS .............................................................................................................................. 2

High Voltage Warning ....................................................................................................................................................... 2

Critical Components ......................................................................................................................................................... 2

Servicing ........................................................................................................................................................................... 2

Safety Class of Protection ................................................................................................................................................. 2

Installation ........................................................................................................................................................................ 2

Ratings, Specifications and Features .................................................................................................................................... 4

Emissions .......................................................................................................................................................................... 4

Immunity .......................................................................................................................................................................... 4

Maximum Ratings ............................................................................................................................................................ 5

Input Specifications .......................................................................................................................................................... 5

Output Performance Specifications .................................................................................................................................. 6

Protective Functions ......................................................................................................................................................... 6

Operating Modes .............................................................................................................................................................. 6

DC Output Controls and Indicators .................................................................................................................................. 7

Remote Control Features .................................................................................................................................................. 7

PMBus Features ................................................................................................................................................................ 7

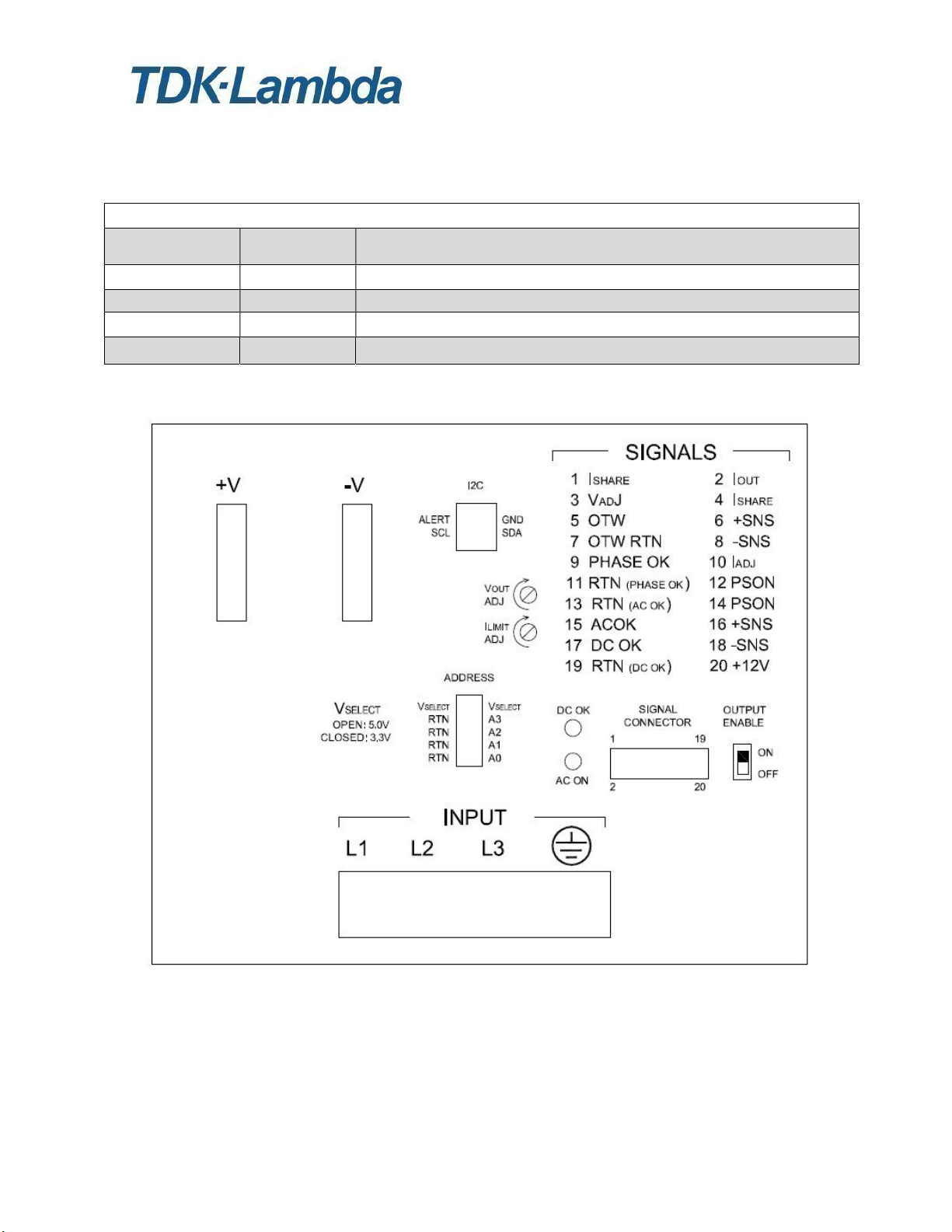

Input, Output and Signal Connections .............................................................................................................................. 8

Signal Connector .............................................................................................................................................................. 9

Local Sense Setup ........................................................................................................................................................... 11

Remote Sense Setup ....................................................................................................................................................... 11

Parallel Operation Setup ................................................................................................................................................. 12

Series Operation Setup ................................................................................................................................................... 14

Ripple and Noise Notes ...................................................................................................................................................... 16

Mechanical Drawing ........................................................................................................................................................... 17

PMBus Interface ................................................................................................................................................................. 18

TPS4000 SERIES

POWER SUPPLY

OPERATION MANUAL

14 October 2019

GENERAL SAFETY INSTRUCTIONS

High Voltage Warning

Dangerous voltages are present within the power supply.

Critical Components

This product is not authorized for use as a critical component in nuclear control systems, life support systems or equipment

for use in hazardous environments without the express written approval of the Engineering Director of TDK-Lambda

Americas.

Servicing

This product is not customer serviceable.

Unit repairs shall only be carried out by TDK- Lambda Americas or their Authorized agents.

Contact: TDK-Lambda Americas

401 Mile of Cars Way, Suite 325

National City, CA 91950

Tel 619-575-4400

Fax 619-575-7185

Safety Class of Protection

The unit is designed for the following parameters: Material Group IIIb, Pollution Degree 2, Overvoltage Category II, Class

1 (earthed), Indoor use. The unit is considered as fixed and rated IPX0. The TPS400024 and TPS400048 are classed as

having SELV outputs. All outputs are capable of providing hazardous energy (>240VA). The final equipment should

provide protection to service personnel against inadvertent contact with the PSU output terminals.

Installation

This product is designed for use within other equipment which restricts access to Authorized competent personnel only.

The unit covers/chassis must not be made user accessible.

The appliance may be mounted in any orientation.

The mains input connector is not acceptable for use as field wiring terminals.

The appliance must be securely mounted and the baseplate properly bonded to the main protective earth contact before

any connection to AC mains supply is made.

The ventilation openings must not be impeded – ensure a space at least 5cm between any obstruction and the ventilation

openings.

BEFORE USING THE POWER SUPPLY UNIT

Be sure to read this instruction manual thoroughly before using this product. Pay attention to all cautions and warnings

before using this product. Incorrect usage could lead to an electrical shock, damage to the unit or a fire hazard.

DANGER

 Never use this product in locations where flammable gas or ignitable substances are present.

WARNING

 Do not make unauthorized changes to power supply unit, otherwise you might have electric shock and void your

warranty.

 Do not touch this unit and the internal components in operation or shortly after shut down. They might have high

voltage or high temperature and as the unit dissipates its heat so the surface of the unit is hot. You might receive electric

shock or burn.

 When the unit is operating, keep your hands and face away from it; you might be injured by an accident.

 Do not use unit under unusual conditions such as emission of smoke or abnormal smell and sound etc. It might cause

fire and electric shock. In such case, please contact us; do not repair by yourself, as it is dangerous for the user.

 Do not drop or insert anything into unit. It might cause failure and fire.

 Do not operate these units under condensation condition. It might cause fire and electric shock.

TPS4000 SERIES

POWER SUPPLY

OPERATION MANUAL

14 October 2019

CAUTION

 As a component part, compliance with the standard will be based upon installation in the final application. This product

must be installed in a restricted access location, accessible to authorized competent personnel only. These AC to DC

converters have reinforced insulation between the input and the output. The outputs of these products are energy hazards.

The equipment has been evaluated for use in a Pollution Degree 2 environment.

 This product is designed for use within other equipment or enclosures which restrict access to authorized competent

personnel only and must not be user accessible. Confirm connections to input/output terminals and signal terminals are

correct as indicated in the instruction manual.

 Input voltage, Output current, Output power, ambient temperature and ambient humidity should be used within

specifications, otherwise the unit will be damaged.

 For application equipment, which requires very high reliability (Nuclear related equipment, traffic control equipment,

medical equipment, etc.), please provide fail safety function in the equipment.

 Do not use the product in environment with strong electromagnetic field, corrosive gas and conductive substance.

 Do not operate and store this unit at an environment where condensation occurs. In such case, waterproof treatment is

necessary

 Never operate the unit under over current or shorted conditions for 30 seconds or more and out of Input Voltage Range

as specification. Insulation failure, smoking, burning or other damage might occur to the unit.

 The output voltage of this power supply unit is considered to be a hazardous energy level (The voltage is 2V or more

and the electric power is 240VA or more). Prevention from direct contact with output terminal is highly necessary. While

installing or servicing this power supply unit, avoid dropping tools by mistake or direct contact with output terminal. This

might cause an electrical shock. While repairing this power supply unit, the AC input power must be switched off and the

input and output voltage should be level.

 To maintain the SELV output, under fault conditions, the output must be connected to earth in the final application.

 The application circuits and their parameter are for reference only. Be sure to verify effectiveness of application

circuits and their parameters before finalizing circuit design.

 Do not inject abnormal voltage to output terminal and signal terminal from the outside. The injection of reverse voltage

or over voltage exceeding nominal output voltage to output terminals might cause damage to internal components.

 This information in this document is subject to change without prior notice. For actual design-in, please refer to the

latest publications of data sheet, etc., for the most up-to date specifications of the unit.

Note: CE MARKING

CE Marking when applied to a product covered by this handbook indicates compliance with the low voltage directive (2014/35/EU) in that it

complies with EN/IEC 60950-1.

TPS4000 SERIES

POWER SUPPLY

OPERATION MANUAL

14 October 2019

Ratings, Specifications and Features

Emissions

AC Line Conducted Emissions EN 55032:2015 (0.15-30 MHz) Class A

Radiated RF Emissions EN 55032:2015 0-1000 MHz Class A *

Immunity

Electrostatic Discharge IEC61000-4-2: 2008 +/-8 kV Air

+/-4 kV Contact

RF Radiated Fields EN 61000-4-3: 2006

+A1:2008 +A2:2010

3 V/m from 80-1000 MHz;

(80% AM at 1kHz)

Electrical Fast Transients EN61000-4-4: 2004+A1:2010

Power line pulses of ± 1 kV;

I/O line pulses of ± 0.5 kV

Lightning Surge IEC61000-4-5: 2005 ±4kV common mode

±2kV differential mode

Conducted RF Common Mode EN61000-4-6: 2009 150 kHz - 80 MHz at 3 Vrms

1 kHz 80% amplitude modulated

Power Frequency Magnetic Field IEC61000-4-8:2009 30A/m (Continuous), 300A/m (Short)

Voltage Dips/Short Variations IEC61000-4-11:2004 5% of nom. line for .5 cycles - Criteria B

70% for 25 cycles - Criteria B

95% Dip for 5 seconds - Criteria C

Voltage Dips/Short Variations SEMI F47-0706 50% of nom. line for 10 cycles - Criteria B

70% for 25 cycles - Criteria B

80% for 50 cycles - Criteria B

Table 1

*With appropriate installation

TPS4000 SERIES

POWER SUPPLY

OPERATION MANUAL

14 October 2019

Maximum Ratings

Units

TPS400024 TPS400048

Output Voltage Range V 19.2-28.5 38.4-58

Maximum Output Current (Power) @ 50°C

A(W)

170(4080) 85 (4080)

Maximum Output Current (Power) @ 50°C

A(W)

166(4000) 83.3(4000)

Maximum Output Current (Power) @ 60°C

A(W)

133.33(3200) 66.6(3200)

Maximum Output Current (Power) @ 70°C

A(W)

91.7(2200) 45.833(2400)

Maximum Output Power with Dropped Phase

A(W)

1600W 1600W

Minimum Current A Not needed

Operating Temperature

°C -10°C to 50°C.

Derating 50°C-60°C - 2%/C, 60°C-70°C 2.5%/C

Start-up Temperature

°C -40°C to +70°C

Table 2

1 Output adjustment at 24V set point for TPS400024 and at 48V set point for TPS400048.

2 Output current and power, as measured at output terminals, must be less than or equal to quoted maximum values for a given ambient

temperature.

3 Dropped phase condition operation is considered an abnormal operation condition. It is not recommended to operate the unit in this

mode permanently. Unit is able to handle the specified output power during dropped phase temporarily.

4 Operation at -40°C may require 10min warm up at 80% load to meet regulation and output ripple. Not all parameters are guaranteed

at -40°C operation.

Input Specifications

Units TPS400024 TPS400048

Input Voltage VAC 400/480 (50/60Hz) Three Phase Delta

Input Current (RMS) Per Phase

400-480VAC input

A 8.0 8.0

Inrush Current (Peak, at cold start)

Per Phase, 400-480VAC input *

A <25 <25

Power Factor (at rated output power) - 0.92 typical @ 400/480VAC line

Input EMI Conducted Emissions - FCC Class A, CISPR 22 Class A

Efficiency (at rated output power) % 92 typical @ 400/480VAC line

Table 3

*excluding initial spike charging EMI capacitors lasting <2mS

TPS4000 SERIES

POWER SUPPLY

OPERATION MANUAL

14 October 2019

Output Performance Specifications

Units TPS400024 TPS400048

Max Voltage Line Regulation % Less than 0.25%

Max Voltage Load Regulation % Less than 0.5%

Total Regulation

% Less than 1.75%

Warm up Drift % Less than 0.2%

Temperature Stability - 0.05% of rated Vout for 8hrs after 30min warm-

up. Constant line, load & temp.

Temperature Coefficient ppm/°C 200ppm/C

Ripple/Noise P-P(20MHz), JEITA RC-9131C

mVp-p 240 480

Output Ripple, JEITA RC-9131C

mVrms <0.5% of Vout

Remote Sense Compensation (Total) V 1.0V 1.0V

Table 4

5 Total Regulation at -40°C may require 10min warm up at 80% load to meet regulation and output ripple.

6See Ripple and Noise Notes for Details on Jeita RC-9131C method; All Three Phases present

Protective Functions

Units TPS400024 TPS400048

OCP TYPE - CONSTANT CURRENT / CONSTANT RESISTANCE

OCP KNEE POINT - Adjustable (70% - 105% of max rated current)

KNEE POINT PROTECTION - NONE. NO DAMAGE AT KNEE POINT

S/C PROTECTION - CONSTANT CURRENT w/ time-delayed shutdown.

SHORTED OUTPUT ON - NO DAMAGE

OVP TYPE - Tracking, Inverter shut-down (automatic reset)

OVP RANGE - Vout*1.15

OVP RESET TIME s Auto Resets 3 times at ~3s interval, then latches off for 1min. Reset

cycle is repeated until OVP condition clears.

FAN FAIL - Blocked fan and fan failure detection. Manual reset by input cycling

or remote control via the PMBus Interface.

OTP - Yes. Standard: Non-Latch type (automatic reset)

Table 5

Operating Modes

Series Operation Yes

Parallel Operation Current share single wire (Terminal 1 on Signal Connector), 10%

accuracy of max Iout up to 8 units. Power derated 10% of rated. No Oring

diodes are required for redundant operation as the power supplies contain

internal Oring MOSFETS.

Table 6

TPS4000 SERIES

POWER SUPPLY

OPERATION MANUAL

14 October 2019

DC Output Controls and Indicators

Output Voltage Adjust Screwdriver adjustment over entire range. Output voltage range is specified in

Table 2. (Multi-turn potentiometer accessible from terminal end of chassis.)

Overcurrent Protection Adjust Screwdriver adjustable (70% - 105% of max rated current)

DC OK LED: Green when output >90% of set voltage, Red when fault.

LED will turn off when unit enters OTW range.

AC ON LED: Green when AC is present

Blinking RED/GRN when phase dropped (Applicable for 400/480 with 30%

Load or greater).

Table 7

Remote Control Features

Remote Voltage Sensing Provides precise regulation directly at load. Maximum total DC voltage drop

between output terminals and load must be limited to <1.0 V. In addition, the

voltage at the output terminals must be limited to the maximum voltage range

specified in Table 2.

Remote On/Off Control On/Off control: Selectable Enable or Inhibit via front panel switch.

Switch in the ON position: Unit powers up if PSON left open; Unit in standby

mode if PSON shorted to -SNS

Switch in the OFF position: Unit in standby mode if PSON left open; Unit

powers up if PSON shorted to -SNS

PSON High / Low thresholds: 3.0V / 0.6V

12V Maximum allowable.

-5V Minimum allowable

Signal applied between terminals 14 (PSON) and 18 (-SNS) on Signal

Connector.

Remote Voltage Programming Provides remote adjustment of the output voltage via a DC voltage applied

between terminals 3 (VADJ) and 18 (-SNS) on Signal Connector.

0V = Vout max, 5V = Vout min

Adjustments of greater than 1V/Sec can cause Fault conditions

Adjustment range changes with adjustment of Vout Adj trim pot.

Remote Overcurrent Limit

Programming

Provides remote adjustment of the Overcurrent limit via a DC voltage applied

between terminals 10 (IADJ) and 18 (-SNS) on Signal Connector.

0V = Iout max, 5V = Iout min

Adjustment range changes with adjustment of ILIMIT Adj trim pot.

Table 8

PMBus Features

Output Voltage Monitoring Output voltage monitoring via the PMBus.

Accuracy of the voltage reading is +/-2% of full scale

Output Current Monitoring Output current monitoring via the PMBus.

Accuracy of the current reading is +/-10% of full scale

Remote On/Off Control Supply ON/OFF control via the PMBus

Remote Voltage Programming Provides remote adjustment of the output voltage via the PMBus interface.

Adjustments of greater than 1V/Sec can cause Fault conditions

Remote Overcurrent Limit

Programming

Provides remote adjustment of the Overcurrent limit via the PMBus interface.

TPS4000 SERIES

POWER SUPPLY

OPERATION MANUAL

14 October 2019

Table 9

Input, Output and Signal Connections

Input Heavy Duty terminal block with M4 screws. Grounding terminal included on

terminal block.

DC Output Heavy-duty bus bars with 9mm clearance hole for load connections.

Signal Connector 20 pin signal connector. See Table 11 for pin configuration

Recommended mating connector: JST P/N: PHDR-20VS

Recommended receptacle contacts: JST P/N: SPHD-001T-P0.5

Address Pin / PMBus Voltage

Selector Pin

10 pin connector.

Rows 1-4 used for PMBus address selection.

Row 5 used to select PMBus Voltage Selection. Open = 5V; Short = 3.3V

Recommended shunt jumper: Samtec P/N: 2SN-BK-G

I2C Connector 4 Pin connector: See Table 12 for pin configuration

Recommended mating connector: MOLEX P/N: 51110-0460

Recommended receptacle contacts: MOLEX P/N: 50394-8051

Table 10

TPS4000 SERIES

POWER SUPPLY

OPERATION MANUAL

14 October 2019

Signal Connector

Name Terminal

Location

Description

ISHARE 1 Current share single wire.

IOUT 2 Current monitor signal.

0V = Iout min, 5V = Iout max.

Terminal 18 used for Return.

VADJ 3 Remote Voltage Programming Terminal.

Terminal 18 used for Return.

ISHARE 4 Current share single wire.

OTW 5 Over Temperature Warning

Open collector. Non Polarized, 60V peak,

Max. sink current: 5mADC. 2Ω ON resistance, Isolated

Terminal 7 used for Return.

+SNS 6 Positive Sense. Used for remote sense connection.

RTN (OTW) 7 Return for Terminal 5

-SNS 8 Negative Sense. Used for remote sense connection. Analog Signals return

PHASE OK 9 Open collector. Max. sink current: 5mA.

Off (open) when OK, ON (closed) when input phase missing

(Applicable for 400/480 with 30% Load or greater).

Open collector. Non Polarized, 60V peak,

Max. sink current: 5mADC. 2Ω ON resistance, Isolated

IADJ 10 Provides remote adjustment of the overcurrent limit via an applied DC voltage.

0V = Iout max, 5V = Iout min

Terminal 18 used for Return.

RTN (PHASE

OK)

11 Return for Terminal 9

PSON 12 Remote On/Off control. See Remote Control Features section for additional

details. Terminal 18 used for Return.

RTN (AC OK) 13 Return for Terminal 15

PSON 14 Remote On/Off control. See Remote Control Features section for additional

details.

Terminal 18 used for Return.

AC OK 15 On when Vin>340Vac AND unit enabled. Turns off 5mS before DC FAIL at

nominal Vout, 80% of rated load.

Open collector. Non Polarized, 60V peak,

Max. sink current: 5mADC. 2Ω ON resistance, Isolated

Isolated

+SNS 16 Positive Sense. Used for remote sense connection.

DC OK 17 Conducts when Vout is greater than 90% of the set output voltage (Tracking)

Open collector. Non Polarized, 60V peak,

Max. sink current: 5mADC. 2Ω ON resistance, Isolated

-SNS 18 Negative Sense. Used for remote sense connection. Analog Signals return

RTN (DC OK) 19 Return for Terminal 17

+12V 20 Auxiliary Power Supply: 11.2-12.5V, 0-0.3A. Less than 200mVp-p ripple and

noise.

Table 11

TPS4000 SERIES

POWER SUPPLY

OPERATION MANUAL

14 October 2019

PMBus Connections

Name Terminal

Location

Description

SMB ALERT 4 Interrupt Line for I2C

SMB GND 3 Return for I2C

SCL 2 Clock Line for I2C

SDA 1 Data Line for I2C

Table 12

Figure 1: Pin assignments

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali TDK-Lambda Alimentazione elettrica

TDK-Lambda

TDK-Lambda HWS1000 Series Manuale utente

TDK-Lambda

TDK-Lambda RWS 1000B Series Manuale utente

TDK-Lambda

TDK-Lambda Alpha 600 Manuale utente

TDK-Lambda

TDK-Lambda DBM20 Manuale utente

TDK-Lambda

TDK-Lambda PFH500 Series Manuale utente

TDK-Lambda

TDK-Lambda PAH-S48 series Manuale utente

TDK-Lambda

TDK-Lambda G10-500 Guida all'installazione

TDK-Lambda

TDK-Lambda 260950 Guida rapida

TDK-Lambda

TDK-Lambda Genesys Series Manuale utente

TDK-Lambda

TDK-Lambda PFE300SA Series Manuale utente

TDK-Lambda

TDK-Lambda CPFE500 Istruzioni per l'installazione e il funzionamento

TDK-Lambda

TDK-Lambda ZWP350-1000 Series Manuale utente

TDK-Lambda

TDK-Lambda Genesys Series Manuale utente

TDK-Lambda

TDK-Lambda GXE600 Series Manuale utente

TDK-Lambda

TDK-Lambda Genesys GENH6-100 Manuale utente

TDK-Lambda

TDK-Lambda EZA2500WW Series Guida all'installazione

TDK-Lambda

TDK-Lambda DPP480-XX-3 Manuale utente

TDK-Lambda

TDK-Lambda GEN 8-400 ABCDE Manuale utente

TDK-Lambda

TDK-Lambda HFE2500 Series Manuale utente

TDK-Lambda

TDK-Lambda 2U GENESYS 5KW Manuale utente

TDK-Lambda

TDK-Lambda Genesys GEN8-300 Manuale utente

TDK-Lambda

TDK-Lambda 203 Manuale utente

TDK-Lambda

TDK-Lambda HWS ME Series Manuale utente

TDK-Lambda

TDK-Lambda JWT Series Manuale utente

Manuali Alimentazione elettrica popolari di altre marche

Monacor

Monacor PS-12CCD Manuale utente

VOLTIMA

VOLTIMA MagicBox 15 Manuale utente

Agilent Technologies

Agilent Technologies 6032A Manuale utente

Miller

Miller Auto Deltaweld 452 Manuale utente

BCP

BCP PUOUBK Foglio di istruzioni

HC 2210 Manuale utente

Puls

Puls CT5.241 Manuale utente

OCZ

OCZ ZX1250W Manuale utente

iseg

iseg ECH 238 Manuale utente

Power

Power XXL A Series Manuale utente

Agilent Technologies

Agilent Technologies 6631B Manuale utente

Renogy

Renogy PHOENIX 300 Manuale utente

HP 6200B Manuale di servizio

Epson

Epson Stylus Scan 2500 Manuale operativo

Pulsar

Pulsar GREEN POWER CCTV PoE POE044816 Manuale utente

Puls

Puls MiniLine ML50.100 Manuale utente

Puls

Puls AS-Interface SLA4.100 Manuale utente

Kenwood

Kenwood PS-60 Manuale utente
