• All specifications are subject to change without notice.

SMD Inductors(Coils)

For Power Line(Wound, Magnetic Shielded)

SLF Series SLF12565

FEATURES

• The SLF series are characterized by low profile, low DC

resistance, and high current handling capacities.

• Because they are magnetically shielded, these parts can be

used in high-density mounting configurations.

• Flat bottom surface ensures secure, reliable mounting.

• Provided in embossed carrier tape packaging for use with

automatic mounting machines.

APPLICATIONS

Portable telephones, personal computers, hard disk drives, and

other electronic equipment.

SPECIFICATIONS

RECOMMENDED REFLOW SOLDERING CONDITIONS

PRODUCT IDENTIFICATION

(1) Series name

(2) Dimensions

(3) Packaging style

(4) Inductance value

(5) Inductance tolerance

(6) Rated current

(7) Lead-free compatible product

PACKAGING STYLE AND QUANTITIES

Conformity to RoHS Directive

Operating temperature range –20 to +105°C

[Including self-temperature rise]

Storage temperature range –40 to +105°C[Unit of products]

30s

120s

Preheating

Natural

cooling

250±5˚C

230˚C

180˚C

150˚C

Time(s)

SLF 12565 T- 220 M 3R5 - PF

(1) (2) (3) (4) (5) (6) (7)

12565 12.5×12.5×6.5mm (L×W×T)

T Taping(reel)

2R0 2µH

100 10µH

M±20%

N±30%

1R6 1.6A

3R5 3.5A

PF Lead-free compatible product

Packaging style Quantity

Taping 500 pieces/reel

• Conformity to RoHS Directive: This means that, in conformity with EU Directive 2002/95/EC, lead, cadmium, mercury, hexavalent chromium, and specific

bromine-based flame retardants, PBB and PBDE, have not been used, except for exempted applications.

(2/2)

002-05 / 20060928 / e531_slf12565.fm

• All specifications are subject to change without notice.

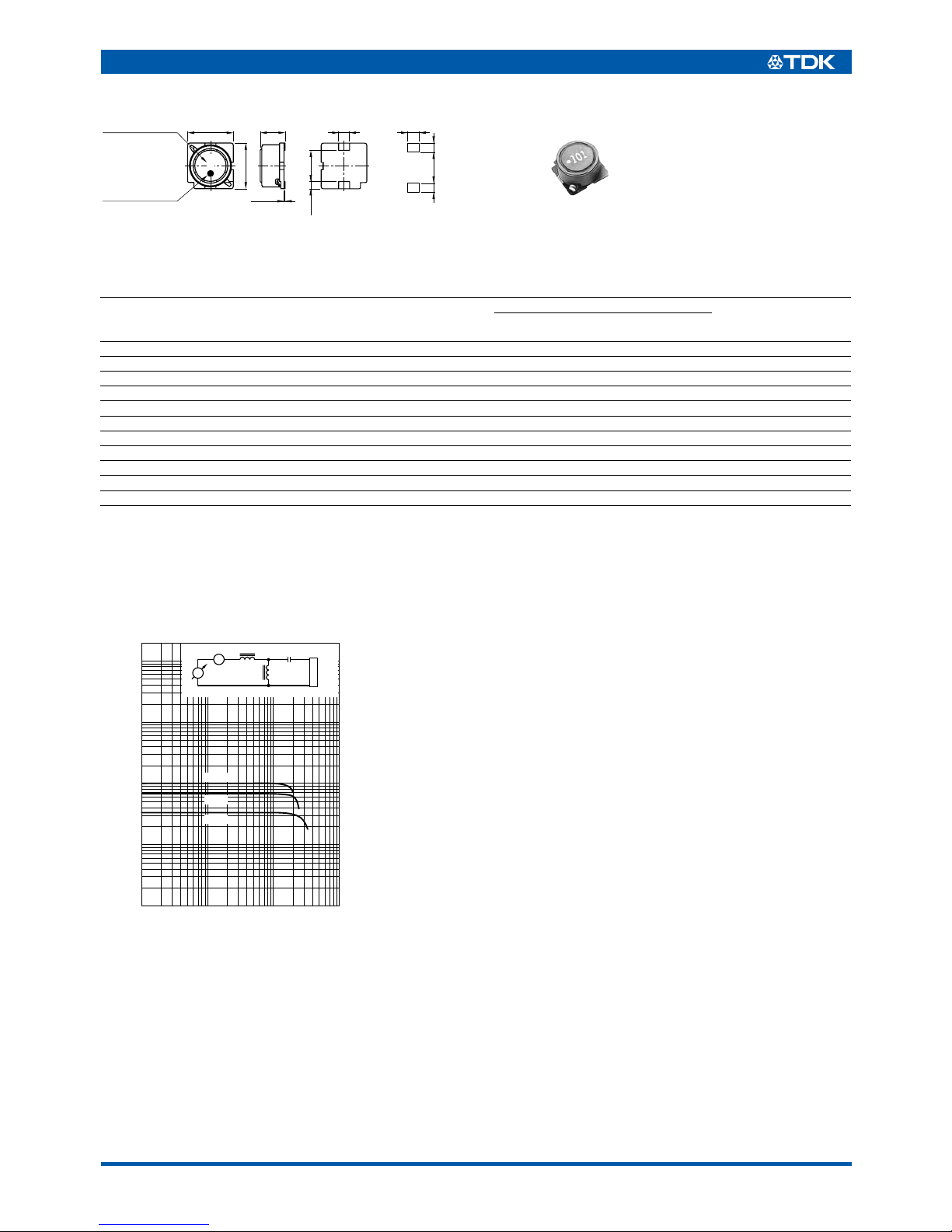

SHAPES AND DIMENSIONS/RECOMMENDED PC BOARD PATTERN

ELECTRICAL CHARACTERISTICS

∗Rated current: Value obtained when current flows and the temperature has risen to 40°C or when DC current flows and the nominal value of inductance

has fallen by 10%, whichever is smaller.

• Test equipment L: 4194A IMPEDANCE/GAIN-PHASE ANALYZER HP or equivalent (Measured at 1kHz/0.5V)

Rdc:MATSUSHITA VP-2941A DIGITAL MILLIOHM METER, or equivalent

TYPICAL ELECTRICAL CHARACTERISTICS

INDUCTANCE CHANGE vs. DC SUPERPOSITION

CHARACTERISTICS

Inductance

(µH)

Inductance

tolerance

Test frequency

L (kHz)

DC resistance

(Ω)±20%

Rated current (A)∗max.

Part No.

Based on

inductance change

Based on

temperature rise

2 ±30% 1 0.0117 10 6.2 SLF12565T-2R0N6R2-PF

4.2 ±30% 1 0.015 7.3 5.5 SLF12565T-4R2N5R5-PF

7 ±30% 1 0.0177 5.7 5 SLF12565T-7R0N5R0-PF

10 ±20% 1 0.0202 5 4.8 SLF12565T-100M4R8-PF

15 ±20% 1 0.0237 4.2 4.4 SLF12565T-150M4R2-PF

22 ±20% 1 0.0316 3.5 3.8 SLF12565T-220M3R5-PF

33 ±20% 1 0.0406 2.8 3.4 SLF12565T-330M2R8-PF

47 ±20% 1 0.0578 2.4 2.8 SLF12565T-470M2R4-PF

68 ±20% 1 0.0787 2 2.4 SLF12565T-680M2R0-PF

100 ±20% 1 0.123 1.6 1.9 SLF12565T-101M1R6-PF

220 ±20% 1 0.273 1 1.2 SLF12565T-221M1R0-PF

12.5±0.3

Winding start mark

Marking

(Inductance code)3±0.1

8.5typ.2typ.

Weight: 3.2g

Dimensions in mm

6.5±0.35

0.1typ.

330

8.6 2.52.5

3.2

DC current(A)

0.01

100

1000

300

10000

3000

0.1 0.30.03 3110

Inductance(µH)

33µH

68µH

100µH

L=0.1H C=20000µF

Specimen

Test circuit

YHP model-4275A or equivalent

Universal

bridge
