Data Sheet: VetaiHA48040A033V*,3.3V/40A Output Half Brick Series

iHA Datasheet 040207

(877) 498

0099

1/17

Datasheet DC-DC Power Modules

VetaiHA48040A033V* Half Brick Series

48V Input, 3.3V/40A.Output

Information furnished by TDK Innoveta is believed to be accurate and reliable. However, TDK

Innoveta assumes no responsibility for its use, nor for any infringement of patents or other rights of

third parties, which may result from its use. No license is granted by implication or otherwise under

any patent or patent rights of TDK Innoveta. TDK Innoveta components are not designed to be used

in applications, such as life support systems, wherein failure or malfunction could result in injury or

death. All sales are subject to TDK Innoveta’s Terms and Conditions of Sale, which are available

upon request. Specifications are subject to change without notice. TDK logo is a trademark or

registered trademark of TDK Corporation.

TDK Innoveta Inc

3320 Matrix Drive, Suite 100

Richardson, Texas 75082

Phone (877) 498-0099 Toll Free

(469) 916-4747

Fax (877) 498-0143 Toll Free

(214) 239-3101

support@tdkinnoveta.com

http://www.tdkinnoveta.com/

Data Sheet: VetaiHA48040A033V*,3.3V/40A Output Half Brick Series

iHA Datasheet 040207

(877) 498

0099

2/17

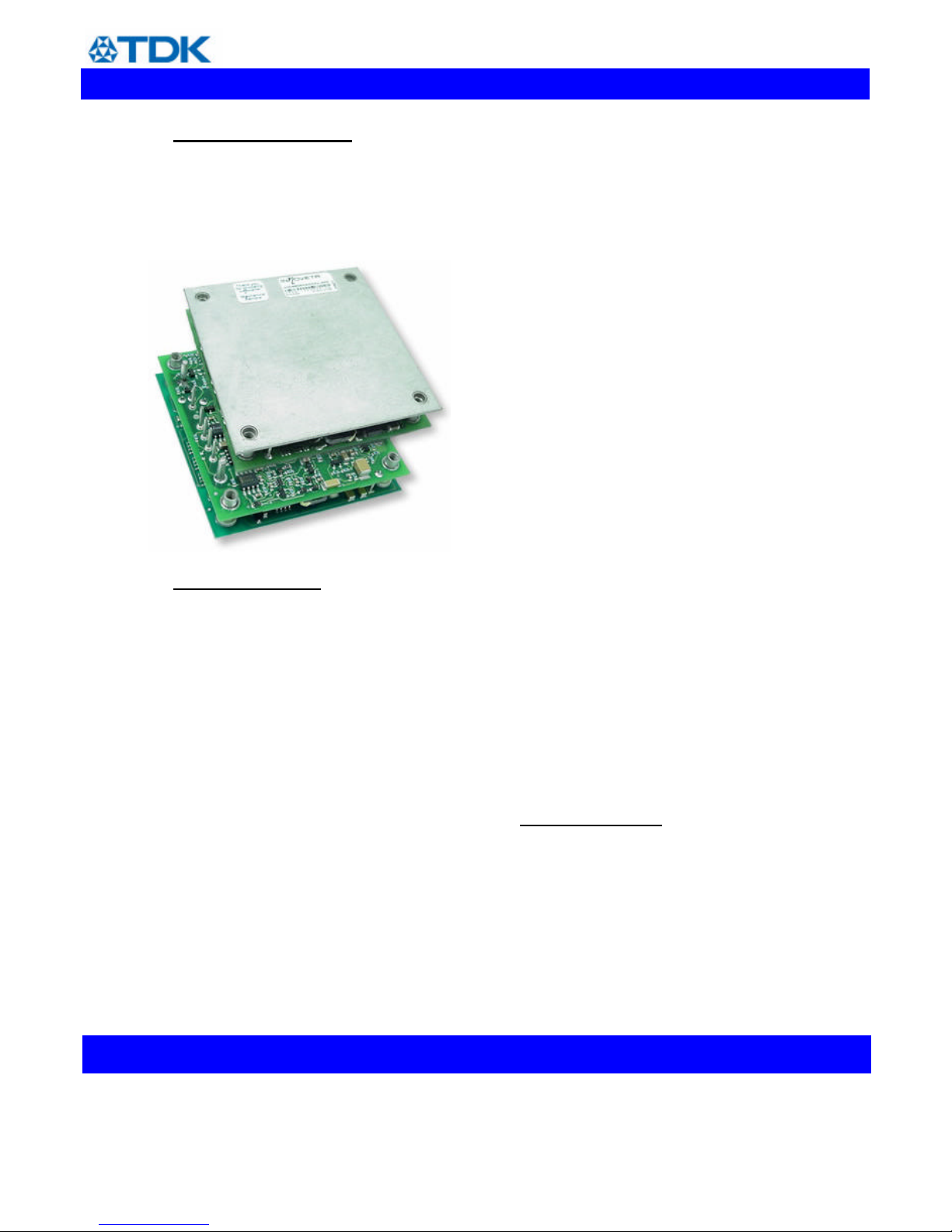

Platform Overview:

VetaiHA48 Series DC-DC Power Modules

48V Input, 1.2-28V/60A or 350W Output

Half-Brick

The VetaiHA48 Series power modules operate

over a wide 36 –75Vdc input voltage range and

provide one regulated dc output voltage that is

electrically isolated from the input. Its high

efficiency and superior thermal performance make

the VetaFamily of power modules ideally suited

for power-hungry applications in demanding

thermal environments. This rugged building block

is designed to serve as the core of your high

reliability system. A wide output voltage trim range

and remote sensing are standard features

enhancing versatility.

Standard Features:

•Standard Half Brick footprint

•High efficiency, 83-93.5%

typical

•Wide output trim voltage

•Up to 60A of true usable current

•Industry-leading output power:

up to 350W

•Monotonic start-up

•Monotonic start-up into a pre-

biased output

•Basic insulation –1500 Vdc

•Constant switching frequency

•Auto-recovery protection:

oInput under and over

voltage

oCurrent limit

oShort circuit

oThermal limit

•Latched output over voltage

protection

•High reliability open frame,

surface-mount construction

•Baseplate for improved thermal

management

•UL 60950 (US and Canada),

VDE 0805, CB scheme

(IEC950), CE Mark (EN60950)

•Multiple patents pending

Optional Features:

•Remote on/off (negative logic)

•Auto-recovery output over

voltage protection

•Short Thru-hole pins 2.79 mm

(0.110”)

Data Sheet: VetaiHA48040A033V*,3.3V/40A Output Half Brick Series

iHA Datasheet 040207

(877) 498

0099

3/17

Ordering information:

Product

Identifier Package Size Platform Input

Voltage

Output

Current/

Power

Output

Units

Main

Output

Voltage

# of

Outputs Safety

Class Feature Set

iHA48 060 A033 V-000

TDK Innoveta Half Brick Veta36-75V 60 Amps 033 –3.3V Single 00 –Standard

OVP: Over Voltage Protection; OCP: Over Current Protection; OTP: Over Temperature Protection.

Product Offering:

Code Input Voltage Output Voltage Output Current Maximum Output

Power Efficiency

iHA48060A012V-000 36V to 75V 1.2V 60A 72W 83%

iHA48060A015V-000 36V to 75V 1.5V 60A 90W 86%

iHA48060A018V-000 36V to 75V 1.8V 60A 108W 86.5%

iHA48060A025V-000 36V to 75V 2.5V 60A 150W 89%

iHA48060A033V-000 36V to 75V 3.3V 60A 198W 90%

iHA48040A033V-000 36V to 75V 3.3V 40A 132W90%

iHA48060A050V-000 36V to 75V 5.0V 60A 300W 90%

iHA48040A050V-000 36V to 75V 5.0V 40A 200W 91%

iHA48025A120V-000 36V to 75V 12.0V 25A 300W 91.5%

iHA48013A240V-000 36V to 75V 24.0V 12.5A 300W 91%

iHA48011A280V-000 36V to 75V 28.0V 11A 308W 91%

iHA48016A280V-000 40V to 60V28.0V 16A450W93.5%

TDK Innoveta Inc

3320 Matrix Drive, Suite 100

Richardson, Texas 75082

Phone (877) 498-0099 Toll Free

(469) 916-4747

Fax (877) 498-0143 Toll Free

(214) 239-3101

[email protected]

http://www.tdkinnoveta.com/

Feature

Set On/Off

Logic Omit

pin3 Output OVP Output OCP OTP Threaded

Inserts Pin

Length

00 Positive No Latching Auto-Recovery Auto-Recovery Yes 0.145”

01 Negative No Latching Auto-Recovery Auto-Recovery Yes 0.145”

02 Positive Yes Auto-Recovery Auto-Recovery Auto-Recovery Yes 0.145”

03 Negative Yes Auto-Recovery Auto-Recovery Auto-Recovery Yes 0.145”

04 Positive No Latching Auto-Recovery Auto-Recovery Yes 0.110”

05 Negative No Latching Auto-Recovery Auto-Recovery Yes 0.110”

06 Positive Yes Auto-Recovery Auto-Recovery Auto-Recovery Yes 0.110”

07 Negative Yes Auto-Recovery Auto-Recovery

Auto-Recovery

Yes

0.110”

Data Sheet: VetaiHA48040A033V*,3.3V/40A Output Half Brick Series

iHA Datasheet 040207

(877) 498

0099

4/17

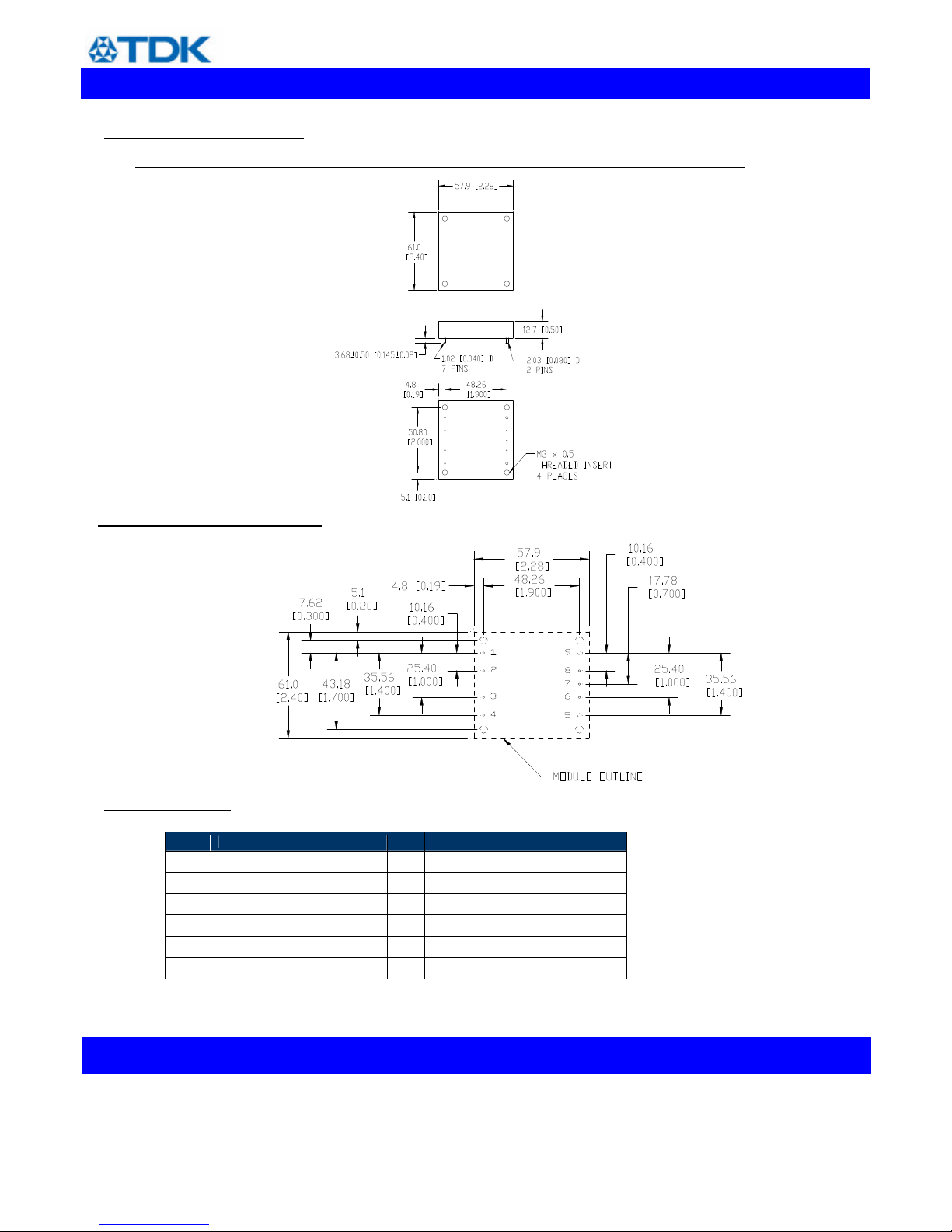

Mechanical Specification:

Unless otherwise specified tolerances are: x.x ±0.5 mm [x.xx ±0.02 in.], x.xx +/-0.25 mm [x.xxx +/-0.010 in.]

Recommended Hole Pattern:(top view)

Pin Assignment:

PIN FUNCTION PIN FUNCTION

1Vin (+) 7Trim

2On/Off 8Sense (+)

3Case (Omit –optional) 9Vout (+)

4Vin (-)

5Vout (-)

6Sense (-)

Data Sheet: VetaiHA48040A033V*,3.3V/40A Output Half Brick Series

iHA Datasheet 040207

(877) 498

0099

5/17

Absolute Maximum Ratings:

Stress in excess of Absolute Maximum Ratings may cause permanent damage to the device.

•Engineering estimate

Common Input Characteristics:

Unless otherwise specified, specifications apply over all Rated Input Voltage, Resistive Load, and Temperature conditions.

Characteristic Min Typ Max Unit Notes & Conditions

Operating Input Voltage 36 48 75 Vdc

Turn-on Voltage --- 34.6 36 Vdc

Turn-off Voltage 30 32.7 --- Vdc

Hysteresis 0.5 1.9 --- Vdc

Input High Voltage Turn-off --- 79 80 Vdc

Input High Voltage Turn-on 75 77 --- Vdc

Hysteresis --- 2--- Vdc

Startup Delay Time from application of input voltage --- 15 --- mS Vo = 0 to 0.1*Vo,nom; on/off =on,

Io=Io,max, Tc=25°C

Startup Delay Time from on/off --- 10 --- mS Vo = 0 to 0.1*Vo,nom; Vin = Vi,nom,

Io=Io,max,Tc=25°C

Inrush Transient --- --- 0.06 A2s

* Engineering estimate

Electrical Data:

Input Characteristic Min Typ Max Unit Notes & Conditions

Maximum Input Current --- --- 4.5* AVin = 0 to Vin,max, Io,max, Vo=Vo,nom

Output Voltage Rise Time --- 20 --- mS Io=Io,max,Tc=25°C, Vo=0.1 to 0.9*Vo,nom

Input Reflected Ripple --- 8.7 --- mApp See input/output ripple measurement figure;

BW = 20 MHz

Input Ripple Rejection --- 58 --- dB @120Hz

* Engineering estimate

Characteristic Min Max Unit Notes & Conditions

Continuous Input Voltage -0.5 80 Vdc

Transient Input Voltage --- 100 Vdc 100mS max.

Isolation Voltage --- 1500 Vdc

Storage Temperature -55 125 °C

Operating Temperature Range (Tc) -40 115* °C Maximum base plate temperature. Measured at the

location specified in the thermal measurement

figure.

Flatness 0.006 In. Bare component side of metal board shall be

convex.

Data Sheet: VetaiHA48040A033V*,3.3V/40A Output Half Brick Series

iHA Datasheet 040207

(877) 498

0099

6/17

Electrical Data (continued):

Operating at Tc = 25°C unless otherwise specified

Output Characteristic Min TypMax Unit Notes & Conditions

Output Voltage Initial Setpoint

3.25 3.3 3.35 Vdc Vin=Vin,nom; Io=Io,max;

Output Voltage Tolerance

3.2 --- 3.4 Vdc Over all rated input voltage, load, and

temperature conditions to end of life

Efficiency

--- 91.5 --- %Vin=Vin,nom; Io=Io,max;

Line Regulation --- 26* mV Vin=Vin,min to Vin,max

Load Regulation --- 610* mV Io=Io,min to Io,max

Temperature Regulation --- 10 30* mV Tc=Tc,min to Tc,max

Output Current

0--- 40 AAt loads less than 25% of Io,max the module

will continue to regulate the output voltage,

but the output ripple may increase

Output Current Limiting Threshold

40.6 46 60 AVo = 0.9*Vo,nom, Tc<Tc,max

Short Circuit Current

--- 60 --- AVo = 0.25V

--- 40 55 mVppOutput Ripple and Noise Voltage

--- 10

15 mVrms

Measured across one 47uF, one 1uF and

one 0.1uF ceramic capacitors –see

input/output ripple measurement figure; BW =

20MHz

Output Voltage Adjustment Range 50 --- 110 %Vo,nom

Output Voltage Sense Range --- --- 10 %Vo,nom

Dynamic Response:

Recovery Time

Transient Voltage

---

0.25

100

---

di/dt = 0.1A/uS, Vin=Vin,nom; load step from

50% to 75% of Io,max.

For applications with large step load changes

and/or high di/dt load changes, please

contact TDK Innoveta for support.

Output Voltage Overshoot during startup --- 0--- mV Io=Io,max

Switching Frequency --- 300 --- kHz Fixed

Output Over Voltage Protection --- 4.0 --- VAll line, load, and temperature conditions

External Load Capacitance 50 --- 60000** uF

Isolation Capacitance --- 2000 --- pF All line, load, and temperature conditions

Isolation Resistance 10 --- --- MΩAll line, load, and temperature conditions

Vref 1.225 VRequired for trim calculation

* Engineering Estimate

** Contact TDK Innoveta for applications that require additional capacitance

Caution: The power modules are not internally fused. An external input line normal blow fuse with a maximum value of 10A is required, see

the Safety Considerations section of the data sheet.

Data Sheet: VetaiHA48040A033V*,3.3V/40A Output Half Brick Series

iHA Datasheet 040207

(877) 498

0099

7/17

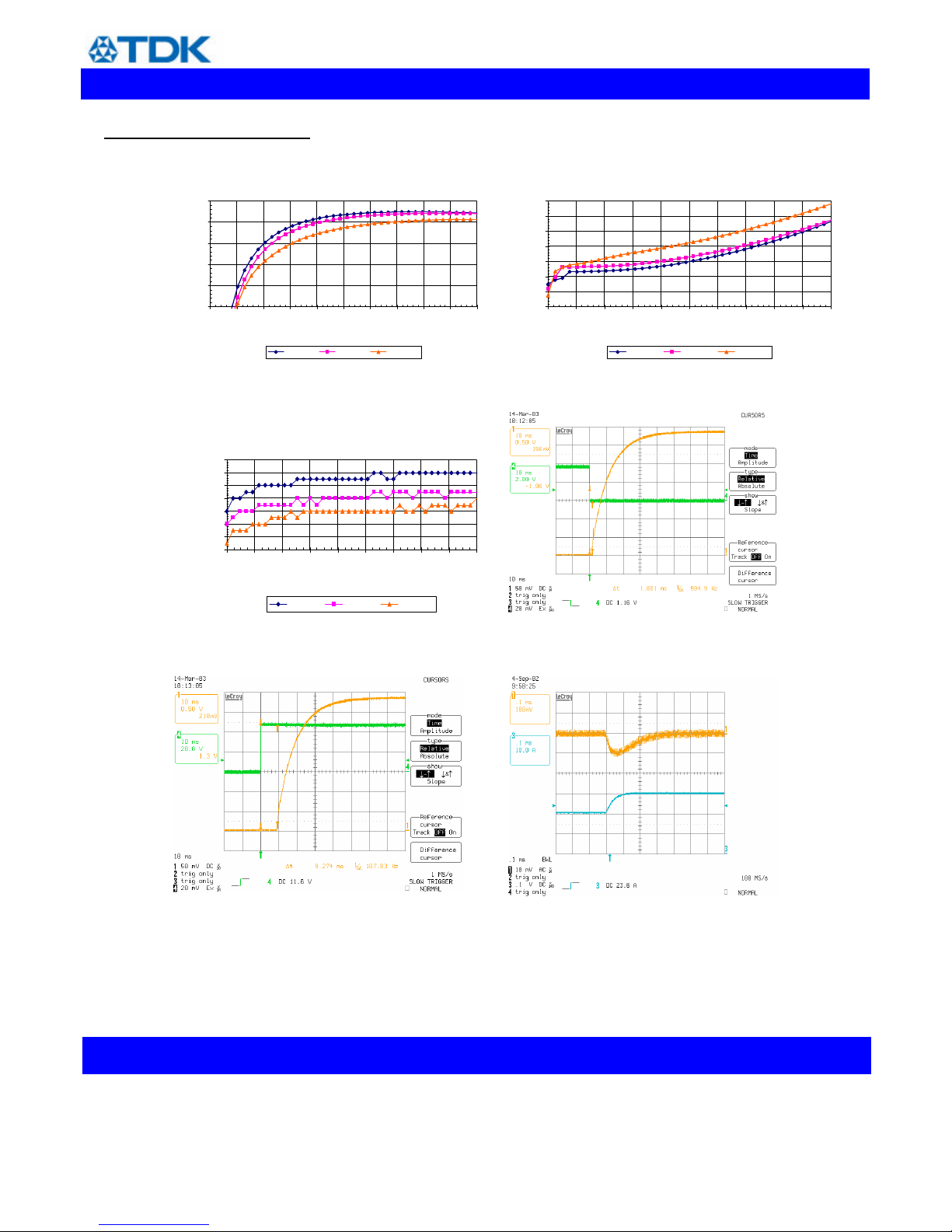

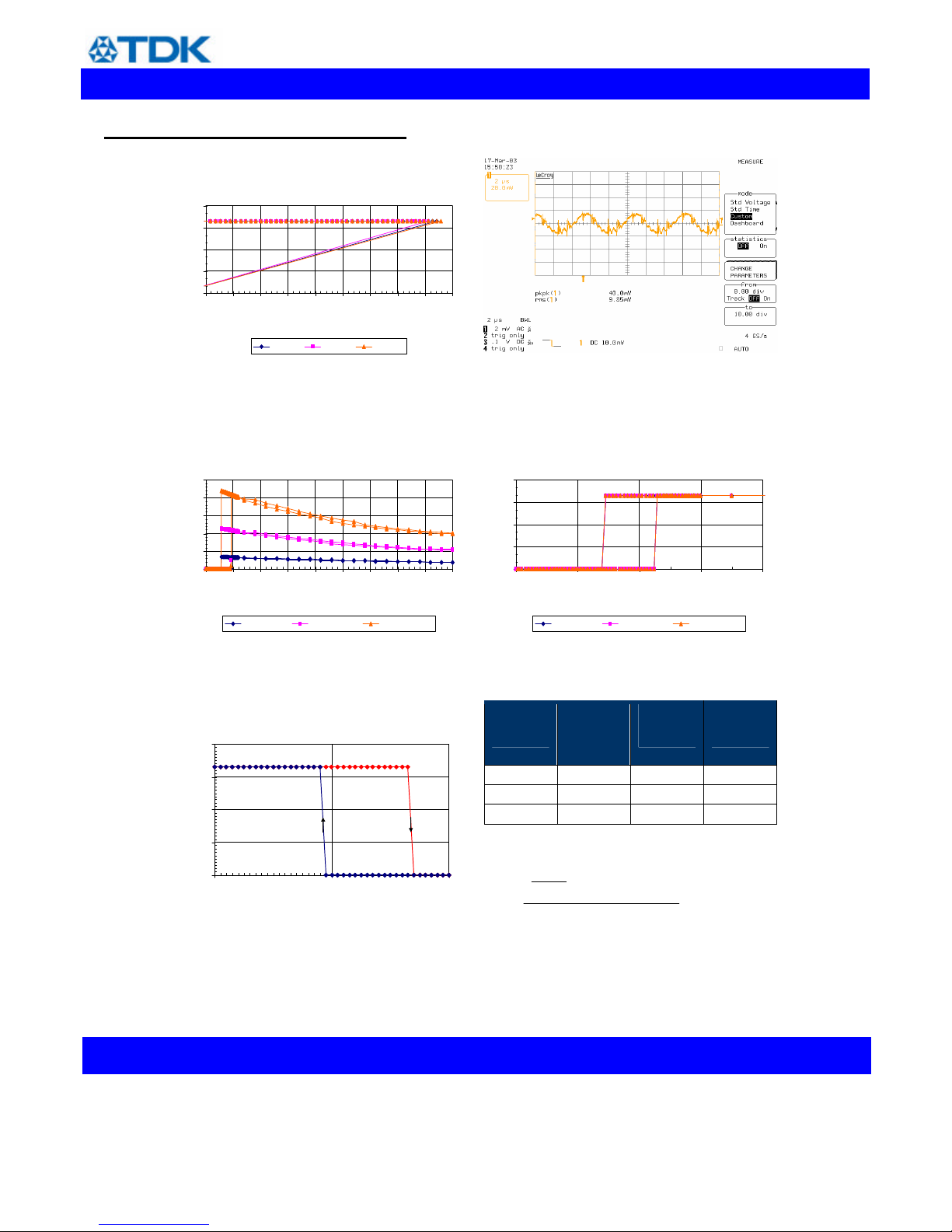

Electrical Characteristics:

iHA48040A033V-001 Efficiency

0 4 8 12 16 20 24 28 32 36 40

Output Current (A)

Efficiency, η(%)

Vin = 36V Vin = 48V Vin = 75V

Ta = 25 Deg C.

iHA48040A033V-001 Power Dissipation

0 4 8 12 16 20 24 28 32 36 40

Output Current (A)

Power Dissipation (W)

Vin = 36V Vin = 48V Vin = 75V

Ta = 25 Deg C.

iHA48040A033V-001 Typical Efficiency vs. Output

Current at Ta=25 degrees.

iHA48040A033V-001 Typical Power Dissipation vs.

Output current at Ta=25 degrees

iHA48040A033V-001 Load Regulation

3.3006

3.3008

3.301

3.3012

3.3014

3.3016

3.3018

3.302

4 8 12 16 20 24 28 32 36 40

Output Current (A)

Output Voltage (V)

Vin = 36V Vin = 48V Vin = 75V

Ta = 25 Deg C.

iHA48040A033V-001 Typical Output Voltage vs. Load

Current at Ta = 25 degrees iHA48040A033V-001 Typical startup characteristic

from on/off at full load. Upper trace -on/off signal,

lower trace –output voltage

iHA48040A033V-001 Typical startup characteristic

from input voltage application at full load. Upper trace -

input voltage, lower trace –output voltage

iHA48040A033V-001 Typical transient response.

Load step from 50% to 75% of full load with 0.1A/uS.

Lower trace –output current , upper trace –output

voltage

Data Sheet: VetaiHA48040A033V*,3.3V/40A Output Half Brick Series

iHA Datasheet 040207

(877) 498

0099

8/17

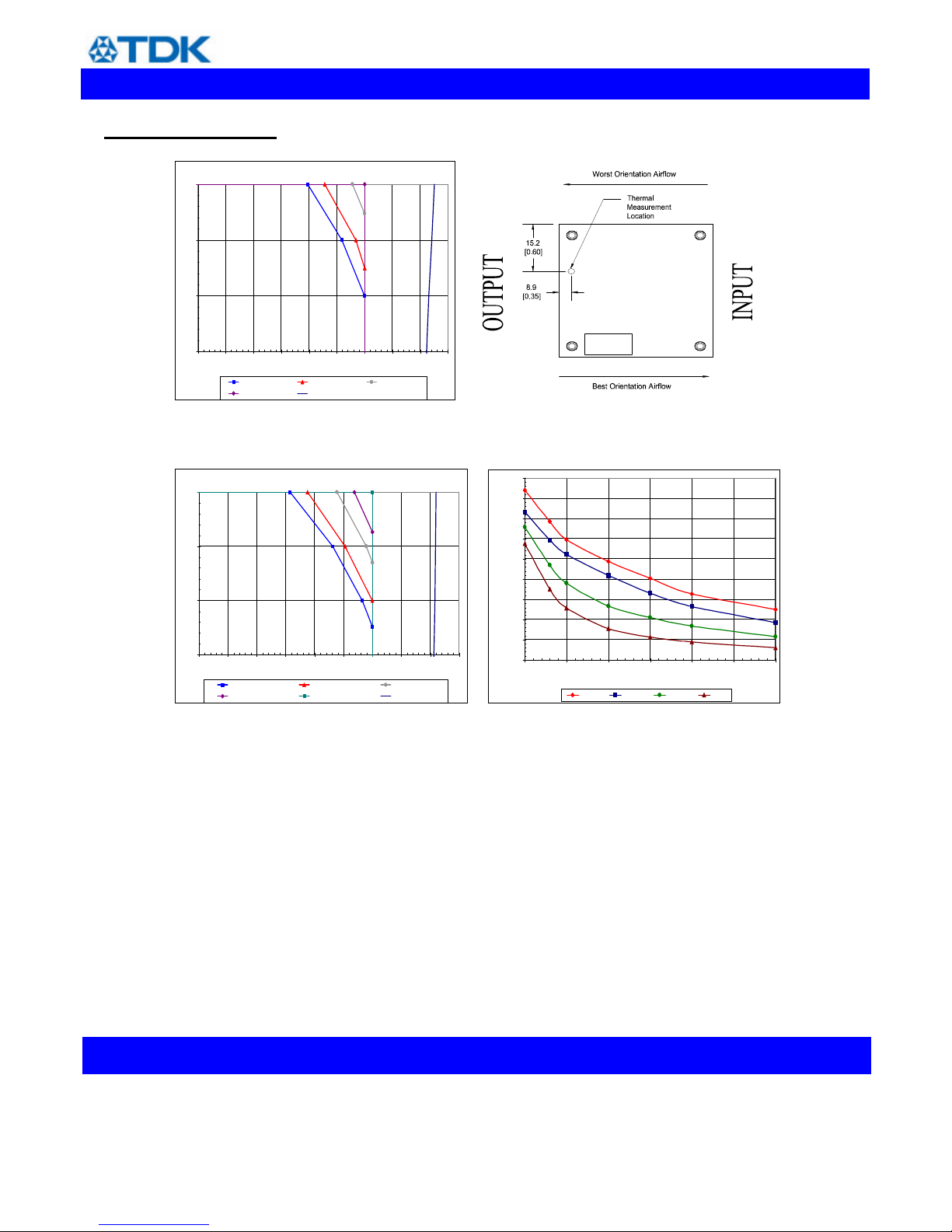

Electrical Characteristics (continued):

iHA48040A033V-001 Current Limit

5 10 15 20 25 30 35 40 45 50

Output Current (A)

Output Voltage (V)

Vin = 36V Vin = 48V Vin = 75V

Ta = 25 Deg C.

iHA48040A033V-001 Typical Output Current Limit

Characteristics vs. Input Voltage at Ta=25 degrees.

iHA48040A033V-001 Typical Output Ripple at nominal

Input voltage and full load with external capacitors

47uF+1uF+0.1uF at Ta=25 degrees

Input Current Vs. Input Voltage

30 35 40 45 50 55 60 65 70 75

Input Voltage (V)

Input Current (A)

Io_min = 4.02A Io_mid = 20.12A Io_max = 40.04A

Ta = 25 Deg C.

Output Voltage Vs. Input Voltage

30 32 34 36 38

Input Voltage (V)

Output Voltage (V)

Io_min = 4.02A Io_mid = 20.12A Io_max = 40.04A

Ta = 25 Deg C.

Vin decreasing

turn-off

Vin increasing

turn-on

iHA48040A033V-001 Typical Input Current vs. Input

Voltage Characteristics at Ta=25 degrees.

iHA48040A033V-001 Typical Output Voltage vs. Input

Voltage Turn-on / Turn-off Characteristics –low voltage at

Ta=25 degrees.

Output Voltage Vs. Input Voltage

76 78 80

Input Voltage (V)

Output Voltage (V)

Vin decreasing

turn-on Vin increasing

turn-off

Change

of Vout

Trim

Down

Resistor

(Kohm)

Change

of Vout

Trim Up

Resistor

(Kohm)

-3% 31.33K +3% 57.16K

-5% 18K +5% 34.57K

-10% 8K +10% 17.63K

e.g. trim up 5%

)(57.34

1%)51(2

225.13.3

Ω=

++⋅











−

=kRup

iHA48040A033V-001 Typical Output Voltage vs. Input

Voltage Turn-on / Turn-off Characteristics –high

voltage at Ta=25 degrees.

iHA48040A033V-001 Calculated resistor values for output

voltage adjustment

Data Sheet: VetaiHA48040A033V*,3.3V/40A Output Half Brick Series

iHA Datasheet 040207

(877) 498

0099

9/17

Electrical Characteristics (continued):

100

1000

0 10 20 30 40

% Decrease in Output Voltage, ∆(%)

Trim Resistance (k

Ω

)

100

1000

10000

0 2 4 6 8 10

% Increase in Output Voltage, ∆(%)

Trim Resistance (k

Ω

)

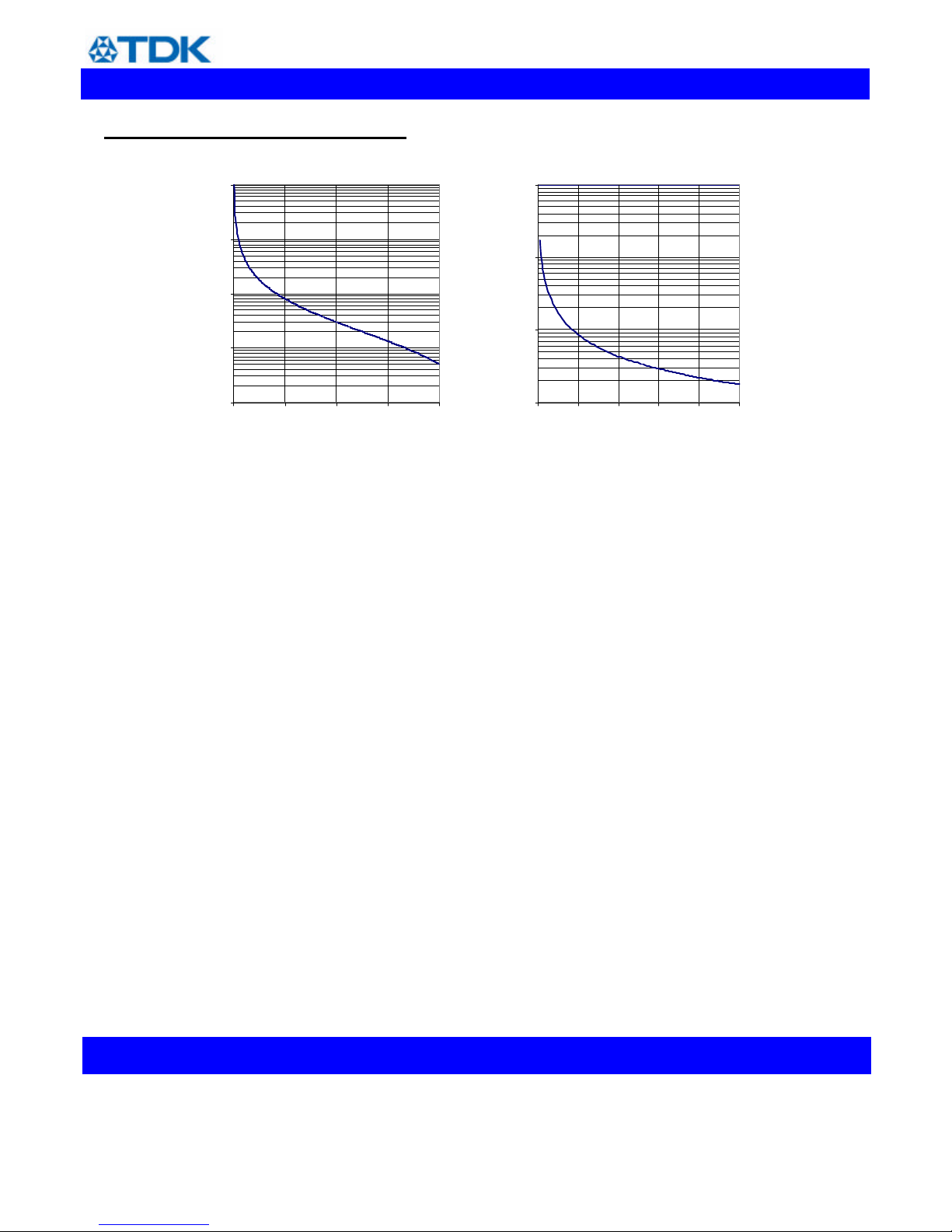

iHA48040A033V-001 Trim down curve for output

voltage adjustment iHA48040A033V-001 Trim up curve for output voltage

adjustment

Data Sheet: VetaiHA48040A033V*,3.3V/40A Output Half Brick Series

iHA Datasheet 040207

(877) 498

0099

10/17

Thermal Performance:

25 35 45 55 65 75 85 95 105 115

Ambient Temperature (oC)

Output Current (A)

NC 0.3 m/s (60 LFM) 0.5 m/s (100 LFM) 1.0 m/s (200 LFM)

1.5 m/s (300 LFM) IMS LIMIT

iHA48040A033V-001 maximum output current vs.

ambient temperature at nominal input voltage for airflow

rates natural convection 0.3 m/s (60lfm) to 3.0m/s

(600lfm) with airflow from output to input.

25 35 45 55 65 75 85 95 105 115

Ambient Temperature (oC)

Output Current (A)

NC 0.3 m/s (60 LFM) 0.5 m/s (100 LFM) 1.0 m/s (200 LFM)

1.5 m/s (300 LFM) 2.0 m/s (400 LFM) IMS LIMIT

0.5

1.0

1.5

2.0

2.5

3.0

3.5

4.0

4.5

5.0

00.5 11.5 22.5 3

Airflow, m/s

Case to Ambient Thermal Resistance,

ΘCA, oC/W

NO HS 1/4" HS 1/2" HS 1" HS

iHA48040A033V-001 maximum output current vs.

ambient temperature at nominal input voltage for airflow

rates natural convection 0.3 m/s (60lfm) to 3.0m/s

(600lfm with airflow from input to output.

iHA48040A033V-001 Case to Ambient Thermal

Resistance vs. Airflow rate

Indice

Altri manuali TDK Hardware per computer

TDK

TDK HHM Series HHM2202SA1 Manuale utente

TDK

TDK HHM Series HHM1713E2 Manuale utente

TDK

TDK HHM Series HHM1518A3 Manuale utente

TDK

TDK Xeta Half Brick-iHG Manuale utente

TDK

TDK HHM Series HHM1711E1 Manuale utente

TDK

TDK WiMAX HHM Series HHM1715E1 Manuale utente

TDK

TDK Powereta iQP48070A033V Manuale utente

TDK

TDK HHM Series HHM1763B2 Manuale utente

TDK

TDK DEA Series DEA200710LT-1238A1 Manuale utente

TDK

TDK DEA Series DEA202495BT-1242B2 Manuale utente

TDK

TDK Supereta iQM Series Manuale utente

TDK

TDK DEA Series DEA162500LT-1217A1 Manuale utente

TDK

TDK VLCF Series VLCF4024-2 Manuale utente

TDK

TDK Dualeta iQA Series Manuale utente

TDK

TDK HHM Series Manuale utente

TDK

TDK HHM Series HHM2409 Manuale utente

TDK

TDK DEA Series Manuale utente

TDK

TDK Supereta iQN48006A350V Manuale utente

TDK

TDK Belleta iEA Series Manuale utente

TDK

TDK FReta Series Manuale utente

TDK

TDK Powereta iQP48050A050V Guida di riferimento

TDK

TDK DEA Series DEA205375BT-2054A1 Manuale utente

TDK

TDK HHM Series HHM1727D1 Manuale utente

TDK

TDK SLF Series SLF12565 Manuale utente

Manuali Hardware per computer popolari di altre marche

EMC2

EMC2 VNX Series Manuale del proprietario

Panasonic

Panasonic DV0PM20105 Manuale utente

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manuale utente

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manuale utente

Raidon

Raidon iT2300 Manuale utente

National Instruments

National Instruments PXI-8186 Manuale utente

Hauppauge

Hauppauge WinTV-HVR-2250 Manuale utente

Kontron

Kontron CP6002 Manuale utente

Manhattan

Manhattan 702843 Manuale utente

Aphex

Aphex 230 Manuale utente

AMD

AMD Phenom II Manuale operativo

Intel

Intel NUC 12 Pro Manuale utente

dbx

dbx Zone Pro 1260 Manuale utente

Galaxy

Galaxy GHDX2-2430S-24F4D Manuale utente

Intel

Intel AXXRMFBU4 Manuale utente

Kontron

Kontron DIMM-PC/MD Manuale utente

ST X-NUCLEO-SAFEA1B Istruzioni operative

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manuale utente
