Teac LCDV2656HD Manuale utente

LCDV2656HD

LCDV3256HD

LCDV2656HD

LCDV3256HD

LCD Digital TVLCD Digital TV

Power Cord Connection

YPbPr Connection

HDMI Connection

VGA(PC) Connection

Antennas Connection

COAX Connection

USB PORT FUNCTION

AV Connection

Remote control instructions in TV mode

Remote control instructions in DTV/USB mode

Remote control setup

Remote control instructions in TELETEXT mode

Remote control instructions in DVD mode 14

SOUND MENU

PICTURE MENU

TIME MENU

LOCK MENU

CHANNEL MENU

EPG and Channel List MENU

INPUT SOURCE

Multimedia(USB) MENU

DVR MENU

OPTION MENU

INSTALLATION GUIDE

SAFETY

PRECAUTIONS

SAFETY

PRECAUTIONS

PREFACEPREFACE

FRONT BACK

CONNECTIONS

OF LCD

FRONT BACK

CONNECTIONS

OF LCD

REMOTE CONTROLREMOTE CONTROL

BASIC

INSTALL TION

BASIC

INSTALLATION

IN THE CARTONIN THE CARTON

77MENU

OPERATION

SPECIFICATIONSSPECIFICATIONS

TROUBLESHOOTING

AND ADVICE

TROUBLESHOOTING

AND ADVICE 47

General Setup

DVD OPERATIONDVD OPERATION

1010

Audio Setup

Dolby Digital Setup

Preference Setup

1 PREFACE. 1. PREFACE

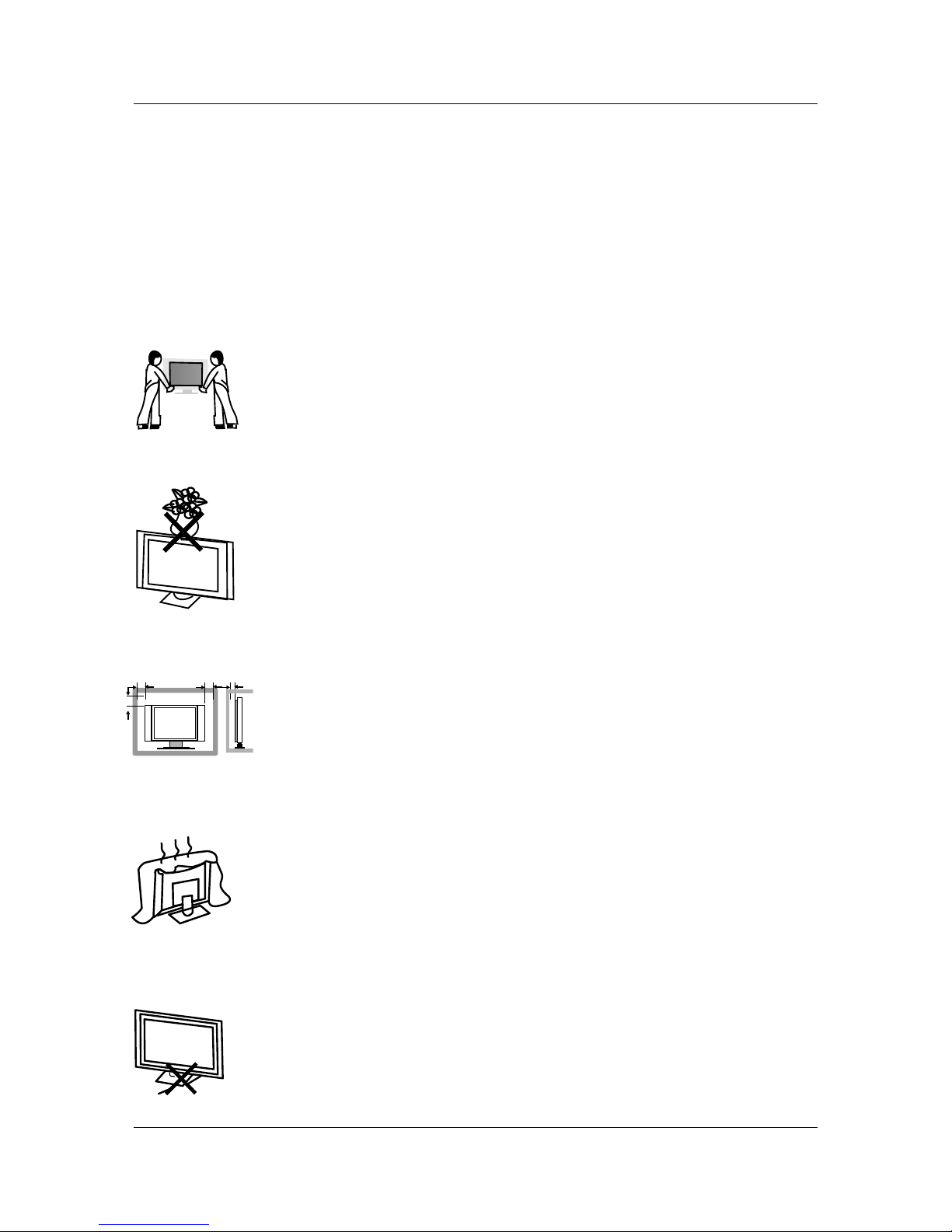

2 SAFETY PRECAUTIONS. 2. SAFETY PRECAUTIONS

Power cord and cables must be properly routed and protected to prevent

people from stepping on them and causing the TV to fall.

Minimum distances

10cm

20cm

10cm 5cm

Put the TV on a stable surface.

Do not place any material on the TV.

Do not block or cover the ventilation openings on the TV.

Do not use the TV with fixtures other than those provided or

suggested by the manufacturer.

Thank you for Choosing this TEAC product. Before operating the TV, please read and follow all

instructions and heed all warning.

Please keep these instructions for future reference.

Please note the diagrams in this manual are for reference only, your unit may differ slightly.

Keep the TV away from heat sources.

Unplug the TV before cleaning it. Do not use solvent or liquid to clean

the TV.

Only clean the TV with a soft and dry cloth.

Unplug the TV during lightning storms or when unused for long periods

of time.

Keep the TV dry and away from humidity.

Do not subject the TV to dripping liquids or moist environments.

Do not place any vessels containing liquids on or near the TV such as

vases,cups, etc.

If the following problems occur,turn off the TV set and unplug the AC power

cord immediately:

- AC power cord is damaged.

- Poor fitting AC power outlet.

- TV set is damaged by being dropped, hit or having something thrown at it.

- Any liquid or solid object has fallen through the openings in the cabinet.

NEVER attempt to repair the unit yourself. Contact your dealer or the

TEAC Customer Care Centre (see back page for details) to have your

unit checked and repaired by approved service personnel.

3 . IN THE CARTON3 . IN THE CARTON

Please make sure the following items are included in your package.

If any items are missing,please contact your dealer.

2 x AAA Battery2 x AAA Battery

User ManualUser Manual

Remote ControlRemote Control

LCD TV SETLCD TV SET

1.5V

User Manual

Power CablePower Cable

R.LIS T T.LIST

Quick Start Guide

Quick Start Guide Quick Start Guide

1. Press“ VOL+/VOL-”to increase or decrease the sound level.

2. Press“ CH+/CH-”to scan through channels.

3. Press “MENU”to bring up the main menu on the screen.

4. Press“INPUT”to select the input source.

5. on or off.

6. Insert the DVD with the label toward the device’s back panel into the DVD slot on the right side of

you TV set. Only push the DVD slightly until the unit feeds it automatically.

7. PLAY/PAUSE in DVD mode.

8. OPEN/CLOSE in DVD mode.

9. STOP in DVD mode.

10. POWER INDICATOR: show red in

standby mode, show green or blue

when your TV is switched on.

11. REMOTE SENSOR: infrared

sensor for the remote control.

Press“POWER” button to turn the TV

DVD(LABEL SIDE)

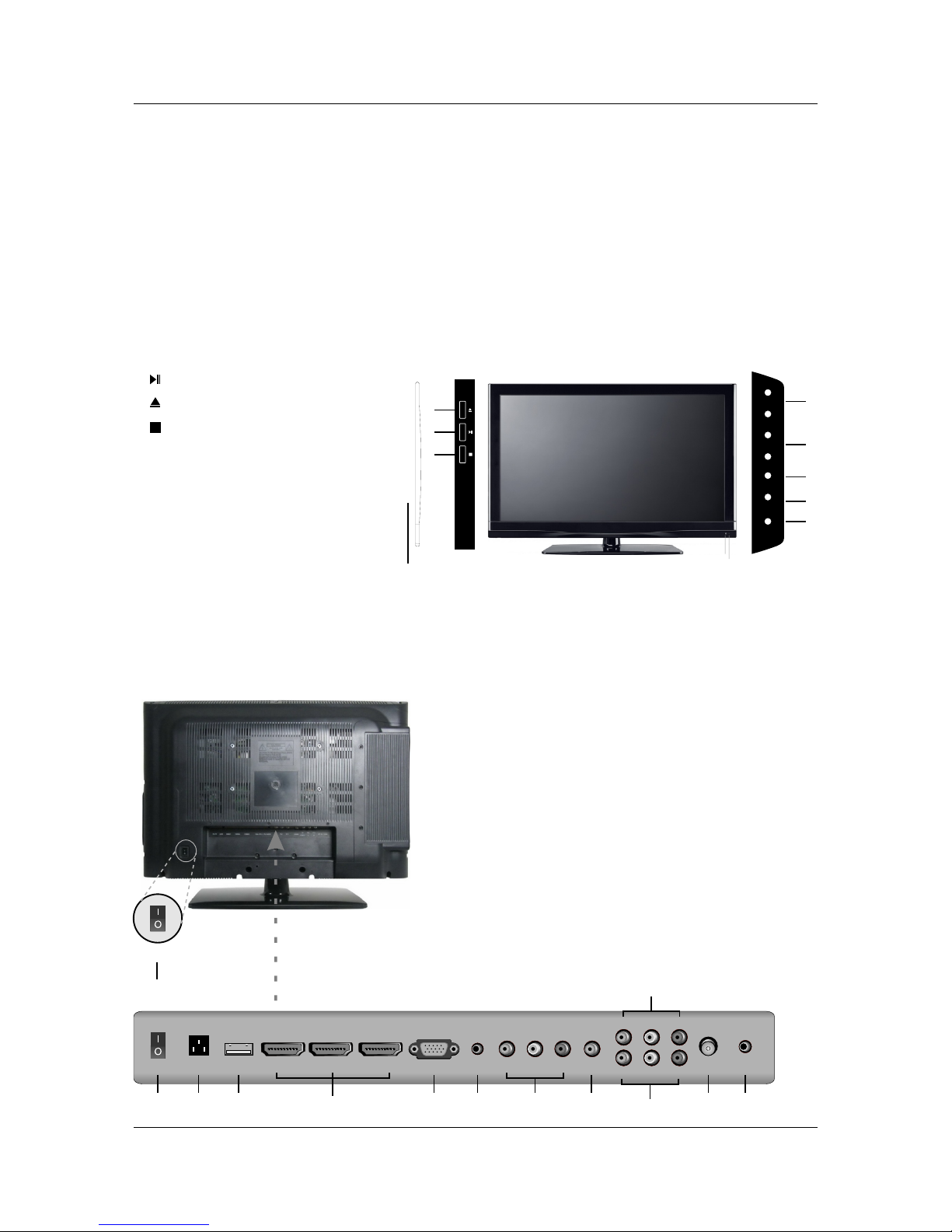

4 FRONT , BACK , CONNECTIONS OF LCD. 4. FRONT , BACK , CONNECTIONS OF LCD

Front View

Back View and Control Connections

1 POWER Power on off the TV set

2. AC IN: Main power input.

3 USB : Connect to the External drive.

4. HDMI1 HDMI2 HDMI3: Connect to the HDMI output jack

5. VGA(PC): Connect to the PC-RGB output jack of PC.

6. PC AUDIO : Connect the Audio output jack of PC.

7. YPbPr1/YPbPr2: Connect the YPbPr output jack of DVD

or VCR.

8. COAX: Connect the SPDIF receiver.

9. VIDEO Audio L R : Connect to the Video output jack

of DVD or VCR.

10. RF IN: Connect the antenna.

11. PHONE: Connect the headphone.

. : / .

PORT

/ /

of DVD

/ ( / ) /Audio

VGA(PC)VGA(PC)

USBUSB HDMI1HDMI1 HDMI2HDMI2 HDMI3HDMI3

AUDIO

O XC A

PHONEPHONE

RF IN RF IN

458 9

Pb1Pb1 Pr1Pr1

Y1Y1

Pb2Pb2 Pr2Pr2

Y2Y2

LLRR

VIDEOVIDEO

AC INAC IN

167

VOL+

INPUT

POWER

POWERPOWER

CH+

VOL+

CH-

Off

POWER(LCDV2656HD)POWER( )

(LCDV3256HD)
