Technoline WT 499 Manuale utente

P. 1

Instruction Manual

WT 499 Radio Controlled Clock with Wake-up-Light and Mood Light

P. 2

Words in the figure:

Figure 1: ENGLISH OTHER LANGUAGE

DATE OF WEEK

ALARM 2

DATE / MONTH

ALARM 1

TIME

SNOOZE ICON

SECOND

RCC INDICATOR

TEMPERATURE

SET

ALARM 2

SNOOZE / LIGHT

ALARM 1

ALARM ON – OFF

WAVE / DOWN / °C/°F

RESET

DC SOCKET

AC/DC ADAPTOR

INERT AC/DC ADAPOR JACK

INSERT 3 x AAA BATTERIES

INSIDE THE BATTERY

COMPARTMENT

BATTERY DOOR

P. 3

Feature Lists:

•

DCF Radio Controlled Clock

•

Gentle Wake-Up-light 15 or 30 minutes before alarm time

•

Power-saving Super Bright white LED Light with 15-level brightness control

•

Color changing LED mood light

•

Dual alarm

•

12 HR / 24 HR time format

•

Indoor Temperature with degree C / F readout

•

Automatic dimmer of LCD backlight by light sensor

•

Programmable snooze duration from 5 – 60 minutes

•

Battery back-up (3 x AAA batteries, not included)

•

External power saving AC/DC adaptor (included)

INSTALLATION

For best reception of radio controlled signal, keep your clock close to a window and away from metal

surfaces, electrical appliances and magnetic fields. Keep your clock at least 3 feet away from the AC

outlet or the AC/DC adaptor. Plug the AC/DC adaptor to an AC household outlet, and then plug the DC

jack to the back of the clock. Your clock is ready to work for you.

BATTERY BACK-UP INSTALLATION

1. Slide opens the battery cover at the bottom of your unit.

2. Insert 3 x AAAbatteries into the battery compartment by observing the correct + / - polarity signs.

3. Replace the battery cover.

4. When only batteries are being used, the always-on backlight, wake-up-light and the color

changing light functions are disabled.

ENVIRONMENTAL RECEPTION EFFECTS

Your radio controlled clock obtains the accurate time with wireless technology. Same as

All wireless devices, the receiving ability maybe affected by, but not limited to, the following

circumstances:

Long transmitting distance Inside concrete buildings

Nearby mountains and valleys Near electrical appliances

Among tall buildings Neat computers and TV’s

Near railway, high voltage cable etc. Inside moving vehicles

Near freeway, airport, etc Near metallic structures

Near construction site

P. 4

Place your clock at a location with optimal signal, i.e. close to a window and way from metal surfaces

or electrical appliances.

DCF SINGAL RECEPTION AND SIGNAL INDICATOR

After your clock is powered up, it starts to receive DCF signal. The icon flashes.

Weak or no DCF signal (only icon flashing)

Receiving strong DCF signal ( icon flashing)

Successful Reception ( icon becomes static)

Failed Reception ( icon disappear)

Automatic reception and Manual Reception

Your clock starts automatic reception everyday at 1:00, 2:00, 3:00. If it fails to receive the DCF time

signal at 3:00, it will start reception at 4:00. If it fails again it will start reception at 5:00. If it fails

again it will start automatic reception at 1:00 again in the next day.

Manual reception: press and hold / button until you hear a short beep to start manual

reception. Press and hold / to stop reception.

Remark: when your clock is receiving radio controlled time signal, the wake-up-light and color

changing light functions are disabled, and all buttons do not function until the reception is finished.

TO SET CALENDAR, 12/24 TIME AND TIME

1. Press and hold SET for 2 seconds, time digits change to “24 Hr” and flash, press / to

select “12 Hr” time format or “24 Hr” time format. When 12HR is selected, AM or PM

will be displayed.

2. Then press SET once again, time digits change to “00”and flash. Press / button to

select the time zone:

“00” = GMT +1 hour (e.g. Germany)

“01” = GMT +2 hours (e.g. Finland)

“-01” = GMT 00 hour (e.g. U.K.)

3. Then press SET once again, hour digits flash. Press / button to set hour.

4. Then press SET once again, minute digits flash. Press / button to set minute.

P. 5

5. Press SET once again, the LCD display shows Zz and “05” flashes, press / to set

snooze duration from 5 to 60 minutes.

6. Then press SET once again, time digits change to year “2011” and flash. Press / to set

the year.

7. Then press SET once again, month digits flash. Press / button to set month.

8. Then press SET once again, date digits flash. Press / button to set date.

9. Then press SET once again, day of week digits flash. Press / button to select the language

of day of week.

EN = English DU = Dutch

GE = German SP= Spanish

FR = French DA = Danish

IT = Italian

10. Press SET to return to time display, or it will return to time display in around 10 seconds if no

further press of any other buttons.

TO SET ALARM 1 and 2

Press and hold AL1 until the LCD displays “6:00” and “A1” appears at the lower right LCD. The hour

digits flash. Then press / to set your desired hours ofAlarm 1.

Press AL1 once again, minute digits flash. Press / to set your desired minutes ofAlarm 1.

Press AL1 once to return to time display or it will return to time display in around 10 seconds if no

further press of any other buttons.

To set Alarm 2, press and hold AL2 until the LCD displays “6:00” and “A2” appears at the lower right

LCD.Repeat the above steps to set Alarm 2.

TO TURN ON OR OFF YOUR ALARM

Press ALM ON.OFF one at a time to turn on or off Alarm 1 and / or Alarm 2. When the alarm function

is turned on, the and/or appears between the hour and minute digits. To turn off both alarms,

press ALM ON.OFF one at a time until both and icons disappear.

P. 6

TO USE SNOOZE ALARM

When time reaches your set alarm time, your clock will give beep sound to wake you up. The

and/or icon will flash.

1) Press SNOOZE on the middle top once to stop the alarm temporarily, the “Zz” icon keeps flashing.

The alarm will beep again according to the setting of your snooze duration.

2) To stop the alarm, when the alarm is beeping, press ALM ON.OFF once, the alarm beep will stop

and the and/or icon becomes static, alarm will beep again same time next day.

Alarm Duration: 2 minutes

TO TURN ON/OFF THE WAKE-UP LIGHT FEATURE

Press and hold SNOOZE . LIGHT until the display shows and “OFF” flashes. Then press /

to select:

15 : turns light on and get brighter gently 15 minutes before your set alarm time

30 : turns light on and get brighter gently 30 minutes before your set alarm time

OFF : turn off the Wake-Up-Light feature

Press SNOOZE . LIGHT again to return to normal time display.

TO USE THE WHITE LED LIGHT OR THE COLOR CHANGING MOOD LIGHT

1. Press the top SNOOZE . LIGHT to turn on the white LED light. The LCD display

shows L09, which is the default brightness of the white LED light. You could press /

one at a time to increase or reduce the brightness Level from 0 (lowest) to L15 (highest).

2. Touch the top SNOOZE . LIGHT again to turn on the color changing mood light.

3. Touch the top SNOOZE . LIGHT again to fix a color of your mood light.

4. Touch the top SNOOZE . LIGHT again to turn off all the light function.

The LCD display will return to time display in around 10 seconds if there is no further press of any

button.

AUTOMATIC LIGHT SENSOR

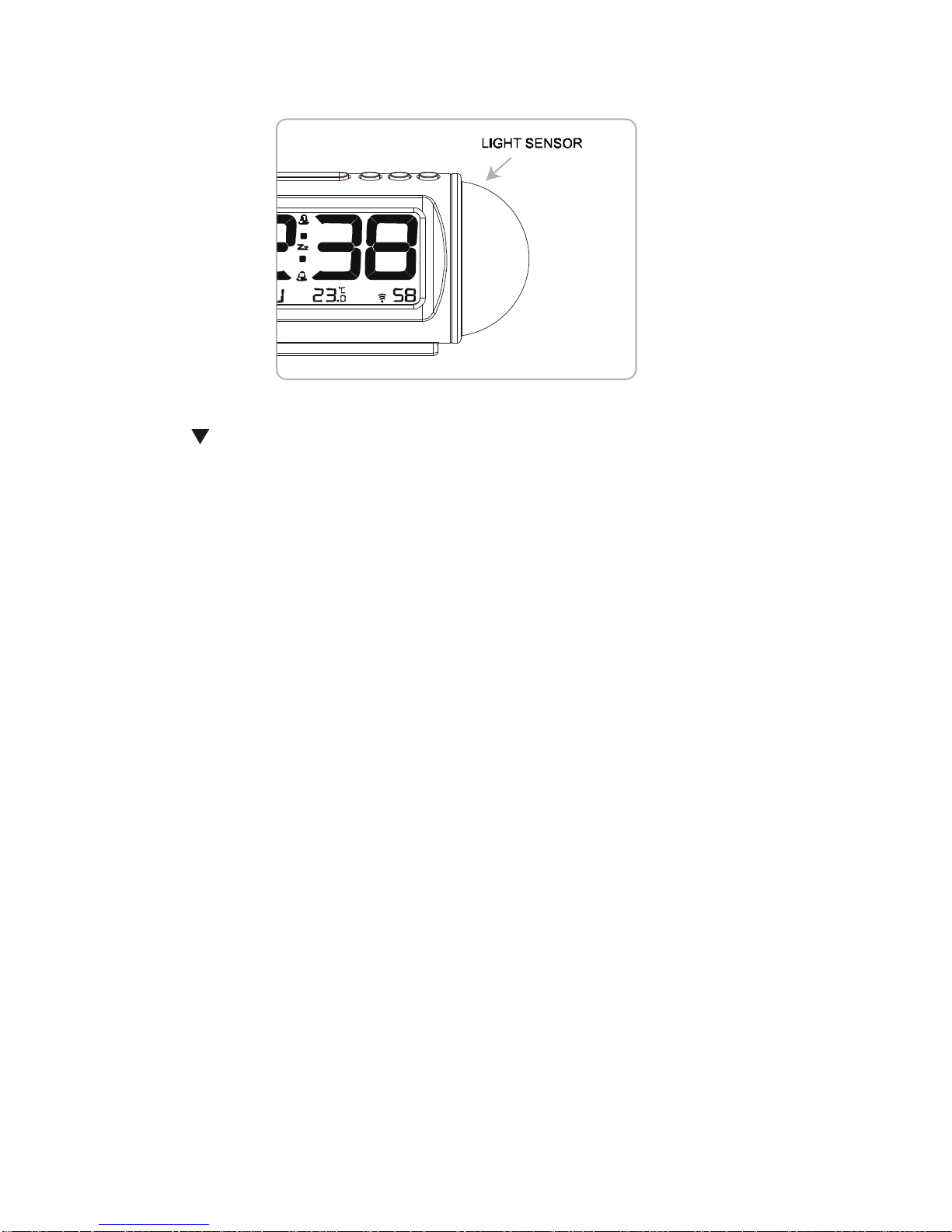

Your clock is equipped with an automatic light sensor on the right cover. The brightness of backlight

will be adjusted to lower level when your room environment is dim or dark.

P. 7

Please keep your clock at least 10cm distance away from any objects on top of this light sensor

position.

TO DISPLAY TEMPERATURE IN DEGREE °C OR °F

Simply press (°C/°F) once to display temperature in degree °C or degree °F.

TROUBLE SHOOTING

In case your clock shows irrelevant information or digits, it maybe affected by electrostatic discharge

or interferences from other devices. Press the RESET button on the left top of your clock. Your clock

will be reset to default setting of time and calendar and it will start to receive radio controlled time

signal again.

CARE OF YOUR RADIO CONTROLLED CLOCK

1. Do not expose the unit to extreme temperature, water or direct sunlight

2. Avoid contact with any corrosive materials

3. Do not subject the unit to excessive force, dust or humidity

4. Do not open the inner back case or tamper with any components of this unit

SPECIFICATIONS

Indoor Temperature Range 0C to +50C (32F to +122F)

Temperature Resolution 0.1C

Alarm Duration 2 minutes

Snooze Duration 5-60 minutes
