Tecno SPARK 6 Go Manuale utente
مﺪﺨﺘﺴﳌا ﻞﻴﻟد
User Manual
Manuel d’utilisateur
A
مﺪﺨﺘﺴﳌا ﻞﻴﻟد
KE5 :ﻒﺗﺎﻬﻟا زاﺮﻃ
ﻒﺗﺎﻬﻟا اﺬﻫ نﺄﺑ TECNO MOBILE LIMITEDﺔﻛﴍ ﻦﻠﻌﺗ ،ﺔﻘﻴﺛﻮﻟا هﺬﻫ ﺐﺟﻮ
.وروﻷا دﺎﺤﺗﻻا/53/2014 ﺔﻠﺼﻟا تاذ ﺔﻴﻬﻴﺟﻮﺘﻟا مﺎﻜﺣﻷاو ﺔﻴﺳﺎﺳﻷا تﺎﺒﻠﻄﺘﻤﻠﻟ ﻞﺜﺘ
Mobile Phone
Model：KE5
Hereby, TECNO MOBILE LIMITED
declares that this Mobile Phone is in compliance
with the essential requirements and other relevant
provisions of Directive 2014/53/EU.
Téléphone portable
Modèle: KE5
Par la présente, TECNO MOBILE LIMITED
déclare que ce téléphone mobile est conforme
aux exigences essentielles et aux autres
dispositions pertinentes de la directive
2014/53/UE.
01
1.الكاميرا الأمامية
2. مفتاح مستوى الصوت
3. مفتاح التشغيل والإيقاف
ﻚﻔﺗﺎﻫ ﻒﺸﺘﻛا
1. Front camera
2. Volume key
3. Power key
1.Appareil photo frontal
2.Touche de volume
3.Bouton d’alimentation
Know your phone
Connaître votre téléphone
02
Installation de la carte SIM/SD
ةﺮﻛاﺬﻟا ﺔﻗﺎﻄﺑو SIM ﺔﻗﺎﻄﺑ ﺖﻴﺒﺜﺗ
ﻒﺗﺎﻬﻟا ﻞﻴﻐﺸﺗ فﺎﻘﻳﺈﺑ ﻢﻗ.1
.ةرﻮﺼﻟا ﰲ ﺒﻣ ﻮﻫ ﻛ ةﺮﻛاﺬﻟا ﺔﻗﺎﻄﺑو SIM ﺔﻗﺎﻄﺑ ﻞﺧدأ .2
SIM/SD card installation
1. Power off mobile.
2. Refer to the following picture for SIM / SD
card installation.
1. Éteignez le mobile.
2. Reportez-vous à l'image suivante pour
l'installation de la carte SIM/SD.
03
Charging the phone
You can charge your device using a
charger or by connecting it to the
computer using a USB cable (comes
with the phone).
1. Please remind the front and back of
the plug.
2. Use only TECNO charger and cables.
Other chargers or cables may damage
the device. This will invalidate your
phone warranty.
04
ﻒﺗﺎﻬﻟا ﻦﺤﺷ
ﻪﻠﻴﺻﻮﺗ ﻖﻳﺮﻃ ﻦﻋ وأ ﻦﺣﺎﺷ ماﺪﺨﺘﺳﺎﺑ كزﺎﻬﺟ ﻦﺤﺷ ﻚﻨﻜ
.(ﻒﺗﺎﻬﻟا ﻊﻣ ﺮﻓﻮﺘﻳ) USB ﻞﺒﻛ ماﺪﺨﺘﺳﺎﺑ ﺮﺗﻮﻴﺒﻤﻜﻟا زﺎﻬﺠﺑ
.هﺮﻬﻇو ﺲﺑﺎﻘﻟا ﻪﺟو ﺑ ﺰﻴﻴﻤﺘﻟا ﻰﺟﺮُﻳ .1
ﺐﺒﺴﺘﺗ ﺪﻗ .TECNO ﻦﺣﺎﺷ وأ تﻼﺑﺎﻛ ﻂﻘﻓ مﺪﺨﺘﺳا .2
ﻪﻧﺄﺷ ﻦﻣ اﺬﻫو .زﺎﻬﺠﻟا ﻒﻠﺗ ﰲ ﺔﻔﻠﺘﺨﳌا تﻼﺑﺎﻜﻟا وأ ﻦﺣاﻮﺸﻟا
.ﻚﻔﺗﺎﻫ نﺿ ﻞﻄﺒُﻳ نأ
05
Charger le téléphone
Vous pouvez charger votre appareil à
l'aide d'un chargeur ou en le
connectant à l'ordinateur à l'aide d'un
câble USB (fourni avec le téléphone).
1. Ne mélangez pas l'avant et l'arrière
de la fiche.
2. Utilisez uniquement le chargeur et les
câbles TECNO. D'autres chargeurs ou
câbles peuvent endommager
l'appareil. Cela annulera la garantie
de votre téléphone.
Operating Frequency Band (RF)：
E-GSM900: 880-915MHz (TX),
925-960MHz (RX);
DCS1800: 1710-1785MHz (TX),
1805-1880MHz (RX);
WCDMA BAND I: 1920-1980MHz (TX),
2110 -2170MHz (RX);
WCDMA BAND VIII: 880-915MHz (TX),
925-960MHz (RX);
LTE BAND 1:1920-1980MHz
(TX),2110-2170MHz (RX);
LTE BAND 3:1710-1785MHz
(TX),1805-1880MHz (RX);
LTE BAND 7:2500-2570MHz
(TX),2620-2690MHz (RX);
LTE BAND 8:880-915MHz
(TX),925-960MHz (RX);
LTE BAND 20:832-862MHz
(TX),791-821MHz (RX);
LTE BAND 38:2570-2620MHz
(TX),2570-2620MHz (RX);
LTE BAND 40:2300-2400MHz
(TX),2300-2400MHz (RX);
BT: 2402-2480MHz (TX/RX);
Wi-Fi: 2412-2472MHz (TX/RX);
GPS:1.57542GHz
FM:87.5-108 MHz
Modulation mode：
GMSK, 8PSK (GSM)
BPSK,QPSK,16-QAM (WCDMA)
QPSK, 16-QAM, 64-QAM (LTE)
GFSK, π/4-DQPSK, 8DPSK (BT)
GFSK (BLE)
06
DSSS (DBPSK, DQPSK, CCK) for IEEE
802.11b
OFDM (BPSK, QPSK, 16QAM, 64QAM)
for IEEE 802.11g/n HT-20/ n HT-40 (WIFI)
BPSK (GPS)
FM
RF output power：
GSM900: 33dBm±2dB
DCS1800: 30dBm±2dB
WCDMA BAND I/VIII:
24dBm+1.7dB/-3.7dB
LTE BAND 1/3/7/8/20/38/40:
23dBm+2.7dB/-2.7dB
BT: 0-10dBm
WiFi: 14dBm+/-3dB
Specific Absorption Rate (SAR)
Certification
THIS DEVICE MEETS INTERNATIONAL
GUIDELINES FOR EXPOSURE TO RADIO
WAVES
07
Body parts Test value Test distance Limit
Head 1.05 W/Kg 10g 0cm 2.0 W/Kg 10g
Body 0.832W/Kg 10g 0.5cm 2.0 W/Kg 10g

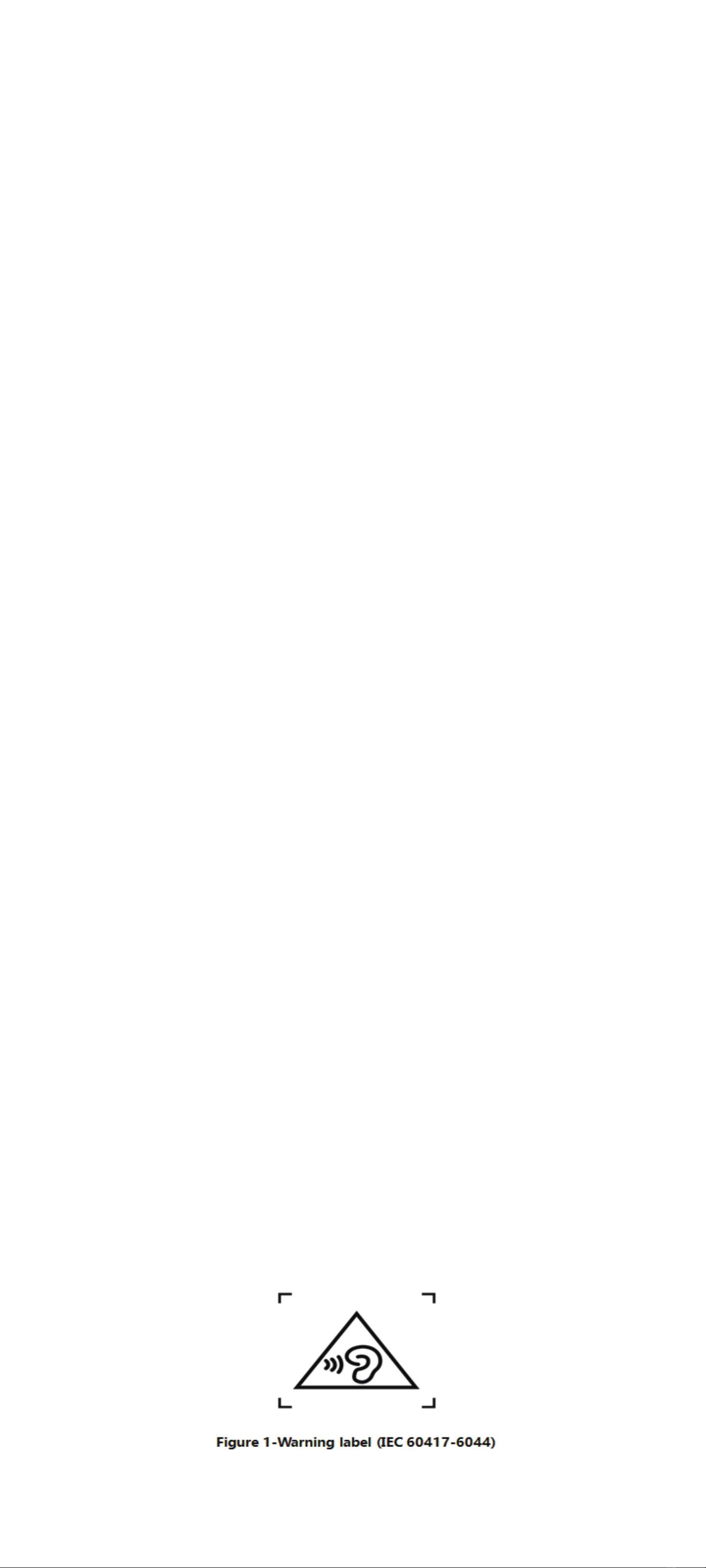

CAUTION：
1. Use careful with the earphone maybe
excessive sound pressure from earphones
and headphones can cause hearing loss.
2. Risk of explosion if battery is replaced
by an incorrect type, dispose of used
batteries according to the instructions.
3. The product shall only be connected to
a USB interface of version USB 2.0.
4. Adapter shall be installed near the
equipment and shall be easily accessible.
5. EUT Temperature: -10~+65℃
(Standalone); 0~+40℃(with adapter).
Adapter1: CU-52AT
Input: AC 100-240V~50/60Hz,200mA
Output: DC 5V 1.2A
Adapter2:U060TKA
Input: AC 100-240V~50/60Hz,300mA
Output: DC 5V 1.2A
Adapter3:U100TKA
Input: AC 100-240V~50/60Hz,400mA
Output: DC 5V 2.0A
Adapter4: XCU32
Input: AC 100-240V~50/60Hz,500mA
Output: DC 5V 2.0A
7. The device complies with RF
specifications when the device used at 5
mm from your body, and the holder must
not be of metal composition.
8. To prevent possible hearing damage,
do not listen at high volume levels for long
periods.
9. Earphone and USB cable are shielded.
08
