Quick Start Guide
1. Before you begin
2. Unpack

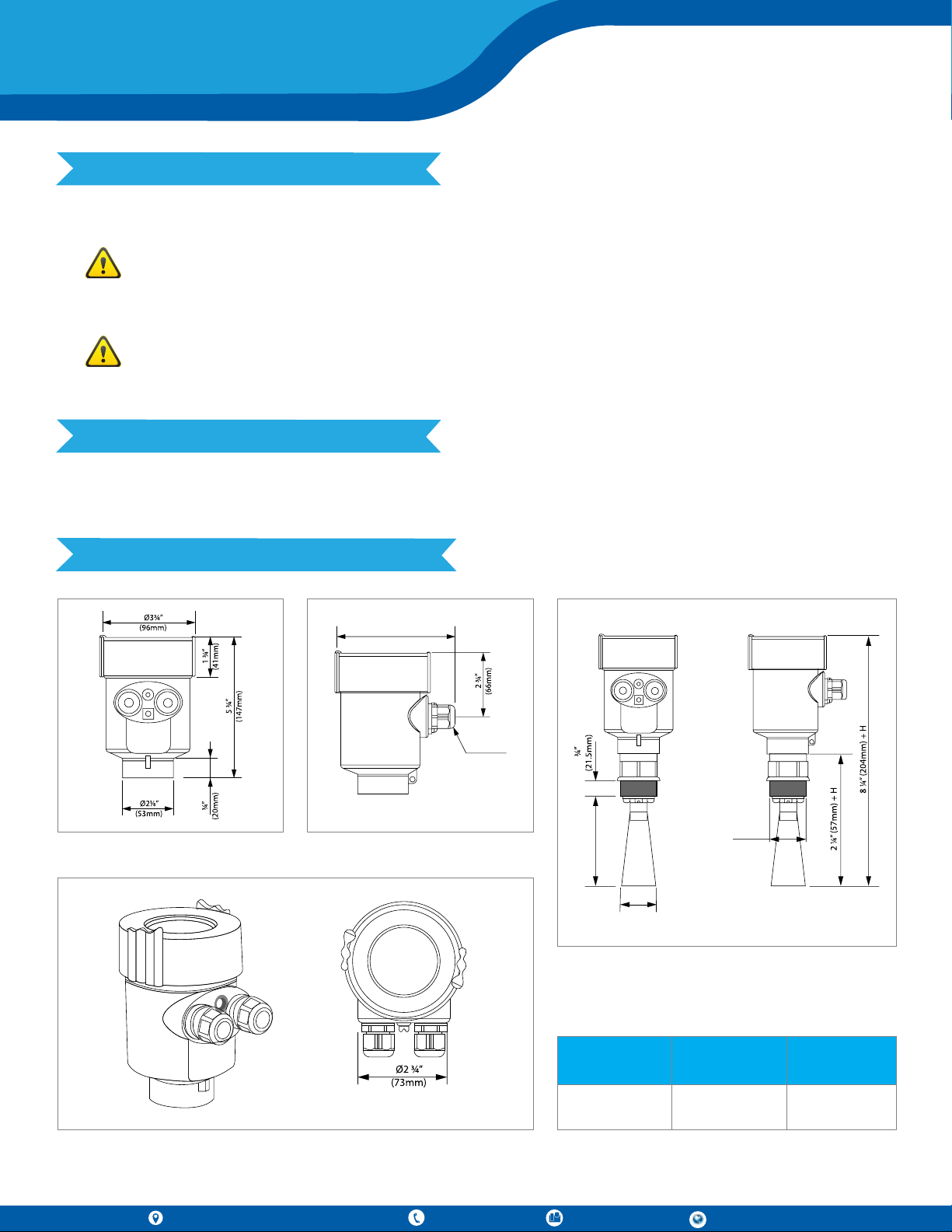

3. Dimensional Drawing
This guide provides basic guidelines to assist you in quickly getting started.
Installation of the device must be carried out by trained, qualified specialists authorized
to perform such work by the facility’s owner operator. The specialist must have read and
understood these Operating Instructions and must follow the instructions they contain.
When using the measuring device in hazardous areas, installation must comply with the
corresponding national standards and regulations.

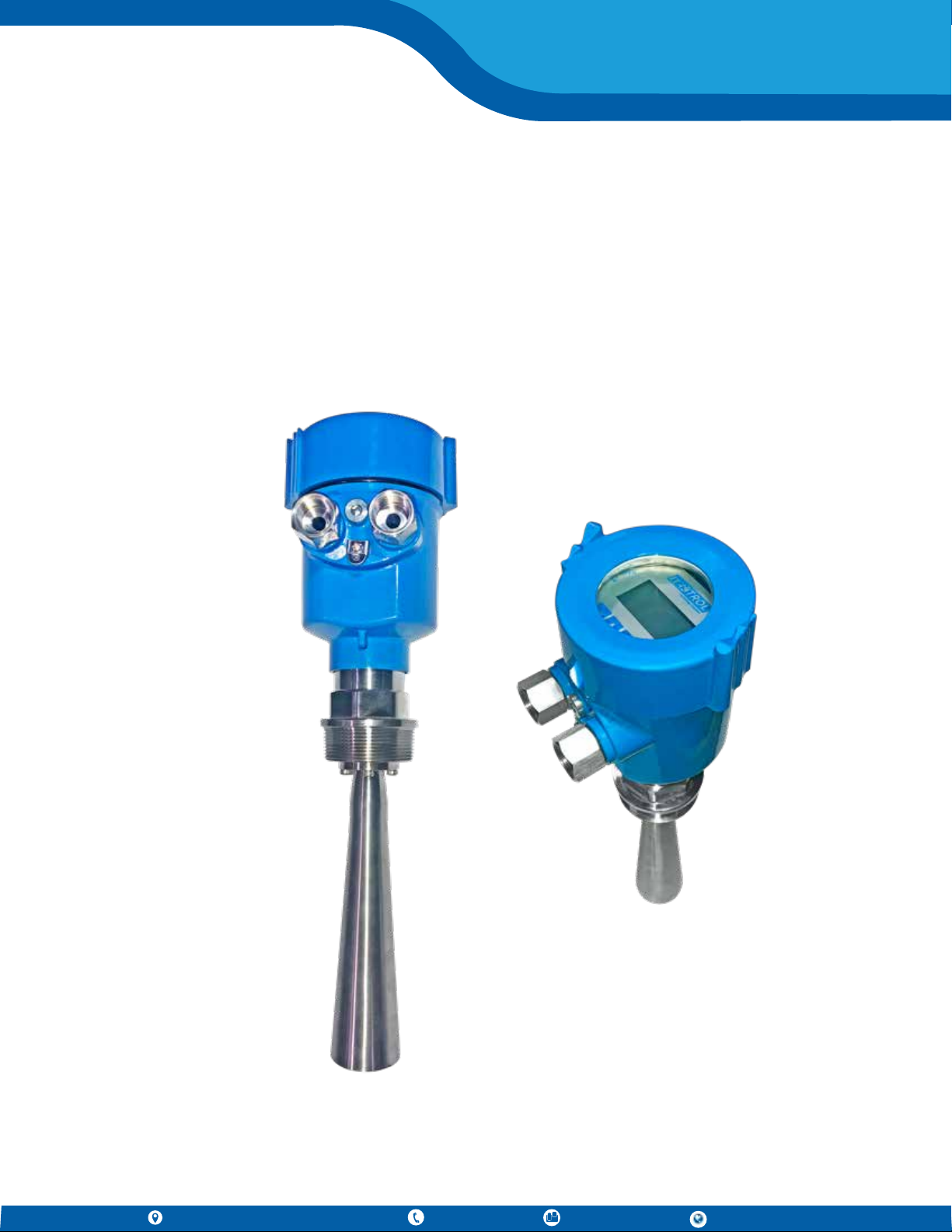

Tek-Wave 4300C Free Space Radar Level Transmitter
Ø5
(125mm)
2” NPT
H
D
Line Size
in (mm)
D
in (mm)
H
in (mm)
2” (50) 1 ¾” (φ46) 5 ½” (140)
Fig 1: Front view
Fig 3: Top View
Fig 2: Side View
Fig 4: Tek-Wave 4300C Free Space Radar Level
Transmitter
½” NPT
TEK-WAVE 4300C
Technology Solutions

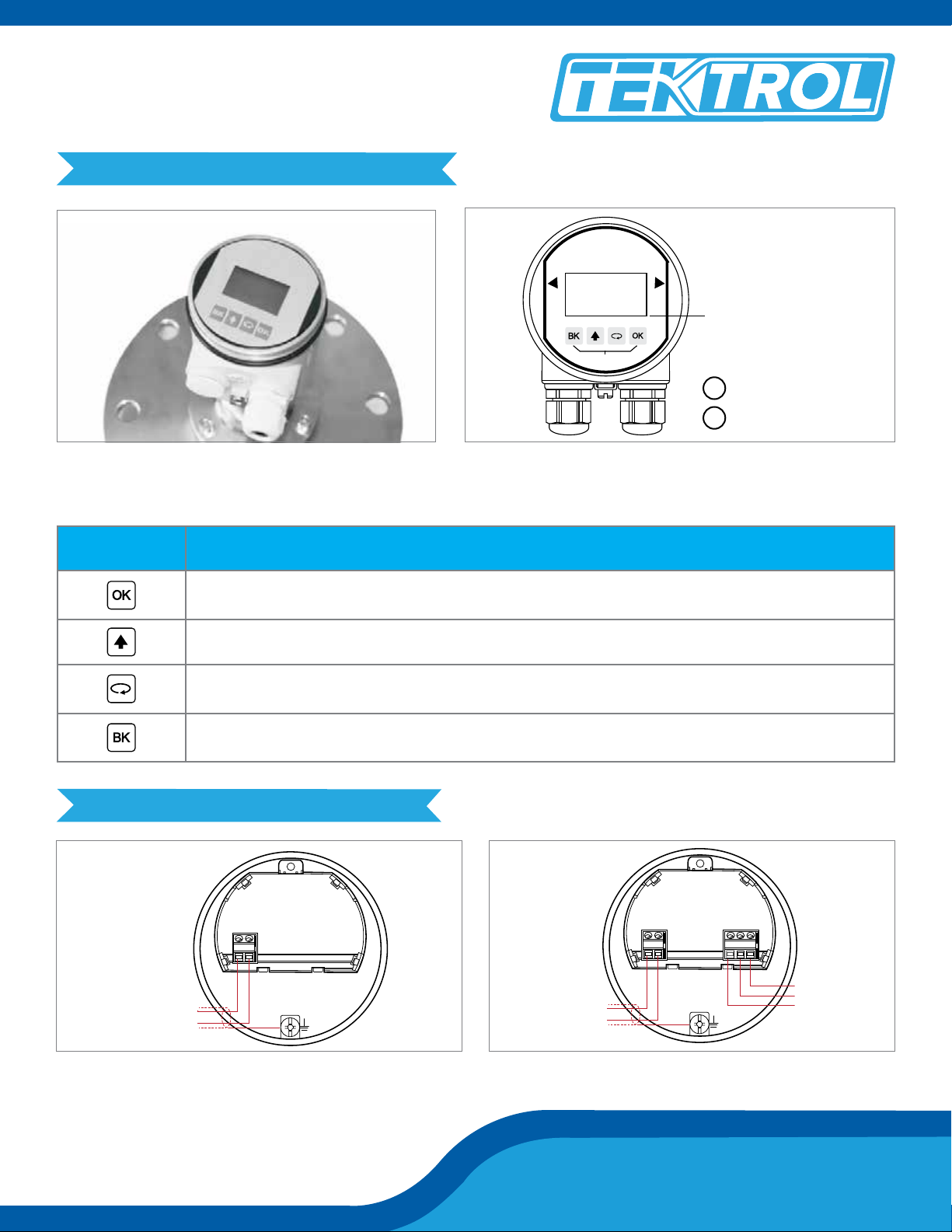

4. Display
Fig 5: Display of Tek-Wave 4300C
Fig 6: Two-Wire System Wiring Diagram Fig 7: 24V RS485/Modbus Wiring Diagram
Table 1: Display Keys and its function
LCD
Adjustment keypad
1
2
Display Key Function
Enter programming mode;
Conrm programming options and modications to parameters
Modify parameter values and select display mode
Select programming options and digit of parameters to edit;
Display the contents of parameters
Exit programming mode and return to higher menu level;
Display Echo Wave
OP
E
N
LOCK
②
①
5. Power Supply
+ -
+
-
12
(4~20)mA
+ -
+
-
1234 5
6~24vDC
RS 485
796 Tek Drive, Crystal Lake, IL 60014 USA +1 847 857 6076 +1 847 655 6147 www.tek-trol.com
Quick Start Guide
6. Communication
• Display or Key
• Upper Computer Debugging
• HART Handheld Programmer Programming
Display
Key
1
2
Fig 8: Display or Key

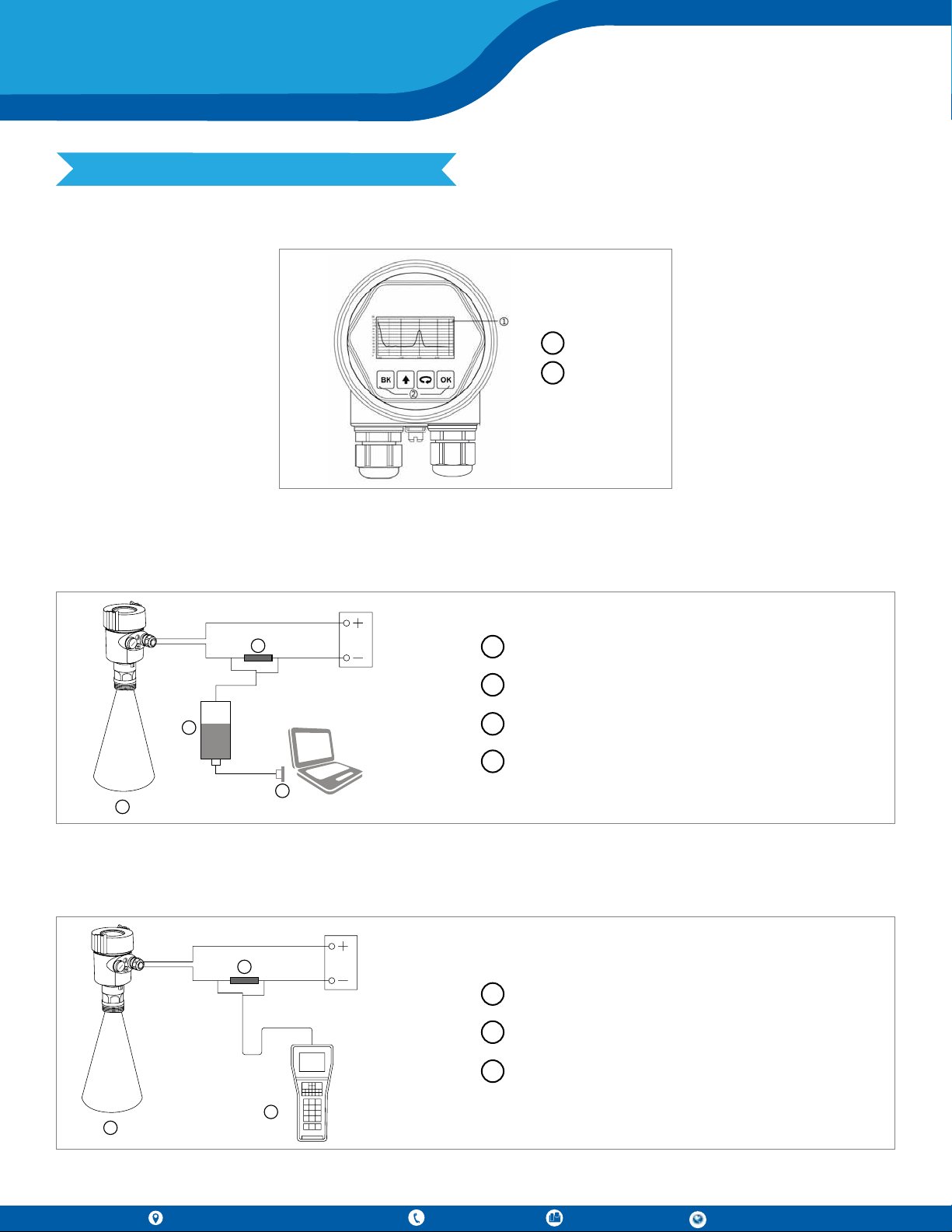

Fig 9: Connection to the computer through HART
Fig 10: HART Handheld Programmer
24VDC
1
2
3
4RS232 interface / USB interface
Tek-Wave 4300C Free Space Radar Level Transmitter
HART adapter
250Ω resistance
HART Hand Programmer
Tek-Wave 4300C Free Space Radar Level Transmitter
250Ω resistance
1
1
2
2
3
3
4
24VDC
1
2
3
TEK-WAVE 4300C
Technology Solutions
7. Installation
• Mounting Position
Min 8”
(200mm)
2
1
Reference Plane
Vessel Center or
Symmetrical Axis
1
2

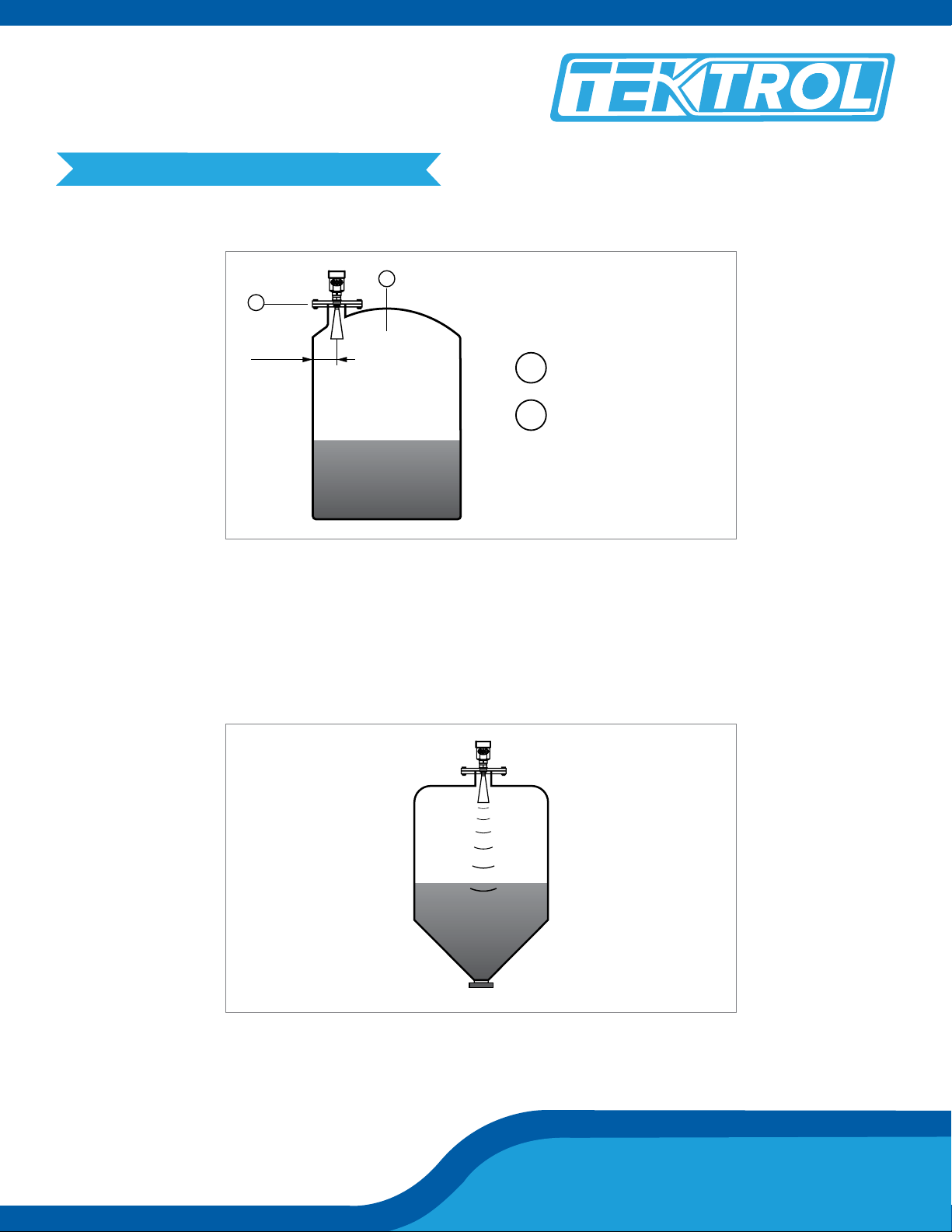

Fig 11: Installation at 1/4 or 1/6 of Diameter
Ĕ Install at 1/4 or 1/6 of the diameter.
Ĕ During installation minimum distance of 8” (200mm) between instrument and vessel is
maintained.
Ĕ In order to ensure the cone bottom measurement, conical tank’s top plane can be installed in the middle
of the tank top.
• Installation on Conical Tank
Fig 12: Installation at Conical Tank in Top Plane
796 Tek Drive, Crystal Lake, IL 60014 USA +1 847 857 6076 +1 847 655 6147 www.tek-trol.com
Quick Start Guide

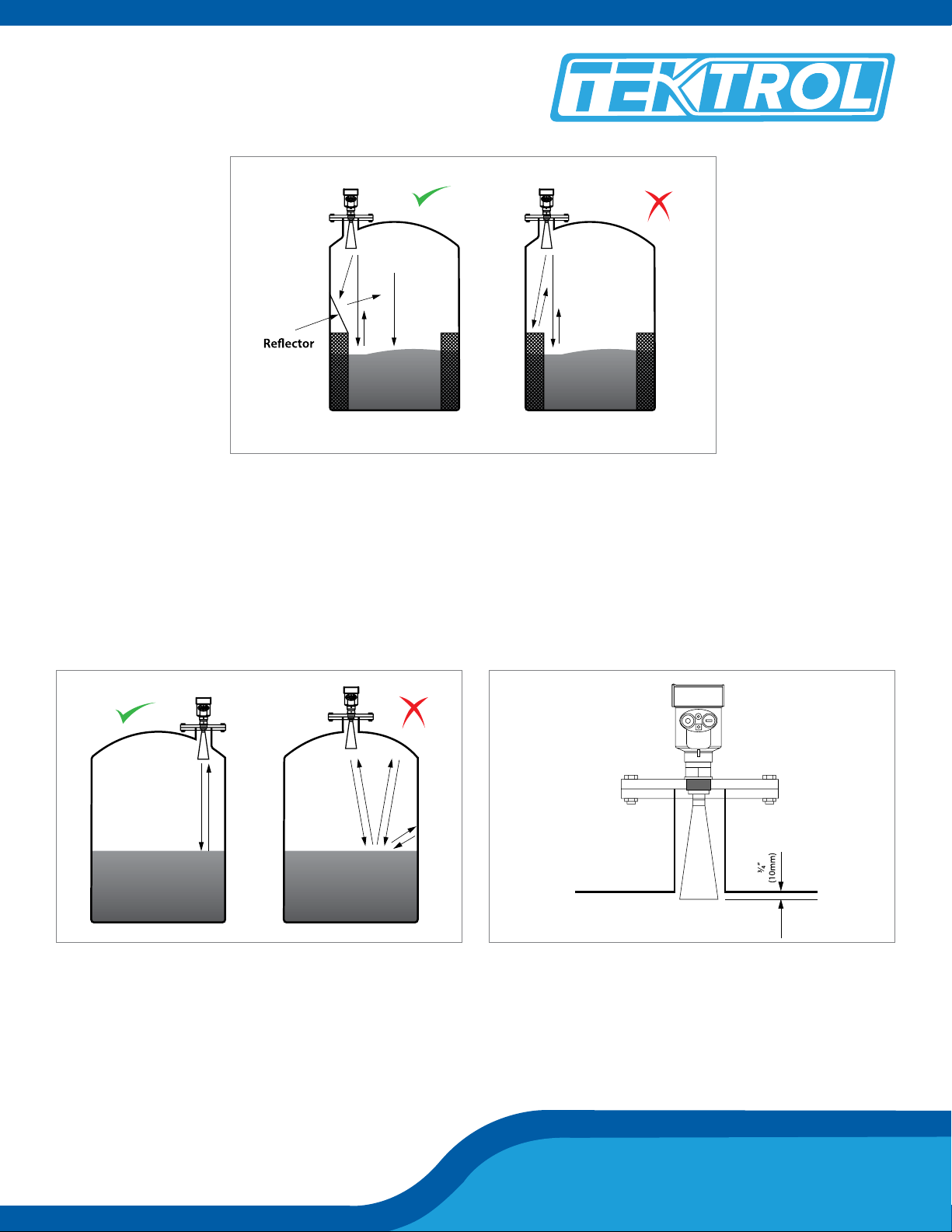

• Incorrect Installations

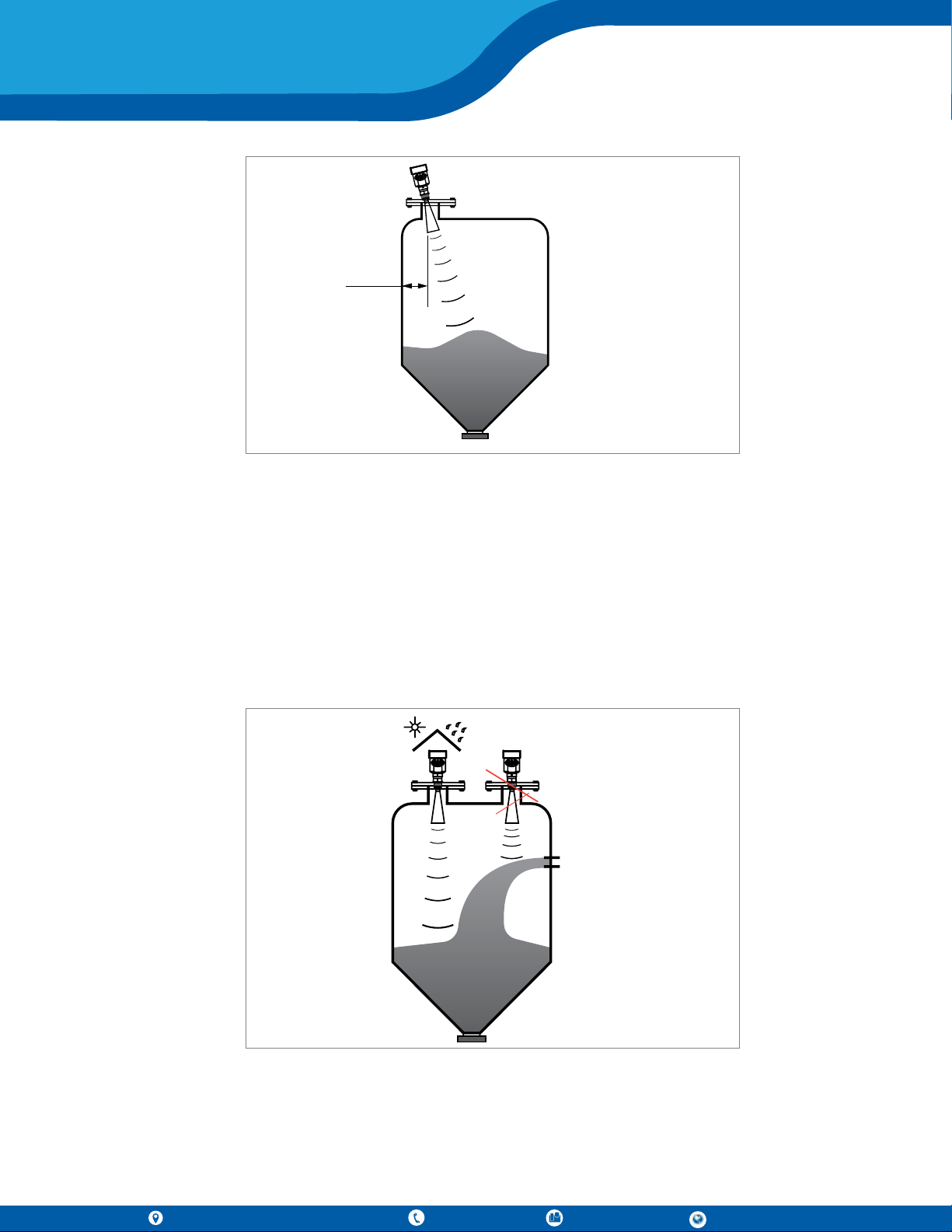

Fig 14: Installation at Conical Tank
Ĕ The conical tank cannot be installed above the feed port.
Ĕ When there is an obstacle in the tank that aects the measurement, installing a reection plate for
normal measurement is necessary.
Ĕ When there is a material pile, the antenna must be vertically aligned with the material surface.
Ĕ If the material surface is uneven, the angle of the horn must be adjusted by the universal ange to
align the horn with the material surface as much as possible (because the inclined solid surface may
cause echo attenuation or even signal loss).
Fig 13: Installation at Conical Tank in inclined Plane
1/4 Diameter
TEK-WAVE 4300C
Technology Solutions
Fig 16: Installation at Round Tank Fig 17: Installation with Height Requirement
Fig 15: Installation of Reection Plate
Refract the obstacle signal
Ĕ Height requirement of connecting pipe: The antenna must extend at least 3/8”(10mm) into the tank.
Ĕ The instrument shall not be installed in the middle of the arch or round tank top.
Ĕ Indirect echo will be aected by multiple echoes.
Ĕ Multiple echoes may have a larger signal threshold than real echoes because multiple echoes can be
concentrated through the top. Therefore, it cannot be installed in the center position.
796 Tek Drive, Crystal Lake, IL 60014 USA +1 847 857 6076 +1 847 655 6147 www.tek-trol.com
Quick Start Guide

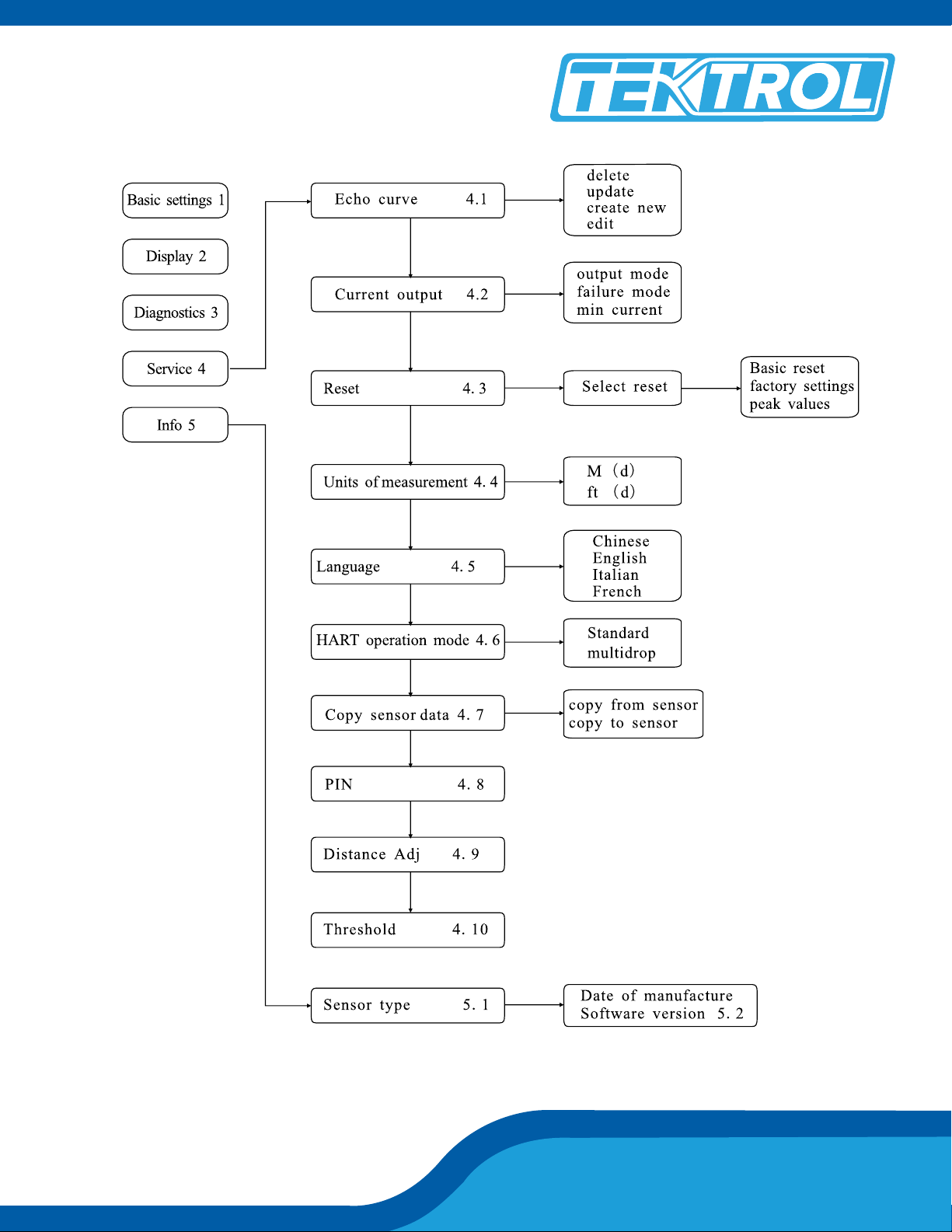

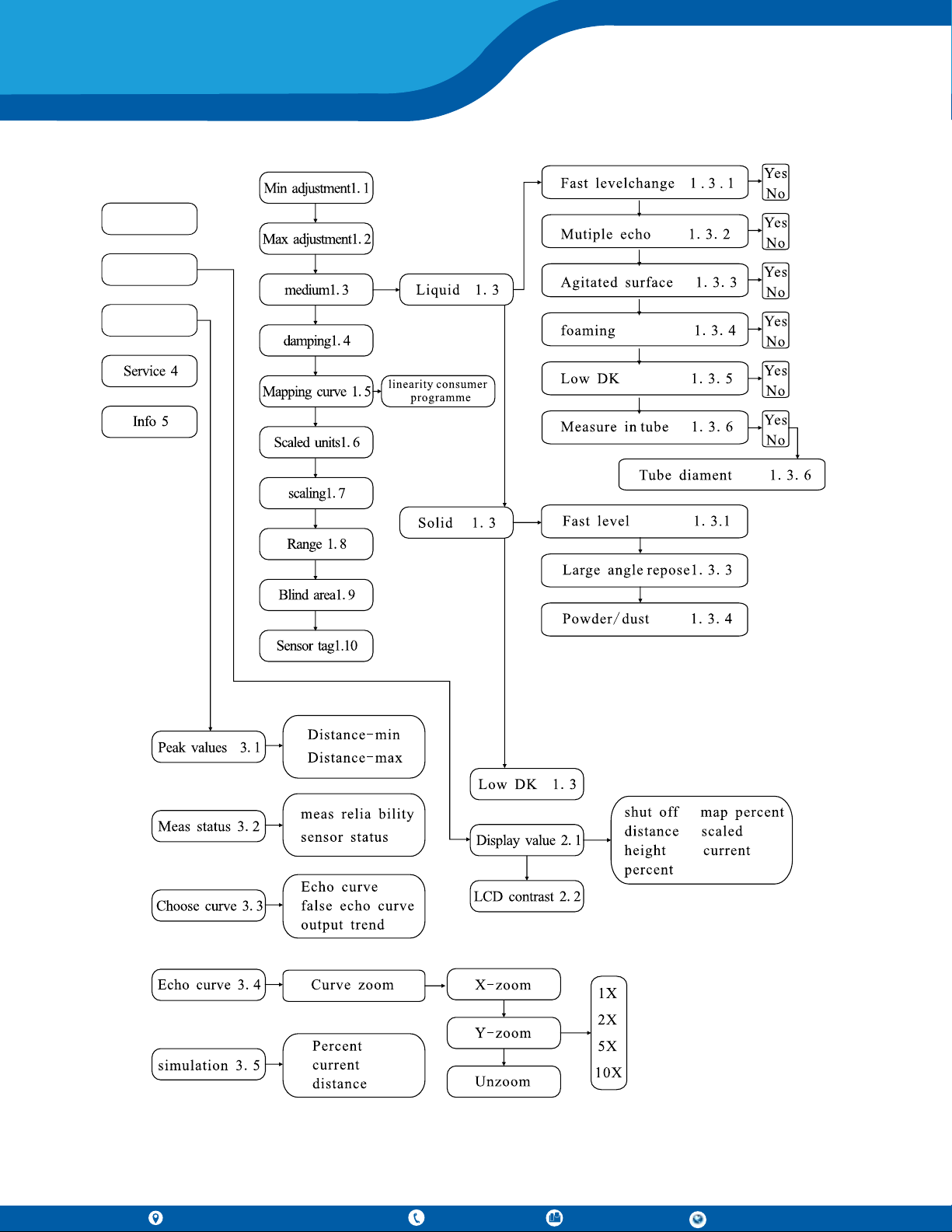

Basic Settings 1
Display 2
Diagnostics 3
TEK-WAVE 4300C
Technology Solutions
Technology Solutions
Tek-Trol LLC Tek-Trol Solutions BV Tek-Trol Middle East FZE
796 Tek Drive Crystal Lake, IL
60014, USA
Sales: +1 847-857-6076
Florijnstraat 18, 4879 AH
Etten-Leur, Netherlands
Sales: +31 76-2031908
SAIF Zone, Y1-067, PO BOX No.
21125, Sharjah, UAE
Sales: +971-6526-8344
Support: +1 847-857-6076 Email: tektrol@tek-trol.com www.tek-trol.com
