Teldat WWAN Enabler Manuale utente

WWAN Enabler

Installation Manual

Teldat S.A. Manual

WWAN Enabler 1

Legal Notice

Warranty

This publication is subject to change.

Teldat S.A. offers no warranty whatsoever for information contained in this manual.

Teldat S.A. is not liable for any direct, indirect, collateral, consequential or any other damage connected to the deliv-

ery, supply or use of this manual.

Manual Teldat S.A.

2WWAN Enabler

Table of Contents

I RelatedDocuments................................. 1

Chapter1 AboutThisGuide.................................. 2

1.1 SupportedDevices................................... 2

1.2 Who should read this manual? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

1.3 When should this manual be read? . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

1.4 What can be found in this manual? . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

1.5 What cannot be found in this manual? . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

1.6 How is the information organized? . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

1.7 TechnicalSupport ................................... 2

Chapter2 WWANEnabler .................................. 4

2.1 Models........................................ 4

2.2 Characteristics..................................... 4

2.2.1 PowerSupply..................................... 4

2.2.2 HardwareMonitoring.................................. 4

Chapter 3 Components and Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . 5

3.1 Components...................................... 5

3.1.1 TopPanel....................................... 5

3.1.2 FrontPanel...................................... 6

3.1.3 SidePanels...................................... 8

3.1.4 UndersidePanel.................................... 8

3.2 Assembly....................................... 9

3.2.1 Standalone and anti-theft security cable . . . . . . . . . . . . . . . . . . . . . . . . . . 9

3.2.2 Wallmounting.................................... 10

3.2.3 Ceilingmounting................................... 11

3.3 PowerSource.................................... 12

3.3.1 ExternalPowerSource................................ 13

3.3.2 PoE......................................... 13

3.4 RESETButton.................................... 13

3.4.1 Rebootingthedevice................................. 14

3.4.2 DefaultConfiguration................................. 14

3.5 Connectingdata................................... 14

3.5.1 LANConnection................................... 14

3.5.2 Connecting the WWAN Antennas . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Teldat S.A. Table of Contents

WWAN Enabler i

3.6 InstallingtheSIMcard................................. 17

Chapter4 Compliance.................................... 19

4.1 ManufacturerInformation............................... 19

4.2 SafetyWarnings................................... 22

4.3 WEEEinformation.................................. 22

4.4 REACH....................................... 22

4.5 Power usage and energy efficiency . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

4.6 PSUEnergyEfficiency ................................ 23

4.7 EC Declaration of Conformity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

4.8 CEMarking..................................... 24

4.9 Nationalrestrictions.................................. 24

4.10 OperatingFrequency................................. 24

4.11 Intended use of the equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Appendix A Technical Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

A.1 Troubleshooting................................... 25

A.2 Updatingthesoftware................................. 25

A.3 Connectors ..................................... 26

A.3.1 LANConnector.................................... 26

A.3.2 WWANConnector.................................. 26

A.3.3 PowerSupplyConnector ............................... 26

A.4 TechnicalSpecifications................................ 27

A.4.1 HardwareArchitecture................................. 27

A.4.2 LANInterface .................................... 27

A.4.3 Wireless WAN interface (4GePlus) . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

A.4.4 Wireless WAN interface (5Ge) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

A.4.5 PowerSupply.................................... 33

A.4.6 Dimensionsandweight................................ 33

A.4.7 Environmental Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

AppendixB RadioInformation................................. 34

B.1 RF WAN (4GePlus) specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

B.2 RF WAN (5G models) specifications . . . . . . . . . . . . . . . . . . . . . . . . . . 35

B.2.1 Regulatory model “5GE-1” compliance . . . . . . . . . . . . . . . . . . . . . . . . . 36

B.2.2 Regulatory model “5GE-2” compliance . . . . . . . . . . . . . . . . . . . . . . . . . 36

Table of Contents Teldat S.A.

ii WWAN Enabler

I Related Documents

Teldat Dm704-I Configuration and Monitoring

Teldat Dm709-I LAN Interfaces

Teldat Dm748-I Software Updating

Teldat Dm772-I Configuration Interfaces

Teldat Dm781-I Cellular Interface

Teldat Dm1030-I Teldat WWAN Enabler User Manual

Teldat S.A. Related Documents

WWAN Enabler 1

Chapter 1 About This Guide

This is the installation guide for the WWAN Enabler. It contains information on how to correctly install the device in a

working environment.

1.1 Supported Devices

The information included in this installation guide only applies to the WWAN Enabler.

1.2 Who should read this manual?

This manual should be read by the support personnel who need to configure, maintain and monitor the device.

1.3 When should this manual be read?

Read this guide as soon as you are ready to familiarize yourself with the device and its components.

This manual will help you understand your new device in greater depth.

1.4 What can be found in this manual?

This installation guide contains the following information:

• Description of the features that are available in the WWAN Enabler device.

• Technical specifications.

• Power supply requirements.

• Elements you can connect to the device while it is running.

• Installation and removal procedures for modules and power supplies.

• Description of the device LEDs and connectors.

• Troubleshooting.

1.5 What cannot be found in this manual?

This manual does not contain information regarding the device software or its configuration. For information on how

to configure this device, please see the relevant protocol manuals found on the Teldat website: ht-

tp://www.teldat.com.

1.6 How is the information organized?

Each chapter focuses on a specific part of the hardware and its components. All descriptive, technical specifications

and information on a component can be found in the relevant chapter.

1.7 Technical Support

Teldat S.A. offers a technical support service. Device software can be upgraded on a regular basis for maintenance

purposes and for new features.

Contact information:

Web: http://www.teldat.com

Tel.: +34 918 076 565

1 About This Guide Teldat S.A.

2WWAN Enabler

Fax: +34 918 076 566

Email: suppor[email protected]

Teldat S.A. 1 About This Guide

WWAN Enabler 3

Chapter 2 WWAN Enabler

2.1 Models

The following table lists the WWAN Enabler models available:

Models Sales Code WWAN

5Ge-1 RC5GH001 Telit FN980 (5G NR, Sub-6GHz)

5Ge-2 RC5GH002 Quectel RM520N-GL (5G NR, Sub-6GHz)

TLDPM00J1 RC4GPH001 Quectel EM06-E (4G, LTE Cat.6)

TLDPM00J2 RC4GPH002 Quectel EM06-A (4G, LTE Cat.6)

2.2 Characteristics

2.2.1 Power Supply

For further information on the power supply for the WWAN Enabler, please see Components and Power Supply on

page 5 under section Power Source on page 12.

2.2.2 Hardware Monitoring

The WWAN Enabler device's hardware is monitored via the LED panel, which provides visual information on what is

happening in the device. The LEDs indicate the state of the hardware components, whether or not there is connectiv-

ity, data flows, etc.

For further information on the LED panel, please see Components on page 5 in the following chapter.

2 WWAN Enabler Teldat S.A.

4WWAN Enabler

Chapter 3 Components and Power Supply

The following chapter provides detailed information on the WWAN Enabler chassis and its components. This inform-

ation includes:

• Components.

• Information on assembly.

• Power supply.

• RESET button.

• Data connection.

• SIM card installation.

3.1 Components

3.1.1 Top Panel

The following figure shows the top panel.

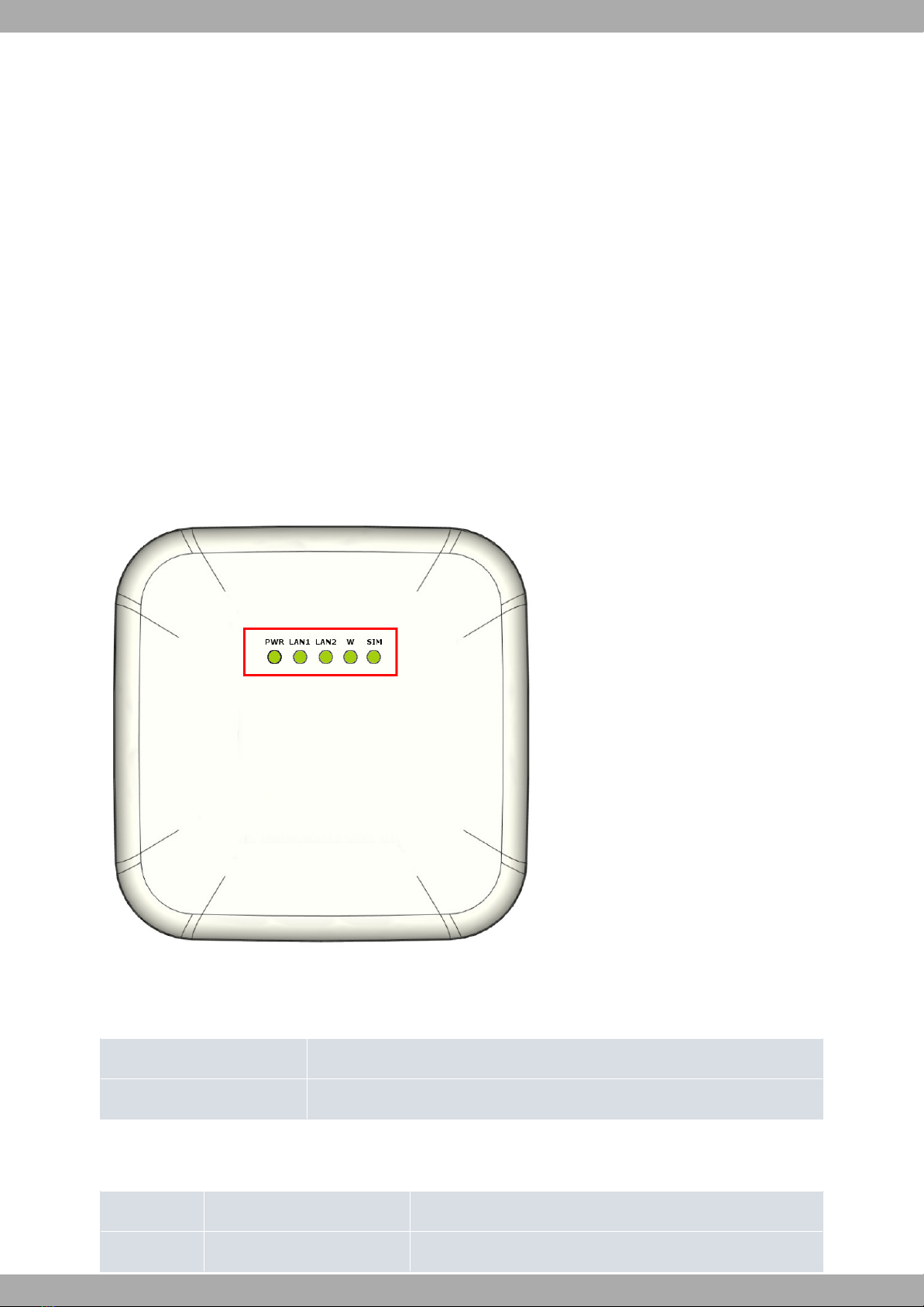

Fig. 1: Top Panel

The top panel components are as follows:

Top panel components

Item Description

A LED panel.

The LED panel provides information on the status of the components (indicating whether they are active or not) and

on network activity.

LEDs

LED Status Description

PWR Monochrome green Green -> Device powered.

Teldat S.A. 3 Components and Power Supply

WWAN Enabler 5

LAN1 / LAN2 Tricolor Green -> Link has been established.

Blinking: connection data activity.

Amber -> Test in progress.

Red -> Disconnected.

Off -> Interface off.

W Tricolor Off -> System stopped.

Red -> Interface is unavailable because it is installing, disabled

(shutdown), or due to an auto-test failure.

Amber -> Idle:

• Rapid blinking. The device has not registered in the network, or

the quality is insufficient.

• Slow blinking. WCDMA connection.

• Steady. LTE/5G connection.

Green -> Connected. Blinking: connection data activity.

SIM Tricolor Off -> System stopped.

Amber -> SIM2 Selected.

Green -> SIM1 Selected.

3.1.2 Front Panel

The following figure shows the front panel. Here you will find the majority of WWAN Enabler connectors and the SIM

card slots.

3 Components and Power Supply Teldat S.A.

6WWAN Enabler
