Telematrix 2802MWD Manuale utente

INSTALLATION

AND USER GUIDE

2802MWD

TWO LINE

DELUXE

FEATURE

TELEPHONE

10 MEMORY

COMPLIANCE AND SAFETY

As specified by FCC regulation, we are required to inform you of specific governmental and compliance

regulatory requirements, safety notices, safety instructions and other informative information. TeleMa-

trix, Inc. provides this information in a separate manual. We pack the separate Compliance and Safety

Manual within each outer box or product box when shipped.

Prior to reading this operation manual and prior to setting up your telephone, please refer to the Compli-

ance and Safety Manual.

If the Compliance and Safety Manual is not immediately available. Please obtain a free copy by calling

our Priority Care Department (phone number 1-800-462-9446) or by downloading a copy on our Internet

(web site address www.telematrixusa.com).

Features ...........................................………..……………………………………................................... 1

Controls ...........................................................................……………………………………………….. 2

Installation .....................................................................……………………………………………........ 4

Switch Settings .....................................….......................……………………………………………...... 6

Wall Mounting .....................................….......................……………………………………………........ 7

Programming Speed Dial Memory .................................……………………………………………....... 8

Programming The TouchLite™Feature ..........................……………………………………………....... 10

Operation ........................................................................……………………………………………..... 11

Care and Maintenance ..................................................……………………………………………....... 14

Service …………………………………………………..……………………………………….………… 15

Warranty .......................................................................……………………………………………....... 16

CONTENTS

FEATURES

• Two Line

• TouchLite™ Message Waiting—Combination Visual Message Waiting Indicator / Speed Dial Key

• No Battery Maintenance

• Convenient Data Port

• Hold Feature With Remote Release

• 10 Single Button Memory Locations With Secure Programming

• 2-Way Speakerphone

• Microphone Mute Function For Handset and Speakerphone

• Line Status Indicators For Line “IN USE”, On Hold Or Ring

• Storable Flash Function Programmable at 100mS to 1000mS (default is 600mS)

• Storable Pause Function Programmable at 1.0 to 5.0 Seconds (default is 1.2 Seconds)

• HI/LOW Ringer Volume Control Switch Per Line

• Line Voltage Switches For 24/48 Volt Operation

• Handset volume Control

• 90VDC Neon Or Low Voltage LED Selectable Message Waiting

• Desk or Wall Mountable

• Fully Modular, Easy To Install

CONTROLS

DEFINITION OF CONTROLS

1. Handset Hanger ………….…………………..… Temporarily holds the handset when the unit is wall mounted.

2. Handset ..........…………..………….........…... Hearing aid compatible, low profile styling.

3. Ringer Controls ………………….……………. Adjusts the volume of the ringers to HI/LOW setting for line 1 or line 2.

4. Hold Key ...........………..................……...…... Used to place line 1 or line 2 on hold.

5. Line Keys …………………………...…………. Used to select line 1 or line 2.

6. Mute Key .............................……………...….. Disables the handset and speakerphone microphone

7. Speakerphone Key .....................……………. Used to activate the speakerphone. LED indicates speakerphone is active.

8. Dial Pad ………………………………….…….. Large keys used for dialing.

9. Handset Volume Control ……………….…….. Increase the loudness of the receiver volume when pressed.

10. Pause Key ……………………………………... (Submerged Key) Used to program a 1.2 second pause in memory.

11. Conference Key ……………………………… Used for conference calling.

12. Flash Key …………………………………….… (Submerged Key) Used to provide a 600mS line break to access PBX/ Centrex.

13. TouchLite Message Waiting …………………. Combination visual message waiting lamp / speed dial key used for message

retrieval.

14. Feature Access Keys …………………………. 10 Programmable memory locations for frequently dialed phone numbers and

accesscodes.

15. Data Port ……………………………………….. Used to connect a computer modem, fax machine, or answering device.

16. Message Waiting Selector Switch ………….. Select optional 90VDC or Low voltage LED Message Waiting.

17. Store Key ………………………………………. (Submerged Key) Used to program information for speed dialing.

INSTALLATION

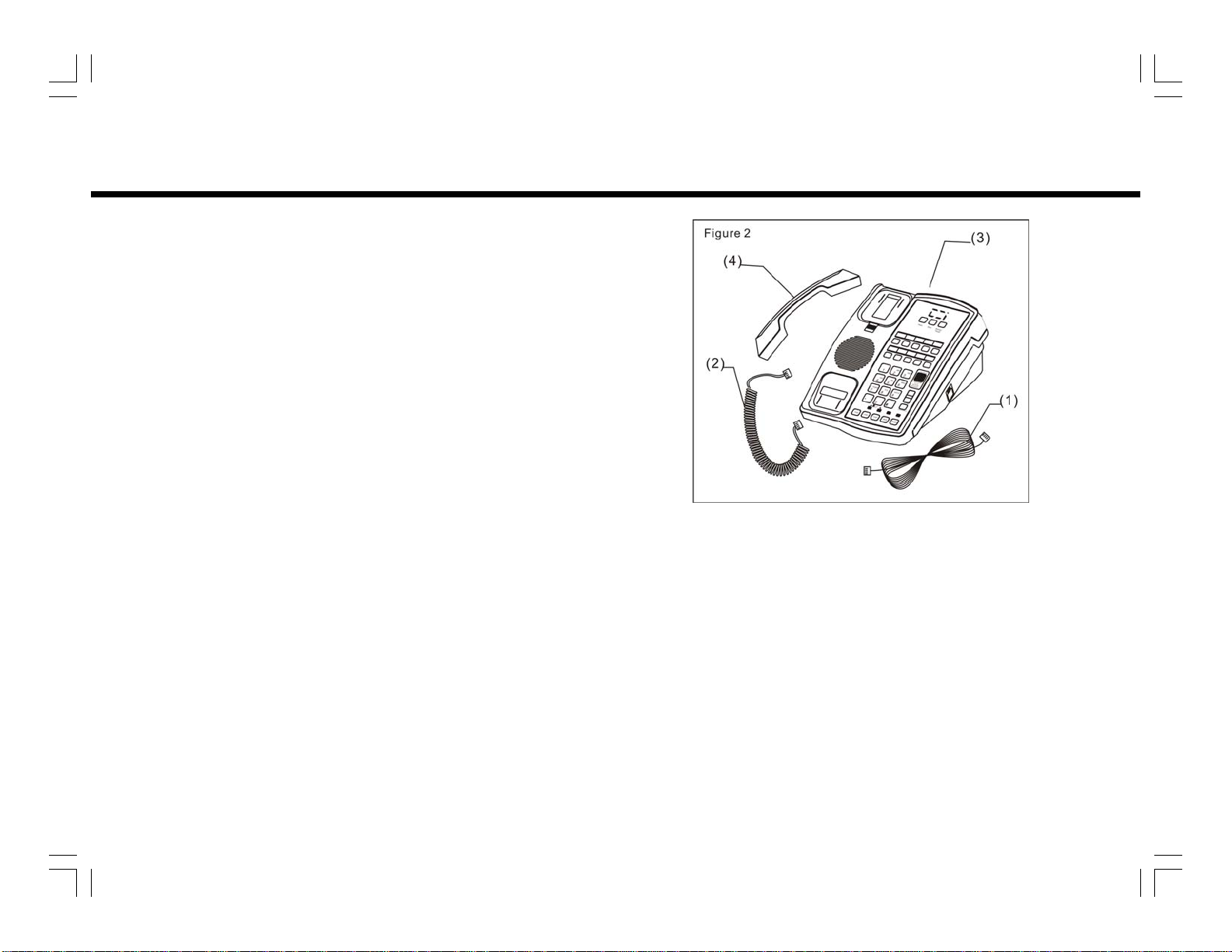

Parts Check List

The following parts are included in this package:

1. 15’ modular telephone line cord.

2. Modular coiled handset cord.

3. Base unit

4. Handset

Caution

• Never install telephone wiring during a lightning storm.

• Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations.

• Never touch uninstalled telephone wires or terminals unless the telephone line has been disconnected at the network interface.

• Use caution when installing or modifying telephone lines.

Parts not included; wall mount wedge and short line cord. If needed, call customer service at 1-800-462-9446.

Connecting The Handset Cord

A 10’ modular coil handset cord is provided.

To install, simply plug one end of the handset

cord into the modular jack on the handset.

The remaining end of the handset cord plugs

into the jack labeled “Handset” located on the

left side of the base unit.

(figure 3)

INSTALLATION

Connecting The Line Cord

A 15’ modular line cord is provided.

To install, simply plug one end of the line

cord into the modular jack located on the

back of the base unit. The remaining end of

the line cord plugs into the wall jack.

(figure 4)

SWITCH SETTINGS

There are installer selectable switches located on the bottom of the base unit. These switches are hidden behind a plastic cover for

security. To locate, remove the plastic covers using a sharp pointer or paper clip as shown.

Message Waiting Selector

The 2802MWD can support 90VDC neon or low-voltage LED message waiting

systems. Simply slide the switch to the desired position that is compatible with

your PBX messaging system.

Note: the phone is factory preset to the “Neon” setting.

Line Voltage Selectors

The 2802MWD is designed to operate behind PBX telephone systems rated be-

tween 24 volts and 48 volts. There are line voltage selector switches that must be

set according to the PBX system rating that the 2802MWD will be installed. There

are two (2) switches, the first for Line 1 and the other for Line 2. Each switch has

three (3) setting options. They are: “24V/48V/OFF”. Set the switches by simply

sliding to the appropriate setting. The ”OFF” setting is used to turn off the line if a

line appearance is not wired to the telephone. (figure 6)

Note: the factory default is set to the “24V” setting.

WALL MOUNTING

Wall Mounting Your 2802MWD

The 2802MWD was designed to be conveniently wall mounted.

There is no additional hardware required. Follow these easy

steps:

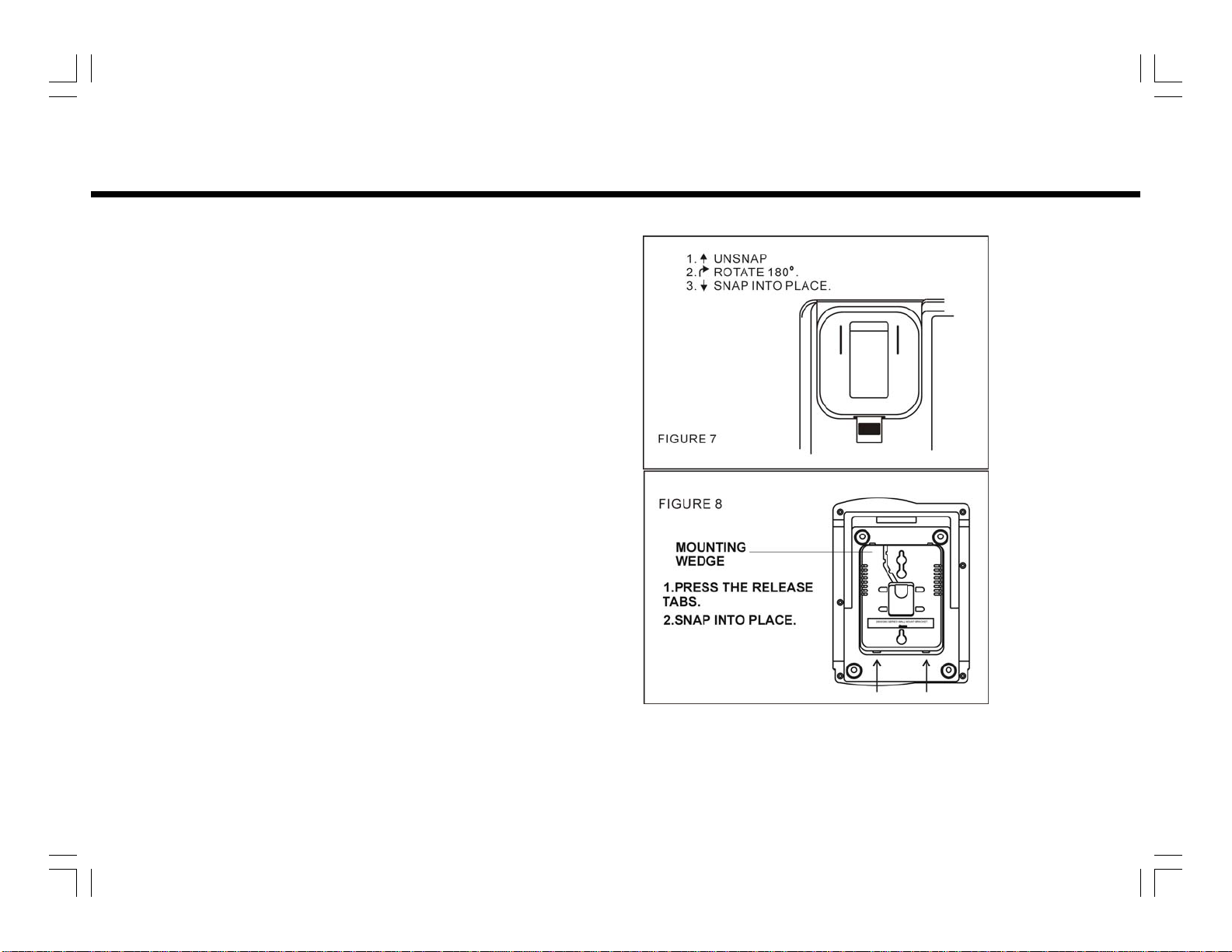

1. The handset retaining clip must be engaged to secure the

handset when hanging up. To engage the clip, unsnap the

clip, rotate the clip 180º and then snap the clip into place.

(figure 7)

2. Plug one end of a short line cord (not included) into the line

jack on the back of the base unit. Plug the remaining end of

the short line cord into the wall jack.

3. Snap in the optional wall mount wedge (not included) onto the

base (figure 8). Once attached to the phone base, then guide

the phone onto the studs of the wall jack. Pull down firmly. The

unit is now wall mounted.
