Telematrix Spectrum Plus SP300 Manuale utente

CAUTION!

•Never install telephone wiring during a lightning storm.

•Never install telephone jacks in wet locations unless the jack is

specifically designed for wet locations.

•Never touch uninstalled telephone wires or terminals unless the

telephone line has been disconnected at the network interface.

•Use caution when installing or modifying telephone lines.

Congratulations on the purchase of your TeleMatrix Spectrum

PLUSTM model SP300 telephone. The Spectrum PLUSTM SP300

includes advanced features that are suitable in today’s business

environment. TeleMatrix designed the Spectrum PLUSTM SP300 to

be simple to install and easy to use.

Your Spectrum PLUSTM SP300 telephone is a precision electronic

device that requires minimum maintenance. Please be sure to

read this user’s guide to become familiar with the wiring and

functionality of this product.

As specified by FCC regulation, we are required to inform you of specific

governmental and compliance regulatory requirements, safety notices,

safety instructions and other informative information. TeleMatrix, Inc.

provides this information in a separate manual. We pack the separate

Compliance and Safety Manual within each outer box or product box when

shipped.

Prior to reading this operation manual and prior to setting up your

telephone, please refer to the Compliance and Safety Manual.

Features ......................................................................... 5

Controls ……..................................................................... 6

Part List …………………………………………………………………………………... 10

Installation ..................................................................... 11

Wall Mounting ............................……................................ 14

Switch Settings ..................….…....................................... 16

Programming ..…....................…....................................... 17

Headset Installation and Operation………............................... 23

Operation ………………………………………………………………………………... 25

Care and Maintenance ……………………………………………………..……. 30

Service ……………………………………………………………………………………. 33

Warranty .……………………………………………………………………………….. 34

•One Line Operation

•SteelTrapTM Memory Technology (No Batteries Required)

•FreeSpeechTM Talk Feature: Allows Free Toggle between Handset, Headset and

Speakerphone

•Visual Message Waiting Indication*– Auto Detection for SDT, FSK or NEON;

LED uses switch

•TouchLiteTM One Touch Message Retrieval Key

•Headset Port with ON/OFF Switch (built-in Amplifier)

•Microphone Mute with LED Indicator

•Eleven (11) Speed Dial Locations

•Electronic Hold with LED Indicator (with Line Hold or System Hold Switch)

•Audible Ring Tone Selection (4 options)

•Headset, and Ringer Volume Control (8 selections)

•Convenient Data Port

•ADA Compliant Handset with 8-step Volume Control

•Disconnect Key to Activate New Call

•Last Number Redial

•Programmable Flash Key

•Programmable Pause Key

•Desk or Wall Mountable

•Fully Modular, Easy To Install

Class Visual Message Waiting are features that require subscription to your local telephone

company provided service. This telephone features will not work unless you are a subscriber.

TOP PANEL

(1)

(3)

(4)

(5)

(6)

(7)

(8)

(9)

(12)

(10)

(11)

(2)

(13)

1. Speed Dial Feature Keys……………..… Eleven (11) one-touch keys used for speed dialing.

2. Disconnect Key ……………………...…….. Used to disconnect the line or place a new call.

3. Store Key……………………………….….….. Used to program user features.

4. Pause Key ...............................… Used to place a timing delay when dialing.

5. Redial Key ......................…………… Redials the last number dialed.

6. Flash Key ..................……………..…. Provides a timed line break.

7. Mute Key …………………………….………... Disables the handset and speaker phone microphones.

8. Numeric Dial Pad ………………...………. Used for dialing.

9. Hold Key ………………………………..…….. Lighted key used for placing callers on hold.

10. Headset ON/OFF Key ……………………. Lighted key used to turn the headset ON or OFF.

11. Volume Bar …………………..………………. Adjusts the loudness of the handset receiver and/or

the headset.

12. Handset ……………………………….……... Hearing-aid compatible handset.

13. TouchLiteTM Key...……………………...... Message Waiting Lamp (LED indicator) that blinks

to indicate a new message in the user’s voice mail

box (user must be subscribed to a messaging system).

LEFT SIDE

RIGHT SIDE

REAR

1 Data Port .................................... Convenient port to connect a computer,

modem, fax or answering device.

2 Line Jack ………………………………………... Modular receptacle for connecting the

line cord.

3 Headset Jack .............................. Convenient RJ port or 2.5mm coaxial port

used to connect an optional headset.

4 Handset Jack .............................. Connection for handset coil cord.

5 Power Adapter Receptacle ……..……. For optional coaxial power adapter.

6 Low Voltage MW Switch ………………… Selects low voltage message waiting.

7 Hold Key Switch ……………...……………. Used to select line hold or system hold.

8 Elevation Stand Lock ……………………. Used to “lock” the elevation stand.

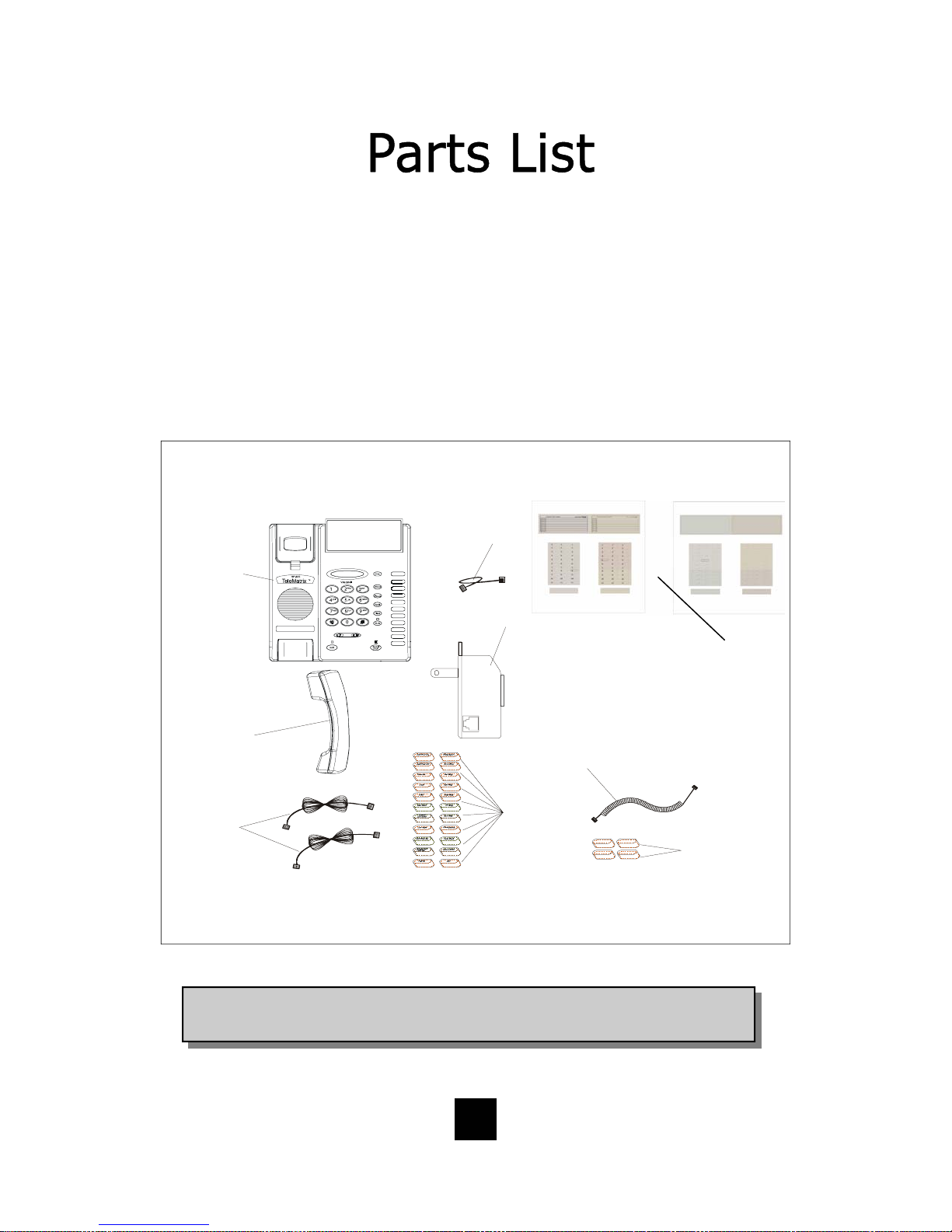

Parts Check List

The following parts are included with the Spectrum PLUSTM SP400:

NOTE: Spectrum PLUSTM Line Cords are 6-Pin 6-Conductor Line cords

(6P6C line cord). Replacement Line Cords must be same.

1. Base Unit

2. Handset

3. Two (2) 15-foot Modular telephone line cords

4. 10-foot Modular coiled handset cord

5. 6-inch Modular wall mount line cord

6. Power Adapter

7. Twenty-two (22) Speed Dial Preprinted Keycaps

8. Four (4) Additional Clear Keycaps

9. Two (2) Index Sheets

(2)

(1)

(3)

(4)

(5)

(6)

(8)

(7)

(9)

OUT

10 10

11 11

10 10

11 11

1.800.462.9446

www.te lema tr ix us a .com

Us e t hi s p e r f or at e d sh e e t t o cu s to m iz e you r te le p ho n e

1. Clea r p la s ti c o ve r la y

bei ng re mov e fr om the

indexca rd ar ea on the

tele ph one .

2. Te ar i n dex pap er

from t he i ndex s he e t.

3. L if t off cl ea r p la s t ic

keyca p a nd ins er t the

pape r ke y l ab el .

FormodelsSP-100andSP-200

Formodelswithmemory:SP-300,SP-400,SP-550,SP-750,SP-8312

10 10

11 11

10 10

11 11

1.800.462.9446

www.t elem atri xus a.com

Usethis

erfo r at e d sh e e t t o cu s to m iz e

ou r te le

hon e

1. Clearp lasticoverl ay

beingremove from the

indexca rd area o n the

tele ph one .

2. Tear i n dex pap e r

from t he i ndex s he e t.

3. L i ft off cl ea r p l as ti c

keyca p a nd ins er t the

pape r ke y l ab el .

FormodelsSP-100andSP-200

Formodelswithmemory:SP-300,SP-400,SP-550,SP-750,SP-8312
