Spectrum PlusTM Series Telephone

User's Guide

SINGLE LINE CALLER ID

LINE-POWERED SPEAKERPHONE TELEPHONE

MODEL LP550

This page is intentionally left blank

Congratulations on the purchase of your TeleMatrix model LP550 telephone. The LP550

includes advanced features that are suitable in today’s business environment. TeleMatrix

has designed the LP550 to be simple to install and easy to use. The LP550 is designed to be

used behind a PABX. It is recommended to install one phone in-line (one phone per each

phone line). The LP550 is a line powered Caller ID display speakerphone telephone for use

where no power outlets are available (no power adapter required). The phone will not operate

when line power is lost.

The LP550 telephone is a precision electronic device that requires minimum maintenance.

Please be sure to read the contents set forth in the user’s guide to become familiar with the

wiring and functionality of this product.

As specified by FCC regulation, we are required to inform you of specific

governmental and compliance regulatory requirements, safety notices, safety

instructions and other informative information. TeleMatrix, Inc. provides this

information in a separate manual. We pack the separate Compliance and

Safety Manual within each outer box or product box when shipped.

Prior to reading this operation manual and prior to setting up your telephone,

please refer to the Compliance and Safety Manual.

If the Compliance and Safety Manual is not immediately available, please

obtain a free copy by calling our Priority Care Department (phone number

1-800-462-9446) or by downloading a copy on our Internet web site address

www.telematrixusa.com.

Features .........................................………............................... 5

Controls ……........................................................................... 6

Parts List ………………………………………………………………………………………… 10

Installation ....…….................................................................. 11

Switch Settings .....….......................….…................................. 15

Programming ..……..............................…................................. 16

Headset Installation and Operation ………………………………………………… 29

LCD Display ……………………………………………………………………………………… 31

Operation ………………………………………………………………………………………… 42

Care and Maintenance …………………………………………………………………… 50

Service …………………………………………………………………………………………… 51

Warranty ………………………………………………………………………………………… 52

FCC Compliance and Safety Instructions, Warranty and Service

Information may be found in a separate manual within this package. If

this information is missing from this product’s packaging, please

contact your local supplier or TeleMatrix Priority Care immediately.

• One Line Operation, Line Powered Telephone

• SteelTrapTM Memory Technology (No Batteries Required)

• FreeSpeechTM Talk Feature: Allows Free Toggle between Handset, Headset

and Speakerphone.

• Programming Options: Dialing Access Number, Local Area Code Recognition,

Manual Date and Time, Multiple Language Options, Live Keypad Dialing

Option, 1.0-Second to 5.0-Second Pause Timing, 100mS to 1000mS Flash

Timing, Voice Mail Access, and VM Password Dialing, Speed Dial Program-

ming.

• Large, Contrast Adjustable, Backlit LCD Display Shows:

- 100 Scrolling Caller ID Call Records

- Programmable Date & Time

- Edit Capable Name and Number

- Number of New Messages and Total Messages

- Dialing Verification (except redial)

- Elapsed Call Timer

- Functional Icons

• Type II Caller ID (Caller ID on Call Waiting)*.

• 100 Name and Number Call Log with Editing, Scrolling, Call Back and Delete

• Visual Message Waiting Indication*– Auto Detection for SDT, FSK. NEON and

LED uses a selection switch.

• TouchLiteTM One Touch Message Retrieval Key

• 2-Way Speakerphone (Half Duplex)

• Headset Port with ON/OFF Switch

• Microphone Mute

• Eleven Programmable (11) Speed Dial Locations

• Electronic Hold with LED Indicator (optional Standard Line Hold or

Programmable System Hold)

• Speaker and Headset Soft Key

• Ringer Volume (High, Low, Off)

• Convenient Data Port

• ADA Compliant Handset with 8-step Volume

Control

• Disconnect Key to End Current Call

• Last Number Redial

• Programmable Flash Key

• Programmable Pause Key

• Wall Mount or Desktop Placement

*Caller ID and Class Visual Message

Waiting are features that require

subscription to your local telephone

company and/or PBX provided

services. These telephone features

will not work unless you are a

subscriber.

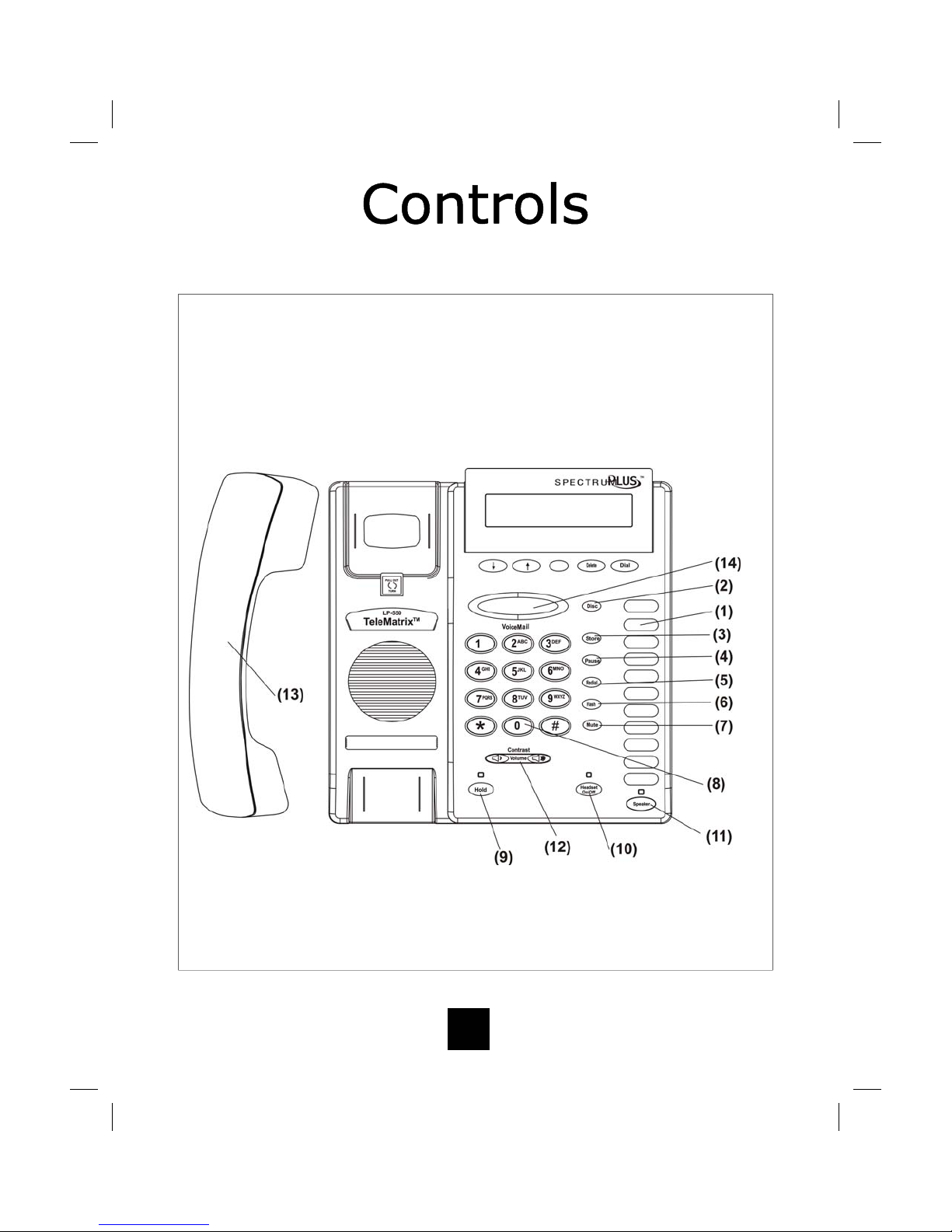

TOP PANEL

1. Speed Dial Feature Keys……………... Eleven (11) programmable one-

touch keys used for speed dialing

2. Disconnect Key ………………………...… Used to disconnect the line, exit

the store programming.

3. Store Key…………………………………….. Used to program features and

speed dialing keys.

4. Pause Key ............................... Used to program a delay in speed

dialing.

5. Redial Key ......................………… Redials the last number dialed.

6. Flash Key ..................……………... Provides a 100mS to 1000mS

timed line break (programmable).

7. Mute Key …………………………...…….. Key that disables the handset and

speaker phone microphones for

privacy.

8. Numeric Dial Pad ………………………. Used for dialing.

9. Hold Key ………………………………….… Lighted key used for placing

callers on hold.

10. Headset ON/OFF Key ………………. Key used to turn the headset ON

or OFF. With LED Indicator.

11. Speaker Key .………………........….. Used to turn the speakerphone

ON or OFF.

12. Volume Bar …………………..………….. Adjusts the loudness of the

handset receiver, the headset,

and/or the speaker. Adjusts

contrast of the LCD Display.

13. Handset …………………………..………. Hearing-aid compatible handset.

14. TouchliteTM Key...…………………….... Message Waiting Lamp (LED

indicator) that blinks to indicate

a new message in the user’s voice

mail box (user must be subscribed

to a messaging system).

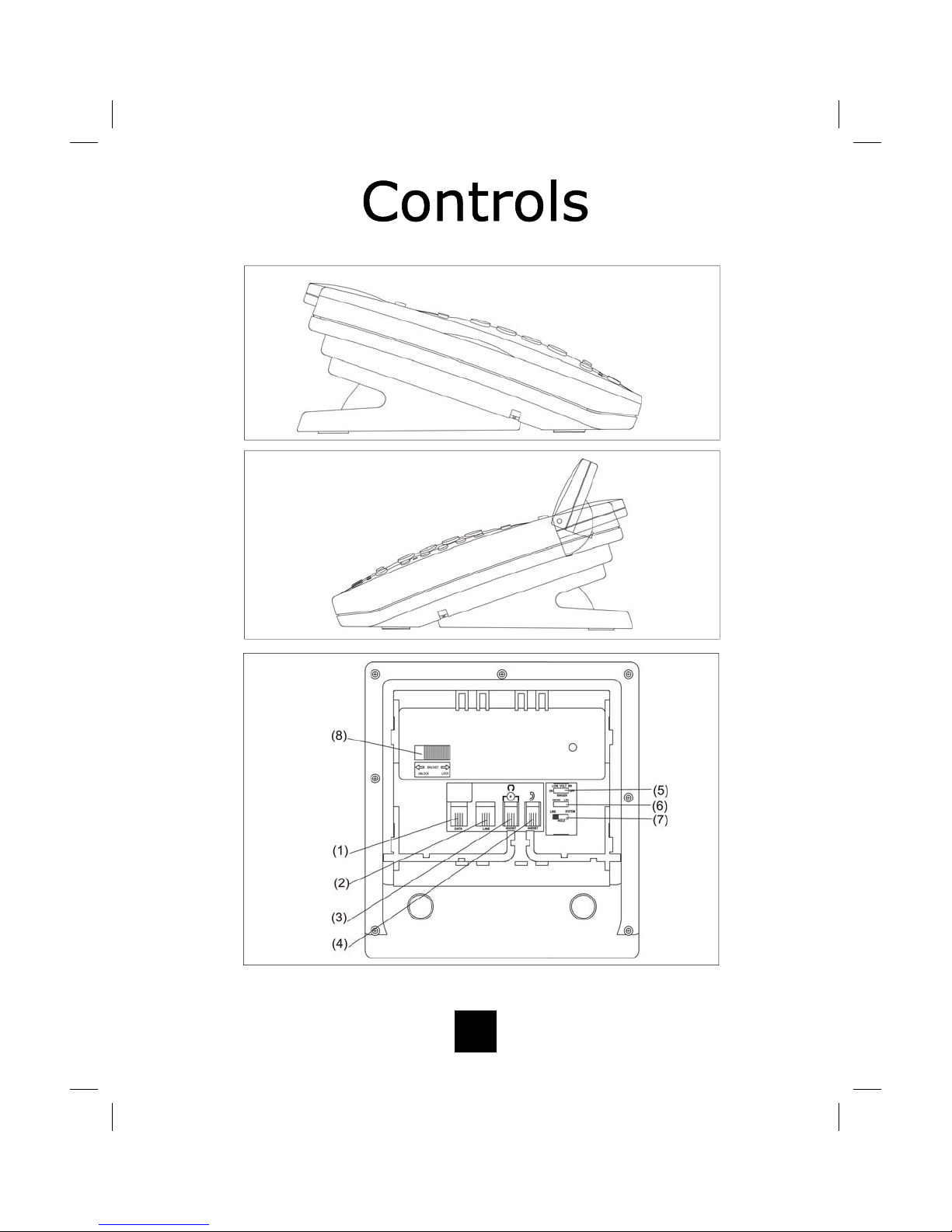

RIGHT SIDE

LEFT SIDE

REAR

1. Data Port ..................................... Convenient port to connect a

computer, modem, fax or

answering device.

2. Line Jack ………………………………………... Modular receptacle for

connecting the line cord.

3. Headset Jacks ............................. Convenient RJ port or 2.5mm

coaxial port used to connect

an optional headset.

4. Handset Jack ............................... Connection for handset coil

cord.

5. Volume Control Switch …..……..……… Ring Volume control options

of High/Low/Off.

6. Message Waiting Light Switch ……… Neon or LED switch setting

7. Hold Key Switch ………………..…………… Used to select standard line

holdorprogrammablesystem

hold.

8. Elevation Stand Lock ……………………… Used to “lock” the elevation

standinplace.

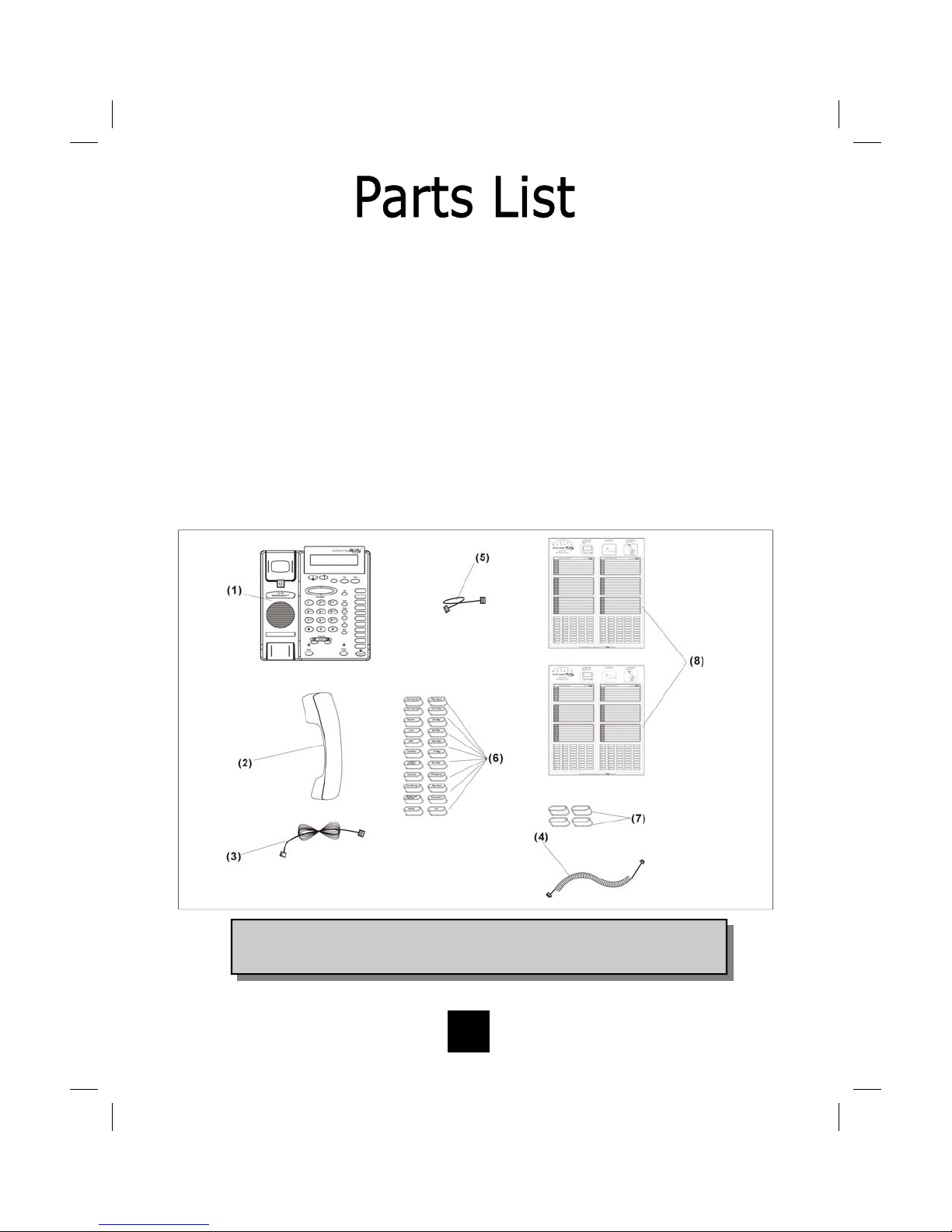

Parts Check List

The following parts are included with the Spectrum PLUSTM LP550:

1. Base Unit

2. Handset

3. 15-foot modular telephone line cord.

4. 10-foot modular coiled handset cord.

5. 6-inch modular wall mount line cord.

6. Twenty-two (22) Speed Dial Preprinted Keycaps.

7. Four (4) Additional Clear Keycaps.

8. Two (2) Index Sheets.

NOTE: SpectrumPLUSTM Line Cords are 6-Pin 6-Conductor Line cords

(6P6C line cord). Replacement Line Cords must be same.
