Televes Evoca 130990 Manuale utente

Televes Evoca 130990

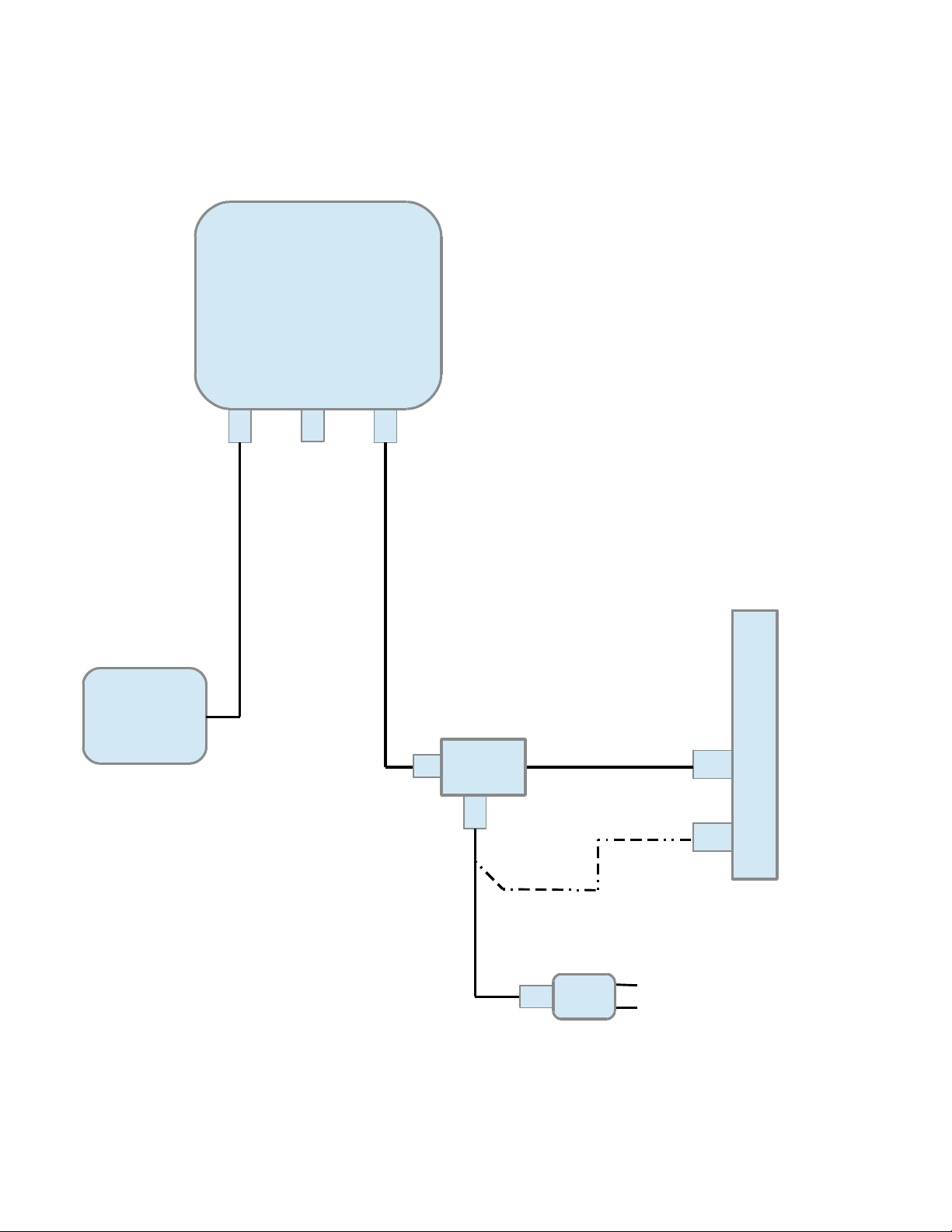

connections

1 2 3

antenna

USB

alternate:

USB power

from TV

USB power supply

(inclu e )

4' coax cable with

junction block (inclu e )

12' coax

cable

(inclu e )

Feb-22-2023

Ness Electronics

5G mo em

(not inclu e )

not

use

Evoca

antenna

w/preamp

optional

5G exten er

antenna

connection

USB

cable

(incl.)

ant.

USB

note – the 5G exten er is a separate feature an is not

require for TV antenna operation

Televes Evoca 130990 antenna installation

installation for TV reception

all cables needed for TV antenna installation are included with the antenna

USB power is required to power the TV preamp in the antenna

the antenna may get better reception with the metal mounting plate attached

antenna can be table mounted (vertically or horizontally) mast or wall mounted w/included hardware

see Televes instructions for mounting details

locate the 4' coax cable with the square junction block connect the cable to the TV antenna input

connect the USB cable to the square junction block

connect the other end of the USB cable to the USB power supply (included)

alternately: connect the USB cable to a USB input on the TV

connect the 12' coax cable to the square junction block

then connect the free end of the 12' coax cable to connector #3 on the antenna

use a longer piece of RG-6 coax if needed

plug in the USB power supply or power up the TV

auto-scan the antenna input on the TV to find available new channels

refer to TV owner's manual for details

like cell phone signals TV signals also have dead spots try different antenna locations for best signal

re-scan channels on the TV after re-positioning the antenna

connector #2 is unused (for future use)

connector #3 is for the optional 5G / LTE extender see below

installation for 5G / LTE cell phone data extender (optional)

connect a coax cable from connector #1 on the antenna to a 5G modem inside the house

note the 5G modem and coax cable are not included

the 5G / LTE antenna is totally separate from the TV antenna and is not needed for TV reception

the 5G / LTE antenna is passive and doesn't need power from the USB cable

Mar-15-2023
