Televes MIMO evoca TV-130990 Istruzioni per l'installazione

TOTV TOANT

USB

MIMO Antenna

TV-130990

WITH A SUPPORT

Attach the plate Ein the right position as

shown in the pictures. Screw it to the antenna

Ausing both screws D.

Place the antenna in a vertical position and attach

it to the mast using the clamp Band the nuts

NEEDED TOOLS

10mm wrench

Screw driver

(not included)

PH #2

Installation

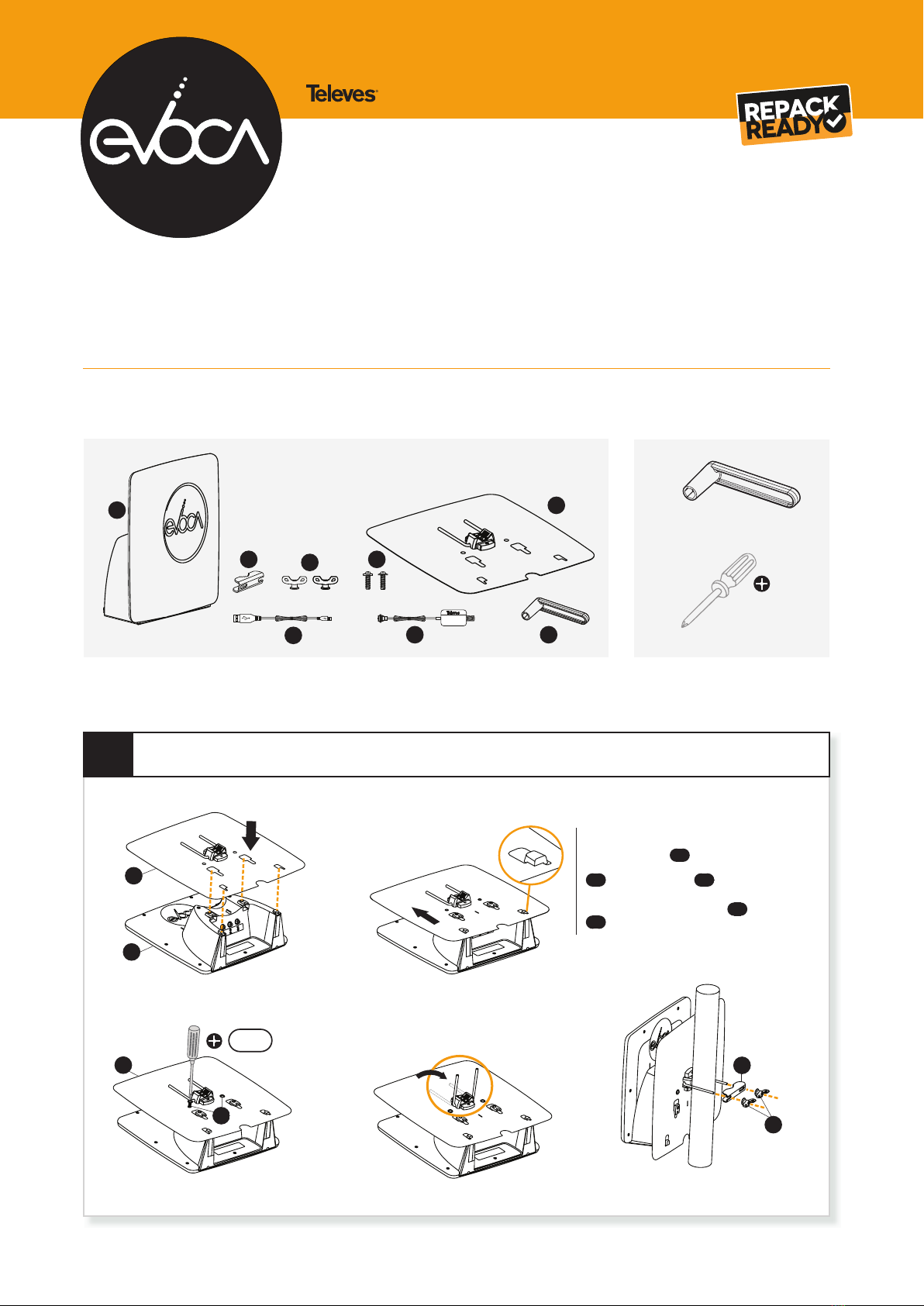

Contents of the box

Assembly, operation, and maintenance instructions

Mast mount

PH #2

FG H

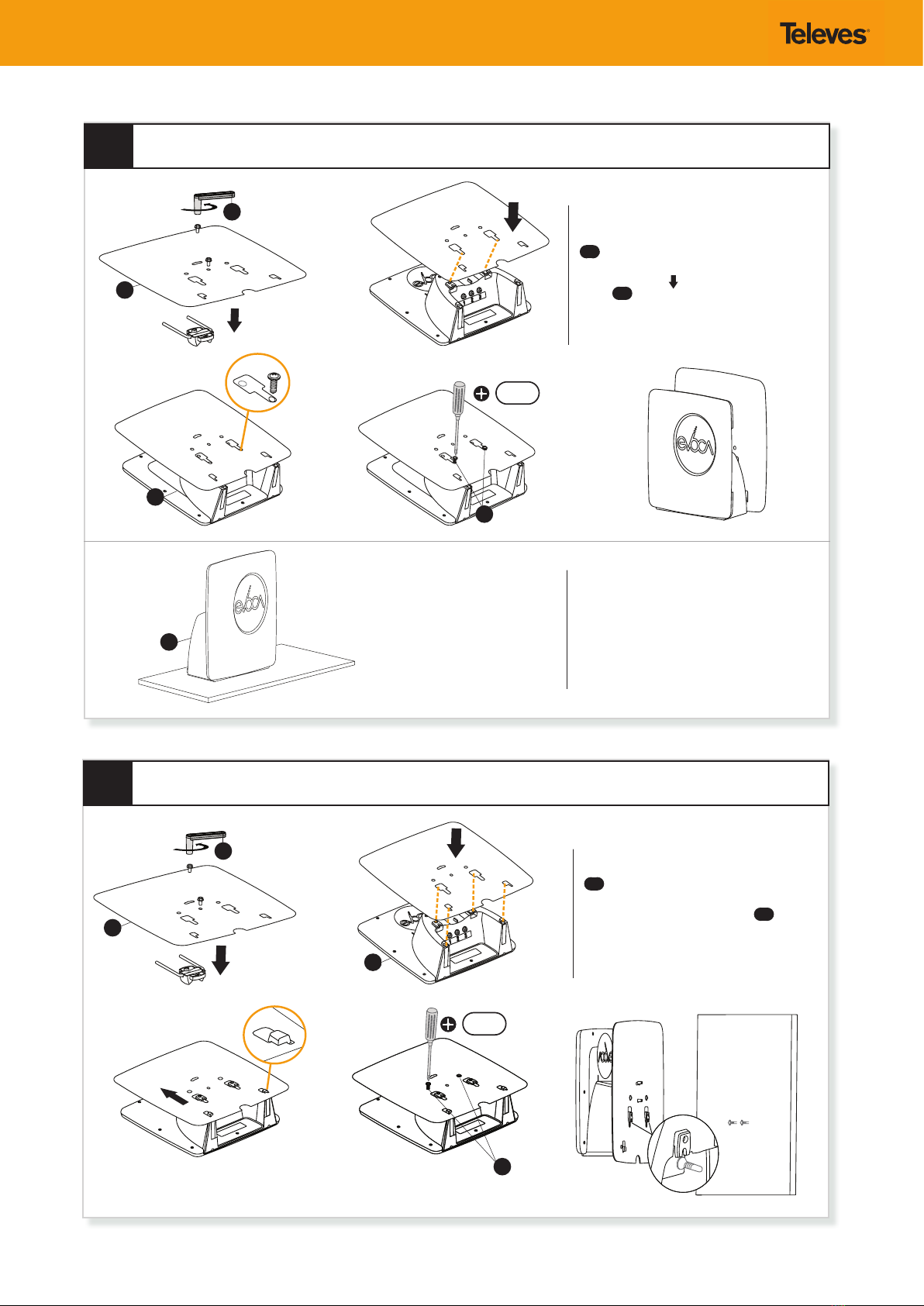

WITH A REFLECTOR

Remove the clamp and the screws from the plate

Eusing a 10mm wrench.

Put the plate in the right position as shown by

the arrow. Screw it to the antenna using both

screws E.

Rest the antenna on the table in a vertical position

as shown in the picture below.

TABLE MOUNT

WITHOUT A REFLECTOR

Place the antenna on the table in a vertical

position as shown in the picture.

PH #2

Remove the clamp and the screws from the plate

Eusing a 10mm wrench (not included).

Place the reector as shown in the pictures and

screw the reector using both screws D.

Finally, attach it to the wall with two screws (not

included).

WALL MOUNT

PH #2

LIGHTNING PROTECTION

If installed outdoors, be sure the antenna

system is grounded so as to provide

protection against voltage surges and built-

up static charges. Section 810 of the National

Electrical Code ANSI/NFPA70, or CSA C22.1

sections 10, 16, and 54, of the Canadian

Electrical Code, provide information with

respect to proper grounding of the mast

and supporting structure, grounding of the

antenna lead-in wire to an antenna discharge

unit, size of grounding conductors, location

of antenna-discharge unit, connection to

grounding electrodes, and requirements

for the grounding electrode (see gure and

instructions).

Mount the lightning arrestor or 75 ohm

coaxial grounding block as close as possible

to where the 75 ohm coaxial cable down

lead enters the house.

The ground wires for both the mast and the

down lead should be copper or aluminium

wire, number eight (8) or larger.

The down lead wire from the antenna to

the lightning arrestor and the mast ground

wire should be secured to the house, spaced

from four (4) to six (6) feet apart.

In the case of a “ground up” antenna

installation it may not be necessary to

ground the mast if the mast extends four

or more feet in the earth. Consult a TV

serviceman for the proper depth in your

location.

WARNINGS

To prevent re or shock hazard, do not

expose the included power supply to rain or

moisture.

Installation of o-air antennas near power

lines is dangerous. For your safety, follow

the installation instructions.

Any alteration or modication to the

product or usage not in accordance with

product instructions voids the warranty.

Technical specifications

Ref. 130990

Outputs 5G VERTICAL HORIZONTAL

FRECUENCY MHz 630 - 960 / 1,7 - 2,7

UHF

(CH14 - CH36)

High VHF / UHF

(CH7 - CH13) / (CH14 - CH36)

470 - 608 174 - 216 / 470 - 608

GAIN dBi 0 32 (1) 23 (1) / 32 (1)

Crosspolar rejection dB > 13

Powering V 5

Consumption mA 150

Weight lb 5.74

Dimensions in 13.98 x 13.98 x 4 (without clamp)

Temperature ºC -5... 45

IP IP 53

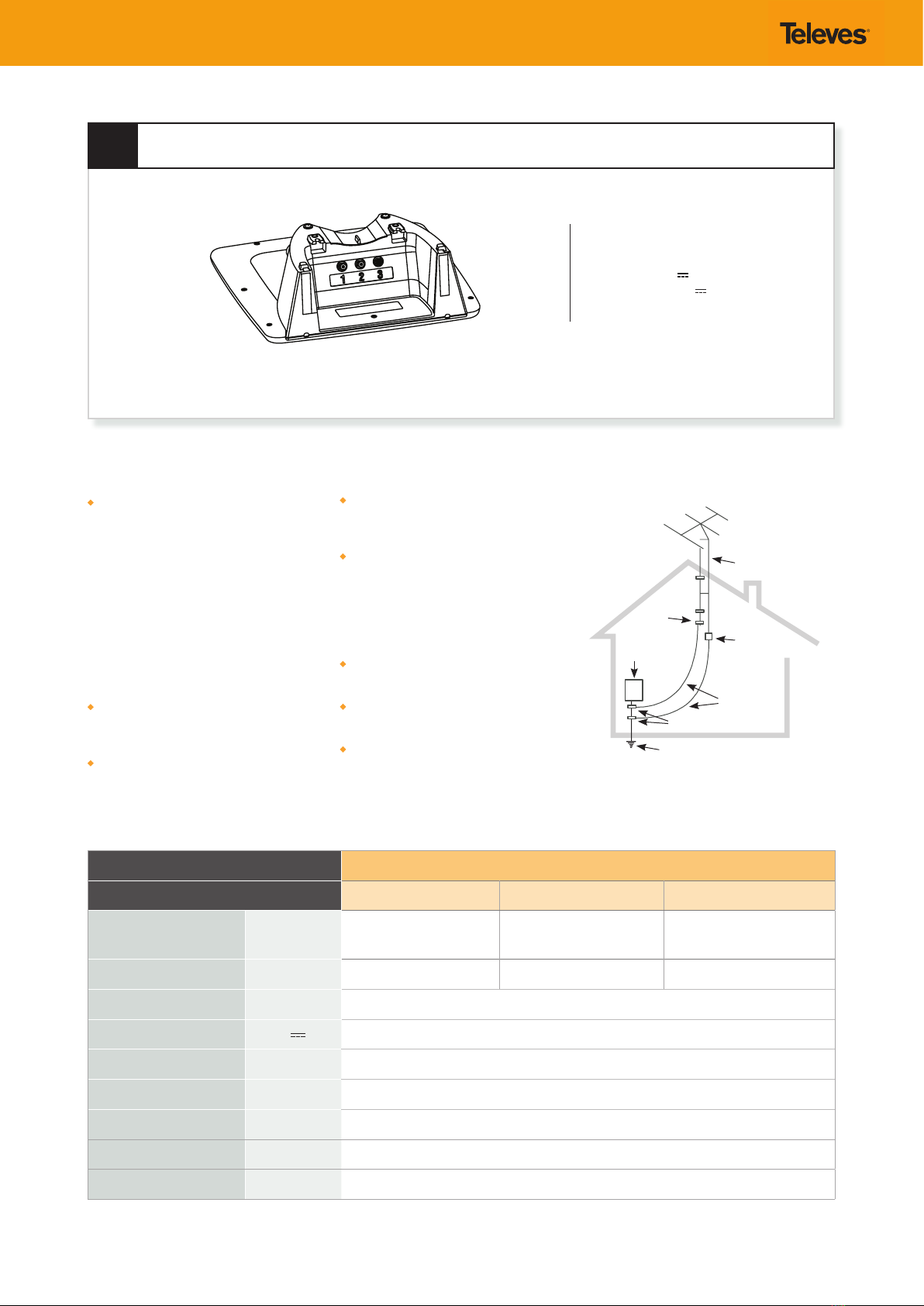

Safety Instructions

4CONNECTION

1. 5G OUT

2. VERTICAL OUT + V

3. HORIZONTAL OUT + V

(1) Self regulating gain.

Antenna Lead

in Wire

Example of antenna grounding as per

National Electrical Code, ANSI/NFPA 70

NEC - National Electrical Code

Ground

clamp

Electric Service

Equipment

Ground clamps

Power service Grounding Electrode System

(NEC Art 250, Part H)

Antenna Discharge Unit

(NEC Section 810-20)

(May substitute a 75 ohm

Coax Grounding Block)

Grounding Conductors

(NEC Section 810-21)

2022 © Copyright, Televés S.A.U.

TOTV TOANT

USB

PSU

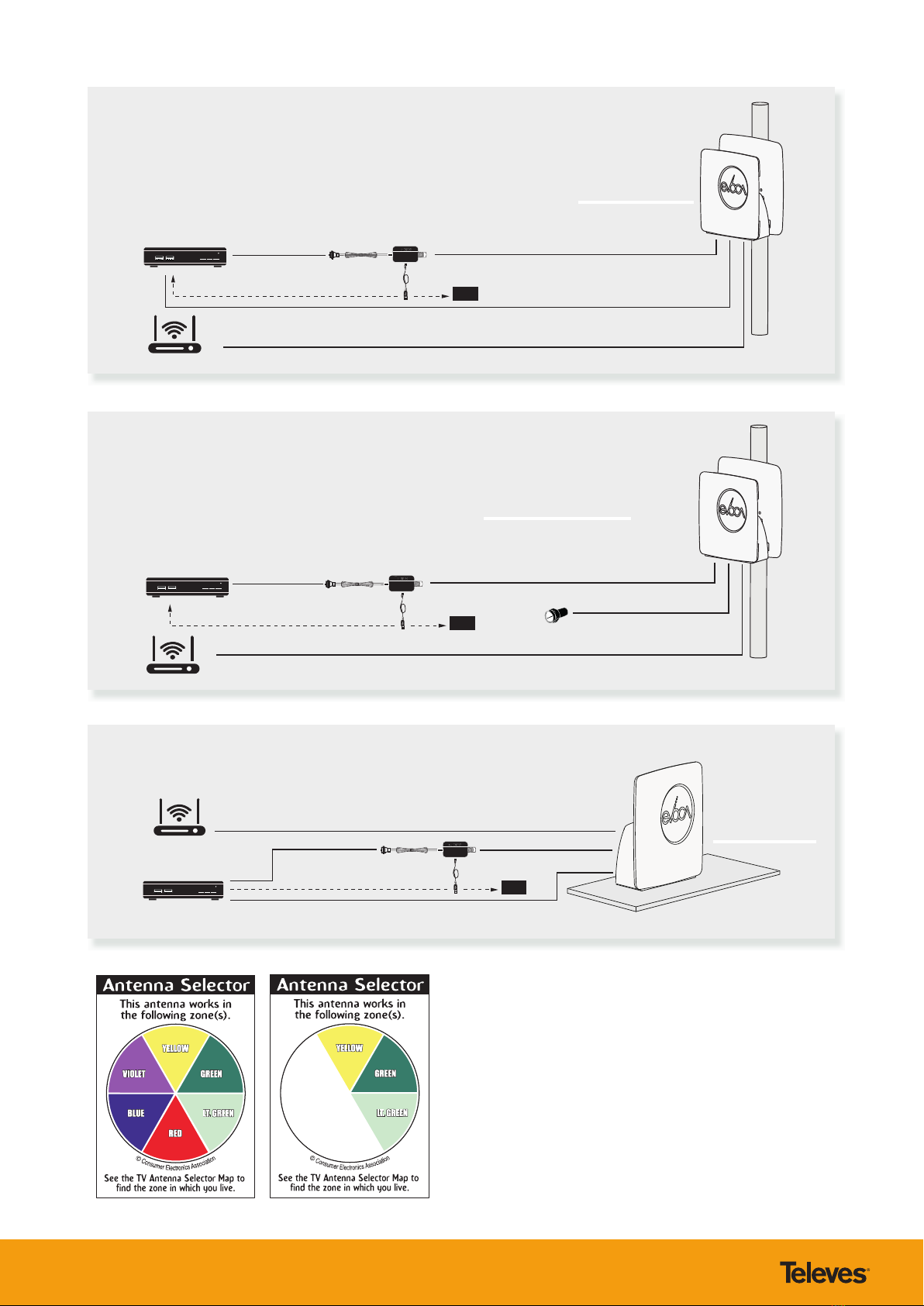

OUTDOOR EXAMPLE 01

STB

5G MODEM

MIMO MODE

TOTV TOANT

USB

PSU

OUTDOOR EXAMPLE 02

STB

5G MODEM

NO MIMO MODE

75 Ω

TOTV TOANT

USB

PSU

INDOOR EXAMPLE

STB

5G MODEM

MIMO MODE

This equipment has been tested and found to comply with the

limits for a Class A digital device, pursuant to part 15 of the FCC

Rules. These limits are designed to provide reasonable protec-

tion against harmful interference when the equipment is ope-

rated in a commercial environment. This equipment generates,

uses, and can radiate radio frequency energy and, if not insta-

lled and used in accordance with the instruction manual, may

cause harmful interference to radio communications. Opera-

tion of this equipment in a residential area is likely to cause

harmful interference in which case the user will be required to

correct the interference at his own expense.

YELLOW

GREENVIOLET

BLUE LIGHT

GREEN

RED

UHF

YELLOW

GREEN

LIGHT

GREEN

High VHF

YELLOW

GREENVIOLET

BLUE LIGHT

GREEN

RED

UHF

YELLOW

GREEN

LIGHT

GREEN

High VHF

UHF High-VHF

+5V

NACE 800-688-9282 | [email protected] | nace.tv
