Televes 2333 Manuale utente
Refs. 2333, 2334
2335, 2336
www.televes.com
Optical Fiber Transmitter and Receiver
with return path channel
EN User manual
ENGLISH
EN
Index
1. Technical specifications ...................................................................................................................... 5
2. Reference description ......................................................................................................................... 9
3. Mounting ............................................................................................................................................. 10
3.1. Wall mounting .............................................................................................................................. 10
3.2. 19” rack mounting ...................................................................................................................... 11
4. Element description ............................................................................................................................ 12
4.1. Optical transmitter ................................................................................................................... 12
4.2. Optical receiver ......................................................................................................................... 13
4.3. Power supply unit ..................................................................................................................... 14
5. Examples of application ..................................................................................................................... 15
Optical Fiber Transmitter and Receiver
Optical Fiber Transmitter and Receiver 4
Important safety instructions:
General installation conditions:
Before handling or connecting the equipment,
please read this manual.
Do not obstruct the equipment’s ventilation
system.
Please allow air circulation around the
equipment.
Do not place the equipment near sources of heat
or in excessively moisture conditions.
Do not place the equipment where it may be
aected by strong vibrations or knocks.
How to use the equipment safely:
If any liquid or object falls inside the equipment,
please contact a specialized technician.
Do not connect the equipment until all the other
connections have been made.
Instructions for the optical
connection:
For the optical connection, a single mode bre
cable is used with an SC/APC-type connector.
Remove the protective cover from the optical
connector on the front panel of the device, and
the cap on the connector of the single bre
cable.
Connect the cable to the device, carefully
slotting the guides together for both connectors,
pushing the connector all the way in.
Precautionary measures with the
connection point:
Take special care to avoid damaging the
unprotected ends of the connectors, as small
scratches, impurities and/or particles of dirt, oil,
grease, sweat etc. may signicantly aect the
quality of the signal.
To clean the ends of the connectors, gently rub
with a lint-free lens cleaning cloth, dampened
using additive-free isopropyl alcohol. Make sure
the alcohol evaporates fully before connecting.
Keep the connector covers and cable caps in a
safe place in case they are needed in the future.
Always t the covers on the connectors of devices
that are not connected to cables to prevent the
laser beam from damaging the eyes.
Avoid turning on the transmitter without having
the bre optic cable connected.
Safety measures
Warning.-
This product emits an invisible laser beam. Avoid
contact with laser radiation. The use of equipment
such as binoculars or magnifying glasses may
increase damage caused to the eyes.
LASER APERTURE
Invisible laser radiation.
Do not watch directly with
optical instruments.
Class 1M laser product.
According to EN60825-1_ 2007
Caution
- The use of controls or adjustments or any
other procedures other than those specied in
this manual may lead to exposure to harmful
radiation.
- Carefully read and observe the instructions given
in this manual, and keep it for future reference.
- Do not use the equipment in any way that does
not comply with the operating instructions or
in any conditions that exceed the stipulated
atmospheric specications.
- This equipment is not user-serviceable. Should
you require assistance, contact our technical
service department.
- Never point the laser beam intentionally at
people or animals.
EN
5
1. Technical specifications
Optical transmitters refs. 2333, 2334
RF
Input/Output
Frequency range Forward channel MHz 87 - 2150 Equivalent input noise EIN 850 MHz dBm/Hz -150.7
Return channel (3) 1 - 65 2000 MHz - 145.8
Max. input level for CSO & CTB >=
60dB (1))
87-862 MHz dBμV 91 Flatness dB ± 1.5
950-2150 MHz 80 Return losses dB >= 10
Input level regulation margin (in 2 dB steps) dB 0-18 Impedance ohm 75
Output level regulation margin (in 2 dB steps) (3)
Return channel maximum RF output level dBμV 112 (2) Test socket attenuation (typ.) dB 16
Optical output
(forward channel)
Laser type MQW-DFB Output optical power mW/dBm 4 / 6
Wavelength nm 1310 ± 20
Optical input
(return channel) (3)
Optical device type InGaAs Pin
Photodiode Detection bandwidth MHz 1 - 3000
Wavelength nm 1200 -1600 Max. Optical power received mW/dBm 2 / 3
General Powering/Consumption 12 Vdc mA 210 310 (3)
RF connectors type female F
24 Vdc 104 160 (3)
Operating temperature ºC -5 ··· +45 Optical connectors SC/APC
(1) Input: 41 TV CH CENELEC and 1complete satellite transponder. The input attenuator in 0dB position.
(2) Measurement made according to standard DIN45004B.
(3) Only ref. 2334.
Optical Fiber Transmitter and Receiver 6
RF
Input/Output
Frequency range Forward channel MHz 87 ··· 2150 Equivalent input noise of the return channel,
measured at 30 MHz and the transmitter
output connected directly to the receiver
dBm/Hz -152.5Return channel (3) 1 ··· 65
Max. Output Level for CSO and
CTB> = 60dB (1))
87-862 MHz dBμV 93
950-2150 MHz 90 Flatness dB ± 1.5
Output level regulation margin (in 2 dB steps) dB 0-18 Return losses dB >= 11
Max. input level return path (2) (3) dBμV 95
Impedance ohm 75
Optical input
(forward channel)
Optical device type InGaAs Pin
Photodiode Detection bandwidth MHz 1 ··· 3000
Wavelength nm 1200 ··· 1600 Max. Optical power received mW/dBm 4 / 6
Optical output
(return channel) (3)
Laser type Fabry-Perot Maximum ouitput power mW/dBm 2 / 3
Wavelength nm 1310±20
General Powering/Consumption 12 Vdc mA 300 355 (3)
RF connectors type female F
24 Vdc 155 175 (3)
Operating temperature ºC -5 ··· +45 Optical connectors SC/APC
(1) Output: 42 TV CH CENELEC and 1 complete satellite transponder. The output attenuator in 0dB position.
(2) According to DIN45004B
(3) Only ref. 2336
Optical receivers refs. 2335, 2336
EN
7

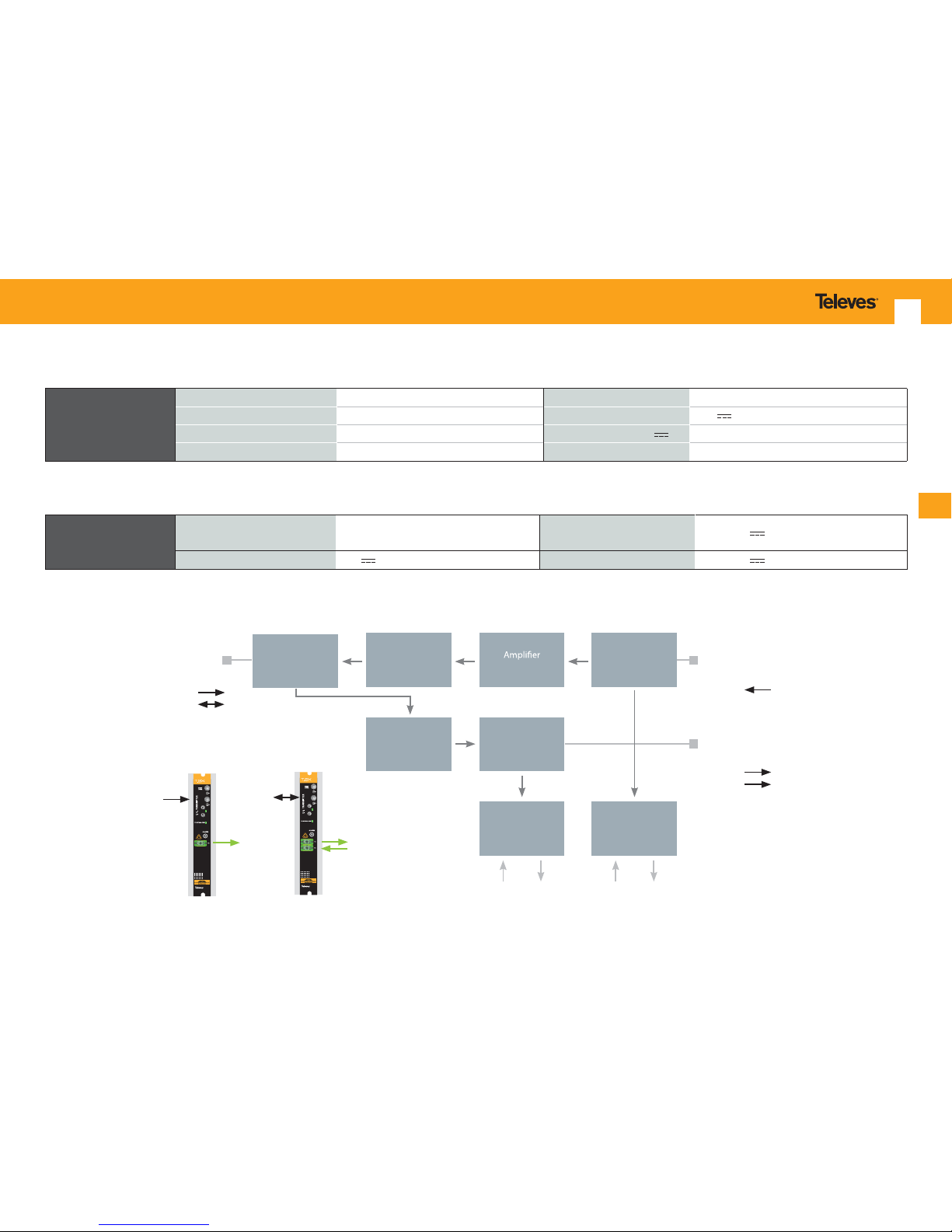

Amplier
5575
Frequency range 46 ... 862 MHz Connector type “F”
Gain 44 ± 2,5 dB Powering 24 V
Regulation margin 20 dB Consumption at 24 V : 450 mA
Output level (at 60 dBc): 105 dBμV (42 CH CENELEC) Test socket -30 dB
Power Supply Unit
5629
Mains voltage 196 - 264 V~ 50/60 Hz Total max. current
(output1 + output2): 5 A (24V )
Output voltage 24V Max. current per output 4 A (24V )
1.5. Ampliers technical specications
1.6. Technical specs. Power Supply Unit
1.7. Blocks diagrams
Diplexer
Fwd path / Rtn
path
RF INPUT
(forward path)
RF OUTPUT
(return path
ref. 2333
ref. 2334
Attenuator
Forward path
Converter
RF ÆFO
Forward path
Control
LED Relay
Attenuator
Return path Return path
Converter
RF ÅFO
FO INPUT
Return path
Return path
Control
LED Relay
FO OUTPUT
ref. 2333
ref. 2334
Forward path
ref. 2334
2333
PWR
2334
PWR
Optical Fiber Transmitter and Receiver 8
Diplexer
Fwd path / Rtn path RF OUTPUT Fwd path
RF INPUT Rtn path
Return path
attenuator
Converter
RF ÅFO
Return path
control
LED Relay
Forward path
attenuator
Forward path
Æ
Converter
FO ÆRF
FO OUTPUT
Return path
ref. 2336
ref. 2335
ref. 2336
Forward path
control
LED Relay
FO INPUT
Forward path
2335
PWR
2336
PWR
ref. 2335
ref. 2336
EN
9
2. Description of references
Product range
2333 T.0X Optical ber transmitter 1310 nm
2334 T.0X Optical ber transmitter 1310 nm + Return channel receiver
2335 T.0X Optical ber receiver 1200-1600 nm
2336 T.0X Optical ber receiver + Return channel transmitter
2337 T.0X 2 way optical splitter
2339 T.0X 4 way optical splitter
5629 T.0X Power Supply Unit 24V/5A
Accessoires
7234 Universal programmer
5071 Wall mounting rail T03-T05-T.0X L=50 cm
5239 Wall mounting rail T03-T05-T.0X (12 modules +PSU) L= 56 cm
5301 19” rack frame
507202 T.0X cabinet with ventilation unit (7 modules + PSU)
4061 F terminal load DC-blocked
4058 F terminal load
422601 T05 to T.0X powering adapter lead L=40 cm
422602 T05 to T.0X BUS adapter lead L=40 cm
422603 Control BUS lead T.0X L=1 m
5673 Face plate 50 mm
Optical Fiber Transmitter and Receiver 10
UQQA-S2-T
DVBS 2-QAM TWIN
UQQA-S2-T
DVBS 2-QAM TWIN
UQQA-S2-T
DVBS 2-QAM TWIN
UQQA-S2-T
DVBS 2-QAM TWIN
UQQA-S2-T
DVBS 2-QAM TWIN
UQQA-S2-T
DVBS 2-QAM TWIN
F. O. TRANSMITTER
TEST
(-12dB)
RF
TX OPTICAL PWR
RF IN
LEVEL
ADJ.
ALARM
0
2
4
6
8
10
12
14
16
18
PWR
TX
LASER APERTURE
Invisible laser radiation.
Do not watch directly with optical instruments.
Class 1M laser product.
1
2
CLAC!

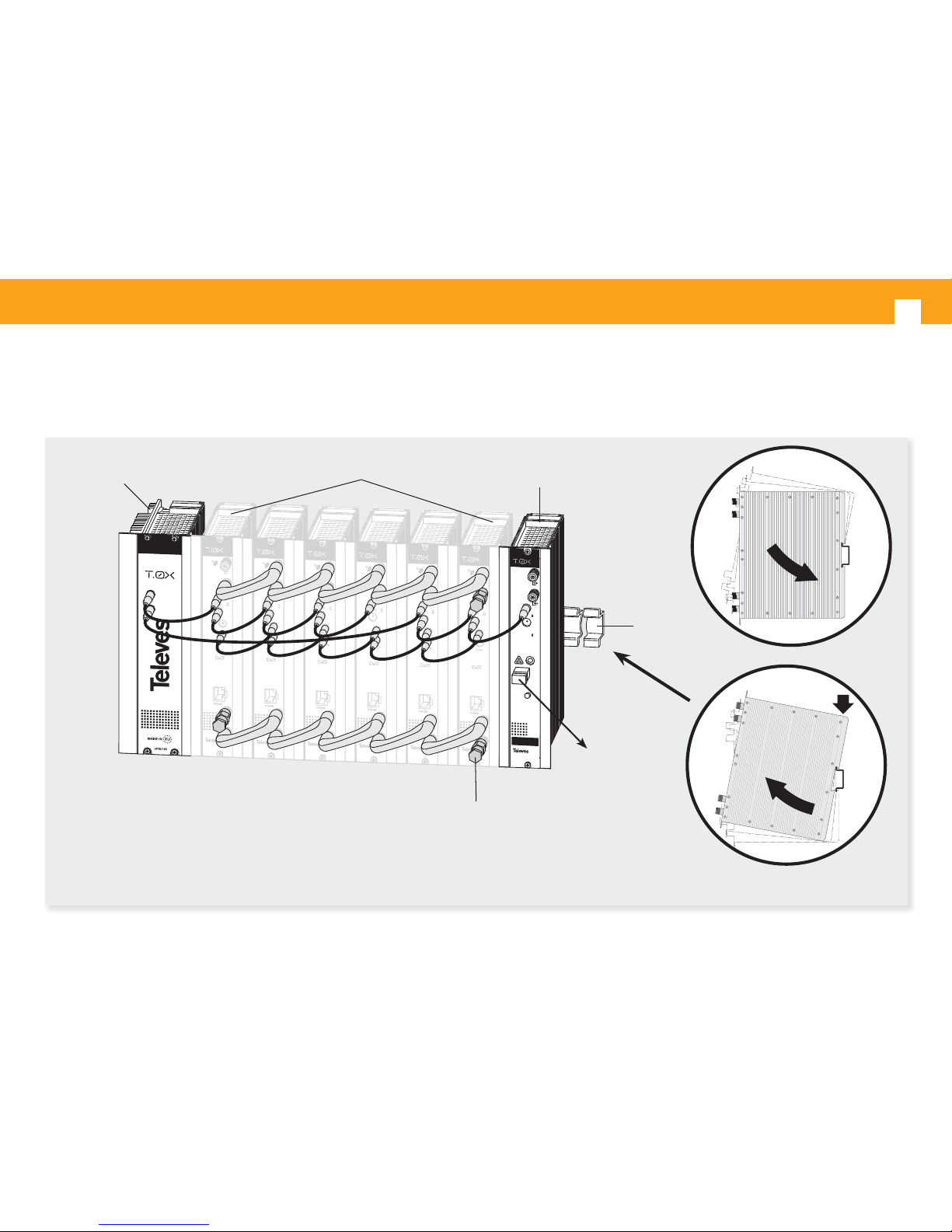

3. Mounting
3.1. Wall mounting
NOTE: We recommend using both outputs of the source, balancing consumption.
F.O. transmitter
4061
5071
5239
T.0X Headend
5629
Optical
output
