Teltonika FMB002 Manuale utente

Quick Manual

v1.6

Easy OBDII tracker

FMB002

FMB002 | Wiki

Table of Contents

Know your device .......................................................................... 3

Pinout................................................................................................. 4

Set up your device......................................................................... 5

How to insert Micro-SIM card and connect the battery................ 5

PC Connection (Windows)................................................................ 6

How to install USB drivers (Windows)............................................. 6

Configuration (Windows) ................................................................. 6

Quick SMS configuration.................................................................. 8

Mounting recommendations ....................................................... 9

LED indications ............................................................................ 10

Basic characteristics ................................................................... 10

Safety information...................................................................... 13

Certification and Approvals ....................................................... 14

Warranty ...................................................................................... 15

Warranty Disclaimer ....................................................................... 15

FMB002 | Wiki

Know your device

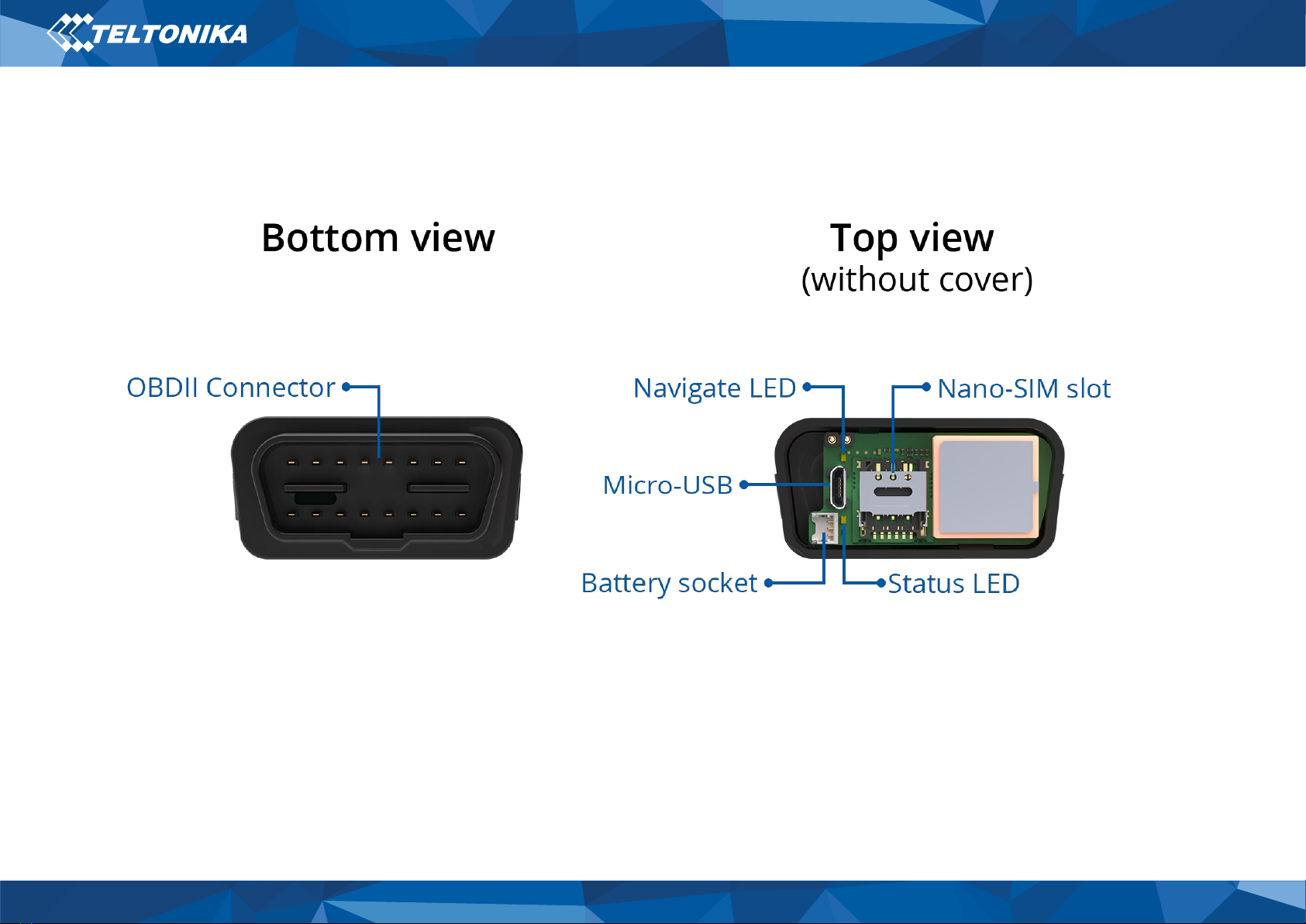

Figure 1 FMB002 device view

FMB002 | Wiki

Pinout

Table 1 OBDII pinout

PIN NUMBER

PIN NAME

DESCRIPTION

PWM_BUS+/VPW

GND (-)

Ground

GND (-)

Ground

CAN_H

CAN high

K-Line

PWM_BUS-

CAN_L

CAN low

L-Line

VCC (10 - 30) V DC (+)

Power supply (+10-30 V DC)

Figure 2 FMB002 OBDII socket pinout

FMB002 | Wiki

Set up your device

How to insert Micro-SIM card and

connect the battery

1. Open the top cover of the device. Cover is opened by unclipping

it at the recessed corner.

2. Insert Nano-SIM card as shown with PIN request disabled or

read our Wiki how to enter it later in Teltonika Configurator.

Make sure that Nano-SIM card is fitted properly into the holder.

3. Connect the battery as shown to device.

4. After configuration, see “PC Connection (Windows)”, attach

device cover back.

Device is ready to be mounted.

Figure 4 Device case removal

Figure 3 Nano-SIM card insert

Figure 6 Battery connection

Figure 5 Attach device cover back

FMB002 | Wiki

PC Connection (Windows)

1. Power-up FMB002 with DC voltage (10 –30 V) power supply

using supplied power cable. LED’s should start blinking, see

“LED indications”.

2. Connect device to computer using Micro-USB cable or

Bluetooth connection:

•Using Micro-USB cable

▬You will need to install USB drivers, see “How to install

USB drivers (Windows)”

•Using Bluetooth

▬FMB002 Blue-tooth is enabled by default. Turn on

Bluetooth on your PC, then select Add Bluetooth or

other device > Bluetooth. Choose your device named –

“FMBxxx_last_7_imei_digits”, without LE in the end.

Enter default password 5555, press Connect and then

select Done.

3. You are now ready to use the device on your computer.

How to install USB drivers

(Windows)

1. Please download COM port drivers from here.

2. Extract and run TeltonikaCOMDriver.exe.

3. Click Next in driver installation window.

4. In the following window click Install button.

Setup will continue installing the driver and eventually the

confirmation window will appear. Click Finish to complete the

setup.

Configuration (Windows)

At first FMB002 device will have default factory settings set. These

settings should be changed according to the user's needs. Main

configuration can be performed via Teltonika Configurator

software. Get the latest Configurator version from here.

Configurator operates on Microsoft Windows OS and uses

prerequisite MS .NET Framework. Make sure you have the correct

version installed.

Table 2 MS .NET requirements

MS .NET REQUIREMENTS

Operating

system

MS .NET Framework

version

Version

Links

Windows Vista

Windows 7

Windows 8.1

Windows 10

MS .NET Framework

4.6.2

32 and 64 bit

www.microsoft.com

Downloaded Configurator will be in compressed archive. Extract it

and launch Configurator.exe. After launch software language can

be changed by clicking in the right bottom corner (Figure 7

Language selection).

FMB002 | Wiki

Configuration process begins by pressing on connected device

(Figure 8 Device connected via USB).

After connection to Configurator Status window will be displayed

(Figure 9 Configurator Status window).

Various Status window tabs display information about GNSS,

GSM,I/O, Maintenance and etc. FMB002 has one user editable

profile, which can be loaded and saved to the device. After any

modification of configuration the changes need to be saved to

device using Save to device button. Main buttons offer following

functionality:

1. Load from device –loads configuration from device.

2. Save to device –saves configuration to device.

3. Load from file –loads configuration from file.

4. Save to file –saves configuration to file.

5. Update firmware –updates firmware on device.

6. Read records –reads records from the device.

7. Reboot device –restarts device.

8. Reset configuration –sets device configuration to

default.

Most important configurator section is GPRS –where all your

server and GPRS settings can be configured and Data Acquisition

–where data acquiring parameters can be configured.

More details about FMB002 configuration using Configurator can

be found in our Wiki.

Figure 8 Device connected via USB

Figure 7 Language selection

Figure 9 Configurator Status window

FMB002 | Wiki

Quick SMS configuration

Default configuration has optimal parameters present to ensure

best performance of track quality and data usage.

Quickly set up your device by sending this SMS command to it:

Note: Before SMS text, two space symbols should be inserted.

GPRS settings:

•

2001

–APN

•

2002

–APN username (if there

are no APN username, empty

field should be left)

•

2003

–APN password (if there

are no APN password, empty

field should be left)

Server settings:

•

2004

–Domain

•

2005

–Port

•

2006

–Data sending protocol

(0 –TCP, 1 –UDP)

Default configuration settings

Movement and ignition detection:

Vehicle movement will

be detected by

accelerometer

Ignition will be detected

by vehicle power voltage

between 13,2 –30 V

Device makes a record On Moving if one of these events happen:

300 seconds passes

Vehicle turns 10 degrees

Vehicle drives 100

meters

Speed difference

between last coordinate

and current position is

greater than 10 km/h

Device makes a record On Stop if:

1 hour passes while

vehicle is stationary

and ignition is off

Records sending to server:

If device has made a

record it is sent to the

server every 120

seconds

After successful SMS configuration, FMB002 device will

synchronize time and update records to configured server.

Time intervals and default I/O elements can be changed by using

Teltonika Configurator or SMS parameters.

" setparam

2001

:APN;

2002

:APN_username;

2003

:APN_password;

2004

:Domain;

2005

:Port;

2006

:0"

FMB002 | Wiki

Mounting recommendations

•Connecting the device to the vehicle:

▬Find OBDII connector in your vehicle (Figure 10. Most

common OBDII connector locations).

Figure 10. Most common OBDII connector locations

FMB002 | Wiki

LED indications

Table 3 Navigation LED indications

BEHAVIOUR

MEANING

Permanently switched on

GNSS signal is not received

Blinking every second

Normal mode, GNSS is working

Off

GNSS is turned off because:

Device is not working or Device is in

sleep mode

Blinking fast constantly

Device firmware is being flashed

Table 4 Status LED indications

BEHAVIOUR

MEANING

Blinking every second

Normal mode

Blinking every two seconds

Sleep mode

Blinking fast for a short time

Modem activity

Off

Device is not working or Device is in

boot mode

Basic characteristics

Table 5 Basic characteristics

MODULE

Name

Teltonika TM2500

Technology

GSM, GPRS, GNSS, BLUETOOTH

GNSS

GPS, GLONASS, GALILEO, BEIDOU,

SBAS, QZSS, DGPS, AGPS

Receiver

33 channel

Tracking sensitivity

-165 dBM

Accuracy

< 3 m

Hot start

< 1 s

Warm start

< 25 s

Cold start

< 35 s

CELLULAR

Technology

GSM

2G bands

Quad-band 850 / 900 / 1800 / 1900

MHz

Maximum output power

GSM 900: 33dBm±2dB (Rated

conducted)

GSM 1800: 30dBm±2dB (Rated

conducted)

Bluetooth: 5.22 dBm (Maximum out

EIRP)
