INTRODUCTION

About the Unit Ventilator

The Temspec unit ventilator is designed as a means for providing heating, cooling, and ventilation to

the classroom. Our goal is to help create an enhanced learning environment by focusing on the

following points when designing our equipment:

•Cooling, Heating, Humidity And Ventilation Control

•Air Distribution

•Sound Attenuation

By installing the vertical unit ventilator into the classroom, superior control can be obtained for each

room. Because the unit can be ducted, an even distribution of air can be achieved throughout the

room. The unit ventilator is constructed with heavy gauge metal and sound absorbing insulation for

optimal sound attenuation.

By applying sound engineering principles and thorough testing, we ensure the highest quality of

performance of our unit ventilators.

NOMENCLATURE FOR NON-COMPRESSORIZED UNIT VENTILATORS

V=Vertical Unit

H=Horizontal

UD = Upflow Ducted Unit Ventilator

UF = Upflow Freeblow (direct discharge) Unit Ventilator

CD = Horizontally Ducted Unit Ventilator

DF = Downflow Unit Ventilator

ER = Energy Recovery Unit Ventilator

GB = Dual Coil Dehumidifying Air Handling Unit

1200 = up to 1200 cfm

1500 = up to 1500 cfm

1600 = up to 1600 cfm

1800 = up to 1800 cfm

2000 = up to 2000 cfm

1200

Temspec Unit Ventilator IOM 2023-07-05

[3]

SAFETY WARNINGS

Read the manual thoroughly before installing and using the appliance. This will ensure the best

results and maximum safety.

WARNING

ELECTRICAL SHOCK HAZARD

Failure to follow this warning could result in personal injury or death.

Field wires on the line side of the disconnect located inside the unit remain live, even when the

disconnect switch is off. Service and maintenance to incoming wiring cannot be performed until

the main remote disconnect is turned off, locked out and tagged.

This appliance is not intended for use by persons (including children) with reduced

physical, sensory or mental capabilities, or lack of experience and knowledge, unless

they have been given supervision or instruction concerning use of the appliance by a

person responsible for their safety.

“Children should be supervised to ensure that they do not play with the appliance.”

WARNING

This appliance may contain UV-C LEDs

DO NOT OPERATE UV-C LAMPS OUTSIDE THE APPLIANCE

UV Light Hazard. Harmful to skin and eyes. Can cause temporary or permanent loss of vision.

Never look at the lamp while illuminated. To prevent exposure to ultraviolet light, be sure the

power is disconnected before servicing.

DO NOT touch UVC LEDs with bare hands

CAUTION

This appliance may contain an Ionizer

Ionizer generates high voltage. Make sure power is disconnected before cleaning the ionizer

brush heads.

Remove any accumulated dirt on the ionizer brush heads to prevent risk of flashover or fire.

Temspec Unit Ventilator IOM 2023-07-05

[4]

ELECTRICAL CONNECTIONS

Use Copper Supply Wires Only

Use Supply Wires Suitable for 90◦C

Our unit Ventilators are available in the following voltages: 120/1/60, 208/1/60, 240/1/60,

277/1/60, 208/3/60, 480/3/60, 480/3/60 + N

The electrical circuit in the unit ventilator is highly dependent on the controller and control sequence

that is being utilized. A copy of the electrical schematic can be found folded in a pouch inside of the

unit ventilator or in the final job submittal.

Access to power is through the top of the unit (unless ordered differently). The unit has a single point

connection at the junction box (comes with disconnect switch) located inside the unit either above or

below the electrical box. Junction box may be located on the rebate inside the unit if the electrical

enclosure is door mounted. A circuit breaker may be used instead of the disconnect depending on

the amperage.

The electrical wiring must be in accordance with the current applicable national and local codes. A

qualified electrician must carry out the work. The electrical power to the unit should be disconnected

by opening the remote disconnect device prior to opening the access panel. The wiring diagram shall

be followed thoroughly when making connections to the unit.

A conduit is to be field installed in the unit such that hazardous voltage wiring is protected until it is

terminated. In the junction box or electrical enclosure.

Line Voltage Connections

Connect power leads from the field disconnect to the pigtails provided with the disconnect at the

junction box located inside the appliance and ground at the green screw located inside the junction

box.

If a circuit breaker is used, terminate the field provided line leads directly at the circuit breaker. The

neutral line to be terminated at the power distribution block and ground at the lug located beside the

circuit breaker inside the electrical enclosure.

Type and Ratings of Fuses and Circuit Breakers

Up to 30A time delay fuses are used. Up to 3 pole 100A circuit breakers are used.

Grounding

The unit Ventilator must be grounded for field connections wires up to #10 AWG using the green

ground screw inside the junction box. If the field connection wires are larger than # 10 AWG, the

grounding point is a ground lug installed in the electrical enclosure.

Low Voltage Connections

There is a sheet metal barrier between line voltage and extra low voltage circuits inside the

electrical enclosure. Low voltage connections are to be made to the terminal block or a controller

mounted on the low voltage side of the electrical enclosure. The unit is equipped with 1/2 inch flex

metal conduit to segregate wires entering unit. A conduit termination port is provided on the

electrical enclosure.

Temspec Unit Ventilator IOM 2023-07-05

[5]

TYPICAL LAYOUTS

VUD 1200

O.A. Outdoor Air

1. Supply air fan.

2. Hot water coil. Optional electric or steam

coil available.

3. DX cooling coil.

4. Drain pan.

5. Outdoor air damper.

6. Spring return mixed air damper actuator.

7. Filters.

SIDE SECTION

(Hot Water /

Chilled Water)

SIDE SECTION

(Split System DX)

S.A. Supply Air

21.5"

R.A.

21.5"

O.A.

7O.A.

S.A.

8. Return air damper.

9. 2 pipe or 4 pipe (hot water coil can be

in the reheat position).

10. Ceiling tile.

11. Top extension (optional).

12. Coil access panel.

13. Hinged filter access panel.

14. Heavy duty return air grille.

FRONT ELEVATION

R.A.

R.A. Return Air

28"

Duct By

Others

S.A.

93"

NOTE: The component arrangement shown above may vary slightly from that in the unit supplied.

Temspec Unit Ventilator IOM 2023-07-05

[6]

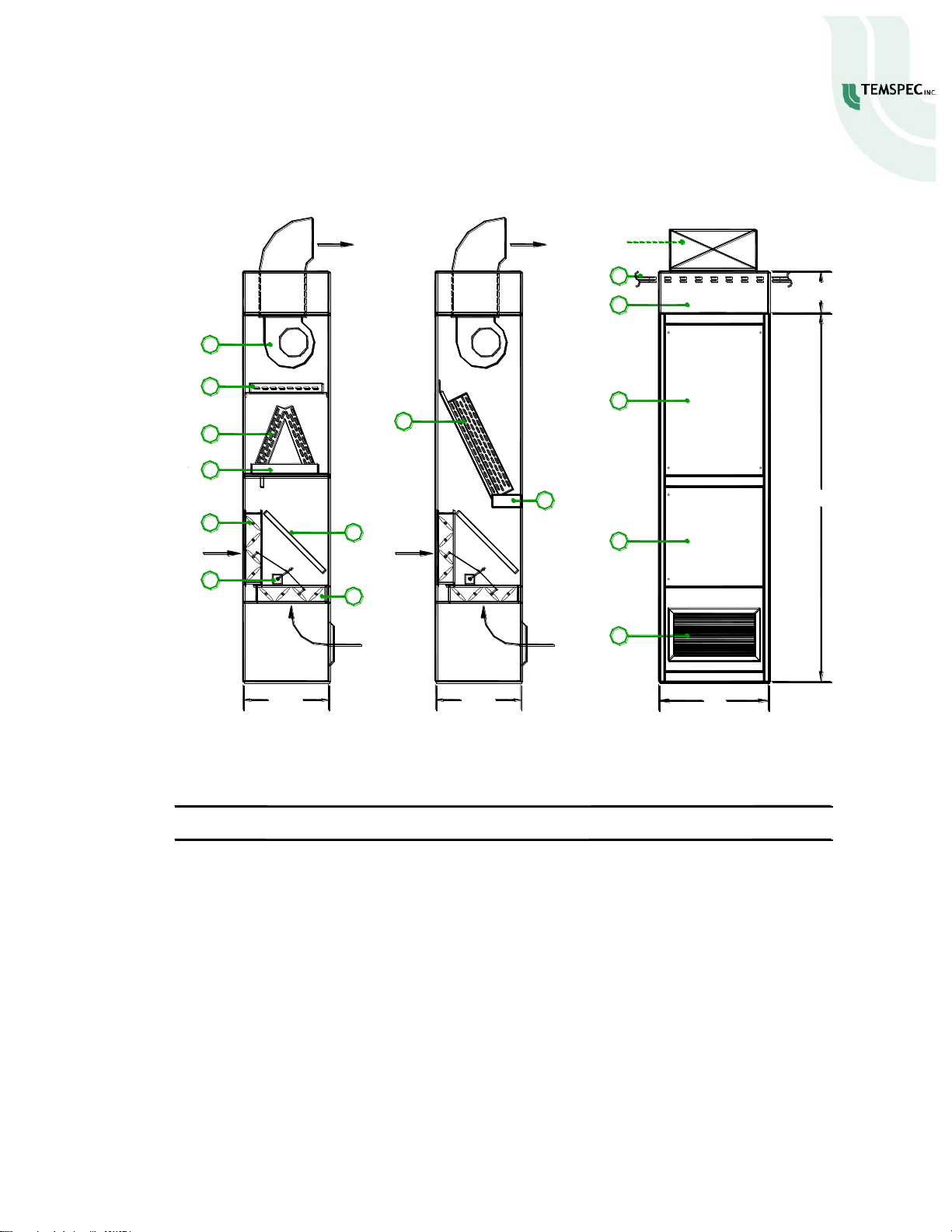

VUD 1600

O.A. Outdoor Air

1. Supply air fan.

2. Hot water coil. Optional electric or steam

coil available.

3. DX cooling coil.

4. Drain pan.

5. Outdoor air damper.

6. Spring return mixed air damper actuator.

7. Filters.

SIDE SECTION

(Hot Water /

Chilled Water)

SIDE SECTION

(Split System DX)

S.A. Supply Air

23"

R.A.

23"

O.A.

7O.A.

S.A.

8. Return air damper.

9. 2 pipe or 4 pipe (hot water coil can be

in the reheat position).

10. Ceiling tile.

11. Top extension (optional).

12. Coil access panel.

13. Hinged filter access panel.

14. Heavy duty return air grille.

FRONT ELEVATION

R.A.

R.A. Return Air

33"

Duct By

Others

S.A.

93"

NOTE: The component arrangement shown above may vary slightly from that in the unit supplied.

Temspec Unit Ventilator IOM 2023-07-05

[7]

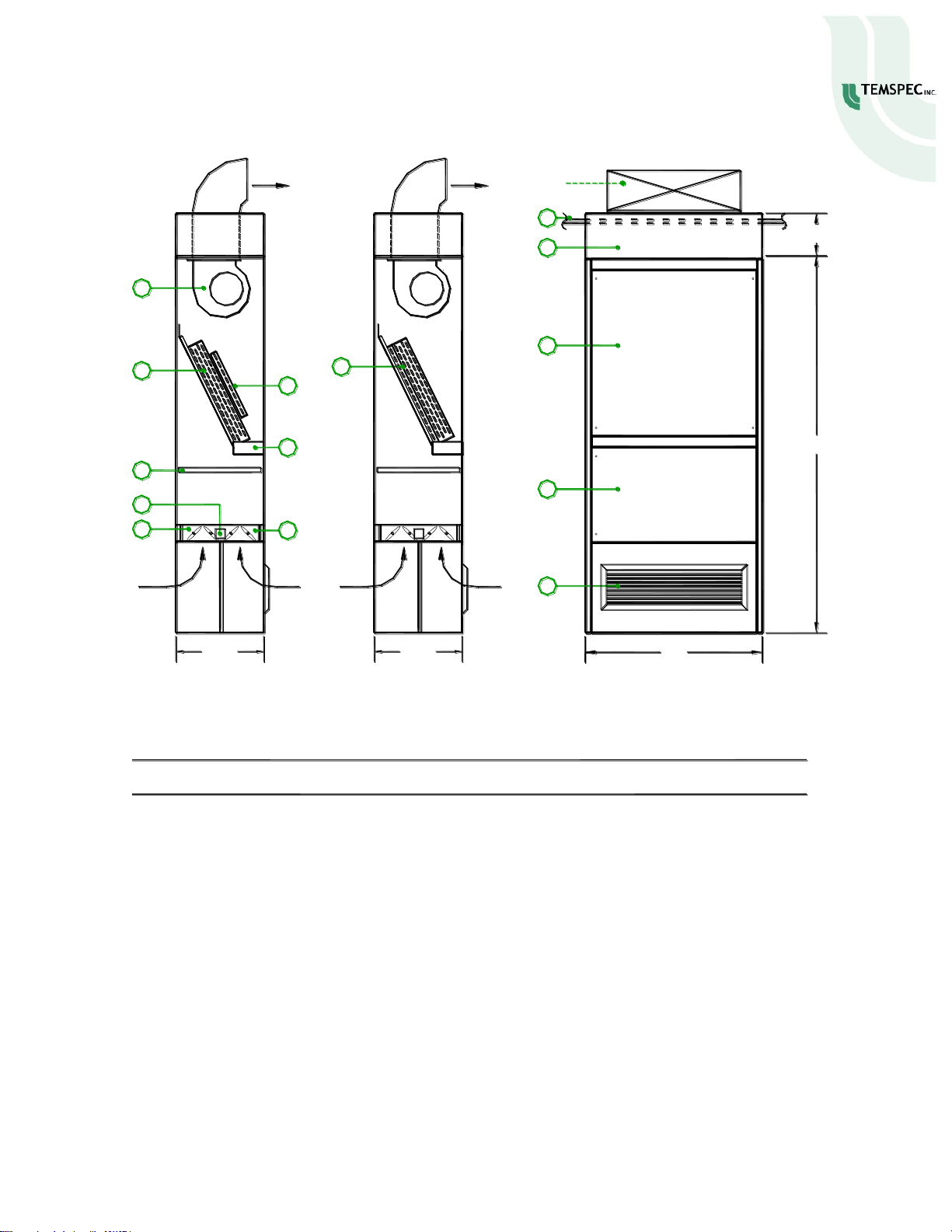

VUD 2000

O.A. Outdoor Air

S.A.

S.A. Supply Air

1. Dual supply air fans.

2. DX cooling coil.

3. Filters.

4. Spring return mixed air damper actuator.

5. Outdoor air damper.

6. Hot water coil. Optional electric or steam

coil available.

7. Drain pan.

SIDE SECTION

(Split System DX)

O.A.

23"

O.A.

R.A.

SIDE SECTION

(Hot Water /

Chilled Water)

23"

6CW

S.A.

R.A. Return Air

8. Return air damper.

9. 2 pipe or 4 pipe (hot water coil can be

in the reheat position).

10. Ceiling tile.

11. Top extension (optional).

12. Coil access panel.

13. Hinged filter access panel.

14. Heavy duty return air grille.

FRONT ELEVATION

R.A. 14

44"

Duct By

Others

93"

NOTE: The component arrangement shown above may vary slightly from that in the unit supplied.

Temspec Unit Ventilator IOM 2023-07-05

[8]

VUF 1200

O.A. Outdoor Air

SIDE SECTION

(Hot Water /

Chilled Water)

S.A. Supply Air

1. Hot water coil. Optional electric or steam

coil available.

2. DX cooling coil.

3. Drain pan.

4. Supply air fan.

5. Outdoor air damper.

6. Spring return mixed air damper actuator.

7. Filters.

SIDE SECTION

(Split System DX)

21.5"

R.A.

21.5"

O.A.

S.A.

R.A. Return Air

8. Return air damper.

9. 2 pipe or 4 pipe (hot water coil can be

in the reheat position).

10. Double deflection supply air grille.

11. Coil access panel.

12. Hinged filter access panel.

13. Heavy duty return air grille.

FRONT ELEVATION

R.A.

28"

S.A. S.A.

93"

S.A.

NOTE: The component arrangement shown above may vary slightly from that in the unit supplied.

Temspec Unit Ventilator IOM 2023-07-05

[9]

VUF 1500

S.A.

O.A. Outdoor Air

R.A.

S.A. Supply Air

1. DX cooling coil.

2. Dual supply air fans.

3. Filters.

4. Spring return mixed air damper actuator.

5. Outdoor air damper.

6. Hot water coil. Optional electric or steam

coil available.

7. Drain pan.

SIDE SECTION

(Split System DX)

O.A.

23"

O.A.

R.A.

SIDE SECTION

(Hot Water /

Chilled Water)

23"

S.A.

R.A. Return Air

8. Return air damper.

9. 2 pipe or 4 pipe (hot water coil can be

in the reheat position).

10. Double deflection grilles.

11. Coil access panel.

12. Hinged filter access panel.

13. Heavy duty return air grille.

FRONT ELEVATION

44"

S.A.

93"

S.A.

NOTE: The component arrangement shown above may vary slightly from that in the unit supplied.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Temspec Fan

Temspec

Temspec TVA Manuale utente

Temspec

Temspec VHC Series Manuale

Temspec

Temspec TL Manuale utente

Temspec

Temspec VUD Series Manuale

Temspec

Temspec VER1800 Manuale

Manuali Fan popolari di altre marche

ELTA FANS

ELTA FANS H03VV-F Manuale utente

Hunter

Hunter 20714 Manuale di istruzioni

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manuale utente

Hunter

Hunter Caraway Manuale di istruzioni

Panasonic

Panasonic FV-15NLFS1 Manuale utente

Kompernass

Kompernass KH 1150 Manuale utente

VES

VES FALA100/12V/TR Manuale utente

Vertiv

Vertiv Liebert DCD Manuale utente

Westinghouse

Westinghouse GFP Series Manuale utente

Venmar

Venmar KUBIX HRV PLUS Series Manuale utente

Maico

Maico ECR 31 Manuale utente

Sonnenkonig

Sonnenkonig Dinky Manuale utente

S&P

S&P ECOWATT HXBR Manuale utente

Wider

Wider IMP03369BH Manuale utente

Panasonic

Panasonic F-60DHN Manuale utente

Hinkley

Hinkley HIGHLAND Manuale utente

Broan

Broan 766BN Manuale utente

Premium

Premium PFS16022 Istruzioni per il montaggio
