Tenda TWL542U Manuale utente
Instruction Manual USB Wireless Adapter
Table of Contents
Chapter 1 Brief Introduction······························································ 2
1.1 Features··········································································· 2
1.2 Applications······································································ 3
1.3 Product Kit········································································ 4
Chapter 2 Installation Guide······························································ 5
Chapter 3 Usage of Configuration Utility ········································ 8
3.1 Network Status·································································· 8
3.2 Site Scan ········································································ 10
3.3 Statistics ·········································································11
3.4 Encryption········································································12
3.5 Information·······································································13
3.6 Profile···············································································14
Chapter 4 Specifications ·································································16
Instruction Manual USB Wireless Adapter
Chapter 1 Brief Introduction
Thanks for choosing TWL542U wireless adapter. It is a standard
USB adapter that Compliant to USB1.1/2.0. It is an enhanced
high-performance supporting high-speed wireless adapter at home, or at
office. TWL542U wireless adapter is able to communicate with any
802.11b and 802.11g compliant products, supporting all Windows OS,
seamless roaming, and latest WEP and WPA encryptions.
1.1 Features
Standard USB interface, USB1.1/2.0 capable, PnP and easy to
install;
Fully compliant with IEEE802.11g, IEEE802.11b 2.4GHz;
Supporting TCP/IP、NDIS、NetBEUI;
64/128 bit WEP encryption capable, supports WPA/PSK;
Supports 54/48/36/24/18/12/9/6/11/5.5/2/1Mbps data rate;
Smart built-in omni-directional antenna auto adjustable for best
performance;
2 Working modes: Infrastructure (AP needed) and Ad-Hoc (AP not
needed);
Supports a variety of operating systems (Win98Se/Me/2000/XP);
Provides Window-based configuration and management utility;
Wireless seamless roaming supported, Greater flexibility to locate
or move networked pcs;
Working range up to 100m indoor, 300m in an open environment;
DSSS adopted, Seamless connectivity to wired Ethernet and
Instruction Manual USB Wireless Adapter
wireless LAN;
Easy to install and user friendly, just Plug and Play;
Supports 802.11b/g transmission power manageable, QoS
supported;
Low power consumption and manageable;
Wireless connection, without any cost of cabling;
LED indication: LED on steady means ready and blinks when
connected;
1.2 Applications
TWL542U wireless adapter offers a fast, reliable, cost-effective
solution for wireless client access to the network in applications like
these:
1. Remote access to corporate network information E-mail, file transfer
and terminal emulation.
2. Difficult-to-wire environments Historical or old buildings, asbestos
installations, and open area where wiring is difficult to deploy.
3. Frequently changing environments Retailers, manufacturers and
those who frequently rearrange the workplace and change location.
4. Temporary LANs for special projects or peak time-Trade shows,
exhibitions and construction sites where a temporary network will be
practical. Retailers, airline and shipping companies need additional
workstations during peak period. - Auditors requiring workgroups at
customer sites.
5. Access to database for mobile workers Doctors, nurses, retailers,
accessing their database while being mobile in the hospital, retail
store or office campus.
Instruction Manual USB Wireless Adapter
6. SOHO (Small Office and Home Office) users SOHO users need easy
and quick installation of a small computer network.
7. High security connection The secure wireless network can be installed
quickly and provide flexibility.
1.3 Product Kit
TWL542U wireless adapter comes with the following items. Please
go through each item below. If any of listed items appears to be
damaged or missing, please contact your local dealer.
TWL542U wireless adapter………….……………… …x 1
TWL542U wireless adapter driver and utilities CD… ..x 1
TWL542U wireless adapter Instruction Manual………x 1
USB extension cable………………………………….. x 1
Instruction Manual USB Wireless Adapter
Chapter 2 Installation Guide
This chapter describes the instructions that guides you through the
proper installation of your TWL542U wireless adapter. The installation
CD has integrated the utility with the driver, configuration software that
during the installation and uninstallation process the utility, system will
automatically install/uninstall the driver. The complete installation of the
TWL542U wireless adapter consists of the following steps (Windows
2000 as an example, for the installation under other OS, please kindly
refers to this manual with the system prompts accordingly);
Step1 Insert TWL542U wireless adapter into a USB port of your
computer, the Windows will auto-detect the USB wireless adapter and a
Found New Hardware Wizard window will show up.
Instruction Manual USB Wireless Adapter

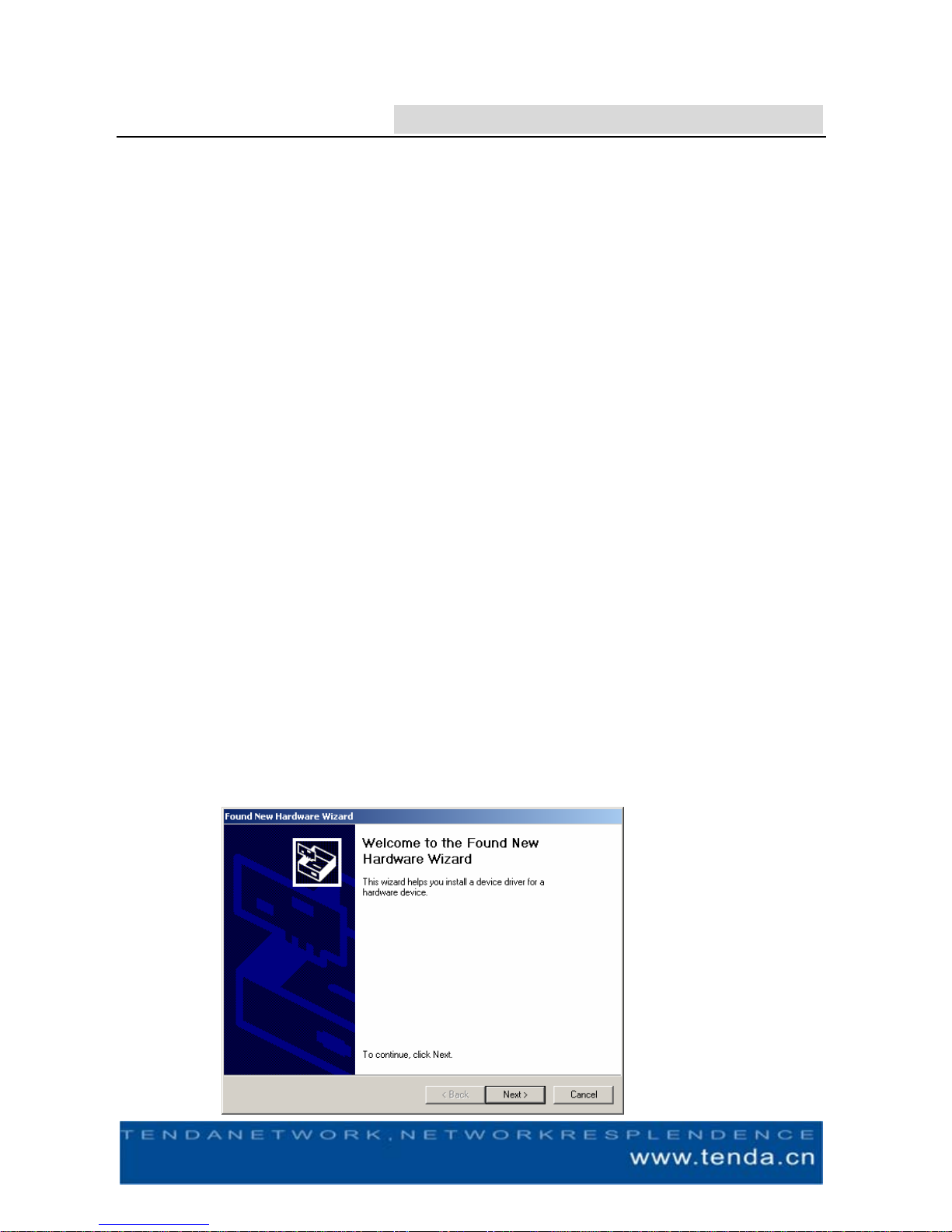

Fig.2-1
Click Cancel and install the driver from the Installation CD,
Step 2 Insert the CD into your CD ROM, Double click MY COMPUTER
＞Your CD ROM driver＞TWL542U folder, double click the icon.

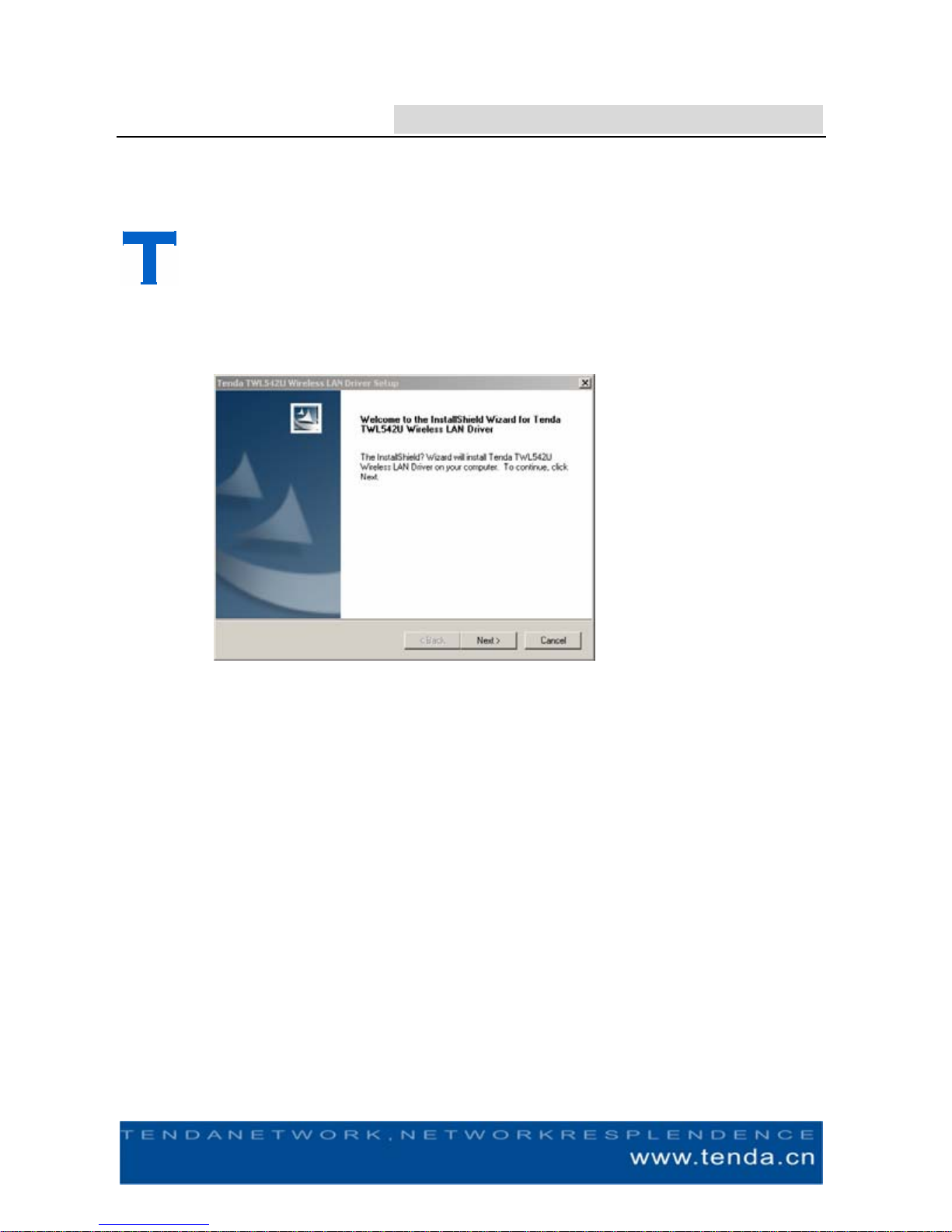

Step 3 Click Next at the prompt window
Fig2-2
Step4 Click Browse… to change the destination location of the
installation files, and select both Wireless LAN Driver and Wireless LAN
Utility, then click Next
Instruction Manual USB Wireless Adapter

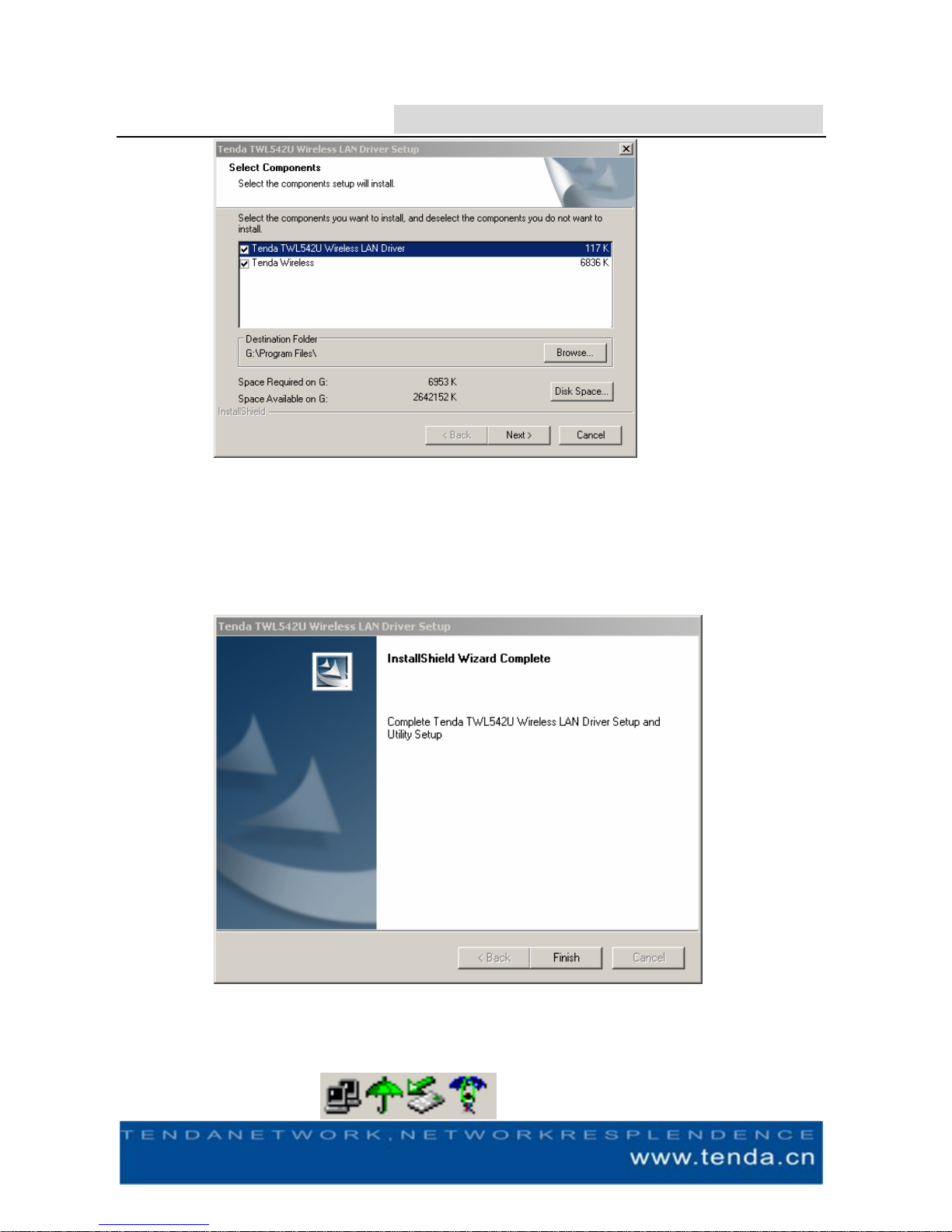

Fig 2-3
Step5 Loading Win2000 setup utility displays and then prompt the
following dialog box, click Finish
Fig2-4
Then you can find the wireless connection icon as below at system tray.
Instruction Manual USB Wireless Adapter
Fig2-5
Chapter 3 Usage of Configuration Utility
All the functions of the wireless adapter are configurable and
manageable with this utility. Click Start>Programs> Wireless LAN Utility>
SiSCFG
3.1 Network Status
Instruction Manual USB Wireless Adapter

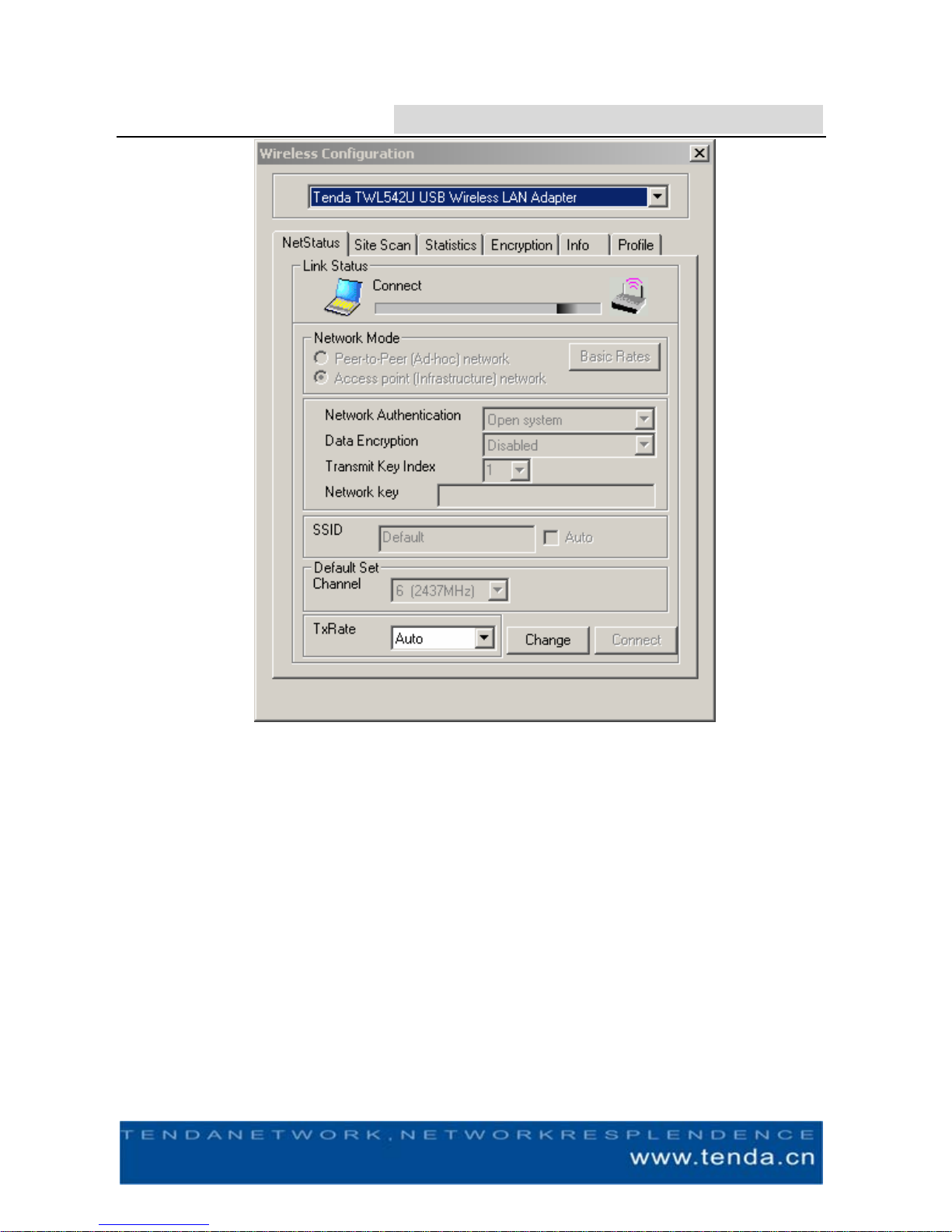

Fig 3-1
Network Mode: Peer-to-Peer (Ad-hoc) Network allows access
to a basic service group, i.e. peer-to-peer mode and AP access in not
needed; Access Point (Infrastructure) Network allows access to an
extended service group, i.e. access to AP.
Network Authentication There 4 authentication types: Open
System, Share, Auto and W PA-PSK; All authentication types supports
WEP encryption except WPA-PSK. Input the WEP key of your AP.
Please kindly note that WPA-PSK supports TKIP/AES encryption only.
