Tenda 3G611R+ Manuale utente

is the registered trademark of Shenzhen

Tenda Technology Co., Ltd. All the products and product

names mentioned herein are the trademarks or

registered trademarks of their respective holders.

its accessories and software, belongs to Shenzhen Tenda

Technology Co., Ltd. Without the permission of Shenzhen

Tenda Technology Co., Ltd, any individual or party is not

allowed to copy, plagiarize, imitate or translate it into

other languages.

All the photos and product specifications mentioned in

this manual are for references only. As the upgrade of

software and hardware, there will be changes. And if

there are changes, Tenda is not responsible for informing

in advance. If you want to know more about our product

information, please visit our website at www.tenda.cn.

CONTENTS

Chapter 1 Introduction ............................1

1.1 ..............................2Product Features

1.2 ............................4Package Contents

1.3 .....4LED Indicator and Port Description

Chapter 2 Hardware Installation..............8

2.1 How to Install the Router.....................8

2.2 Network Application Plan ................... 10

Chapter 3 How to Login to the Router .... 12

3.1 How to Set the Network Configurations 12

3.2 Login to the Router........................... 15

Chapter 4 WAN Medium Type................. 17

4.1 WAN Medium Type............................ 17

Chapter 5 Quick Setup Guide.................. 19

5.1 Setup Wizard ................................... 19

Chapter 6 Advanced Settings ................. 32

6.1 LAN Settings.................................... 32

6.2 WAN Settings................................... 33

6.3 MAC Address Clone........................... 37

6.4 DNS Settings ................................... 38

Chapter 7 Wireless Setting..................... 39

7.1 Basic Settings .................................. 39

7.2 Wireless Security Setting................... 42

7.3 Advanced Settings............................ 50

7.4 WPS Settings ................................... 51

7.5 WDS Settings................................... 54

7.6 Wireless Access Control..................... 55

7.7 Connection Status ............................ 56

Chapter 8: DHCP Server ......................... 57

8.1 DHCP Settings.................................. 57

8.2 DHCP List and Binding....................... 58

Chapter 9 Virtual Server......................... 59

9.1 Single Port Forwarding ...................... 59

9.2 Port Range Forwarding ...................... 61

9.3 ALG Service Settings......................... 63

9.4 DMZ Settings................................... 64

9.5 UPNP Settings.................................. 65

Chapter 10 Traffic Control...................... 67

10.1 Traffic Control................................. 67

10.2 Traffic Statistics.............................. 68

Chapter11 URL Monitor.......................... 70

11.1 URL Monitor ................................... 70

Chapter 12: Security Settings................. 73

12.1 Client Filter Settings........................ 73

12.2 URL Filter Settings .......................... 74

12.3 MAC Address Filter.......................... 76

12.4 Prevent Network Attack ................... 77

12.5 Remote Web Management................ 78

12.6 Local Web Management ................... 79

12.7 WAN Ping ...................................... 80

Chapter13 Routing Setting..................... 81

13.1 Routing Table ................................. 81

13.2 Static Routing................................. 81

Chapter 14 System Tools ....................... 83

14.1 Time Settings................................. 83

14.2 DDNS............................................ 84

14.3 Backup/Restore Settings.................. 86

14.4 Restore to Factory Default Setting..... 88

14.5 Upgrade Firmware........................... 89

14.6 Reboot the Router........................... 89

14.7 Password Change............................ 90

14.8 System Log.................................... 91

14.9 Logout .......................................... 91

Appendix Ⅰ：Glossary ........................... 92

Appendix Ⅱ: Troubleshooting ................ 96

3G11NWirelessRouter

Chapter 1 Introduction

Thank you for purchasing Tenda 3G611R+ 11N Wireless

Router!

3G611R+ is a high speed 3G 11N Wireless Router, which

complies with the latest IEEE802.11n and

IEEE802.11b/g standards and provides up to 150Mbps

wireless receiving and transmitting rate with its wireless

transmitting distance 3 times farther than G-products.

It includes Wireless AP, Router, 4-Port Switch, and

Firewall in one, and basically provides three ways to

access the Internet sharing with other computers. The

first way is to share 3G Internet connection with all

network users using a 3G USB modem card to connect

the USB port of the Router. It is especially suitable for

the users who are not convenient in using fixed

broadband or those who need to share the Internet

movably.

The second way is to use the unique wireless WAN

feature to access wireless broadband. When wireless

broadband signals provided by ISP are not strong

enough in some Wi-Fi hot area, you can set the wireless

WAN feature to amplify wireless signals and share the

Internet with other computers.

The third way is to connect the Router’s WAN port with

the traditional DSL or Cable broadband line to access

the Internet. With powerful compatibility, it can break

3G11NWirelessRouter

through some access restricted area to share the

Internet with multiple computers easily.

Besides those access ways, WDS (Wireless Distribution

System) enables you to bridge other wireless Routers

and extend wireless coverage area. Meanwhile, QoS

bandwidth control is used to control downloading

speeds of the specific computers. Then, the included

“Setup Wizard” is developed by Tenda especially for less

IT-savvy users to install the device within seconds.

In a word, 3G611R+ is your premier choice to share the

Internet via 3G, wireless broadband, and wired

broadband access ways.

1.1 Product Features

Includes Wireless AP, Router, 4-Port Switch, and

Firewall in one

Supports WPS (Wi-Fi Protected Setup) encryption

method

Complies with IEEE 802.11n, IEEE 802.11g, IEEE

802.11b, IEEE 802.3 and IEEE 802.3u standards

Supports over 3 times transmission distance of 11G

products

Supports 64/128-bit WEP, WPA, WPA2, WPA&WPA2

encryption methods

Supports RTS/CTS protocol and data partitioning

function

Provides one 10/100Mbps Auto-Negotiation

3G11NWirelessRouter

Ethernet WAN port

Provides four 10/100Mbps Auto-Negotiation

Ethernet LAN ports

Provides one USB 2.0 port for 3G modem card

connection

Supports xDSL/Cable MODEM, static and dynamic

IP in community networking

Supports remote/local Web management

Supports WMM to better smooth your voice and

video

Supports wireless Roaming technology for

high-efficient wireless connections

Supports SSID stealth mode and access control

based over MAC address (up to 30 entries)

Supports Auto MDI/MDIX

Provides syslog to record the status of the Router

Supports auto negotiation/manual mode for

802.11b/802.11g/802.11n

Supports UPnP and DDNS

Supports Firefox 1.0, IE5.5 or above

Supports LAN access control over Internet

connection

Supports SNTP

Supports virtual server, DMZ host

Built-in firewall for hacker’s attack prevention

Supports auto wireless channel selection

Supports WDS wireless network extension

3G11NWirelessRouter

Supports URL Monitor

Supports QoS function

1.2 Package Contents

Please unpack the box and check the following items:

One 3G611R+ 11N Wireless Router

One Quick Installation Guide

One Power Adapter

One CD-ROM

If any of the listed items are missing or damaged,

please contact the Tenda reseller from whom you

purchased for replacement immediately.

1.3 LED Indicator and Port Description

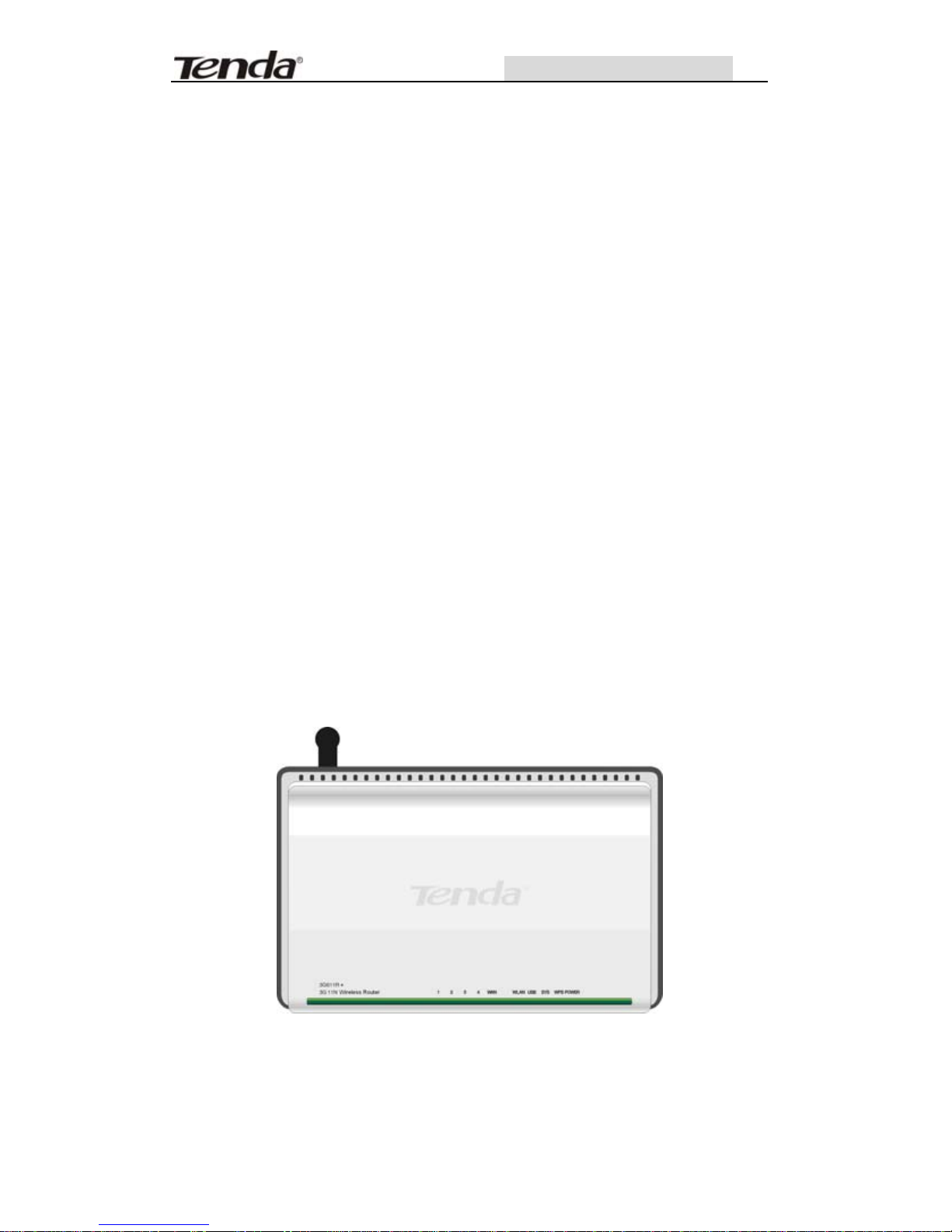

Front Panel and LED Indicator Show

LED indicator description on front panel: (from R to L)

POWER

3G11NWirelessRouter

When turns green, Always ON indicates the power

connects well.

WPS

When blinking, it indicates the device is negotiating

with client in WPS mode.

SYS

When turns green, blinking indicates the system

runs well.

USB

When turns green, Always ON indicates the USB

port is connected well; Blinking indicates it is

transmitting or receiving data packets.

WLAN

Wireless signal LED indicator. When turns green,

blinking indicates the wireless function is enabled.

WAN

Wide area network LED indicator. Always ON

indicates it is connected with Ethernet device;

Blinking indicates it is transmitting data packets.

LAN (4,3,2,1)

Wired local network LED indicator. Always ON

indicates it is connected with Ethernet device;

Blinking indicates the device is transmitting data

packets.
