INSTRUCTION BULLETIN
No. 9008540
Machine: T16
Published: 07--2011
Rev. 00
NOTE: DO NOT DISCARD the Parts List from the Instruction Bulletin. Place the
Parts List in the appropriate place in the machine manual for future
reference. Retaining the Parts List will make it easier to reorder
individual parts and will save the cost of ordering an entire kit.
NOTE: Numbers in parenthesis ( ) are reference numbers for parts listed in Bill of Materials.
Installation instructions for kit number 9008033
SYNOPSIS:
This kit contains the parts needed to install the deluxe seat onto T16 scrubbers.
Please follow step-by-step instructions.
SPECIAL TOOLS / CONSIDERATIONS: NONE
(Estimated time to complete: 1 hour)
PREPARATION:
1. Park the machine on a clean level surface,
turn off the machine, and remove the key.
FOR SAFETY: Before leaving or servicing
machine, stop on level surface, turn off
machine, and remove key.
2. Disconnect the battery cables from the
batteries.
WARNING: Always disconnect battery
cables from machine before working on
electrical components.
IB 9008540 (07--2011)2
INSTALLATION:
Seat plate
Seat switch
harness
Remove and
discard seat slide
rail and hardware
Remove and
discard seat slide
rail and hardware
Remove and
discard seat
Remove and discard
hardware
Remove and
discardhardware

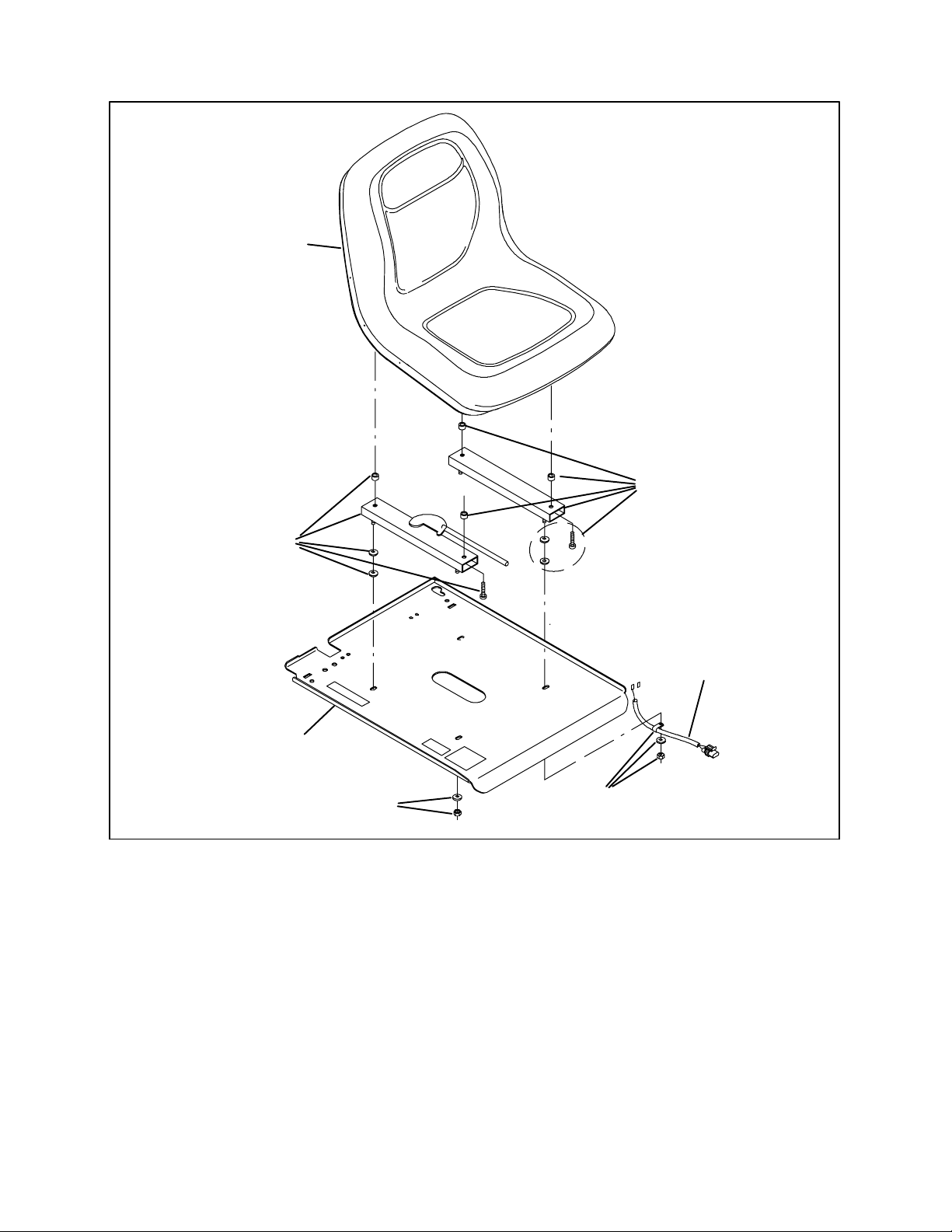

FIG. 1
1. Remove the existing seat assembly from the
machine. Set the set switch harness aside.
Discard the removed seat and all mounting
brackets and hardware. Refer to Fig. 1.
2. Use a SEMS M8 hex screw (9) to install the
latch bracket (8) onto the machine. Refer to
Fig. 2.
3. Use two M5 hex screws (11) to install the
latch (10) onto the latch bracket (6). Refer to
Fig. 2.
4. Use two M8 hex screws (7) and two flat
washers (4) to install the latch assembly
assembled in the previous step onto the seat
plate. Refer to Fig. 2.
5. Use a hex screw (16) and a flat washer (17)
to install the seat belts (15) onto the
suspension seat (1). Refer to Fig. 2.
6. Install the seat switch (2) into the seat switch
receptacle located on the bottom of the
suspension seat (1). Refer to Fig. 2.
IB 9008540 (07--2011) 3
7. Position the suspension seat (1) onto the seat
plate and connect the seat switch harness to
the seat switch.
8. Install the cable clamp (12) onto the seat
switch harness. Refer to Fig. 2.
9. Use four hex nuts (3) four flat washers (4),
and four spacers (5) to install the suspension
seat (1) and cable clamp (12) onto the seat
plate. Refer to Fig. 2.
10. Use two SEMS hex screws (14) to install the
arm rest (13) onto the suspension seat (1).
Refer to Fig. 2.
11. Reconnect the battery cables to the batteries.
12. Start and test the machine. Sit in the operator
seat, place the directional switch into the
forward position, and press the propel pedal.
The machine should move forward. Get out of
the operator seat, place the directional switch
into the forward position, and press the
propel. The machine should not move.
2
3
4
4
4
6
7
8
10
11
12
13
14
15
16 17
17
3
3
4
5
5
16
9
1
Seat plate
Seat switch
harness
5

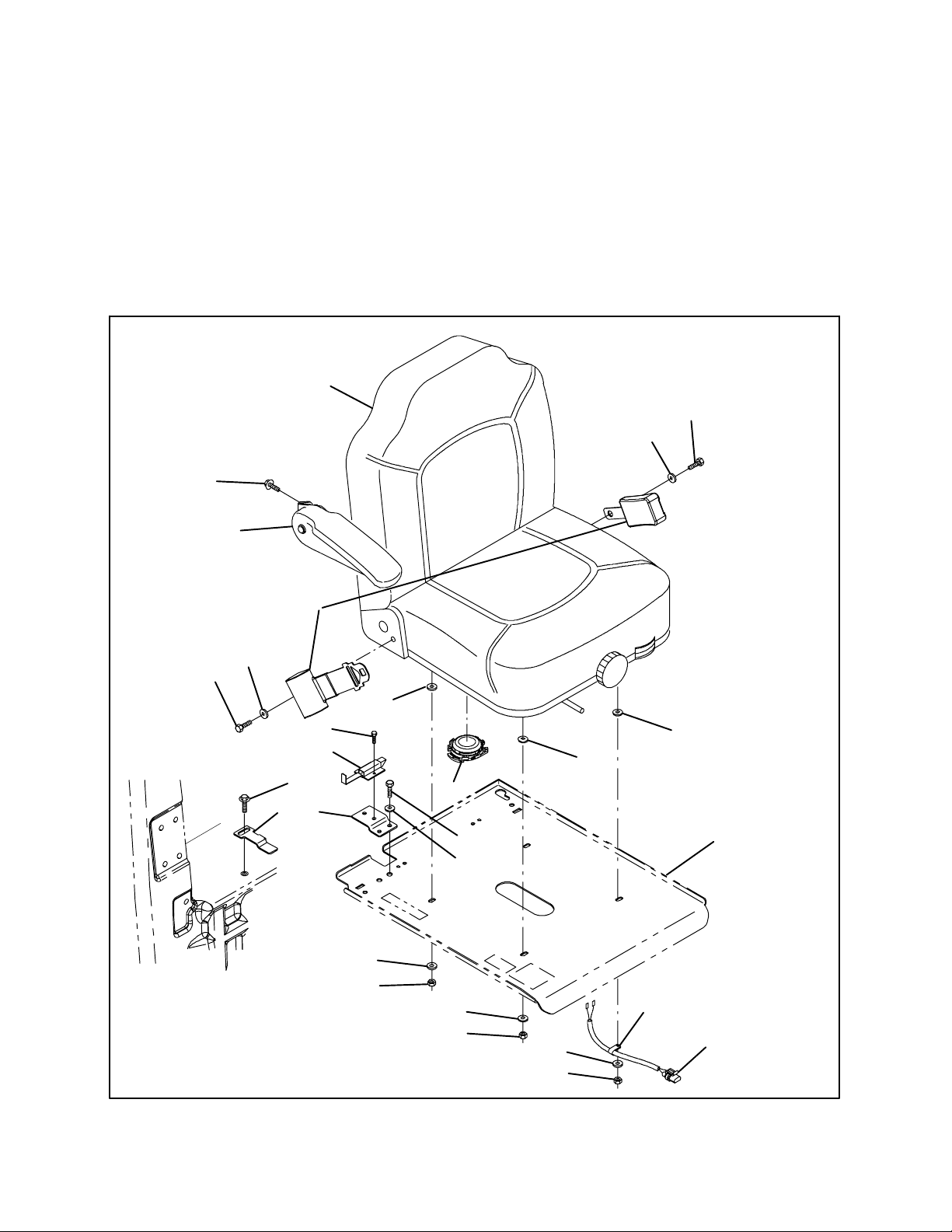

FIG. 2
IB 9008540 (07--2011)4
Bill Of Materials For Seat Kit, Dlx, CI [T16] -- 9008033
Ref.
Tennant
Part No. Description Qty.
o9008033 )Seat Kit, Dlx, CI [T16] 1
Y1 223595 Seat, Suspension [Michigan Model V--5200] 1
Y2 223078 Switch, Seat, No [Delta 6500] 1
Y3 01760 Nut, Hex, Lock, .31--18, NL, Thin 4
Y4 32491 Washer, Flat, 0.31, Std 6
Y5386785 )Spacer, Latch, Fltr 4
Y6 1059310 Bracket, Mtg, Latch 1
Y7 16735 Screw, Hex, M8 X 1.25 X 16, 8.8 2
Y8 1066535 Bracket Wldt, Latch 1
Y9 1020341 Screw, Hex, M8 X 1.25 X 20, SS, SEMS 1
Y10 1025736 )Latch 1
Y11 12312 Screw, Hex, M5 X 0.80 X 12, 8.8 2
Y12 46236 Clamp, Cable, Stl, 0.25D X 0.56W, 1Hole 1
Y13 1061917 Armrest, RH 1
Y14 16953 Screw, Hex, .31--18 X 0.75, SEMS 2
Y15 1062792 )Seatbelt, Retractable 1
Y16 39663 Screw, Hex, .44--20 X 1.00, G5 2
Y17 1063373 Washer, Flat, 0.45B 1.00D .12, SS 2
TENNANT COMPANY
P. O. Box 1452
Minneapolis, MN 55440-1452
