TERK Technologies DTOC Manuale utente

Note: For best performance, mount this

antenna horizontally.

Mounting

Well

Antenna points this way...

...or this way.

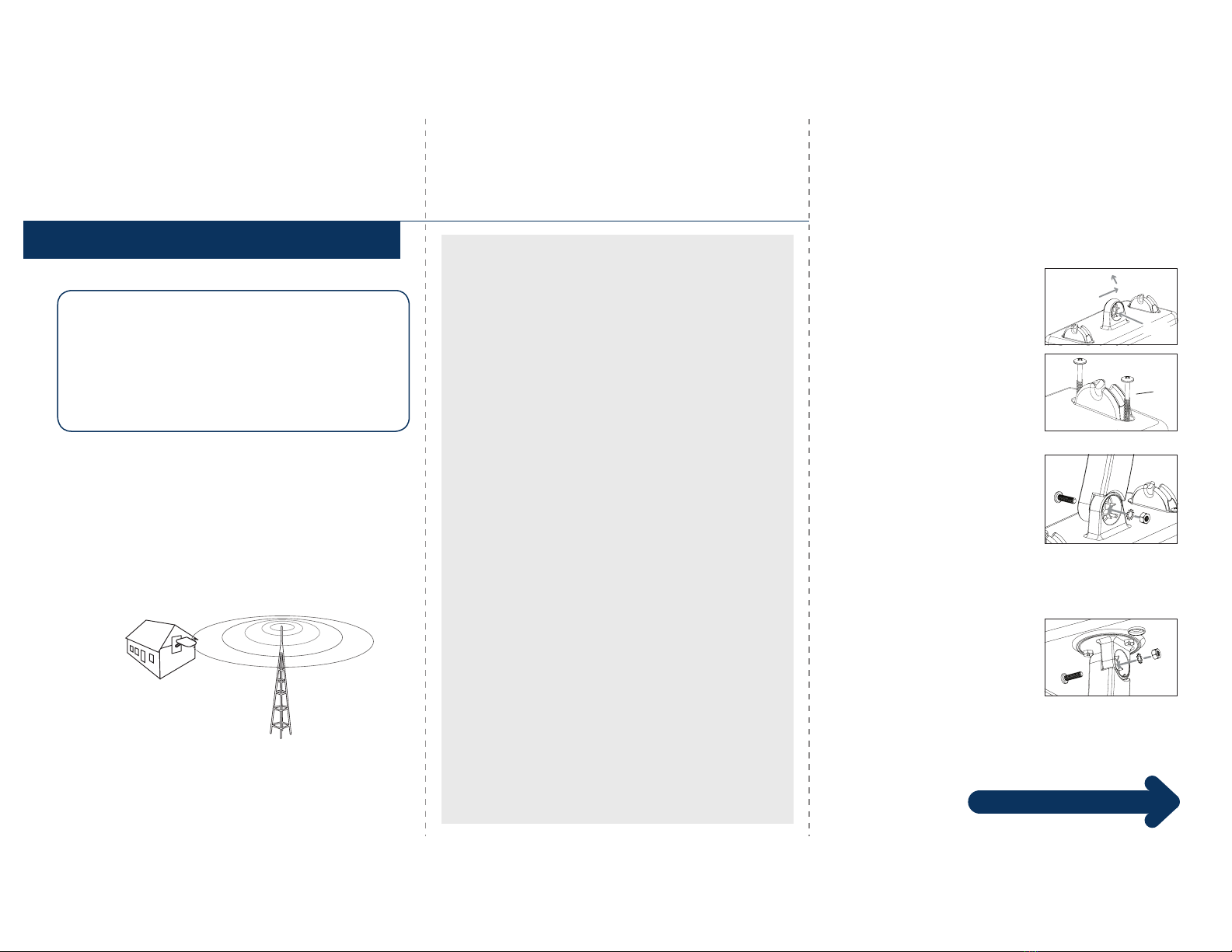

Quick Start Guide

Terk DTOC Outdoor Ampliﬁed Digital Antenna

Terk DTOC Parts Included:

> Terk DTOC Antenna > Power Adapter

> Ampliﬁer Insert > Mounting Base

> Mounting Arm > Hardware bag

> 100ft Coaxial Cable

1Find the best location for your

antenna.

The reception performance you get from this

antenna depends on where you put it—try the

following reception hints to ﬁnd the best place

for the Terk DTOC.

Mount the antenna.

This antenna mounts in three steps:

> Mount the antenna mounting base

> Attach the arm to the base

Orient the base correctly

for the direction you want

to point the antenna.

Then use the four wood

screws included in this

package to attach the

base to the surface.

Wood

screw

Mounting base

> Attach the antenna to the arm

Find one of the screws,

washers, and nuts

included in the package.

First, set the washer and

nut in the mounting well.

Note: The DTOC can also mount to a mast. See

the User Guide for instructions.

Find the other screw,

washer, and nut.

First, set the washer

and nut in the antenna’s

mounting well. Then

Antenna Location Tips

> Find where your broadcasts are coming from

and mount the antenna on that side of the house.

Visit www.transition.fcc.gov/mb/engineering/

maps, enter your zip code in the Location

box, then click on the each broadcaster to see

where its tower is.

> Although this antenna is designed to work in

both horizontal and vertical orientations, try

mounting the antenna horizontally if possible.

This antenna usually performs best when it’s

oriented in a straight horizontal line, pointing

toward broadcast towers.

> Mount the antenna as high as you safely can.

The higher the elevation of the antenna, the

better the reception performance will be.

> Do not mount the antenna on a metal surface.

Metal can interfere with reception and can

degrade performance.

> Try to keep the antenna away from trees or

other obstructions.

Nearby tall structures or trees standing

between the antenna and the broadcast signal

can block or interfere with those signals.

Keep in mind there are lots of factors that can affect your reception.

Tall buildings, mature trees, even hills between you and the broadcast

towers can interfere and change the direction of the signals you

receive. Even though the DTOC is omnidirectional, you might still need

to make minor adjustments after you mount the antenna to account

for these factors. continues on other side...

Then position the arm over the other side of the

well. Attach the arm to the base as shown here.

position the arm over the other side of the well.

Attach the arm to the antenna as shown here.

The TERK DTOC antenna is engineered speciﬁcally to provide

superior reception of high-deﬁnition (HDTV) and digital television

channels, using patented multi-directional reception technology for

outstanding reception from any direction. This Quick Start Guide

has instructions to get you up and running. For more detailed

information, see the Owner’s Manual.

Questions? Call 1-800-768-1969.

Connect the antenna to your TV.

See your User Guide for more detailed

information about setup, adjustments,

and troubleshooting.

Questions? Please call our toll-free

help line at 1-800-768-1969

Scan for channels on your TV or

converter box.

Because digital television signals are often

broadcast on a different frequency than the actual

channel number, it’s important to perform a

channel scan to make sure you can tune to all the

channels you receive.

For detailed instructions on performing a channel

scan, see the owners manual that came with your

TV or converter box.

IMPORTANT: Any time you change the antenna’s

position, make sure you re-scan for channels on

your TV or digital TV converter box. The channels

you receive may have changed.

Once you’ve found the

orientation you want,

retighten all screws. Then

attach the screw covers as

shown here.

> Run the provided

coaxial cable from the

antenna towards your

television set.

> Connect the provided

coaxial cable to the

ANT jack on the DTOC

ampliﬁer insert.

> Connect the built-in

coaxial cable on the

ampliﬁer insert to the

antenna input jack on

your TV or converter

box.

> Connect the power

adapter into the

ampliﬁer insert after

all other connections

are made.

> Plug the power

adapter into a

standard AC outlet.

Water Damage Prevention: At the point where your

coaxial cable lead enters the house, you should allow

for some slack in the coaxial cable as a “drip loop.” See

the User Guide for more information.

DTOC QSG 00

You can also adjust the

antenna’s orientation on

the antenna itself. On the

antenna’s underside, next

to the arm, there are two

screws. Loosen these just

enough so that you can

rotate the antenna on the

arm.

Make ﬁnal adjustments and ﬁnish

installation.

Loosen the screws

between the arm and

the base or antenna just

enough so that you can

position and orient the

antenna the way you want.

DTOC

Provided 100ft.

Coaxial Cable

Amplifier

Insert

ANTENNA

TV/STB

The ampliﬁer insert connects

directly to the back of your TV

via the built-in cable connector.

Channel line-ups change from time to time.

For best performance, do a channel scan

periodically to check for updates.
