TerraTrike EVO Manuale
www.TerraTrike.com | 800.945.9910
Revised 6/2022
Build Notes
www.TerraTrike.com | 800.945.9910

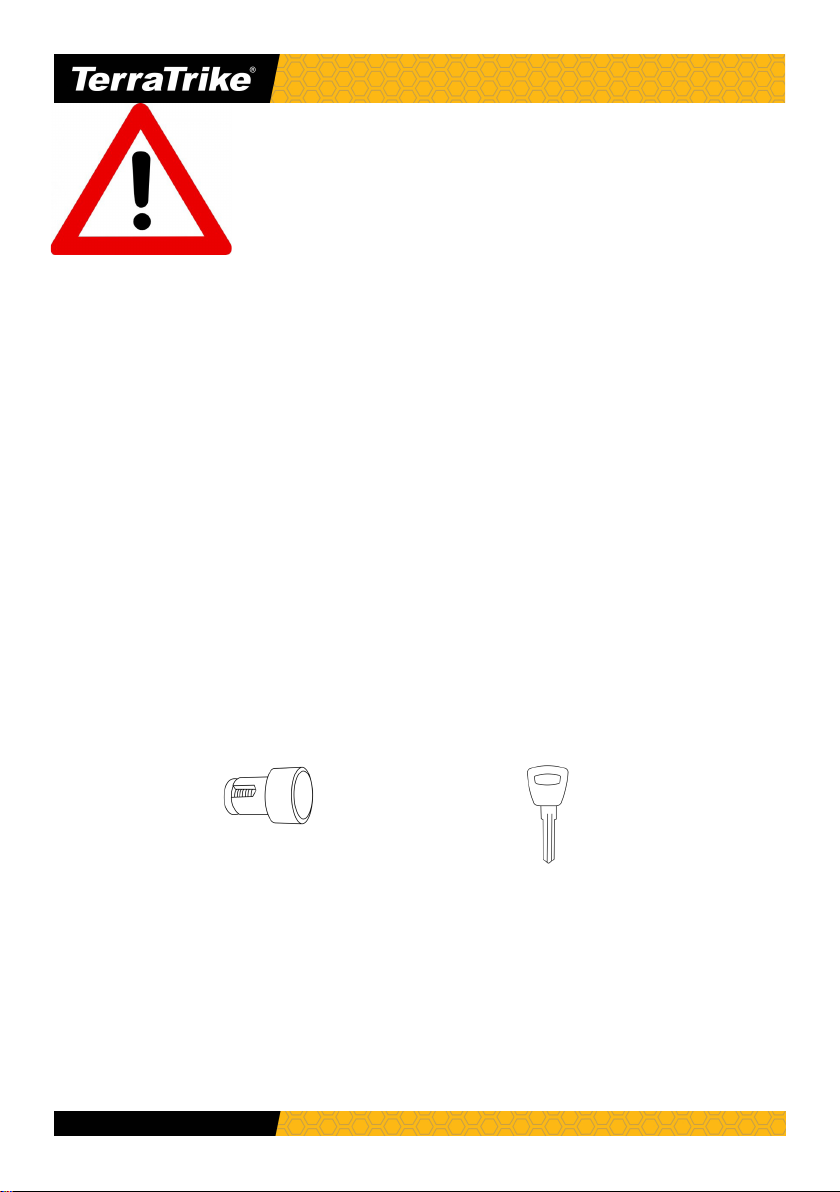

Caution: Boom and main frame are
connected by the battery wire. Move both
pieces together so the battery wire does not get
damaged.
Look through entire setup guide before
beginning.
Small parts box:
x 1 x 2
Speed Sensor Magnet Lock Keys
www.TerraTrike.com | 800.945.9910
3
2
4
1
5
63
REVISIONS
REV
DESCRIPTION
DATE
APPD.
1
INITIAL RELEASE
6/11/2021 AM
2
UPDATED COMPONENT DESCRIPTION
8/30/2021 AM
3
WH000059 ADDED TO ASSEMBLY
1/31/2022
JL
ITEM NO.
PART NUMBER
DESCRIPTION
QTY.
1
TT000854
CLAMP, ACCESSORY MOUNT 7/8"
1
2
TT000851
EVO DISPLAY MOUNT RISER
1
3
WH000006
M4x.7 X 6mm SBHCS SS
2
4
WH000002
M5x.8 X 18mm SBHCS SS
2
5
TT000906
BOSCH, KIOX DISPLAY BRACKET
1
6
WH000059
M4x0.7x6mm Flat Head SS
1
A A
B B
2
2
1
1
SEE COMPONENT LEVEL
TT KIOX DISPLAY MOUNT ASM
2
DO NOT SCALE DRAWING
TT600903
SHEET 1 OF 1
SCALE: 1:2
REV
Part Number:
A
SIZE
DESCRIPTION:
NAME
DATE
APPROVED
DRAWN BY
N/A
FINISH
MATERIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF WIZWHEELZ INC.
ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT WRITTEN PERMISSION IS PROHIBITED.
THIRD ANGLE PROJECTION
UNLESS OTHERWISE SPECIFIED:
DIMENTIONS ARE IN MILLIMETERS
UNSPEDIFIED TOLERANCES:
ANGULAR: MACH
.5° BEND
1°
LINEAR: .X
1.0
.XX
0.4
.XXX
0.13
ADAM M
12/10/2020
Speed Sensor Bracket
Kiox Display
www.TerraTrike.com | 800.945.9910
Using caution to not stress wires,
insert boom to desired length and snug boom
pinch bolts to secure boom.
Speed Sensor, Kiox Display and Controller will be
hanging loose.
1
www.TerraTrike.com | 800.945.9910
2Apply cable guide to bottom side of right
outrigger.
www.TerraTrike.com | 800.945.9910
Install computer sensor bracket.
Mount speed sensor on computer sensor
bracket.
Refer to Step 6 for proper wire routing.
Install magnet on spoke.
Align magnet and marking on speed sensor.
Ensure speed sensor wire is clear of brake rotor
and any steering parts that could cause damage.
3
www.TerraTrike.com | 800.945.9910
Attach computer mount to left handlebar.
Refer to Step 5 for proper wire routing.
Mount Kiox Display and secure.
4
www.TerraTrike.com | 800.945.9910
Route wires according to diagram (underside of
trike frame).
Kiox cable should follow brake cable routing.
Use the cable housing guide under the center
lug of the frame to secure excess wires with
ziptie.
Kiox
cable
Speed sensor
cable
5
www.TerraTrike.com | 800.945.9910
Inate tires before performing alignment. The E.V.O.
alignment measurement is approximately 295/8inches
(center tread to center tread), though slight variance
is possible. Most importantly, make sure the alignment
remains neutral with a rider seated in the trike.
Alignment
295/8
295/8
www.TerraTrike.com | 800.945.9910
Hybrid Steering Stack Assembly*
Assemble the steering stack as shown. Grease the steerer tube before
inserting into head tube. Remove any excess grease from steerer tube
before installing handlebar. Grease axle before installing wheel. Torque axle
to 23-25Nm.
*Right Hand assembly depicted. Some components can be purchased
individually as well as in pairs, see parts list below.
1 M6x30 Bolt TT000576
2Hybrid Top Cap TT000506
3Trigger Handlebar - RH TT000649
Trigger Handlebar - LH TT000650
Trigger Handlebar - Pair TT000514
M5x20 Bolt - 2qty (not pictured)
TT000301
4Hybrid Headset Spacer TT000520
5 Hyrbid Headset Cap TT000505
6 Bushing (pre-installed)
TT000809
7Hybrid Headset Cup (pre-installed) TT000602
8 Hybrid Headset Bearing TT000600
9 Rapid Axle Hubmount - RH TT000713
Rapid Axle Hubmount - LH TT000714
Rapid Axle Hubmount - Pair TT000516
10 Rapid Axle - RH TT000717
Rapid Axle - LH TT000718
Rapid Axle - Pair TT000563
11 Axle Spacer TT000568
Parts List
