TerraTrike TANDEM PRO Manuale utente
TANDEM PRO
SET UP GUIDE
1
1
2

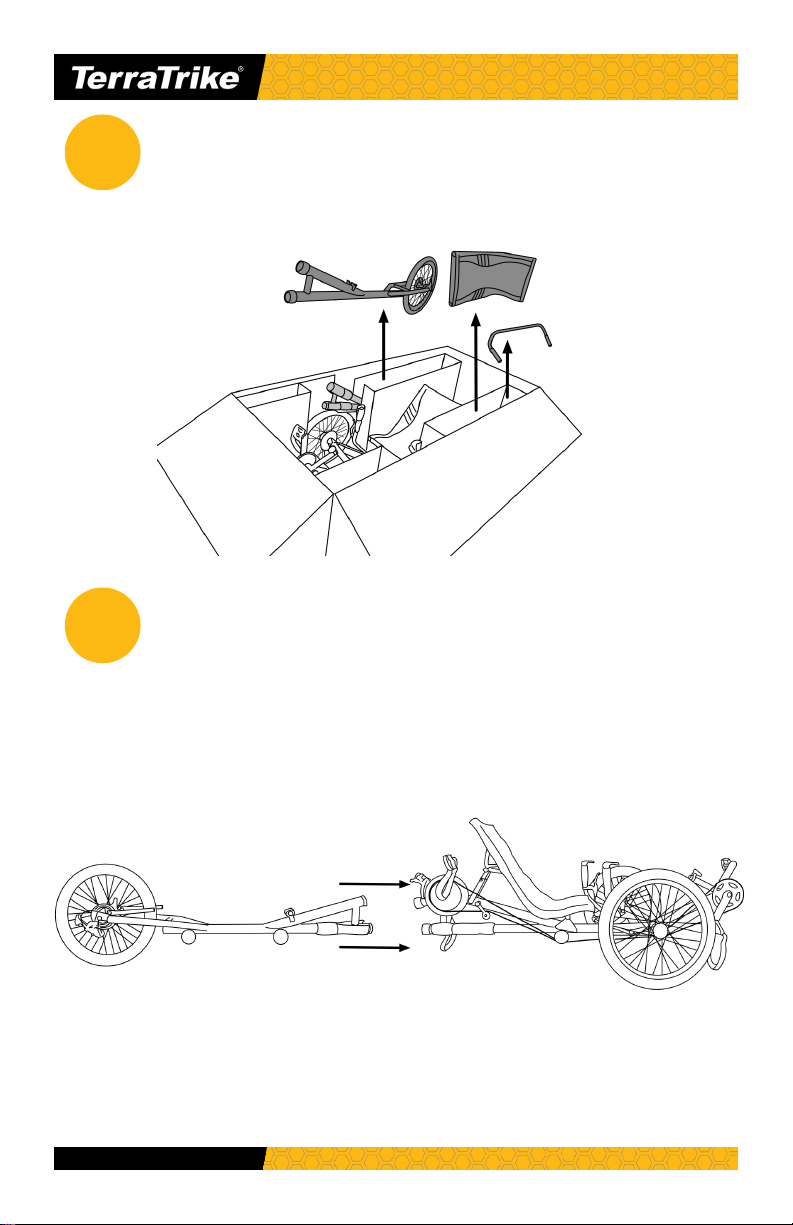

Remove rear frame section, seat and handlebar from side
inserts of box. Remove the front frame section.
Attach front and rear frame sections. Align coupler teeth
and turn couplers counter clockwise to tighten.
www.TerraTrike.com | 616.455.5988 2
3Use coupler wrench to ensure couplers are snug.
Attach shi cable separator. Please note, you may need to
cut zip ties and remove foam before doing so.
4
Back of trike
Front of trike
3
5Route rear chain as shown below. (Red indicates drive chain,
blue indicates return chain).
Top view of chain routing:
Crankset
IdlerIdlerCassette
www.TerraTrike.com | 616.455.5988 4
6
7
Install rear seat using the M8x70 bolt and M8 nyloc nut. Use
x-seam measurement to determine which mounting hole
combination is appropriate for you. (Please refer to www.
terratrike.com/sizing for how to measure x-seam).
Insert bolt and tighten to 10-12Nm.
Attach upper and lower seat stays. Set at desired angle and
install locking seat stay pins.
Front mounting hole:
37”- 40” x-seam
Rear mounting hole:
41”- 44” x-seam
5
8Install rear handlebar using the handlebar top cap and M5
top cap bolts. Tighten bolts to 3-4 Nm.
www.TerraTrike.com | 616.455.5988 6
Enjoy your Tandem Pro!
Share your trike adventures on social media using the hashtag
#myTTadventure
4460 40th St. SE | Grand Rapids, MI 49512
800.945.9910 | www.TerraTrike.com
