Thermaltake Lanbox Lite VF6000BWS Manuale utente

Tested To Comply

With FCC Standards

FOR HOME OR OFFICE USE

All other registered trademarks belong to their respectivecompanies. www.thermaltake.com

VF6000 Series

Chapter 1. Product Introduction

Chapter 2. Case Mechanical Operation

Specification

Chapter3 Motherboard & Leads Installation

Motherboard Installation

Case LED connections

USB 2.0 & IEEE 1394 Firewire Connection

Audio Connection

2-1

2-2

2-3

2-4

2-5

2-6

2-7

2-8

2-9

How to open the top panel

5.25" device installation

2-2-1 CD-ROM installation

2-2-2 5.25" accessory drive installation

HDD installation

2-3-1 Install HDD on the HDD rack

2-3-2 Install HDD on the side of optical drivetray

Installing 3.5" device

Installing Power Supply

Installing graphics and PCI expansion cards

Installing Coolant tubes

Installing 60mm fan

How to open the front panel

1-1

3-1

3-2

3-3

3-4

Chapter4 Other

Recommended Products

4-1

Specification

Chapter 1. Product Introduction

Model

Case Type

Dimension (W*D*H)

Window side panel

Material

Color

Cooling System

Motherboard

Drive Bays

Front I/O

Expansion Slots

Weights

VF6000BWS

Gaming Cube

Window

SECC Japanese steel

Black

-Front:

90mm fan with

blue LED x

1, 1500rpm

-Rear:

60mm fan x 2,

1800rpm

(up to 60mm fan x 3)

Micro ATX form factor & mini ITX form factor

- 5.25" x 2

- 3.5" x 3 (Exposed x 1, Hidden x 2)

USB 2.0 x 4, IEEE 1394 Firewire, HD-Audio

6.1 kg / 13.45 lb 6.3 kg / 13.89 lb

VF6000BNS

300 x 430 x 230 mm

11.8 X 16.9 X 9.05 inch

N/A

- Front :

90mm fan x

1, 1500rpm

- Rear :

60mm fan x

2, 1800rpm

(up to 60mm fan x 3)

How to open the top panel

Chapter 2. Case Mechanical Operation

2-1

Unscrew the 3 screws shown

to open the top panel.

Pull back the top panel as shown to loosen the panel.

Unscrew the 7 screws

shown to unlock the

motherboard tray.

3Tug on the ring and pull

back as shown to remove

the motherboard tray.

The motherboard tray

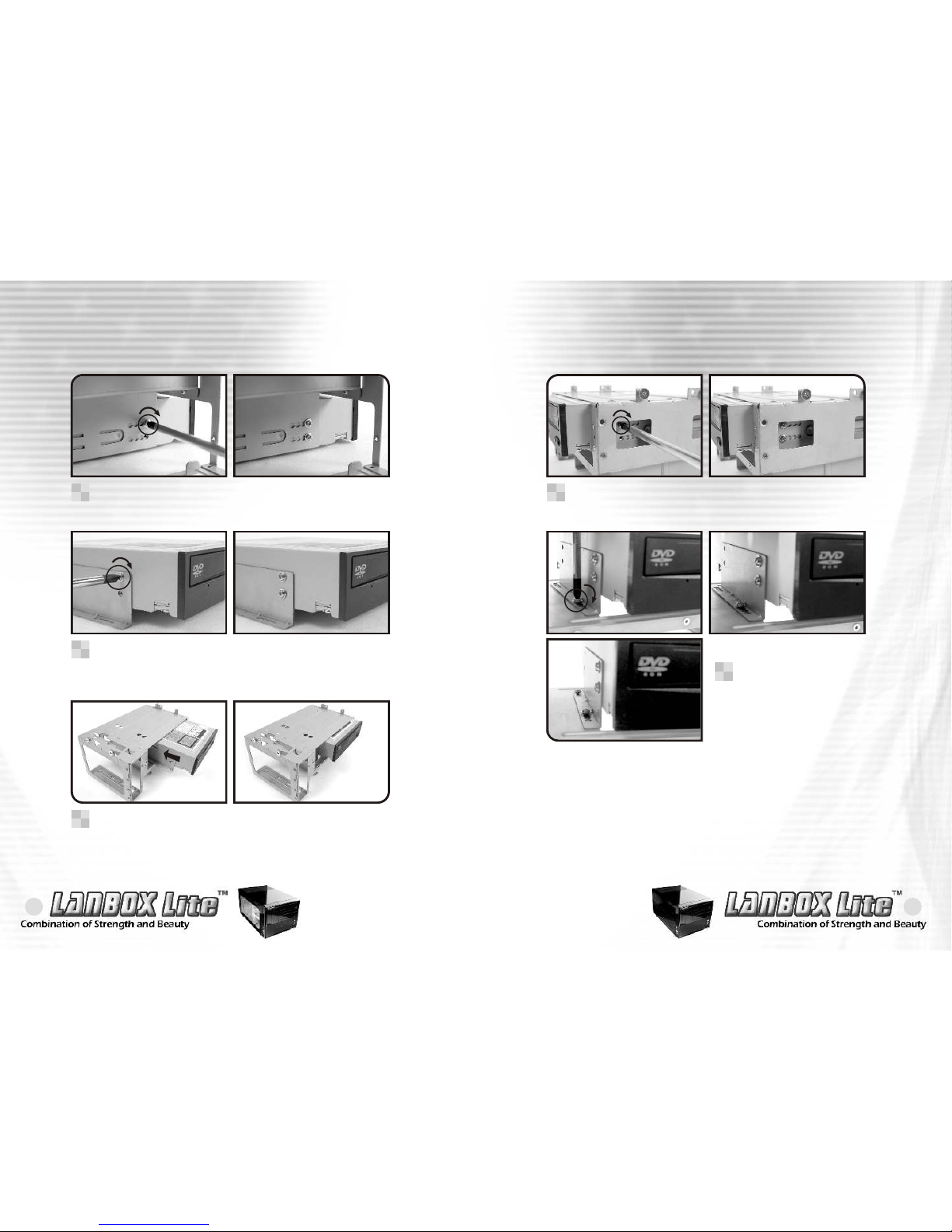

5.25" device installation

2-2

Unscrew the 2 screws as shown to slide back the

optical drive tray.

Pull back, then pull up to remove the optical drive tray.

When installing optical drives, it is recommended to screw

into the No.4 hole as shown for a flush installation.

2-2-1 CD-ROM installation

Screw in the optical drive on the opposing side.

When installing an optical drive on the top bay, please

install the metal adaptor first as shown.

Slide in the optical drive from the front.

Secure the optical drive on the opposing side of No.4

hole as well.

Secure the top optical

drive bay as shown.

There are five springs in the front panel, push to release it.

Push and release the five springs of front panel.

2-2-2 5.25" accessorydrive installation

When installing a 5.25" accessory drive on the top bay,

please install the metal adaptor first as shown. Screw in the

5.25" accessory drive on the opposing side of the No.5 hole.

Screw the top optical drive bay as shown.

Please make sure the 5.25"

accessory drive is flush with

the front panel.

After loosing the spring of

front panel, pull out it as

arrow shows.

Remove the 5.25" bay cover as arrow shows.

Unscrew the 5.25" bay

cover screw as shown.

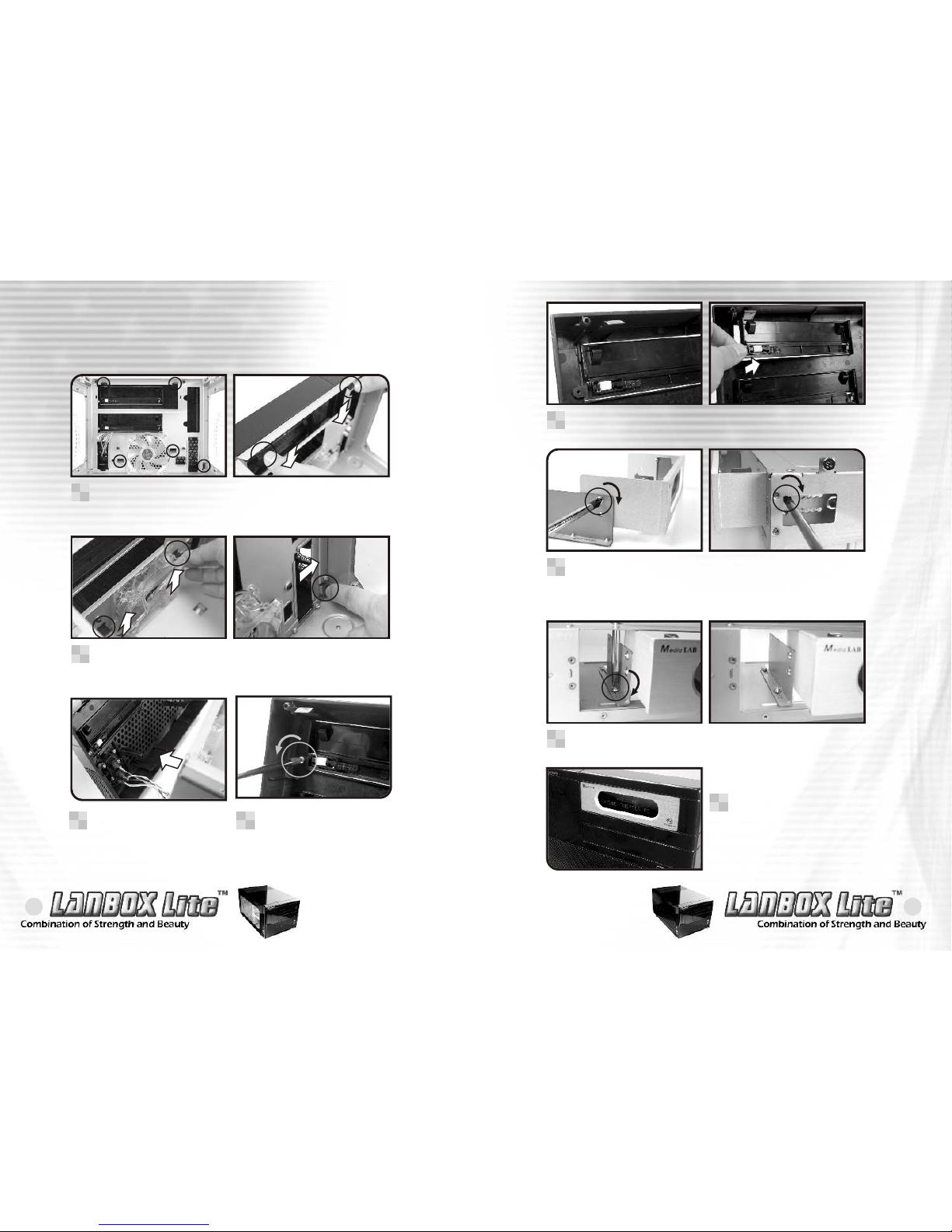

HDD installation

2-3

Unscrew the screw shown to remove the HDD rack.

Slide over the HDD rack

as shown to remove.

Secure HDDs using screws when installing in the HDD rack.

The HDD rack.

A HDD can be installed

on the side by securing

4 screws.

3Screw in both sides of

the HDD.

2-3-1 Install HDDon the HDDrack 2-3-2 Install HDDon the sideof optical drive tray

Unscrew the 2 screws as shown to slide back the

optical drive tray.

Pull back, then pull up to remove the optical drive tray.

1110

Installing 3.5" device

2-4

Please make sure the

floppy drive is flush

with the front panel.

If a floppy drive is to be

installed, please remove

the bay cover first.

Secure the floppy drive using screws then screw the

opposing side as shown.

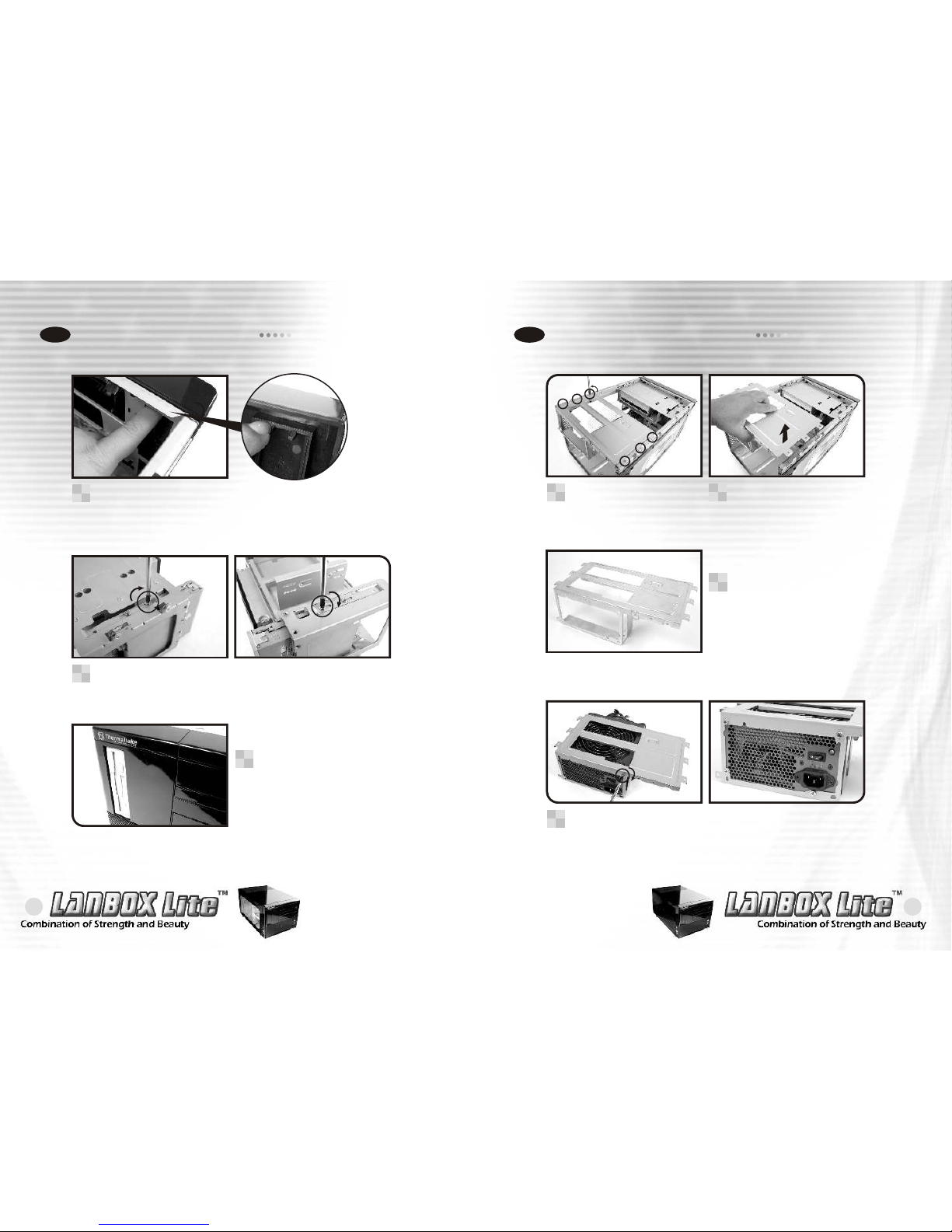

Installing power supply

2-5

Unscrew the 6 screws

holding in the top power

supply tray.

The power supply tray.

Install the power supply unit onto the power supply tray

as shown. If using a power supply with a 120mm fan,

please make sure the fan is exposed on the top side.

Lift out the power supply

tray as shown.

Installing graphics and PCI expansion cards

2-6

Remove the screw as

shown to install graphics

and PCI expansion cards.

When installing a graphic or

PCI expansion card, please

screw on the card as shown.

Installing coolant tubes

2-7

Installing 60mm fan

2-8

An optional 60mm fan can

be purchased and installed

on the motherboard tray

as shown.

If a liquid cooling system

is to be installed, please

pry off the top tab of the

motherboard tray as shown.

1Please install the rubber

tube protector as shown.

Coolant tubes may be

installed as shown when

using a liquid cooling

system (optional).

Motherboard Installation

Chapter3 Motherboard & Leads Installation

3-1

Each motherboard has different standoff layout. It is highly

suggested that you refer to your motherboard's manual when

installing motherboard into the Case. The cases are applicable

with Standard Micro ATX and mini ITX motherboards.

Your motherboard may require a special I/O Panel, which should

be included with your motherboard.

Placement Direction:

When installing the motherboard, make sure you follow the

direction provided by your motherboard manufacturer. On most

standard motherboards, the edge with external ports goes to the

rear part of the chassis. It is highly recommended that you install

CPU, heat sink and modular components before fixing the

motherboard inside the chassis.

The locations of the

screw holes. Note

these locations and

place included

standoffs on the

chassis first.

This side towards

the rear of the

chassis

Above illustration is a sample of what

the motherboard's layout. For more

detail screw hole placement, please

refer to your motherboard manual.

How to open the front panel

2-9

There are five springs in the front panel, push to release it.

Push and release the five springs of front panel.

After loosing the spring of

front panel, pull out it as

arrow shows.

On the front of the case, you can find some LEDs and switch leads

(POWER SW*1, POWER LED*1, H.D.D. LED*1, RESET SW*1)

Please consult user manual of your motherboard manufacturer, then

connect these leads to the panel header on the motherboard. These

leads are usually labeled; if not, please trace them back to the case

front to find out their source.

- POWER LED connects to your M/B at the PLED

- POWER SW connects to the PWR connector on the motherboard.

- H.D.D LED connects to the eSATA connector shown as picture(3.5)

- RESET SW connects to the RSW connector on the motherboard

- SPEAKER connector: find out the 4-pin labeled SPEAKER on the

M/B then connect it.

Case LED connections

3-2 USB 2.0 & IEEE 1394 Firewire Connection

3-3

USB connection

Please consult your motherboard manual to find

out the section of "USB connection".

USB2.0

GND1

Data+1

Data-1

Vcc1

( Blank )

GND2

Data+2

Data-2

Vcc2
