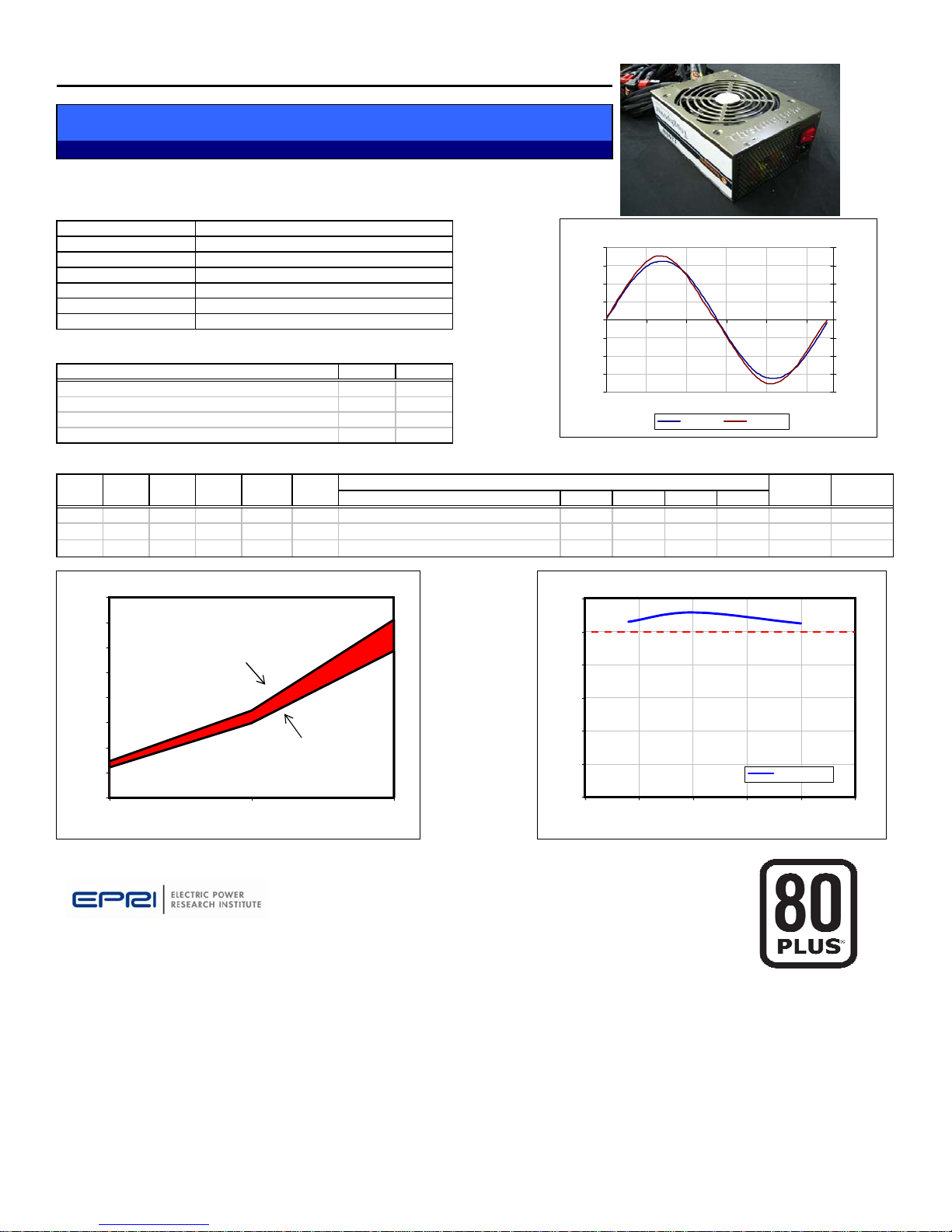

80 PLUS Verification and Testing Report

TYPICAL EFFICIENCY (50% Load):

AVERAGE EFFICIENCY :

80 PLUS COMPLIANT: YES

alue Units

100-240 Volts

15 Amps

47-63 Hz

1200 Watts

Note: All measurements were taken with input voltage at 115 V nominal and 60 Hz. Input AC Current Waveform (ITHD = 5.53%, 50% Load)

IRMS PF

A-12

3.3

5V* 5VSB

2.56 0.99 9.2% 20% Light 291 11.9/0.1 3.3/4.9 5/4.9 5/0.6 241 82.97%

6.07 1.00 5.5% 50% Typical 696 12/0.3 3.2/12.2 5/12.2 4.9/1.4 597 85.77%

12.37 1.00 3.4% 100% Full 1421 12.2/0.7 3.1/24.3 4.8/24.5 4.7/2.9 1172 82.46%

Tested by Electric Power Research Institute, Knoxville, TN.

5/19/2008

Efficiency

Rated Output Power

Load

(%)

Rated Specifications

Input Voltage

Input Current

ITHD (%) Input

Watts

Fraction

of Load DC Terminal Voltage (V)/ DC Load Current (A) Output

Watts

12V (cumulative of 12V1, 12V2, etc.)

12/16.3

12/40.7

11.8/81.3

Test Date

Input Frequency

667

Type

Ecos ID #

Model Number

Serial Number

Year ATX12V & EPS12V

2008

Manufacturer

85.77%

83.73%

THERMALTAKE

W0156 Toughpower 1200 AP

Input and Output Power

Input Watts

Output Watts

200

400

600

800

1000

1200

1400

1600

20% 50% 100%

Loading (% of Rated Output Power)

Power (Watts)

Efficiency of the Power Supply

30%

40%

50%

60%

70%

80%

90%

0% 25% 50% 75% 100% 125%

Loading (% of Rated Output Power)

Efficiency (%)

Efficiency %

These tests were conducted as a part of the 80 PLUS program. 80 PLUS is

a computer buy-down program to promote high-efficiency power supplies

(greater than 80% efficiency in the active mode) in desktop computers and

desktop-derived servers.

Input Current and Voltage Waveforms

-200

-150

-100

-50

100

150

200

0 0.003 0.006 0.009 0.012 0.015

Time (s)

Voltage (V)

-20

-15

-10

-5

Current (A)

Voltage Current
