Thermaltake TR2-430W Power Supply

TR2-430W

power Supply

170 X 140 mm

W0069-70 TR2-430W Manual A05112801

170 X 140 mm

W0069-70 TR2-430W Manual A05112801

>> >>>> 11

User's manual User's manual

Thermaltake TR2 Power SupplyThermaltake TR2 Power Supply

TR2-430W Power Supply TR2-430W Power Supply

Table of contents

1. Introduction ---------------------------------------

2. Installation

2.1 Usage Illustration ---------------------------

2.2 Installation Steps ---------------------------

3. Product

--------------

4. -------------------------------

Specification

3.1 Output Specification -----------------------

3.2 TR2-430W Power Supply ---

Trouble Shooting

Note :

170 X 140 mm

W0069-70 TR2-430W Manual A05112801

>> 10>> 01

User's manual User's manual

Thermaltake TR2 Power SupplyThermaltake TR2 Power Supply

TR2-430W Power Supply TR2-430W Power Supply

1. Introduction

Should you have any questions regarding the

aforementioned steps, please contact Thermaltake

directly. Failure to follow the proper procedures may

cause severe bodily harm or PC component damage.

For Support or General Inquiries, please contact us at:

Thermaltake Technology USA

Toll Free: (800)988-1088

Email: [email protected]

Thermaltake Europe B.V.

Tel:+31-10-409-0150

Email: [email protected]

Thermaltake Beijing Co.Ltd.

Tel:+86-10-82883159/3189 ext.16

Email: [email protected]

Thermaltake Australia and New Zealand Pty Ltd

Tel:+613-9763-1622

Email: [email protected]

Thermaltake Japan Inc.

Email: [email protected]

We live up to the promise of Thermaltake logo in

our unending quest for excellence.

Shall you have any suggestion or comments,

please access our web site :

http://www.thermaltake.com

http://www.tr2tt.com

or e-mail to :

[email protected]

we appreciate your kindly feedback and you will

receive the prompt response from our customer

service team.

Thank you for choosing a quality Thermaltake

TR2-430W PC Power Supply. We trust that you will

find it providing you with many years of service.

You can always find a Thermaltake TR2-430W PC

Power Supply that is suitable for all of your modern PC

power needs.

Please take the time in familiarize yourself with the power

supply, its connectors and the contents of this manual

before proceeding with the installation of the power unit.

You will need a Phillips crosshead screwdriver, perhaps

your PC case manual and most certainly your

motherboard manual.

170 X 140 mm

W0069-70 TR2-430W Manual A05112801

>> 02>> 09

User's manual User's manual

Thermaltake TR2 Power SupplyThermaltake TR2 Power Supply

TR2-430W Power Supply TR2-430W Power Supply

Condition 1: No DC output. The fan or fans are motionless

Check:

1-1 Is the AC inlet plug firmly plugged into the PSU inlet

socket?

1-2 Is the wall socket, extension power cord, power strip

or surge protector in use, fully functional and wall power

switch turned 'ON'?

1-3 Is the Main Board socket (24pin) plug fully and firmly

inserted?

Condition 2: The fan or fans began rotating and then stopped.

The system hangs without proceeding any further.

Check:

2-1 Are the peripheral connectors firmly plugged into

accessory devices, such as the main hard drive, CD ROM

, etc?

2-2 If a plug has been inadvertently connected in an off-set or

reversed position, unplug the AC power source, reconnect

the offending connectors and then wait for 30 seconds

before replug in the AC power source and try again.

Note:

If the power supply still cannot or is still unable to power up after

following the above instruction, please send the unit back to

your dealer or retailer for after sales service.

4. Trouble shooting

2.1.1 Do not pull the AC power cord when the power supply is in

use or else damage to components will result.

2.1.2 Do not store the Power Supply in a high humidity and high

temperature environment.

2.1.3 When using an ATX type Power Supply under testing

conditions where the power supply is not installed in a PC

and to components, a"load" such as a hard drive for example,

must be connected to the power supply before being

switched on. When the power supply is turned on, the fans

will start to rotate and DC power will be available.

2.1.4 High voltages exist in the power supply. Do not open the

power supply case unless you are an authorized service

technician or electrician.

2.1.5 All warrantees and guarantees shall be voided should there

be a failure to comply with any of the warnings and cautions

covered in this manual.

2 Installation

2.1 Usage illustration

170 X 140 mm

W0069-70 TR2-430W Manual A05112801

>> 08>> 03

User's manual User's manual

Thermaltake TR2 Power SupplyThermaltake TR2 Power Supply

TR2-430W Power Supply TR2-430W Power Supply

2.2 Installation steps

To prevent electrical shocks, please disconnect the power cord

from your existing power supply unit.TR2-430W Power Supply

has Voltage Selector which will change to 115V / 230V.

Installation Steps

24-pin

Main Connector

4-pin

+12V Power

Connector

4-pin

Peripheral Power

Connector

4-pin

Floppy Drive

Connector

6-pin

PCI Express

Connector

Total Output Connector

X1 X1 X9 X2 X2

5-pin

SATA Connector

Technology Features

Cable Application

Dual Fan - BackFan

Intelligent Cable Management:

>> Black cable sleeving / Optimum air-flow

New 24(20) pin

Main connector Design

2.2.1 Disconnect the power cord from your old power supply.

2.2.2 Follow your computer case manual and disassemble the case.

2.2.3 Disconnect all the power connectors from the motherboard

and from the peripheral devices such as case fans, hard drives,

floppy drives. etc.

2.2.4 Remove the existing power supply from your computer case

and replace it with your new Thermaltake TR2-430W

Power Supply

2.2.5 Connect the power connectors to the motherboard and

peripheral devices (refer to the rest of this manual to match the

various one-way key-locked connectors to the motherboard

and accessories).

2.2.6 Connect the 6-pin PCI Express connector to PCI Express

graphic card if you need.

Note: Please read the user manual supplied with your graphic card

for detail usage instructions.

2.2.7 Close the computer case.

2.2.8 Make sure your power supply switch is on "OFF" position,

and Connect the supplied power cord to your Thermaltake

TR2-430W Power Supply PSU.

Dual Fan - FrontFan Dual Fan Design-

Optimum Air flow

+5 V -5 V+3.3 V +12 V -12 V +5 VSB

30 A 28 A 18 A 0.5 A 0.8 A 2 A

1.0 A 1.0 A0.5 A 0 A 0 A 0 A

+5% ~ -5% +5% ~ -5% +5% ~ -5% +10% ~ -10% +10% ~ -10% +5% ~ -5%

120

100

150

Min.

Load

Ripple

V(p-p)

Load

Reg.

Max.

Load

6-pin PCI Express

Connector

170 X 140 mm

W0069-70 TR2-430W Manual A05112801

>> 04>> 07

User's manual User's manual

Thermaltake TR2 Power SupplyThermaltake TR2 Power Supply

TR2-430W Power Supply TR2-430W Power Supply

PCI Express connector(6 pin)

Main Power Connector

Voltage

+3.3 V

COM

+5 V

COM

+5 V

COM

PWR_ON

+5 Vsb

+12 V1

+3.3 V

Voltage

+3.3 V

-12 V

COM

PS_ON#

COM

N/C

+5 V

COM

Color

Orange

Black

Red

Black

Red

Black

Purple

Yellow

Orange

Color

Orange

Blue

Black

Green

Black

N/C

Red

Black

Gray

Color Signal Pin

Yellow 12V1DC 1

Yellow 12V DC12

Yellow 12V DC13

Black COM 4

Black COM 5

Black COM 6

Features:

Black

Color

> 65%

16ms

47 ~ 63 Hz

115 VAC / 230 VAC

INPUT

Input Voltage

Input

Frequency

Range

Input Current

Hold-up Time

Efficiency

Net Weight

PFC

PFC (Power

Factor

Correction)

Noise

430 Watts

Maximum Power

SPECIFICATION

16cm(L)x15cm(W)x8.6cm(H)

Unit Size

DIMENSIONS

+5V trip point < +7.0V

+3.3V trip point < +4.5V

+12V trip point < +15.6V

Over Voltage

Protection

Recycle AC to

Reset

100-500 ms

P. G. Signal

Cooling System

ATX Logic on off additional power

rocker switch(115/230 V selector switch)

Switches

9.0A/5.0A

INPUT

DIMENSIONS

P/N W0069 W0070

N/A

19dB at 2000 RPM

2.6 kg 2.6 kg

Dual Fan Design-Optimum Air flow:

80 x80 x 25 mm, One fan outlet, the

other fan for intake (one faces back,

other faces front)

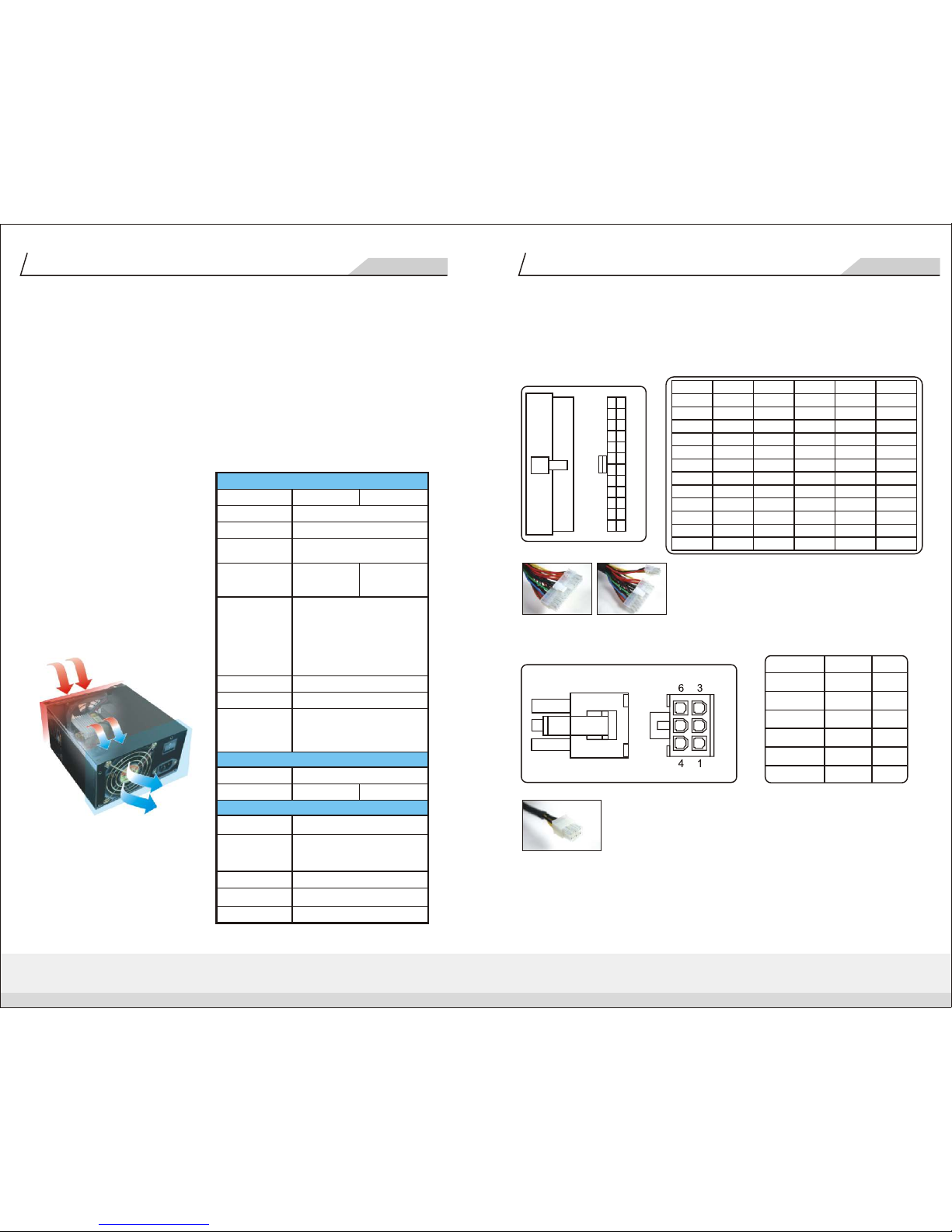

3.2 SpecificationTR2-430W Power Supply

3.1 Output specification

3. Product Specification

Dual 8 cm Fan:

SPEED : 2400 RPM(+/-10%)

DIMENSION : 80 x 80 x20 mm

TEMP. AUTO CONTROL

3010 RPM at 25C~3070 RPM at 45 C

- Supports 6-pin PCI-Express connector.

- PFC function, improved energy efficiency and reduced current

load on AC delivery systems.

- Dual 8cm fan, provide best air-flow to cool your PC system.

- Intelligent Black Cable

Sleeving, provide optimum

air flow inside the case.

- Protections against Over

Power, Over Voltage,

Short-Circuit, and

Protection Reset.

- Safety / EMI Approvals:

FCC, UL, CUL, CSA, and

CE certification.

170 X 140 mm

W0069-70 TR2-430W Manual A05112801

>> 06>> 05

User's manual User's manual

Thermaltake TR2 Power SupplyThermaltake TR2 Power Supply

TR2-430W Power Supply TR2-430W Power Supply

Floppy disk connector(4 pin)

Peripheral connector (4pin)

Serial ATA PowerConnector

+12V connector (4pin)

Color Signal Pin

Yellow

Black

Red

+12V1DC

COM

+5VDC

Color Signal Pin

Red

Black

Black COM

COM

+12V1DC

Yellow

+5VDC

Color Signal Pin

Yellow +12V2DC 3

Yellow +12V DC24

Black COM 1

Black COM 2

Yellow +12V 1DC 1

Black COM 2

Red +5VDC 3

Black COM 4

Orange +3.3 VDC 5

Color Signal Pin

170 X 140 mm

W0069-70 TR2-430W Manual A05112801

Indice

Altri manuali Thermaltake Alimentazione elettrica

Thermaltake

Thermaltake Toughpower 1500W Manuale utente

Thermaltake

Thermaltake W0103 Toughpower 600 AP Manuale del proprietario

Thermaltake

Thermaltake W0163 Toughpower QFan 650 A Manuale utente

Thermaltake

Thermaltake Toughpower XT TPX-575M Manuale utente

Thermaltake

Thermaltake EVO Blue Manuale utente

Thermaltake

Thermaltake Toughpower Grand TPG-850M Manuale utente

Thermaltake

Thermaltake ATX 12V 2.2 Manuale utente

Thermaltake

Thermaltake W0132 Manuale utente

Thermaltake

Thermaltake TR2 Manuale utente

Thermaltake

Thermaltake Dr.Power II Manuale utente

Thermaltake

Thermaltake TOUGHPOWER GF1 ARGB 850W Manuale utente

Thermaltake

Thermaltake W0172 Toughpower 850 AP Manuale utente

Thermaltake

Thermaltake W0131RU Manuale utente

Thermaltake

Thermaltake TOUGHPOWER PF3 1200W Manuale utente

Thermaltake

Thermaltake LITEPOWER PRO 550W Manuale utente

Thermaltake

Thermaltake W0158 Manuale utente

Thermaltake

Thermaltake Toughpower XT Series Manuale utente

Thermaltake

Thermaltake ATX 12V 2.2 Manuale utente

Thermaltake

Thermaltake EPS 12V 2.91 Manuale utente

Thermaltake

Thermaltake W0105 Manuale utente

Thermaltake

Thermaltake Litepower 400W Manuale utente

Thermaltake

Thermaltake Toughpower Grand Manuale utente

Thermaltake

Thermaltake W0116RU Manuale utente

Thermaltake

Thermaltake Toughpower Grand 1200W Manuale utente

Manuali Alimentazione elettrica popolari di altre marche

Monacor

Monacor PS-12CCD Manuale utente

VOLTIMA

VOLTIMA MagicBox 15 Manuale utente

Agilent Technologies

Agilent Technologies 6032A Manuale utente

Miller

Miller Auto Deltaweld 452 Manuale utente

BCP

BCP PUOUBK Foglio di istruzioni

HC 2210 Manuale utente

Puls

Puls CT5.241 Manuale utente

OCZ

OCZ ZX1250W Manuale utente

iseg

iseg ECH 238 Manuale utente

Power

Power XXL A Series Manuale utente

Agilent Technologies

Agilent Technologies 6631B Manuale utente

Renogy

Renogy PHOENIX 300 Manuale utente

HP 6200B Manuale di servizio

Epson

Epson Stylus Scan 2500 Manuale operativo

Pulsar

Pulsar GREEN POWER CCTV PoE POE044816 Manuale utente

Puls

Puls MiniLine ML50.100 Manuale utente

Puls

Puls AS-Interface SLA4.100 Manuale utente

Kenwood

Kenwood PS-60 Manuale utente
