Thetford DC-0740S Manuale utente

PARTS LIST

DC0740B (Panel Type Door - Black)

DC0740S (Panel Type Door - Stainless)

DC0740W (Wrap Type Door - Stainless)

DC0740 SERIES

PART#632356

NORCOLD 12/12/2007

DC0740SERIESPARTSLIST -PAGE 2

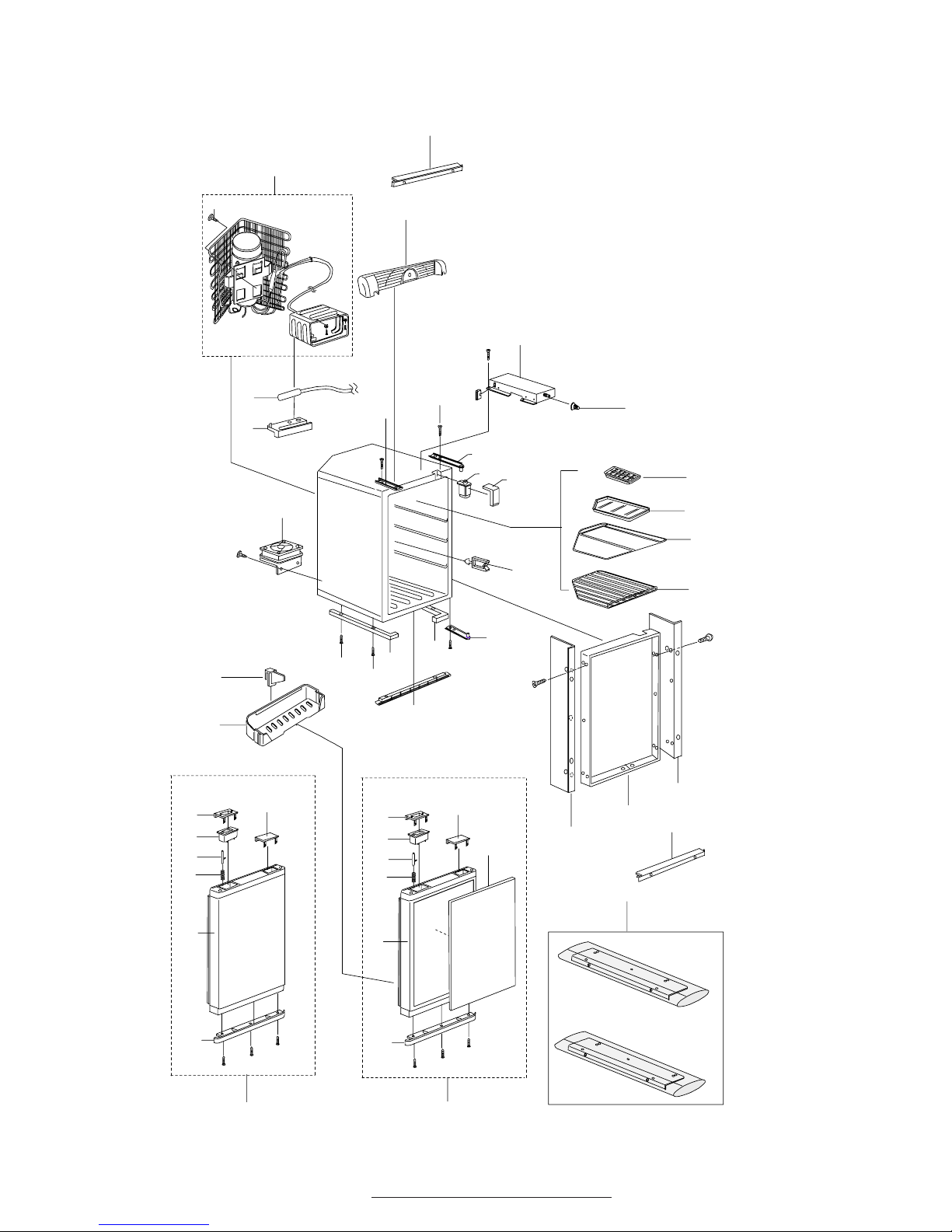

REFRIGERATOR ASSEMBLY - DC0740 SERIES

29 29

30 30

32 33

Panel Type Door

Wrap Type Door

DC0740SERIES PARTSLIST -PAGE 3

REFRIGERATOR ASSEMBLY - DC0740 SERIES

Continued on Page 4

NO. PART # DESCRIPTION DC0740B DC0740S DC0740W

1 422513700 COVER-CONTROL/BLACK X

422513710 COVER-CONTROL/STAINLESS X X

2 163010702 POWERSUPPLY-DC X X X

3 160220100 KNOB-THERMOSTAT X X X

4 300207400 PLATELATCH X X X

5 501042700 BOLT/SCREW X X X

6 160932620 HINGE X X X

7 416027200 BUSHING-RUBBER/CABINET/COOLING UNIT TUBING X X X

8 404006300 BUSHING-"I"/PLASTIC/CABINET/COOLING UNIT TUBING X X X

9 645109400 HOLDER-SHELF/REAR X X X

10 422601400 FRAME-CABINET BOTTOM/BLACK X

422601410 FRAME-CABINET BOTTOM/STAINLESS X X

11 427401100 SUPPORT-LOWER CABINET/RH X X X

12 427401010 SUPPORT-LOWER CABINET/LH X X X

13 80830431610 SCREW-BOTTOM LEG X X X

14 160928900 FAN ONLY-50 CYCLE/40 WATT X X X

15 422305000 HOLDER-THERMISTER/AT EVAPORATOR X X X

16 605505420 THERMISTER-EVAPORATOR X X X

17 161011400 COOLING UNIT X X X

18 500013600 SCREW X X X

19 160203000 ICECUBETRAY X X X

20 433003800 DRAINAGEPAN X X X

21 523003610 SHELF-UPPER/HOLDS DRAINAGEPAN X X X

22 523003600 SHELF-LOWER X X X

23 323012520 FRAME-CABINET SIDE/RH/BLACK X

323012530 FRAME-CABINET SIDE/RH/STAINLESS X X

24 322376501 COVER-CABINET FRAME/FRONT/4 SIDES X X X

25 323012420 FRAME-CABINET SIDE/LH/BLACK X

323012430 FRAME-CABINET SIDE/LH/BLACK X X

26 160057500 DOOR ASSY-WITHOUT DOOR POCKET/PANEL TYPE/BLACK X

160057510 DOOR ASSY-WITHOUT DOOR POCKET/PANEL TYPE/STAINLESS X

160057520 DOOR ASSY-WITHOUT DOOR POCKET/STAINLESS/WRAP TYPE X

27 422603500 DOOR FRAMECOVER-BOTTOM/BLACK X

422603510 DOOR FRAMECOVER-BOTTOM/STAINLESS X X

28 160948700 DOORFRAMEASSY-PANEL TYPE/BLACK (FOAM LINER) X

160948710 DOORFRAMEASSY-PANEL TYPE/STAINLESS (FOAM LINER) X

160949100 DOOR FRAMEASSY-WRAP TYPE/STAINLESS (FOAM LINER) X

29 520004410 SPRING-TRAVEL LATCH X X X

30 505503420 PIN LATCH X X X

DC0740SERIES PARTSLIST -PAGE 4

REFRIGERATOR ASSEMBLY - DC0740 SERIES (Continued from Page 3)

NO. PART # DESCRIPTION DC0740B DC0740S DC0740W

31 422513900 HANDLE-DOOR/BLACK X

422513910 HANDLE-DOOR/STAINLESS X X

32 422114500 COVER LATCH-BLACK X

422114510 COVER LATCH-STAINLESS X X

33 422114600 COVER PLATE-BLACK X

422114610 COVER PLATE-STAINLESS X X

34 302313440 DOOR PANEL-BLACK X

302313450 DOOR PANEL-STAINLESS X

35 422508710 DOOR POCKET-DOOR SHELF BIN X X X

36 422508610 PARTITION-DOORPOCKET X X X

37 323011900 FRAME-CABINET/TOP/BOTTOM/BLACK X

323011910 FRAME-CABINET/TOP/BOTTOM/STAINLESS X X

38 323012400 FRAME-CABINET/LH/FLUSH MOUNT KIT/BLACK/0740 X

323012410 FRAME-CABINET/LH/FLUSH MOUNT KIT/STAINLESS/0740 X X

323012500 FRAME-CABINET/RH/FLUSH MOUNT KIT/BLACK/0740 X

323012510 FRAME-CABINET/RH/FLUSH MOUNT KIT/STAINLESS/0740 X X

NS 606901100 FERRITECORE X X X

NS = NOT SHOWN
