THOMSON Grass Valley TRITON TTN-BTS-6464/34 Manuale utente

MANUAL PART NO. 071

8236

00 R

ev. 0

MARCH 20, 2003

INSTALLATION MANUAL

TRITON routing switcher

Telecom Data Router 64x64

34/45 Mbps

Product model no. TTN-BTS-6464/34

the most watched worldwide

Headquarters

Thomson Broadcast Systems

17 rue du Petit Albi -BP 8244

95801 Cergy Pontoise Cedex

FRANCE

Thomson Broadcast and

Media Solutions, Inc.

P.O. Box 599000

Nevada City, CA 95959-7900

USA

Copyr

Triton are trademarks of Thomson. Specifications subject to change without notice.

For customer service, please call (800) 547-8949. For comments or questions concerning this manual, please

contact: Technical Publications Department, P.O. Box 30816, Salt Lake City, Utah 84130 USA. Phone: (801)

972-8000. Fax: (801) 977-1602. Email: [email protected]

iii

Contents

Electromagnetic Radiation Notice v

Hardware Warranty and Software License vi

Parts and Service vi

Revision history vii

1General 1

1.1 Specifications 1

1.2 Connection drawing 2

2Power connection 3

2.1 Power supply for RECL8 3

3Connecting the BTS-6464/34 to your PC 4

3.1 Selection of router level 4

3.2 Pin-out of RS-232 connector 4

3.3 Maximum cable length 4

4NCB connection 5

4.1 Several routers in one system 5

4.2 Connecting control panels 5

4.3 Pin-out and cable type 6

4.3.1 RJ45 connectors 6

4.3.2 5-pin DIN connectors 6

4.3.3 RJ45 to 5-pin DIN converter 7

4.4 Control bus structure 7

4.5 Maximum distance between NCB devices 7

4.6 Control Bus configuration notes 7

5Router configuration9

5.1 Router level 9

5.2 Router mode 9

5.3 Vertical interval trigger 9

5.4 Power up mode 10

6Connecting signals to the BTS-6464/34 10

7Control and connection of Triton systems, interface protocol 11

7.1 Important notes regarding the Triton Control Protocol 11

7.1.1 Binary Code 11

7.1.2 Echo 11

7.1.3 RS-422 Matrixes 11

7.1.4 Timeout 11

7.2 Basic principles 11

7.2.1 Example: A single unit with no NCB connected 11

7.2.2 Example: Several units connected by NCB 12

7.3 RS232 12

7.4 NCB 12

7.5 Commands 13

7.5.1 Audio crosspoint set 13

7.5.2 Audio crosspoint set acknowledge 13

7.5.3 Video crosspoint set 13

7.5.4 Video crosspoint set acknowledge 14

7.5.5 Crosspoint status request 14

Electromagnetic Radiation Notice

The following information is given to note compliance with the United States Government Federal Communications

Commission (FCC) Rules (47 CFR Part 15) designed to limit interference to radio and TV reception. The ruling establishes

measurement procedures and frequency criteria for Class A computing devices (commercial and industrial applications) with

the following conduction and radiation limits:

CLASS A COMPUTING DEVICE: CONDUCTION LIMIT (Part 15.812)

Frequency (MHz) Maximum RF Line Voltage (uV)

0.45 -1.6 1000

1.6 -30 3000

CLASS A COMPUTING DEVICE: RADIATION LIMIT (Section 15.810)

Frequency (MHz) Distance (meters) Field Strength (uV/m)

30 -88 30 30

88 -216 30 50

216 -1000 30 70

The policy of Thomson is one of continual development and improvement. For that reason Thomson uses components and

manufacturing techniques that provide the current state-of-the-art suppression of electromagnetic radiation. This equipment, in

production before October 1, 1981, has not been tested to the above listed measurements. However, equipment such as this

delivered after October 1, 1983 will have the measurements on record at the factory. Therefore, in compliance with the stated

FCC Regulation, the following information is provided for the user:

NOTE

Interference to Radio Communications

This equipment generates, uses, and can radiate radio frequency energy and if not installed and used

in accordance with the instruction manual, may cause interference to radio communications. As

temporarily permitted by regulation it has not been tested for compliance with the limits for Class A

computing devices pursuant to Subpart J of of Part 15 of FCC Rules, which are designed to provide

reasonable protection against such interference. Operation of this equipment in a residential area

is likely to cause interference in which case the user at his own expense will be required to take

whatever measures may be required to correct the interference.

vi Hardware Warranty and Software License

Please contact your local Thomson representative for

hardware warranty and software license information.

Parts and Service

Thomson maintains a full stock of replacement parts available for immediate shipment.

NORTH AMERICA PARTS AND SERVICE

Please call toll-free 1-800-547-8949.

You will be switched automatically to the parts and service representative nearest you.

For email correspondence: broadcast-[email protected]

Internet: http://www.thomsongrassvalley.com

INTERNATIONAL PARTS AND SERVICE

Contact your Thomson representative.

vii

Revision history

Current revision of this document is the uppermost in the table below.

Revision Replaces

Date Change Description

0 -20/03/03

Initial Revision

BTS-6464/34 Rev. 0

1General

The BTS-6464/34 is a 64x64 telecom router for 34Mbit/s or 45Mbit/s data rate. BTS-6464/34 meets

ITU-T G.703 for HDB3 coded signals. The BTS-6464/34 routing system consists of one broadband router

(6RU) and eight equalizing and re-clocking units (each 1RU). This combination provides maximum

signal quality with automatic cable equalizing and re-clocking of incoming signals. This state of the art

router provides high performance circuits in SMD technology for maximum system performance. The

built-in RS-232 interface allows the user to control the router via the Triton Router Control System PC

software with many operational features. One or several Triton remote control panels can control the

BTS-6464/34 as well.

1.1 Specifications

Data rate: 34Mbit/s -45Mbit/s G.703 HDB3

VIT input: Comp. Video 1Vpp, 300mV sync, 75 ohms

Number of inputs: 64, terminated

Equalisation: Automatic up to 200m ( Belden 8281 )

Number of outputs: 64

Impedance: 75 ohms

Return-loss: > 16dB (10MHz-270MHz)

Signal level: 1000mV fixed, 75 ohms load

Connector: BNC

AC power: External power supply 100 -260 VAC

Power option: 24 – 72VDC

DC power: +5V, connector DB9 male

Dimensions: 483 x 616 x 120 mm (19”, 14RU)

BTS-6464/34 Rev. 0

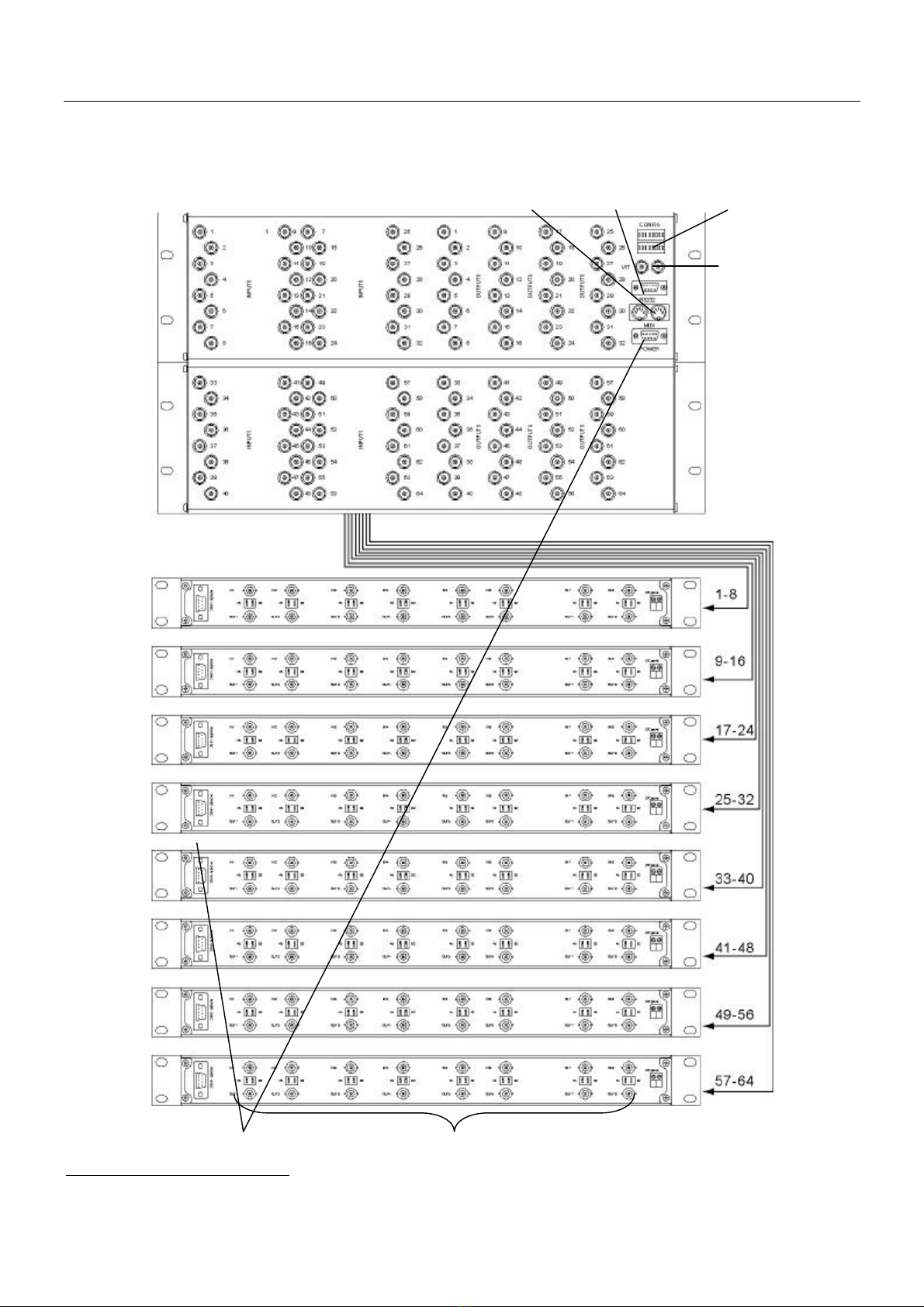

1.2 Connection drawing NCB1RS-232 port Configuration switches

Power connectors Output connections

1Network Control Bus. The protocol of this bus is equal, and compatible to the MIDI bus protocol.

VIT input

(not in use)
